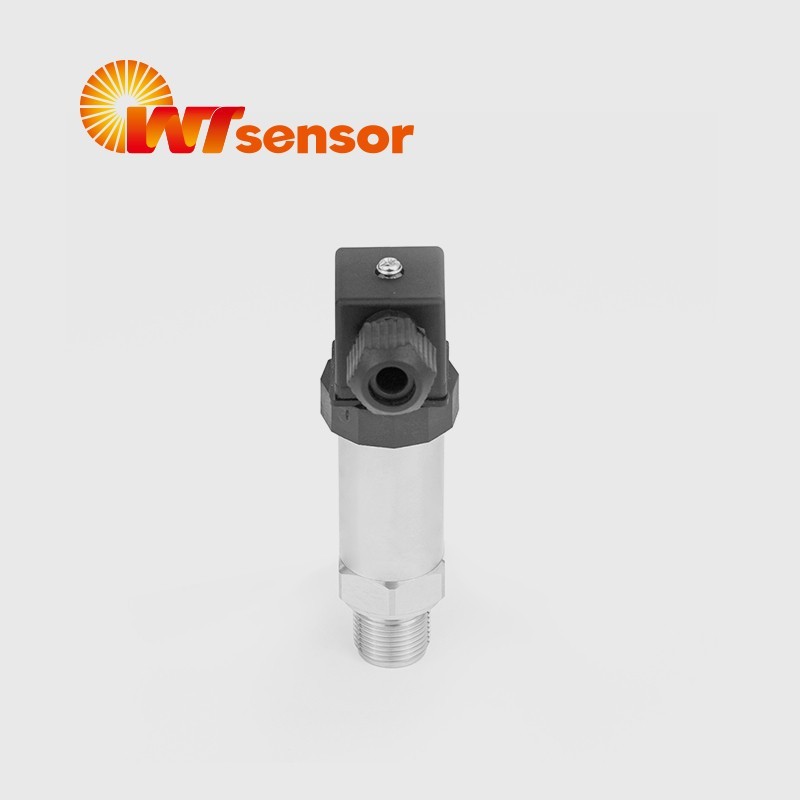

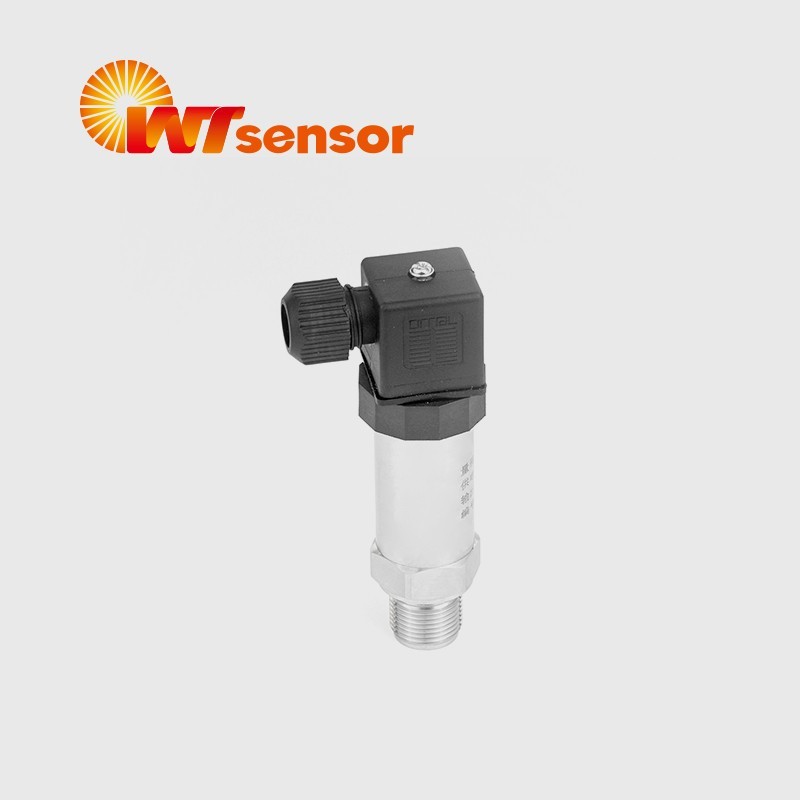

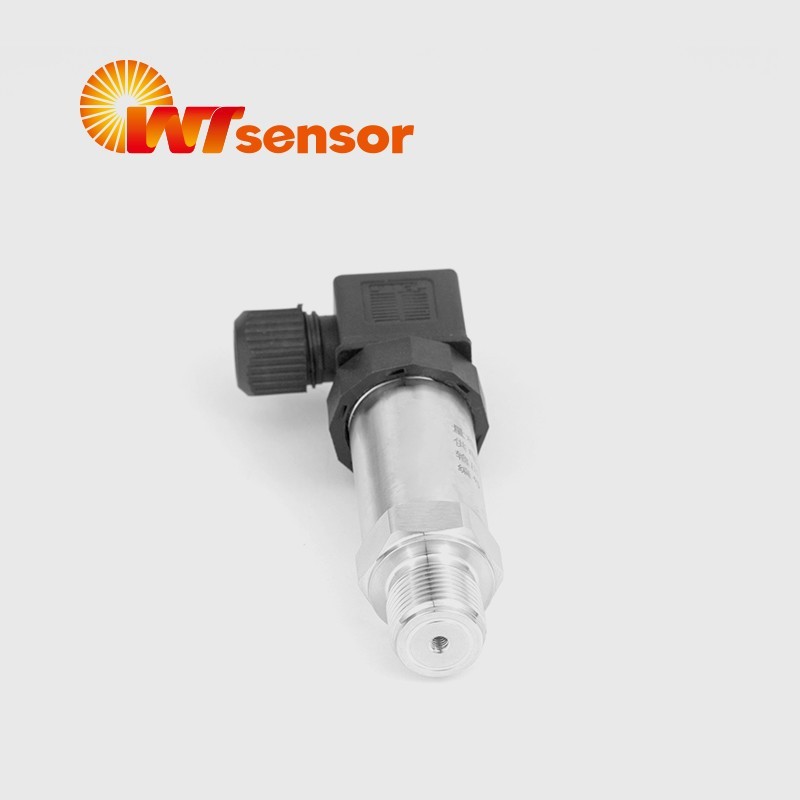

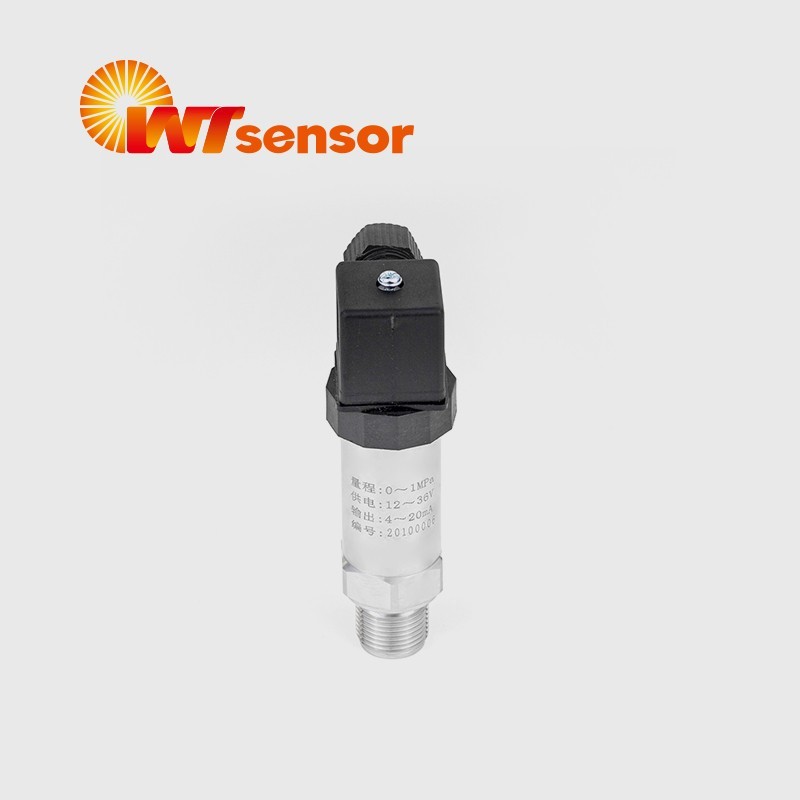

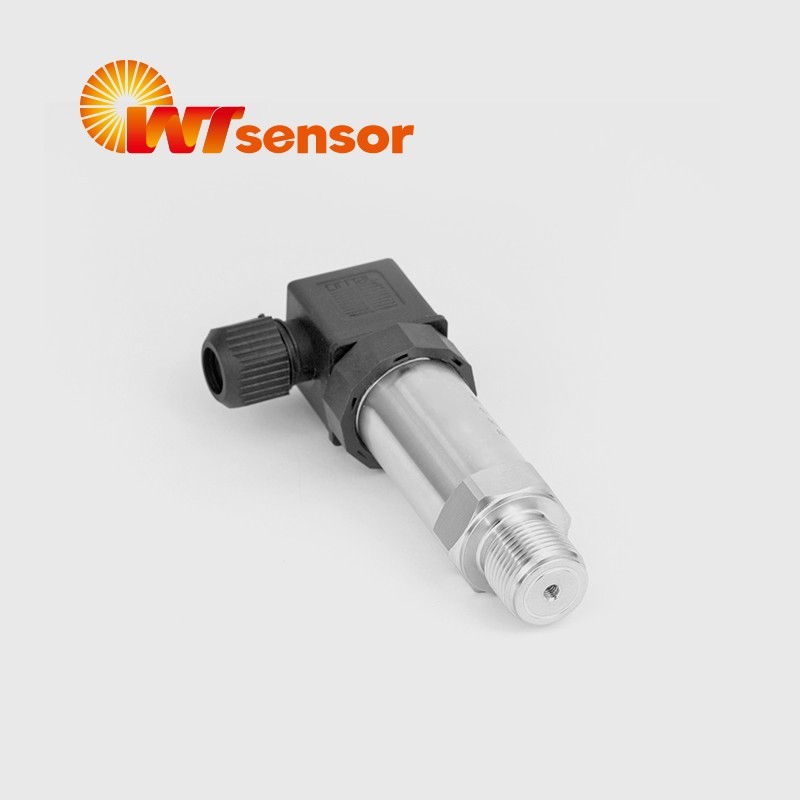

PCM303D Pressure Transmitter

Features

 SS316L diaphragm structure

 High accuracy, all stainless steel structure

 Small size and light weight

 Strong anti-interference,good long-term stability

 Diversified formal structures,easy installation and use

 Wide pressure range, can measure the absolute pressure, gauge pressure and sealed gauge pressure

 Anti-vibration, shock resistance

Applications and industries

 Process control

 Aerospace

 Automobile and medical equipment

 Pipeline system

Product overview

PCM303D is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.



Product Parameters

Performance parameters

Pressure range

-100kPa0kPa35kPa60MPa

Pressure reference

Gauge pressure, Absolute pressure, Sealed gauge pressure

Accuracy

0.5%FS

Hysteresis

0.1%FS

Repeatability

0.1%FS

Temperature drift

≤35kPa: ±3%FS(060

Other ranges: ±1.5%FS(-1070

Power-on response time

≤90ms (Up to 90%FS)

Overpressure

Refer to “Pressure Range Selection” section

Service life

≥1×106 pressure cycles

Ambient temperature

-2085

Medium temp.

-30105

Storage temp.

-40125

EMC

Immunity: IEC 61000-6-2, Radiation: IEC 61000-6-3

Insulation resistance

≥250MΩ/500VDC(100MΩ/250VDC)

Vibration resistance

Sine curve: 20g, 25Hz2kHz; IEC 60068-2-6


Random: 7.5grms, 5Hz1kHz; IEC 60068-2-64

Shock resistance

Shock: 200g/1ms; IEC 60068-2-27


Free falling body: 1m; IEC 60068-2-32

Protection grade

IP65

Surge

IEC 61000-4-5 Grade 3  2KV

Voltage resistance

Current output: 500V/AC 1min

Static electricity

IEC 61000-4-2 Grade 4

Medium compatibility

All kinds of media compatible with SS304

Hexagon

HEX27

Ex-proof grade

Intrinsically safe explosion-proof ExiaCT6 (only for 420mA)

Net weight

150180g


Output and power supply



Code

B1

B3

B7

B6

B6N


Output

420mA

05V

010V

0.54.5V R/M

0.54.5V Non R/M


Power supply

1230VC

5VDC



Electrical connection & wiring mode



Connector code

J5: DIN43650

J4: M12×1



Dimension

In mm







Protection grade

IP65

IP65



Wring method

(2 wire current)

Pin 1: Power supply+ (Red)

Pin 2: Current output (Green)

Pin 1: Power supply+ (Red)

Pin 2: Current output (Green)



Wring method

(3 wire voltage)

Pin 1: Power supply+ (Red)

Pin 2: Common ground (Green)

Pin 3: Voltage output (Yellow)

Pin 1: Power supply+ (Red)

Pin 2: Common ground (Green)

Pin 3: Voltage output (Yellow)



Connector code

J3: Cable outlet

J3H: DIN43650 with cable


Dimension

In mm





Protection grade

IP65

IP65


Wring method

(2 wire current)

Red: Power supply+

Green: Current output

Red: Power supply+

Green: Current output


Wring method

(3 wire voltage)

Red: Power supply+

Green: Common ground

Yellow: Voltage output

Red: Power supply+

Green: Common ground

Yellow: Voltage output

Application of damper

Applications

image.pngCavitation, liquid hammer and pressure peak may occur in air or fluid systems with varying flow rates, such as the rapid closing of the valve or the start and stop of the pump.

Even at relatively low operating pressures, these problems may occur at the entrance and exit.

Media condition

In the liquid containing particles, nozzle clogging may occur. The vertical mounting of pressure transmitter minimizes the risk of clogging because the flow of fluid happens in initial start only, the volume of the rear of the nozzle is fixed and the nozzle has a relatively large aperture (1.2 mm).


Pressure range selection

Pressure range code

Pressure reference

Pressure range

Overpressure

Burst pressure

Note

(-1000)k

G

-1000kPa

300kPa

600kPa


10k

G

010kPa

300FS

600FS


35k

G, A

035kPa

300FS

600FS


70k

G

070kPa

200FS

500FS


100k

G, A

0100kPa

200FS

500FS


250k

G, A

0250kPa

200FS

500FS


600k

G, A

0600kPa

200FS

500FS


1M

G, A

01MPa

200FS

500FS


1.6M

G, A, S

01.6MPa

200FS

500FS


2.5M

S

02.5MPa

200FS

500FS


6M

S

06MPa

200FS

400FS


10M

S

010MPa

200FS

400FS


25M

S

025MPa

200FS

400FS


40M

S

040MPa

200FS

400FS


60M

S

060MPa

150FS

300FS


Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.
