  • High Range Pressure Transmitter PCM330

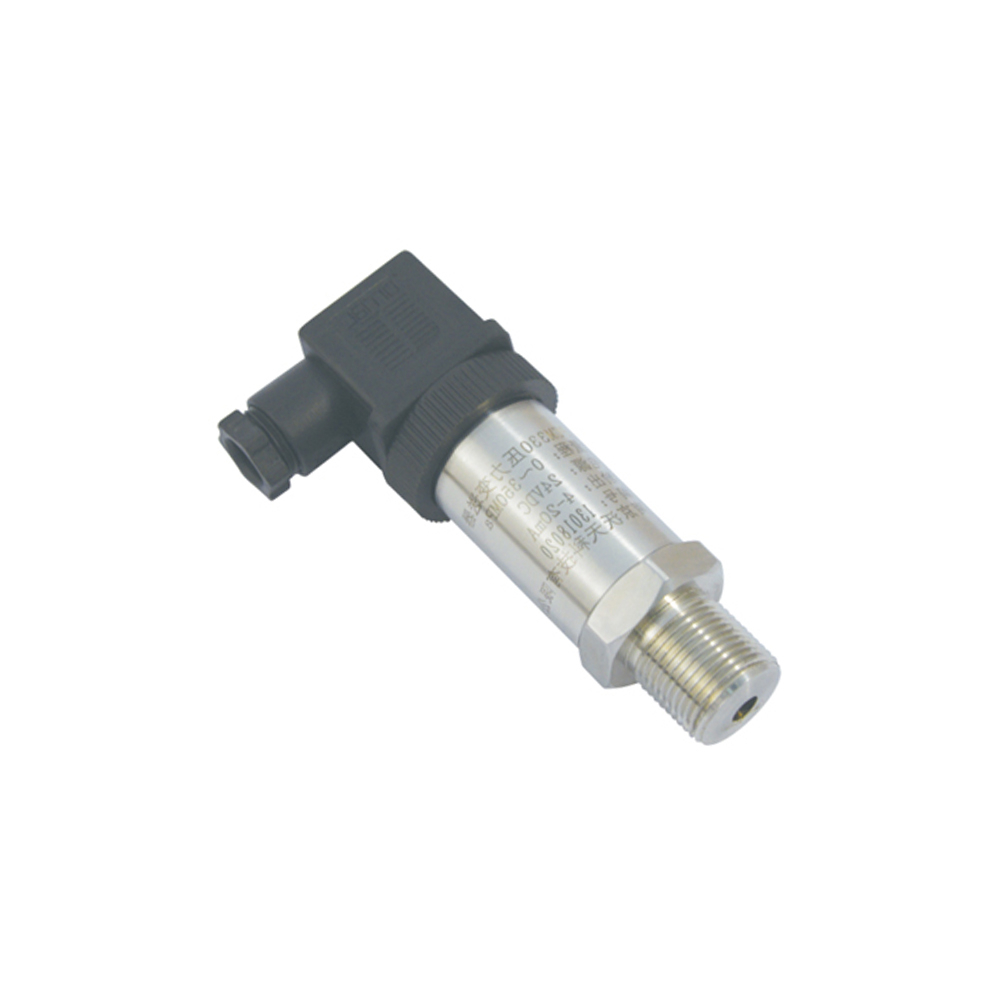

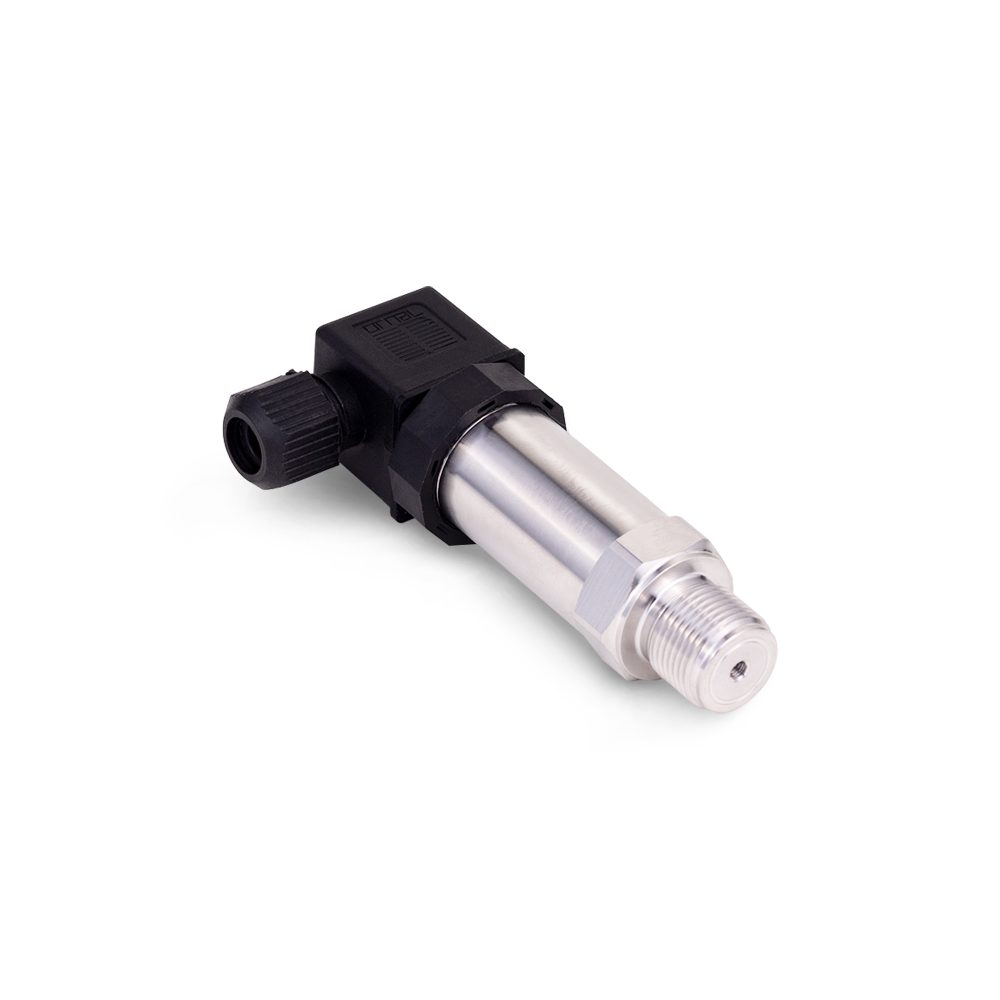

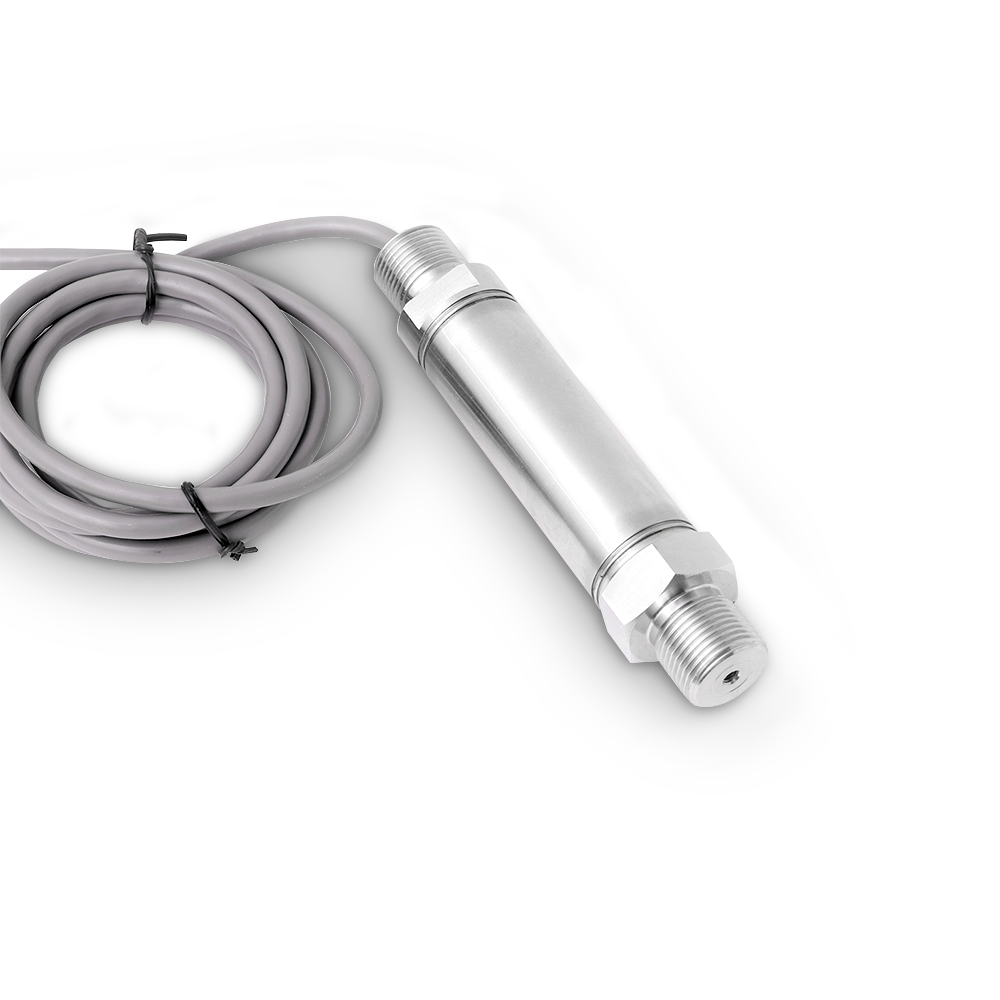

High Range Pressure Transmitter PCM330

Features

■ Measuring diaphragm and pressure interface one-piece structure

■ Thread interface USES 7 degrees of taper sealing surface

■ Resistance to vibration, the instantaneous pressure impact resistance

■ Can measure pressure up to 500MPa

■ With German import plugs, IP65 standard seal



China high range pressure transducer,Wotian high range pressure transmitter,Pressure transmitter manufacturer,integrated elastic structure high range pressure transducer,super high pressure transducer


China Wotian factory high range pressure transmitter choosing high precision foil strain gauge as sensing element, with a unique integrated elastic structure, good stability and reliability, mainly used for high pressure, super high pressure and impact pressure, able to measure pressure up to 600MPa

Product Parameters

Performance parameters

Pressure range

040MPa…500MPa

Pressure reference

Gauge pressure

Supply & output

420mA (930VDC)

Accuracy

0.5%FS, 0.25%FS

Operating temp.

-40℃85℃ and -40℃120℃ options

Compensated temp.

O℃70℃ and -20℃85℃ options

Storage temp.

-40℃125℃

Zero temp. error

±0.5%FS/10℃

Full span temp. error

±0.5%FS/10℃

Overpressure

1.25X pressure range

Burst pressure

1.5X pressure range

Load capacity

≥[(supply voltage-6.5V)/0.02A]Ω

Mechanical life

≥5000000 pressure cycles

Insulation resistance

≥500MΩ/1000VDC

Long-term stability

±0.15%FS/year



Production process

PCM330 High Range Pressure Transmitter
