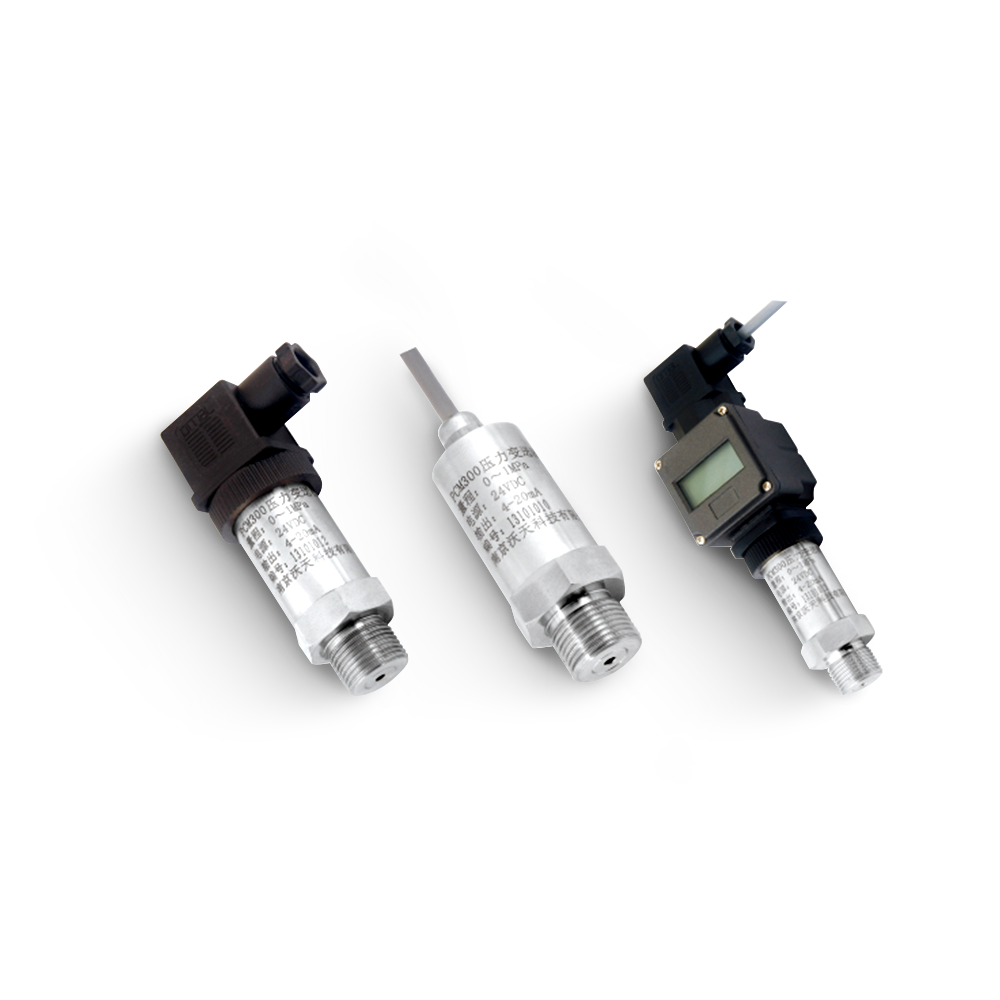

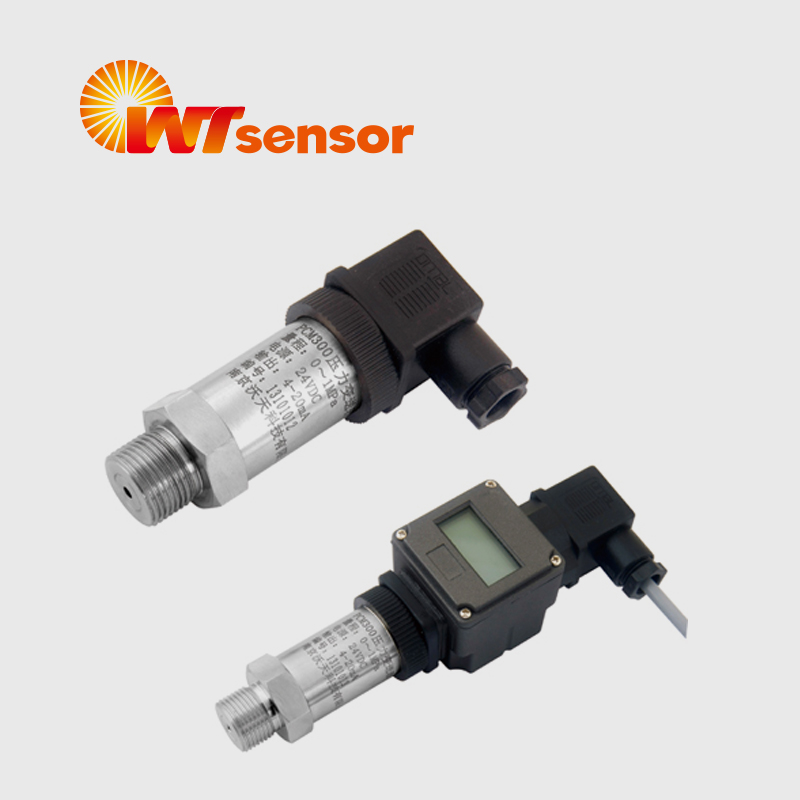

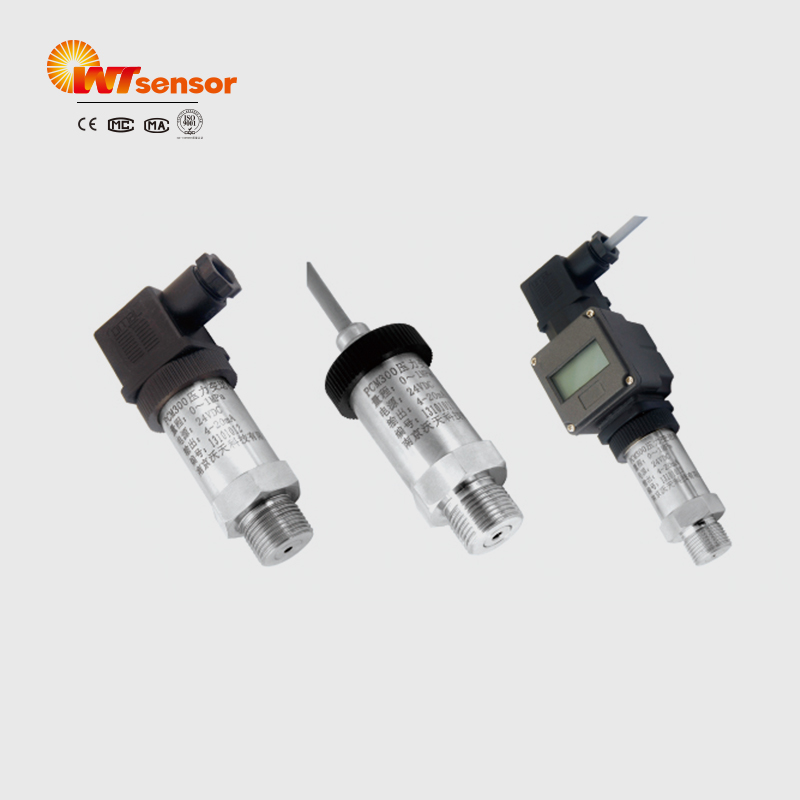

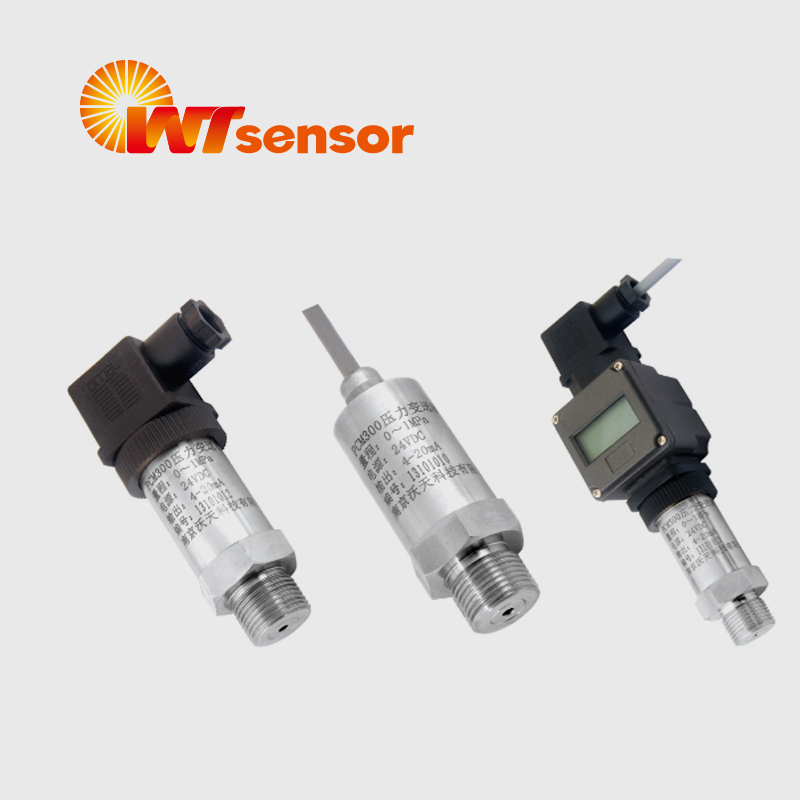

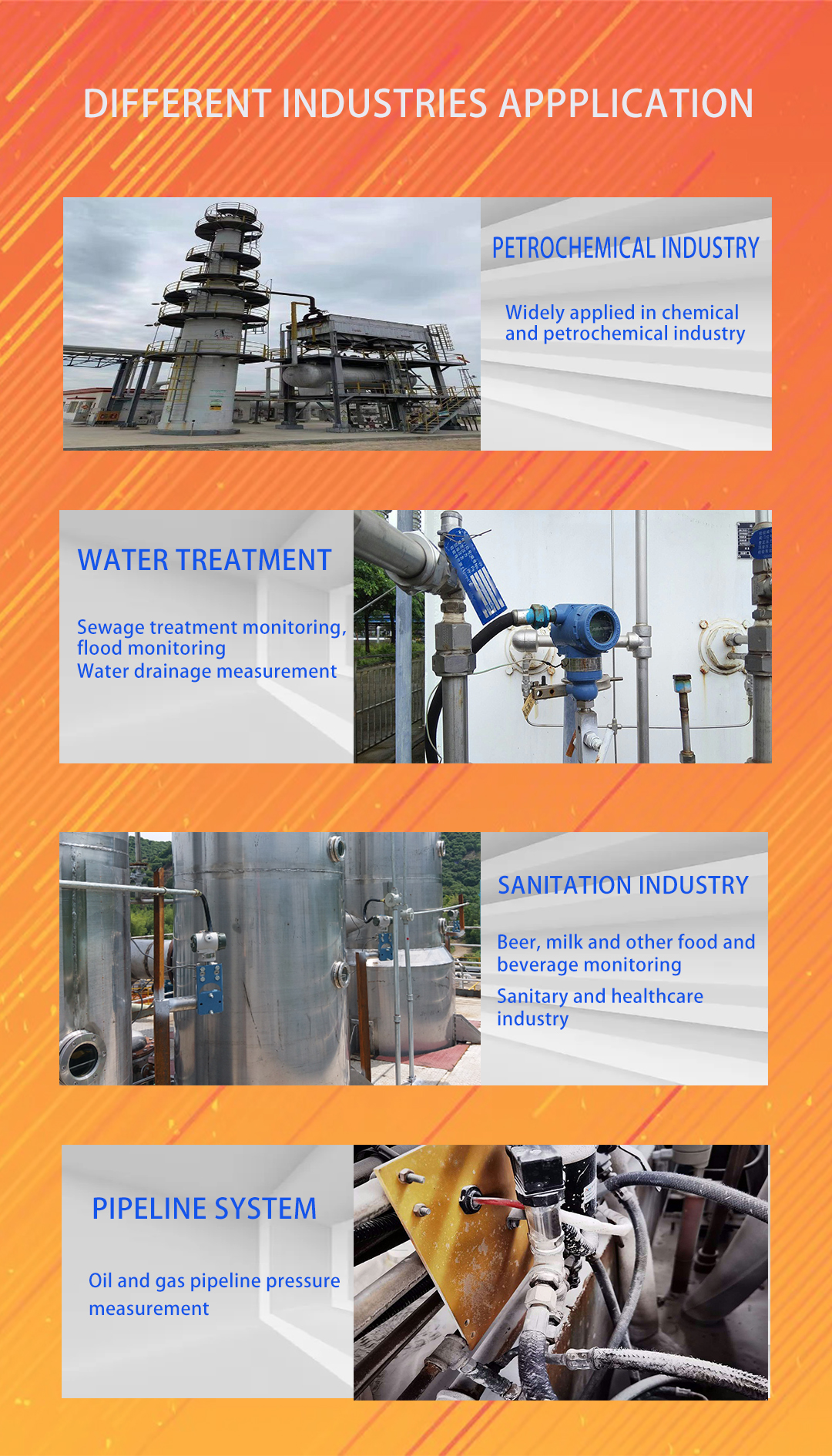

Industrial pressure sensor with diaplay PCM300

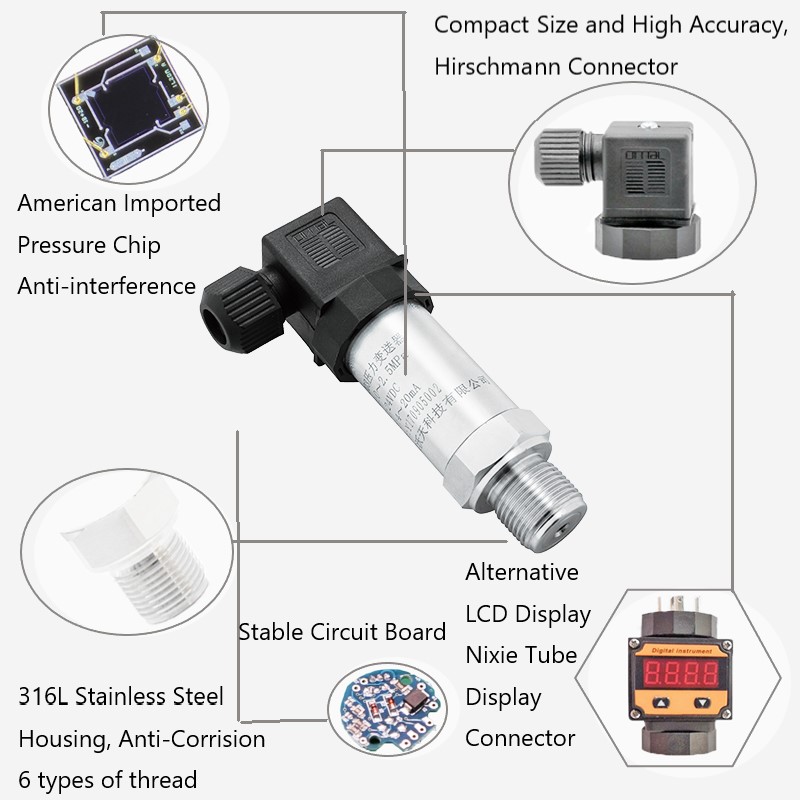

Features
■Piezoresistive silicon chip employed
■Pressure ranges： -100Kpa to 100Mpa
■Accuracy：0.5%
■CE RoHS certificate
■SS316L diaphragm SS304 Housing
■absolute pressure, gauge pressure and sealed gauge pressure
■4-20ma. 0-5V ,1-5V(24VDC,12VDC)
■Zero, full span adjustable
Product Parameters

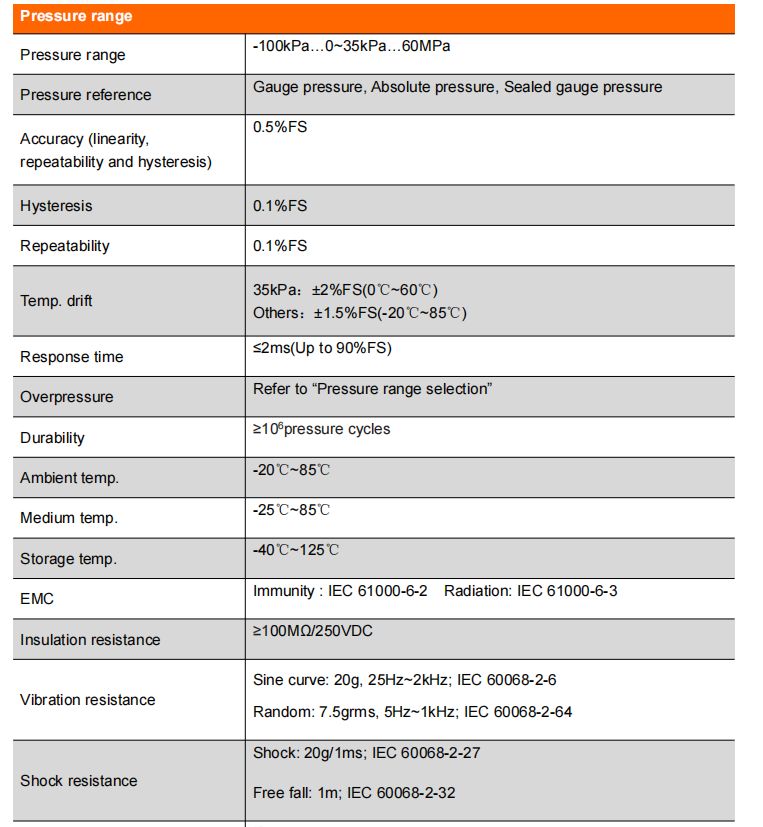

Pressure range | |
Pressure range | -100kPa…0~35kPa…60MPa |
Pressure reference | Gauge pressure, Absolute pressure, Sealed gauge pressure |
Accuracy (linearity, repeatability and hysteresis) | 0.5%FS |
Hysteresis | 0.1%FS |
Repeatability | 0.1%FS |
Temp. drift | 35kPa：±2%FS(0℃~60℃) Others：±1.5%FS(-20℃~85℃) |
Response time | ≤2ms(Up to 90%FS) |
Overpressure | Refer to “Pressure range selection” |
Durability | ≥106pressure cycles |
Ambient temp. | -20℃~85℃ |
Medium temp. | -25℃~85℃ |
Storage temp. | -40℃~125℃ |
EMC | Immunity : IEC 61000-6-2 Radiation: IEC 61000-6-3 |
Insulation resistance | ≥100MΩ/250VDC |
Vibration resistance | Sine curve: 20g, 25Hz~2kHz; IEC 60068-2-6 |
Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64 | |
Shock resistance | Shock: 20g/1ms; IEC 60068-2-27 |
Free fall: 1m; IEC 60068-2-32 | |
Protection | IP65 |
Medium compatibility | All media compatible with stainless steel 316L |
Hexagon | HEX27 |
Ex-proof grade | Intrinsically safe explosion-proof ExiaⅡCT4 |
Net weight | 220~360g |
Output and power supply | ||||||
Code | B1 | B3 | B2 | B7 | B12 | B6 |
Output | 4~20mA | 0~5V | 1~5V | 0~10V | 1~10V | 0.5~4.5V R/M |
Supply | 12~30VDC | 5VDC | ||||
Electrical connection and wiring method | |||

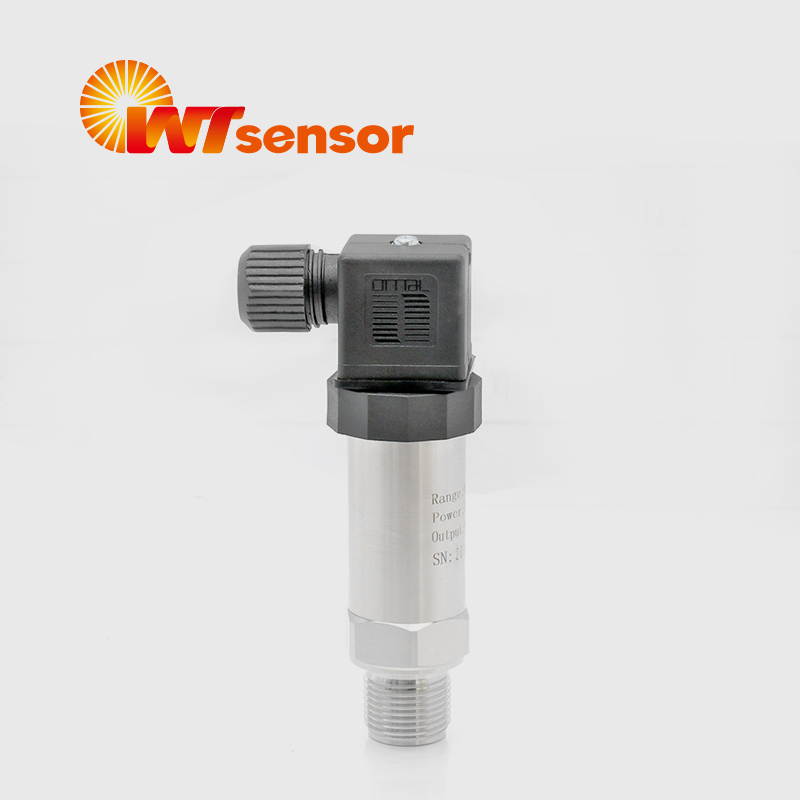

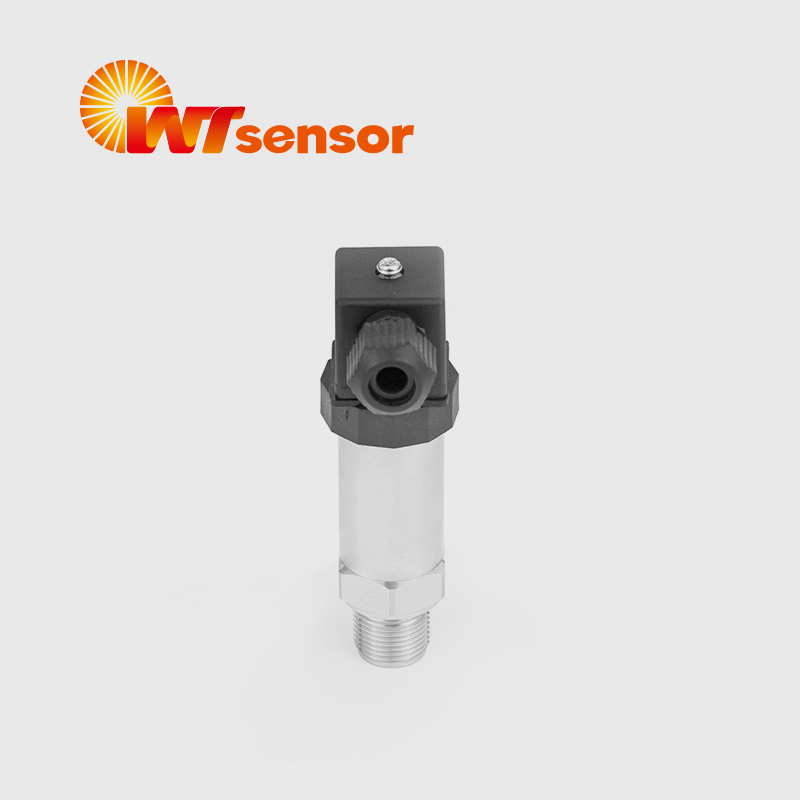

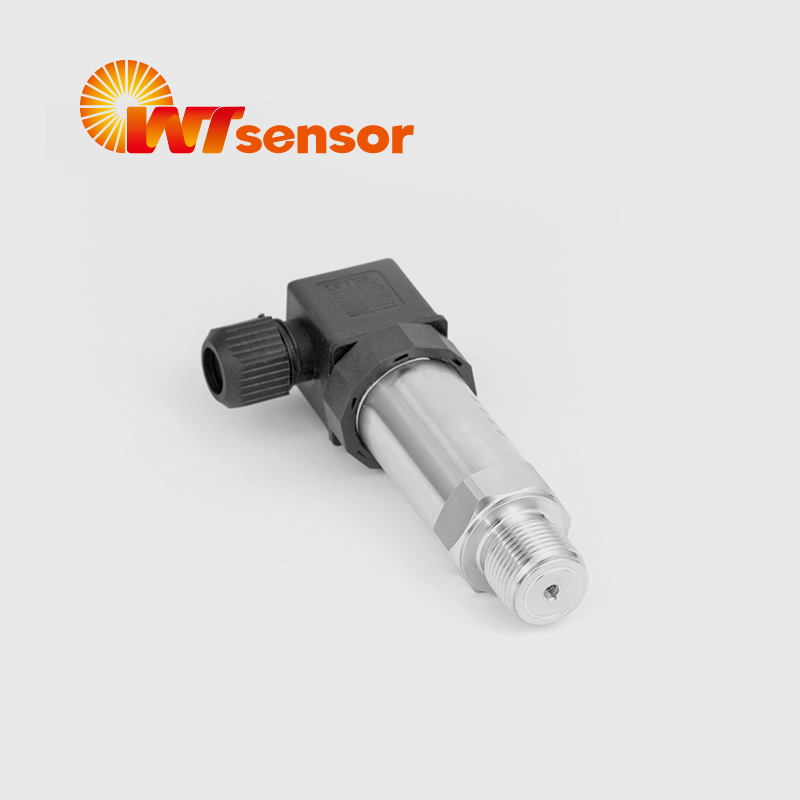

Connector code | J5: DIN43650 |
J3H: DIN43650 with cable
| |
Dimension In: mm | \
|
| |
Protection grade | IP65 | ||
Connection mode Current (2 wires) | Pin 1: Supply+(red wire) Pin 2: Current output(green wire) | Red: Supply+ Green: Current output | |
Connection mode Voltage (3 wires) | Pin 1:Supply+ (red wire) Pin 2:Ground (green wire) Pin 3:Voltage output (yellow wire) | Red: Supply+ Green: Ground Yellow: Voltage output | |
Electrical connection and wiring method | |||

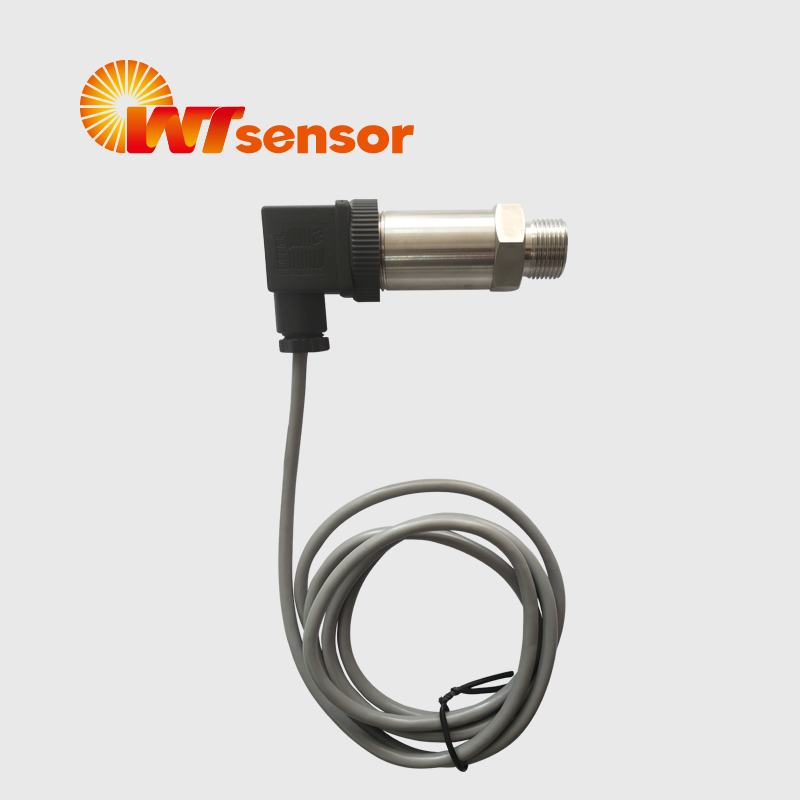

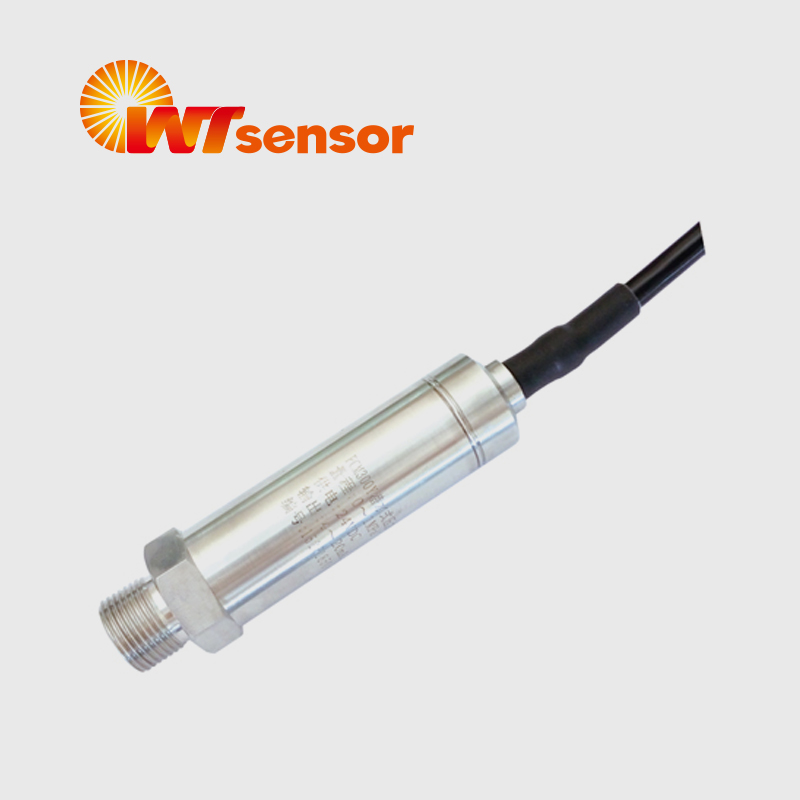

Connector code | J3: Cable outlet | J4: M12（M12×0.75） | |
Dimension In mm |
|
| |
Protection | IP65 | ||
Connection mode Current (2 wires) | Pin 1: Supply+ Pin 2: Current output | Pin 1: Supply+ Pin 2: Current output | |
Connection mode Voltage (3 wires) | Pin 1: Supply+ Pin 2: Ground Pin 3: Voltage output | Pin 1: Supply+ Pin 2: Ground Pin 3: Voltage output | |
Pressure range selection | |||||
Pressure range code | Pressure reference | Pressure range | Overpressure | Burst pressure | Remark |
35k | G, A | 150％FS | 500％FS | ||
70k | G | 0~70kPa | 150％FS | 500％FS | |
100k | G, A | 0~100kPa | 150％FS | 300％FS | |
250k | G, A | 0~250kPa | 150％FS | 300％FS | |
400k | G, A | 0~400kPa | 150％FS | 300％FS | |
600k | G, A | 0~600kPa | 150％FS | 300％FS | |
1M | G, A, S | 0~1MPa | 150％FS | 300％FS | |
1.6M | G, S | 0~1.6MPa | 150％FS | 300％FS | |
2.5M | G, S | 0~2.5MPa | 150％FS | 300％FS | |
4M | S | 0~4MPa | 150％FS | 300％FS | |
6M | S | 0~6MPa | 150％FS | 300％FS | |
10M | S | 0~10MPa | 150％FS | 300％FS | |
16M | S | 0~16MPa | 150％FS | 300％FS | |
25M | S | 0~25MPa | 150％FS | 300％FS | |
40M | S | 0~40MPa | 150％FS | 300％FS | |
60M | S | 0~60MPa | 150％FS | 200％FS | |
Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.
