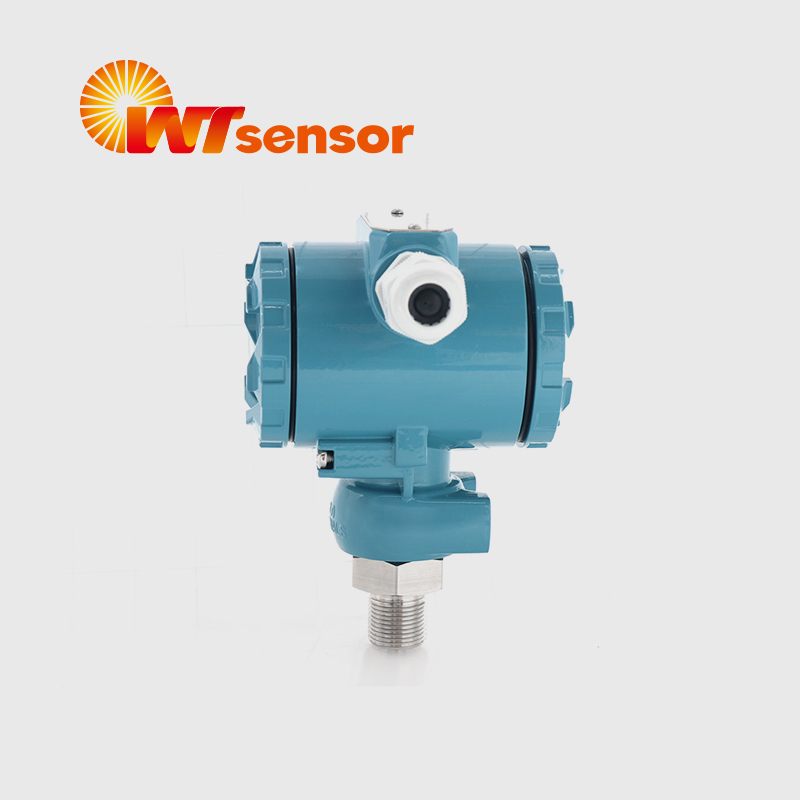

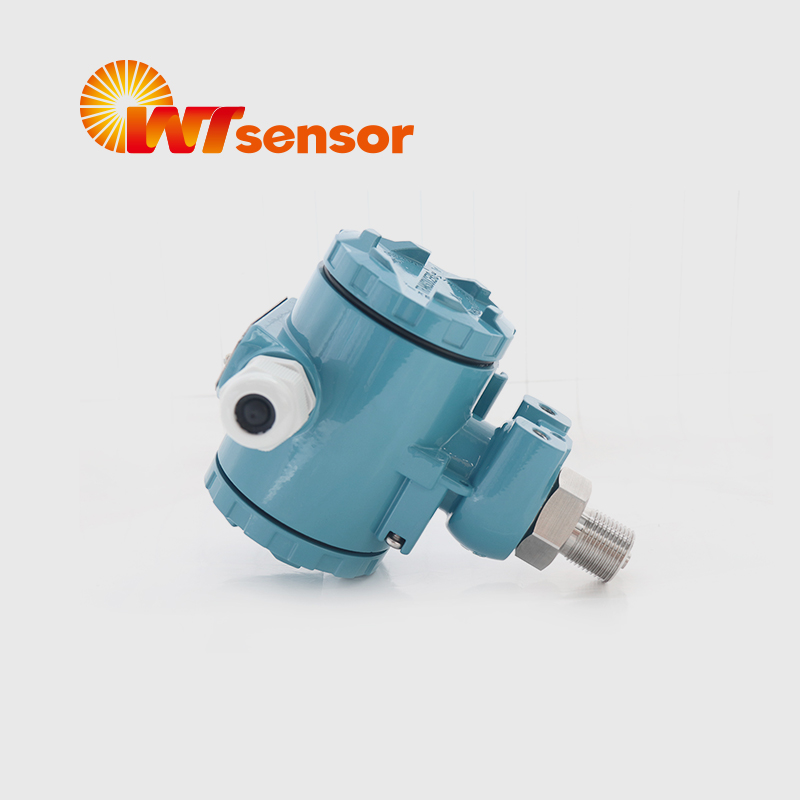

Piezoresistive silicon Pressure Transmitter PCM400
Features
■ High performance diffuse piezoresistive silicon sensor adopted
■ Used for the pressure measurement for multiple kinds of media such as gas, liquid etc.
■ Wide pressure ranges
■ Optional digital display
■ Optional multiple kinds of output signals
Applications and industries
■ Industrial field control
■ Oil field
■ Heavy industry
■ Chemical industry
■ Gas pipe network
■ Water supply pipe network
Diffuse piezoresistive silicon pressure transmitter,China pressure transmitter,Wotian pressure transmitter,Digital display pressure transmitter factory,Outdoor field pressure transmitter manufacturer
China Wotian factory pressure transmitter adopting the high performance and high stability OEM pressure sensor as the signal measuring element, with stable and reliable performance after the long-term aging and stability selecting, widely applied to the outdoor field with quite harsh environment
Product Parameters
Performance parameters | |||
Pressure range | -100kPa…0~20kPa…100MPa | ||
Pressure reference | Gauge pressure, Absolute pressure, Sealed gauge pressure | ||
Supply & output | 4~20mA (18~36V) | ||
4~20mA with display (12~36V) | |||
1~5V, 0~5V, 0.5~4.5V, 0~10V (12~32V) | |||
Operating temp. | -20℃~85℃ | ||
Medium temp. | -20℃~85℃ | ||
Storage temp. | -40℃~125℃ | ||
Zero temp. coefficient | ±1.5%FS(@-20℃ - 85℃) | ||
Sensitivity temp. coefficient | ±1.5%FS(@-20℃ - 85℃) | ||
Overpressure | 150%FS~300%FS | ||
Mechanical vibration | 20g (20~5000Hz) | ||
Shock | 100g (11ms) | ||
Comprehensive accuracy | ±0.5%FS | ||
Insulation | 100MΩ/250VDC | ||
Response time | ≤1ms (Up to 90%FS) | ||
Long-term stability | ±0.2%FS/year | ||
EMC surge | (IEC61000-4-5) 2kV | ||
EMC static | (IEC61000-4-2) contact discharge 8kV, air discharge 15kV | ||
Protection grade | IP65 | ||

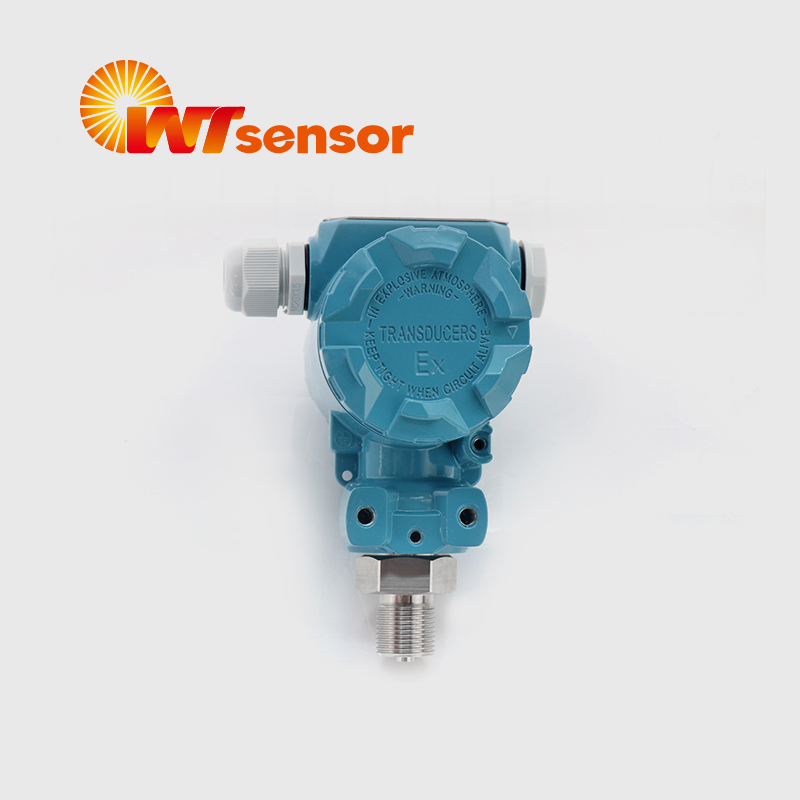

Ex-proof grade | Intrinsically safe ex-proof ExiaⅡCT6 | ||
Material | Low copper aluminium alloy for Housing; SS316L Diaphragm | ||
Medium compatibility | All kinds of media compatible with SS316L |
Electrical connection & wiring mode | ||

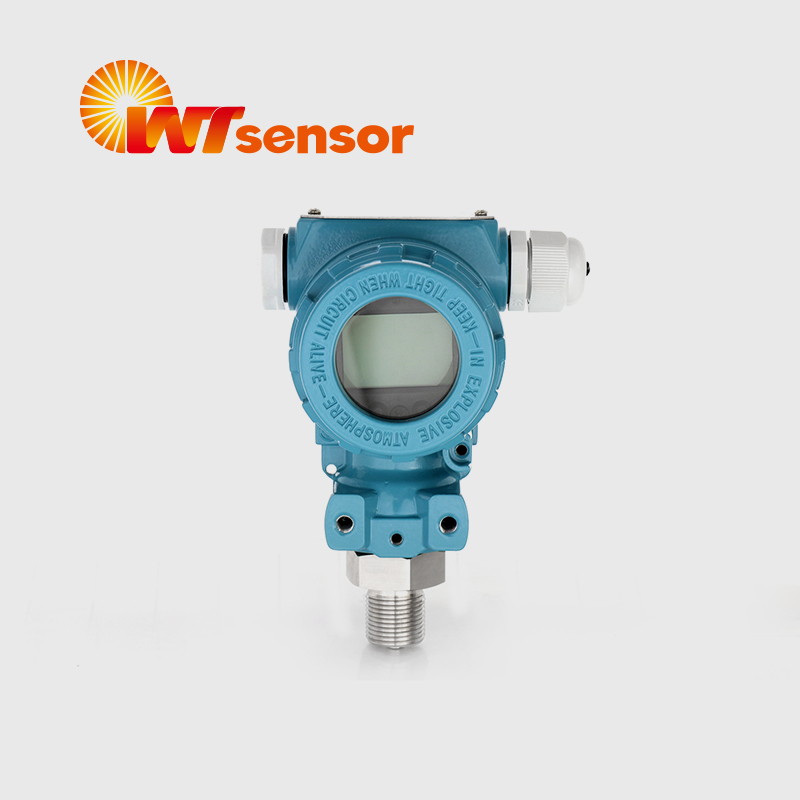

Type | J1: 2088 housing | J2: 2088 housing with display |
Dimension In mm |
|
|
Connection mode (Current output) |
Installation instruction (for reference only) |
Installation tips:
(1) The product is installed vertically on the field pressure connection.
(2) During the outdoor installation, try to put the transmitter in a dry and ventilated place, and avoid direct strong sunshine and rain, or else the performance will become poor or break down.
(3) When the product is installed in the area with frequent lightning, “lightning protection” should be indicated when ordering; meanwhile, we suggest that the user additionally install the lightning protection equipment on site, and ensure reliable grounding of the product and the power supply, which can reduce the probability of the transmitter damage caused by the lightning.
(4) If no output or abnormal output of the transmitter is found after the installation, please check:
① Whether the electrical connection is accurate and firm;
② Whether the supply voltage is too low and whether the load resistance is too high.
Pressure range selection | |||||||
Pressure range code | Pressure reference | Pressure range | Overpressure | Burst pressure | Remark | ||
10kG | G | 0~10kPa | 300%FS | 600%FS | |||
20kG | G | 0~20kPa | 300%FS | 600%FS | |||
35kG | G | 0~35kPa | 300%FS | 600%FS | |||
70kG | G | 0~70kPa | 300%FS | 600%FS | |||
100kG | G | 0~100kPa | 200%FS | 500%FS | |||
160kG | G | 0~160kPa | 200%FS | 500%FS | |||
250kG | G | 0~250kPa | 200%FS | 500%FS | |||
400kG | G | 0~400kPa | 200%FS | 500%FS | |||
600kG | G | 0~600kPa | 200%FS | 500%FS | |||
1MG | G | 0~1MPa | 200%FS | 500%FS | |||
100kA | A | 0~100kPa | 200%FS | 500%FS | |||
160kA | A | 0~160kPa | 200%FS | 500%FS | |||
250kA | A | 0~250kPa | 200%FS | 500%FS | |||
400kA | A | 0~400kPa | 200%FS | 500%FS | |||
600kA | A | 0~600kPa | 200%FS | 500%FS | |||
1MA | A | 0~1MPa | 200%FS | 500%FS | |||
1.6MS | S | 0~1.6MPa | 200%FS | 500%FS | |||
Pressure range selection (cont.) | |||||||
Pressure range code | Pressure reference | Pressure range | Overpressure | Burst pressure | Remark | ||
2.5MS | S | 0~2.5MPa | 200%FS | 500%FS | |||
6MS | S | 0~6MPa | 200%FS | 400%FS | |||
10MS | S | 0~10MPa | 200%FS | 400%FS | |||
16MS | S | 0~16MPa | 200%FS | 400%FS | |||
25MS | S | 0~25MPa | 150%FS | 400%FS | |||
40MS | S | 0~40MPa | 150%FS | 300%FS | |||
60MS | S | 0~60MPa | 150%FS | 300%FS | |||
100MS | S | 0~100MPa | 150%FS | 300%FS |
Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.

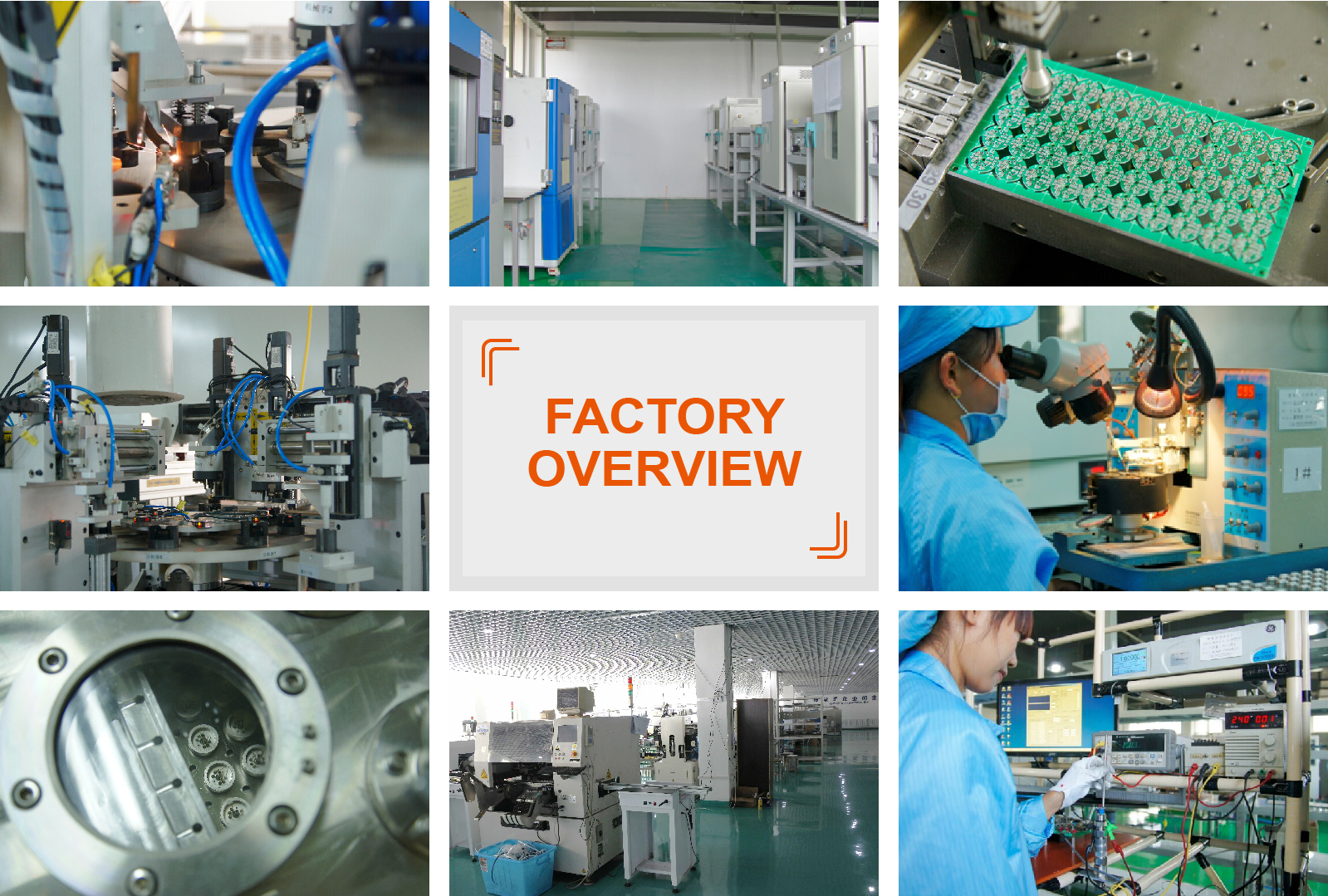

Production process
