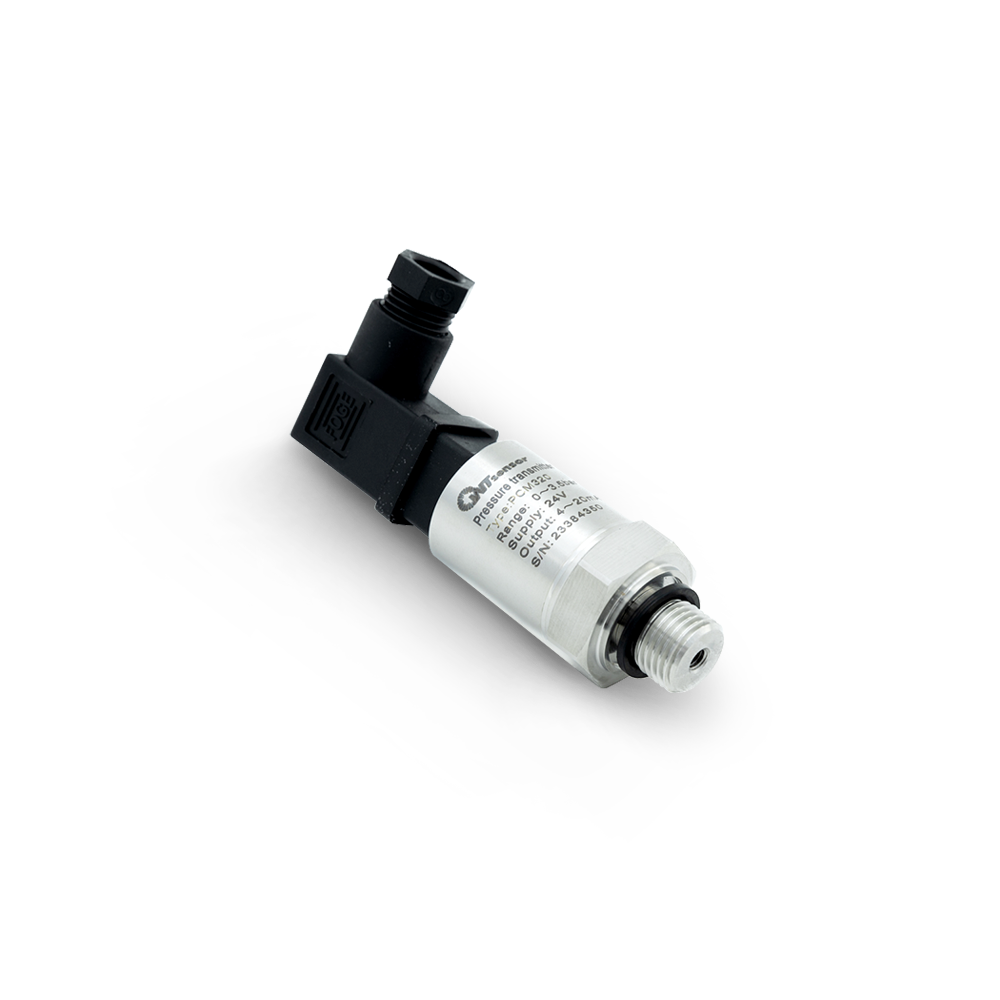

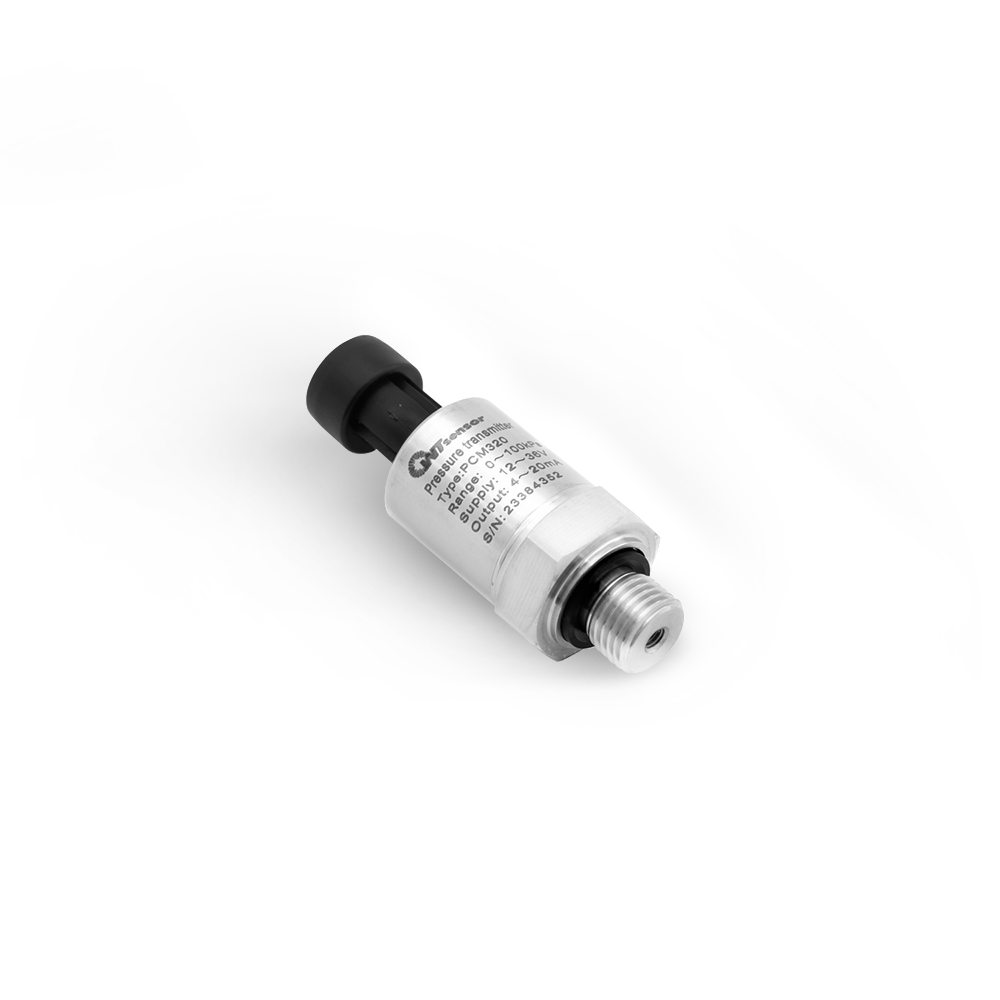

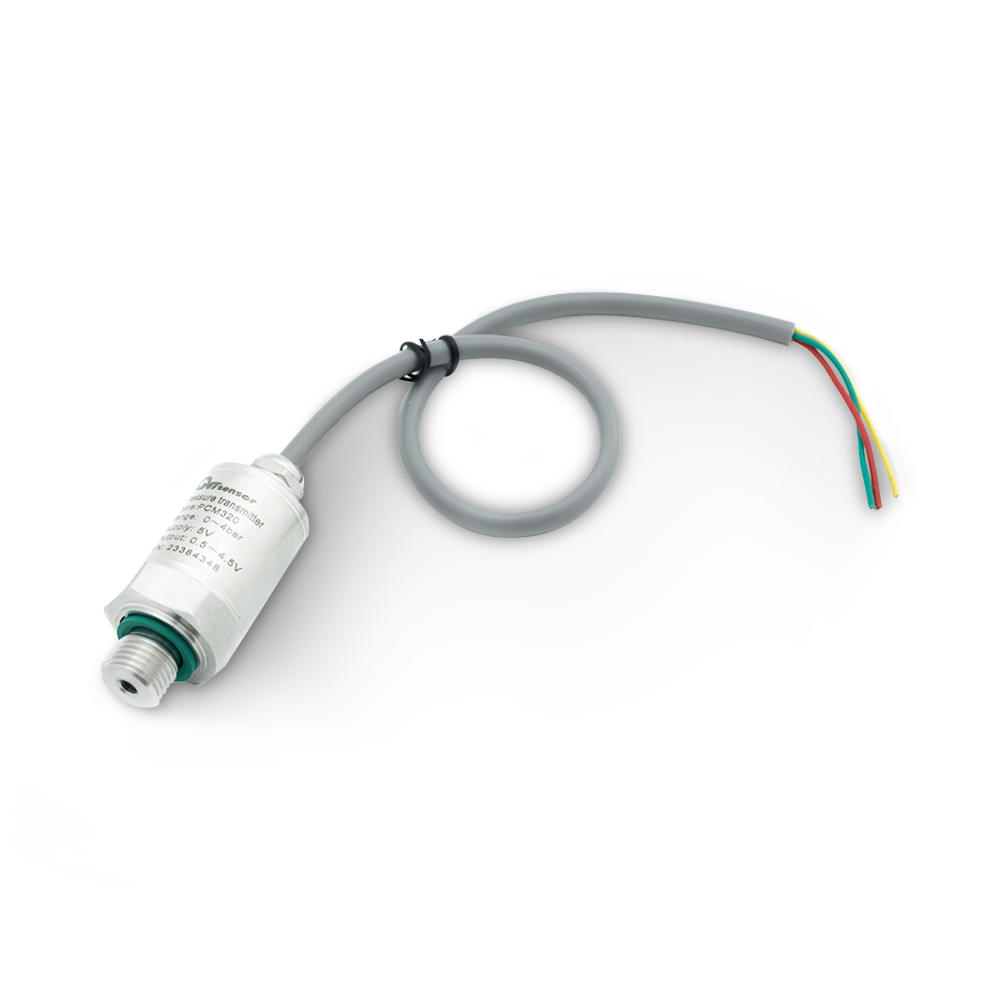

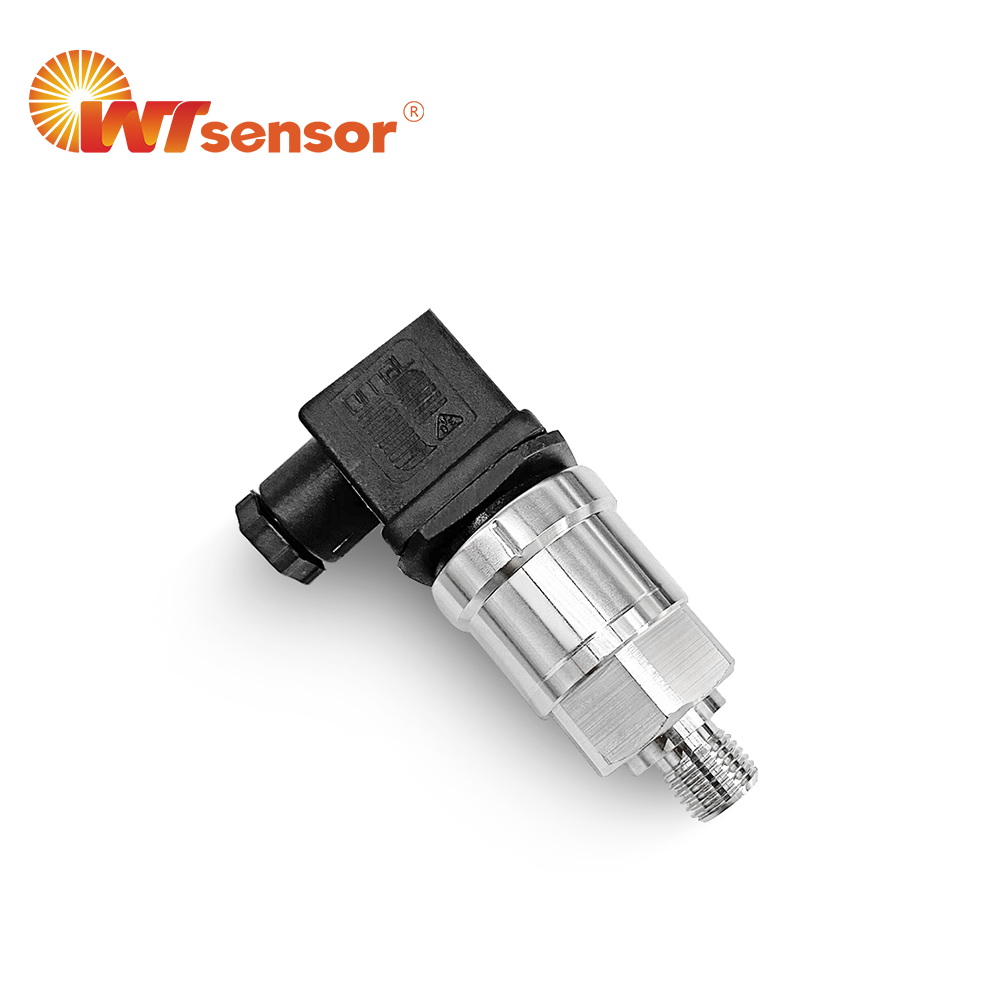

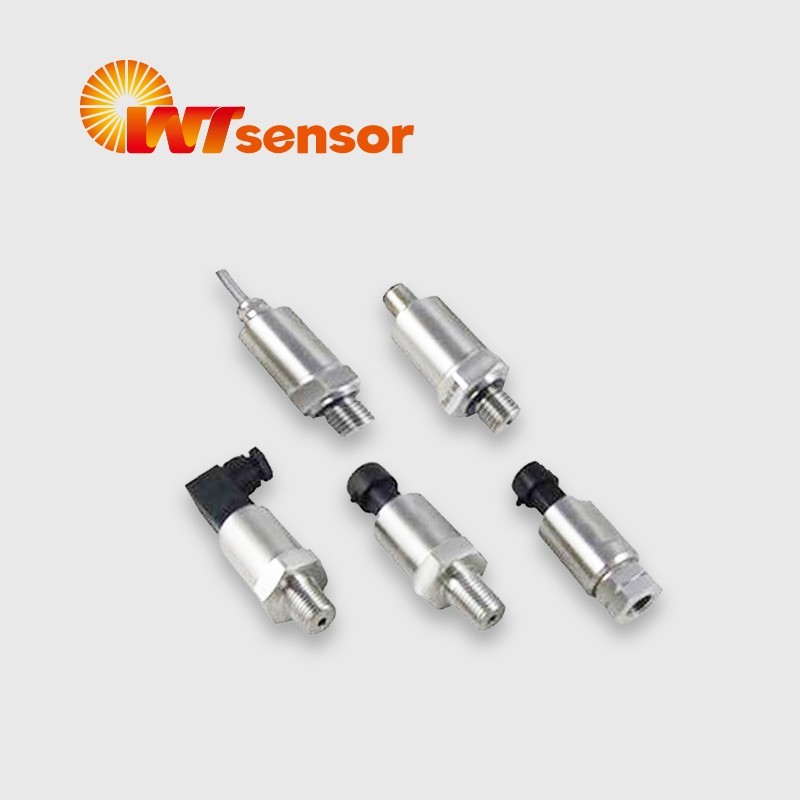

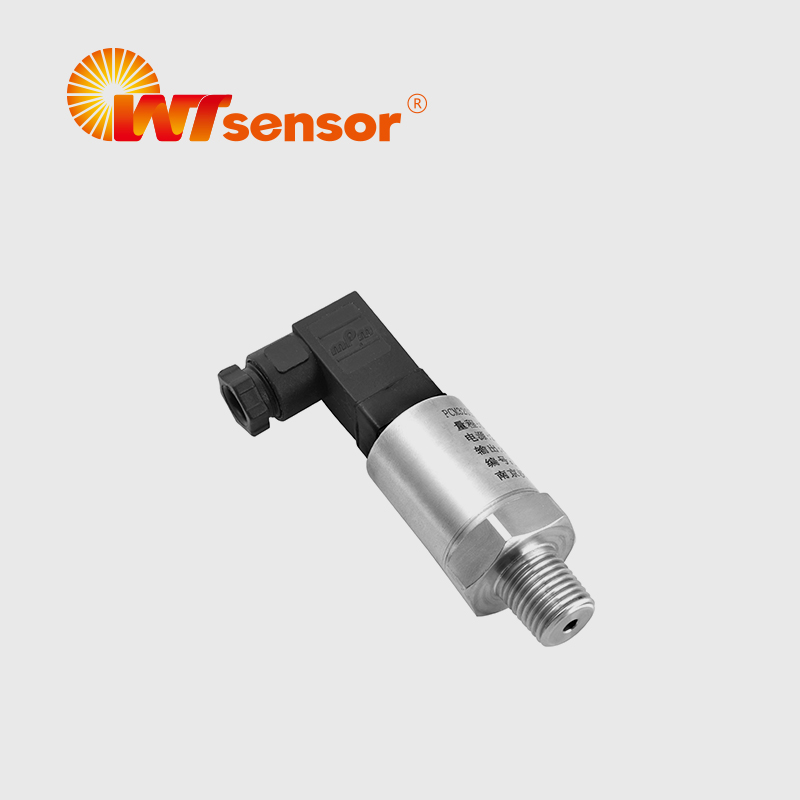

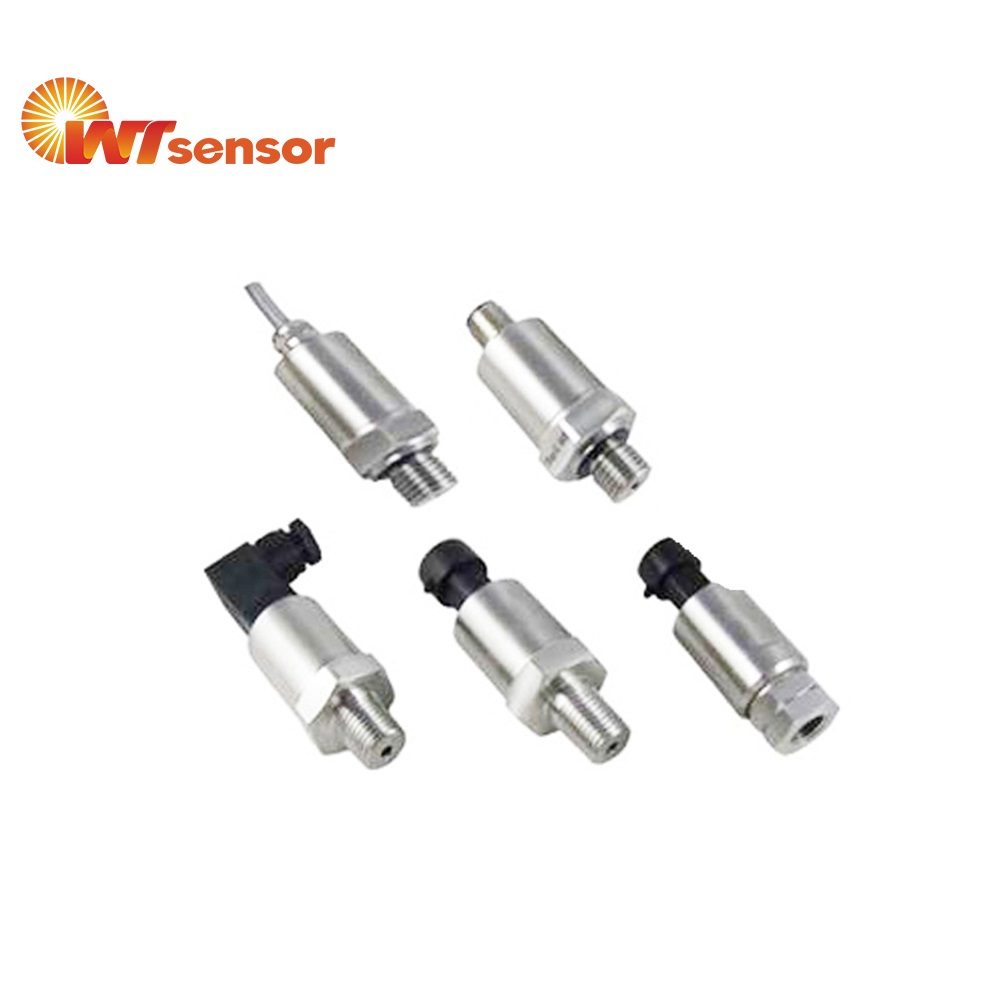

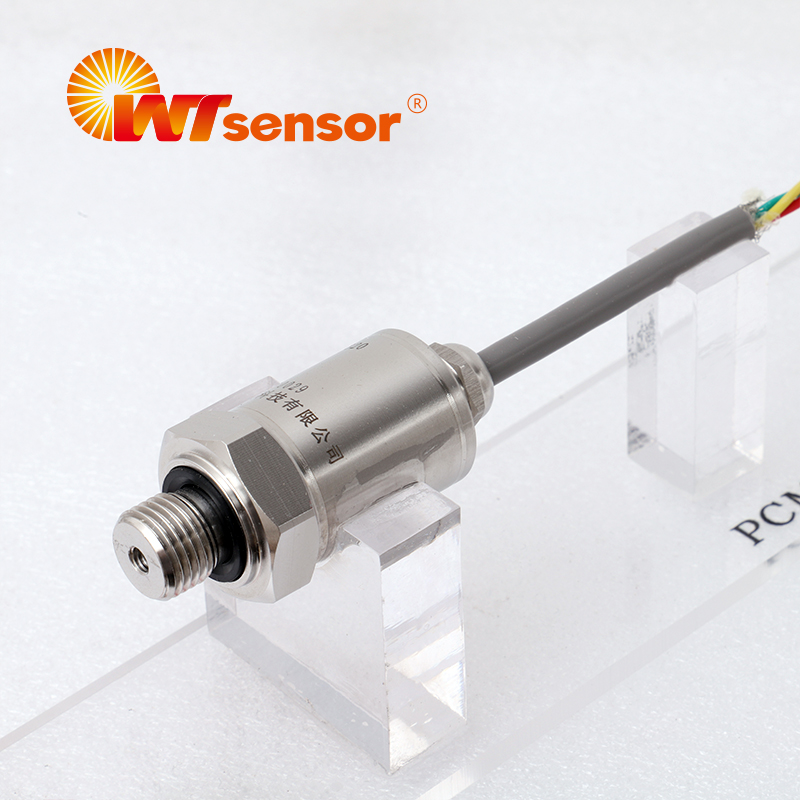

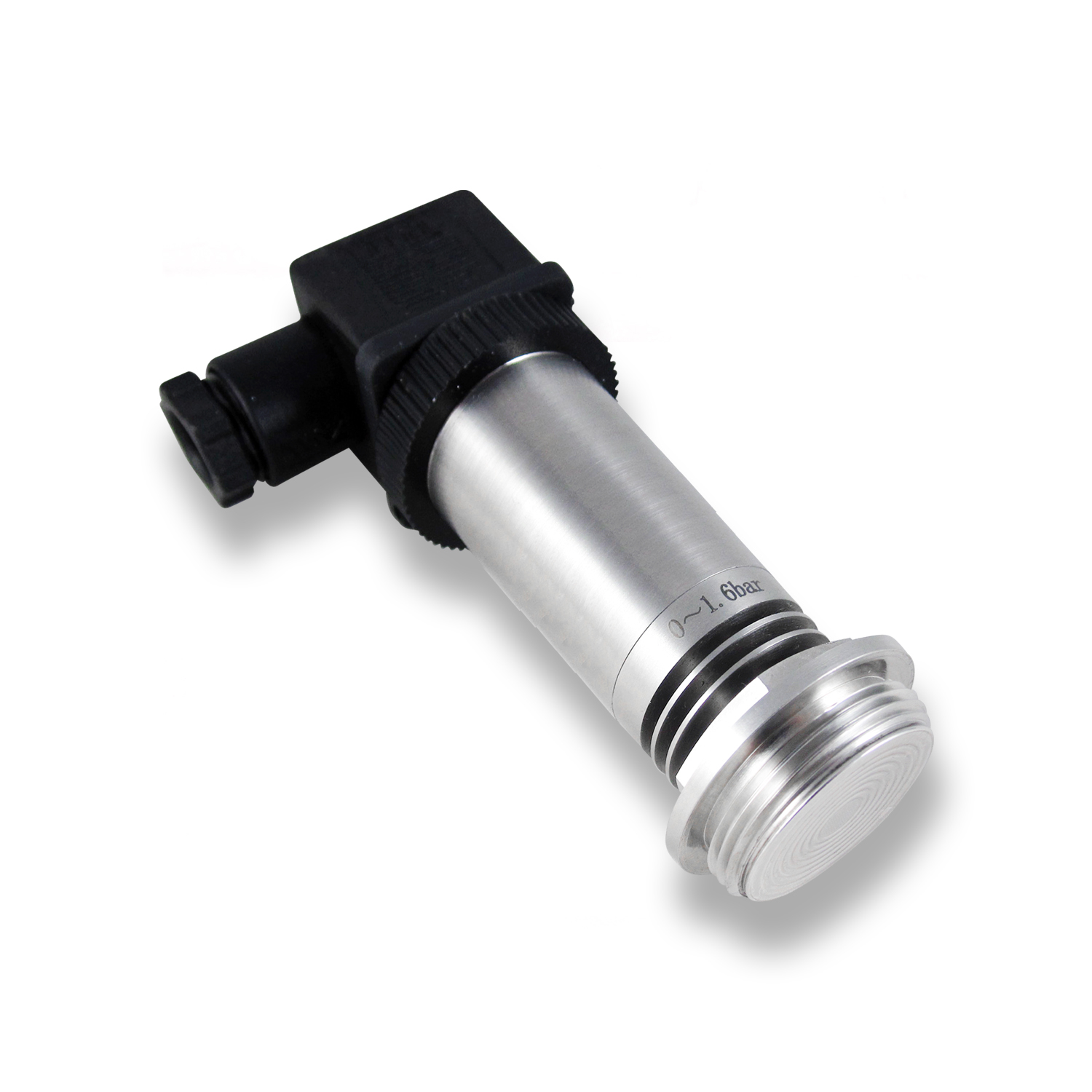

Silicon Pressure Sensor Φ23.5mm PCM320

Features

■ Compact structure, exquisite appearance

■ Gauge or absolute or sealed gauge pressure

■ 0.5% accuracy

■ Φ23.5mm small size for compressor

■ -100Kpa to 60Mpa

■ 4-20ma, 0-5v （12-30VDC）

■ Multiple process connection and electrical connection options

■ Diaphragm: SS316L Housing : SS304

■ Protection : IP65

China Leading pressure sensor, OEM factory pressure transmitter, oil pressure transmitter, gas pressure transmitter, air pressure transmitter, liquid pressure transmitter, water pressure transmitter, fuel pressure transmitter, vaccum pressure transmitter, steam pressure transmitter

Inquire Now Download

Product Parameters

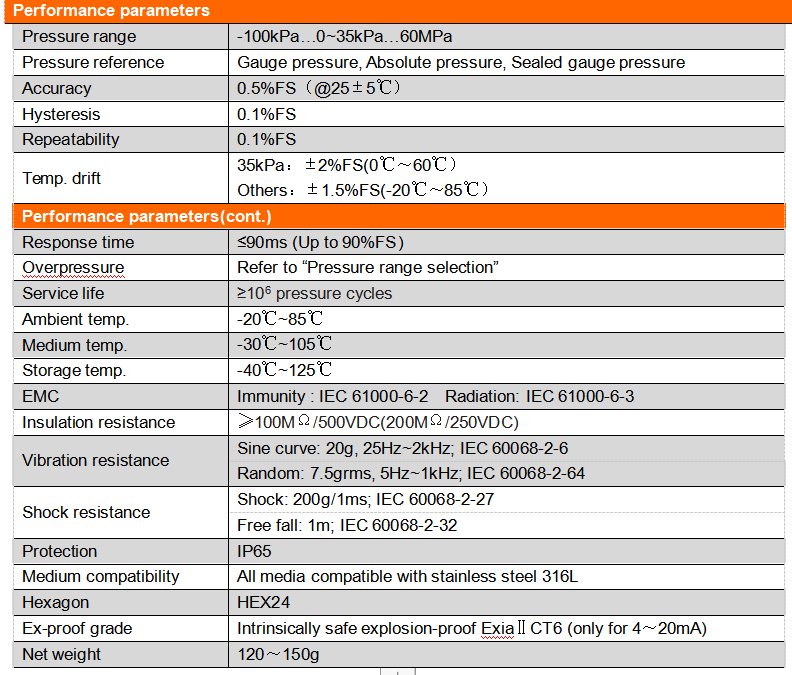

Performance parameters
	Pressure range	-100kPa…0~35kPa…60MPa
	Pressure reference	Gauge pressure, Absolute pressure, Sealed gauge pressure
	Accuracy	0.5%FS（@25±5℃）
	Hysteresis	0.1%FS
	Repeatability	0.1%FS
	Temp. drift	35kPa：±2%FS(0℃～60℃） Others：±1.5%FS(-20℃～85℃）
	Performance parameters(cont.)
	Response time	≤90ms (Up to 90%FS)
	Overpressure	Refer to “Pressure range selection”
	Service life	≥10⁶ pressure cycles
	Ambient temp.	-20℃~85℃
	Medium temp.	-30℃~105℃
	Storage temp.	-40℃~125℃
	EMC	Immunity : IEC 61000-6-2 Radiation: IEC 61000-6-3
	Insulation resistance	≥100MΩ/500VDC(200MΩ/250VDC)
	Vibration resistance	Sine curve: 20g, 25Hz~2kHz; IEC 60068-2-6
	Vibration resistance	Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64
	Shock resistance	Shock: 200g/1ms; IEC 60068-2-27
	Shock resistance	Free fall: 1m; IEC 60068-2-32
	Protection	IP65
	Medium compatibility	All media compatible with stainless steel 316L
	Hexagon	HEX24
	Ex-proof grade	Intrinsically safe explosion-proof ExiaⅡCT6 (only for 4～20mA)
	Net weight	120～150g

Output and power supply
Code	B1	B3	B7	B6	B6N
Output	4～20mA	0～5V	0～10V	0.5～4.5V R/M	0.5～4.5V Non R/M
Power supply	12~36VDC	12~36VDC	12~36VDC	5VDC	5VDC

Electrical connection & wiring method

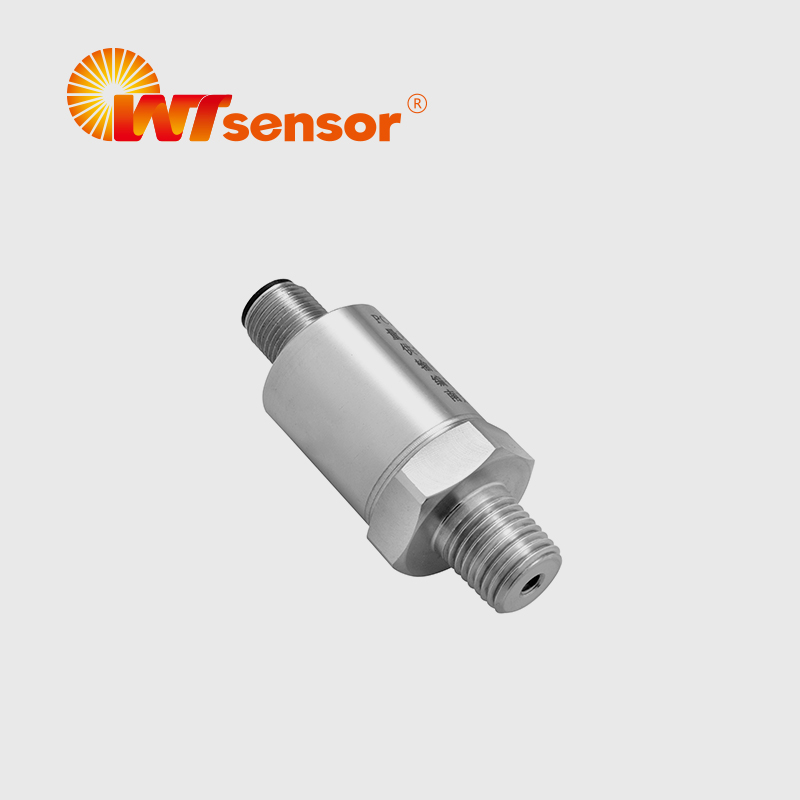

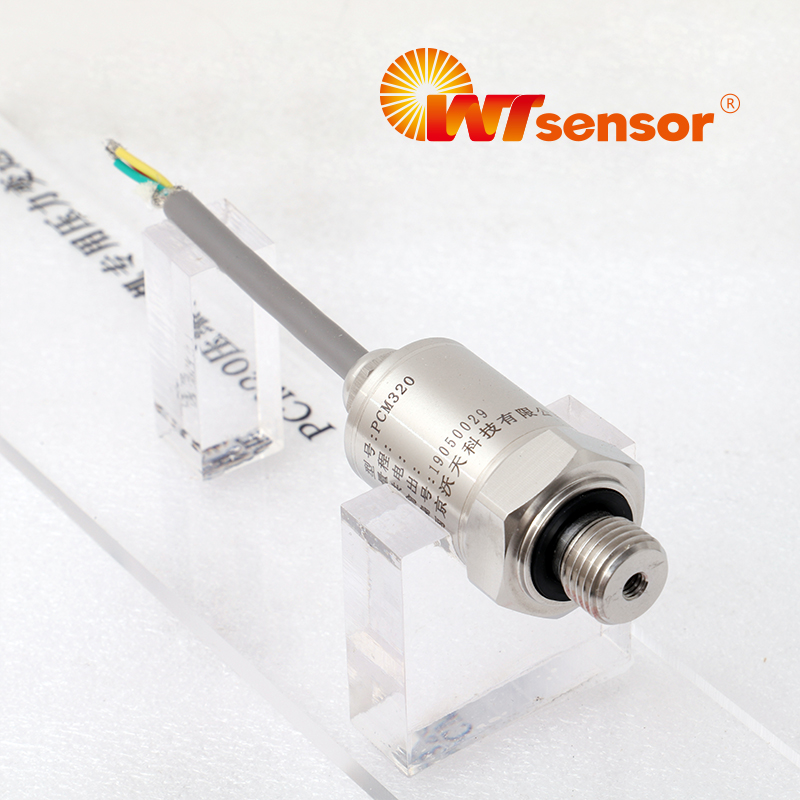

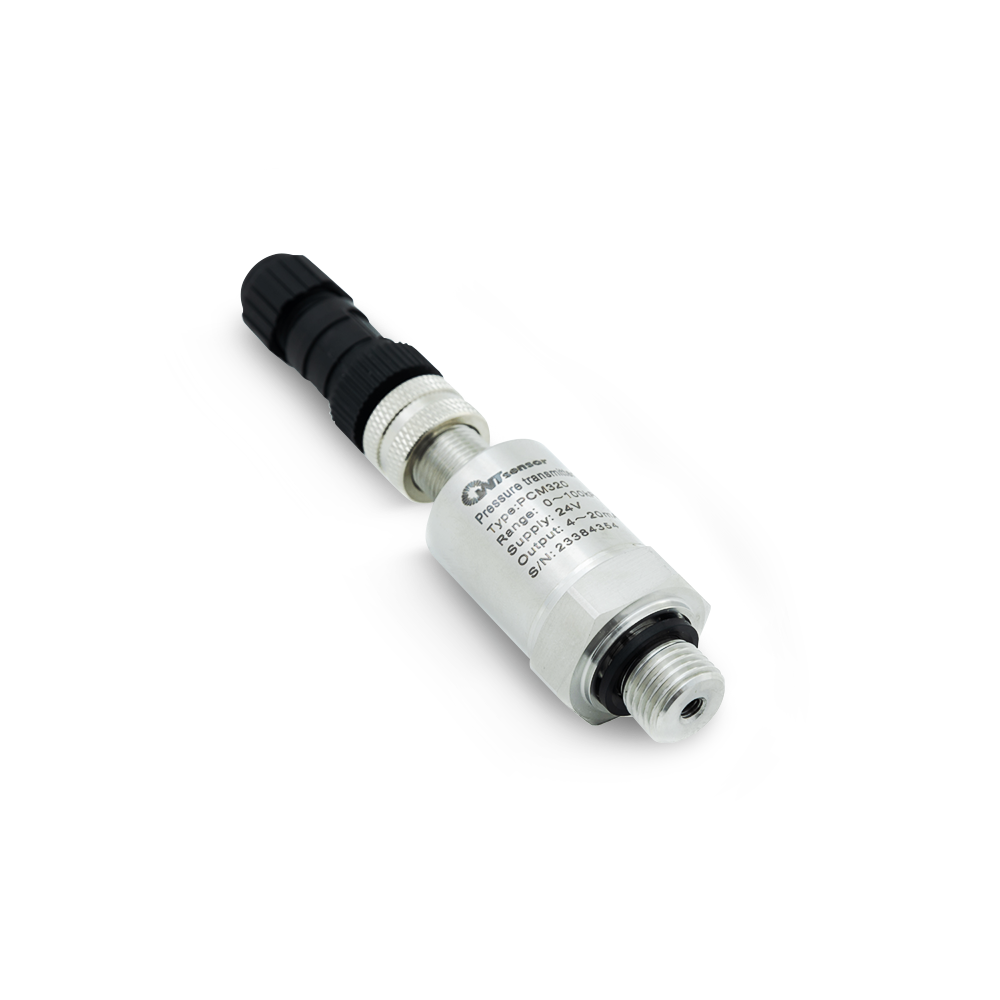

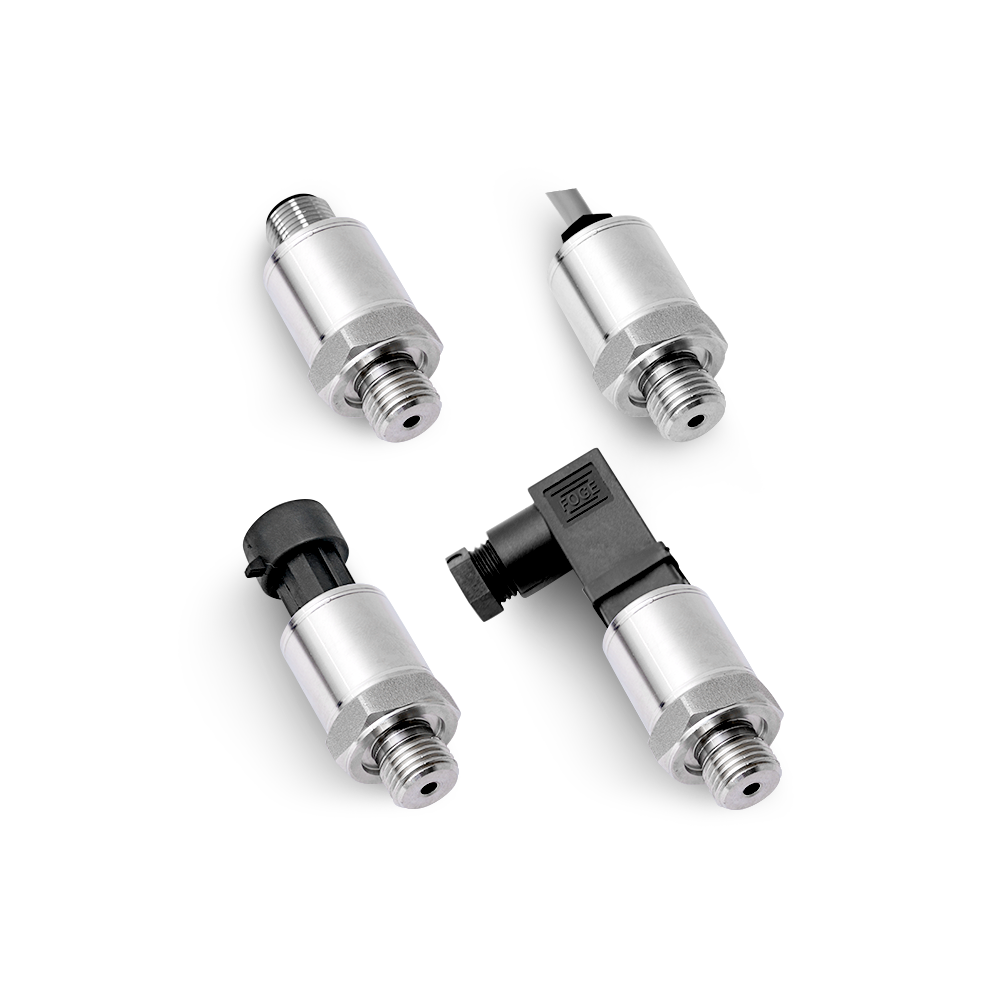

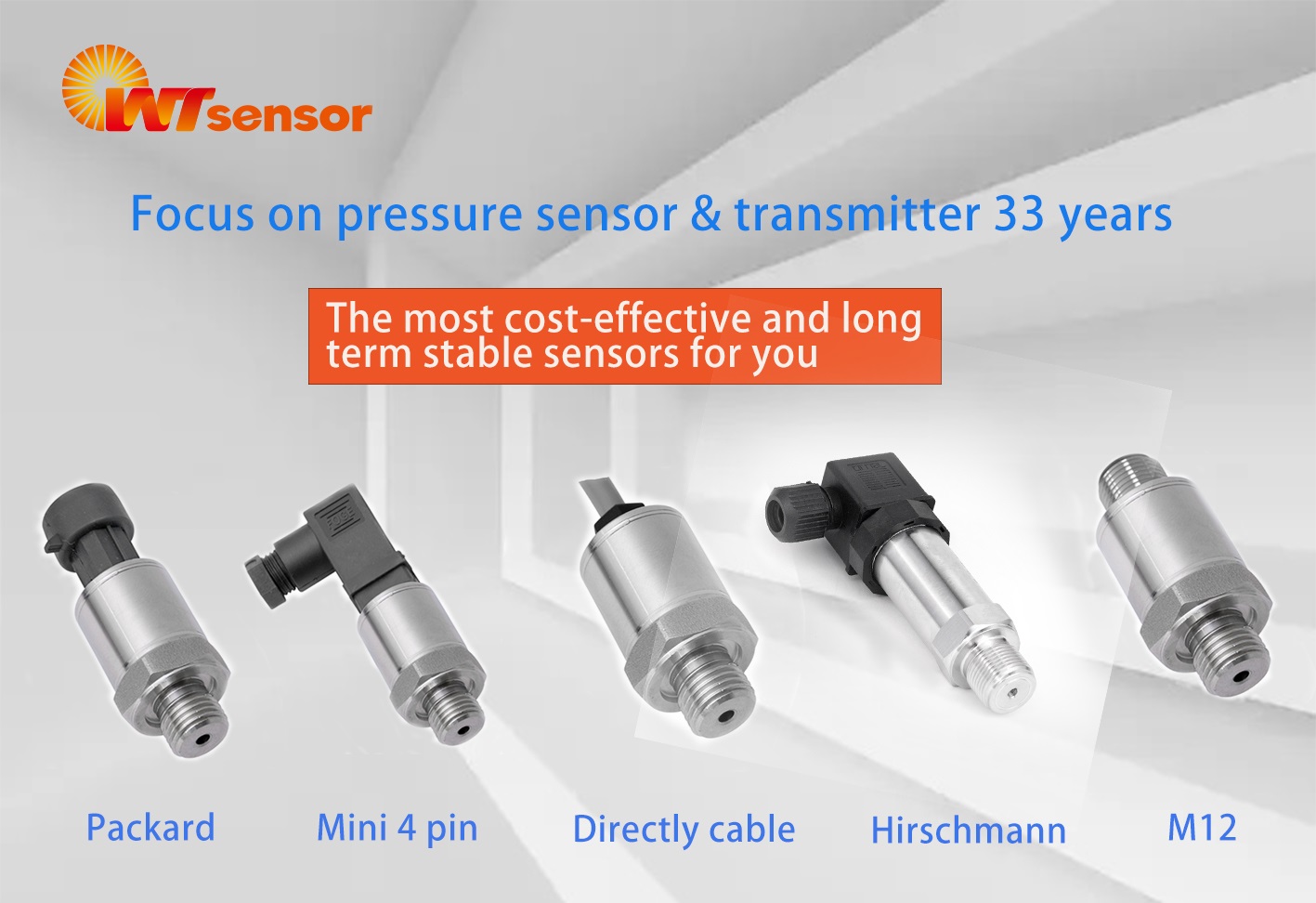

Connector code	J3: Cable outlet	J4: M12	J6: Mini 4 pin	J7: Round Packard
Dimension In mm
Protection	IP65	IP65	IP65	IP65
Connection mode Current (2 wires)	Red: Supply+ Green: Current output	Pin 1: Supply+ Pin 2: Current output	Pin 1: Supply+ Pin 2: Current output	Pin 1: Supply+ Pin 2: Current output
Connection mode Voltage (3 wires)	Red: Supply+ Green: Ground Yellow: Voltage output	Pin 1: Supply+ Pin 2: Voltage output Pin 3: Ground	Pin 1: Supply+ Pin 2: Ground Pin 3: Voltage output	Pin 1: Supply+ Pin 2: Ground Pin 3: Voltage output

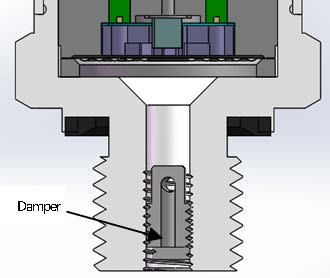

Application of damper

Application

Cavitation, liquid hammer and pressure peak may occur in air or hydraulic systems with varying flow rates, such as the rapid closing of valve or the start and stop of pump. Even at relatively low operating pressures, these problems may occur at the entrance and exit.

Φ23.5mm Silicon Pressure Sensor PCM320

Media condition

In the liquid containing particles, nozzle clogging may occur. The vertical mounting of pressure transmitter minimizes the risk of clogging because the flow of fluid happens in initial start only, the volume of the rear of the nozzle is fixed and the nozzle has a relatively large aperture (1.2 mm).

The effect of medium viscosity on response time is small. Even if the viscosity reaches 100 CST, the response time will not exceed 4 ms.

Pressure range selection
	Pressure range code	Pressure reference	Pressure range	Overpressure	Burst pressure	Remark
	35k	G、A	0～35kPa	150％FS	500％FS
	70k	G	0～70kPa	150％FS	500％FS
	100k	G、A	0～100kPa	150％FS	300％FS
	250k	G、A	0～250kPa	150％FS	300％FS
	400k	G、A	0～400kPa	150％FS	300％FS
	600k	G、A	0～600kPa	150％FS	300％FS
	1M	G、A、S	0～1MPa	150％FS	300％FS
	1.6M	G、S	0～1.6MPa	150％FS	300％FS
	2.5M	G、S	0～2.5MPa	150％FS	300％FS
	4M	S	0～4MPa	150％FS	300％FS
	6M	S	0～6MPa	150％FS	300％FS
	10M	S	0～10MPa	150％FS	300％FS
	16M	S	0～16MPa	150％FS	300％FS
	25M	S	0～25MPa	150％FS	300％FS
	40M	S	0～40MPa	150％FS	300％FS
	60M	S	0～60MPa	150％FS	200％FS

Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.

Φ23.5mm Silicon Pressure Sensor PCM320

Production process

PC90D Monocrystalline Silicon Differential Pressure Sensor

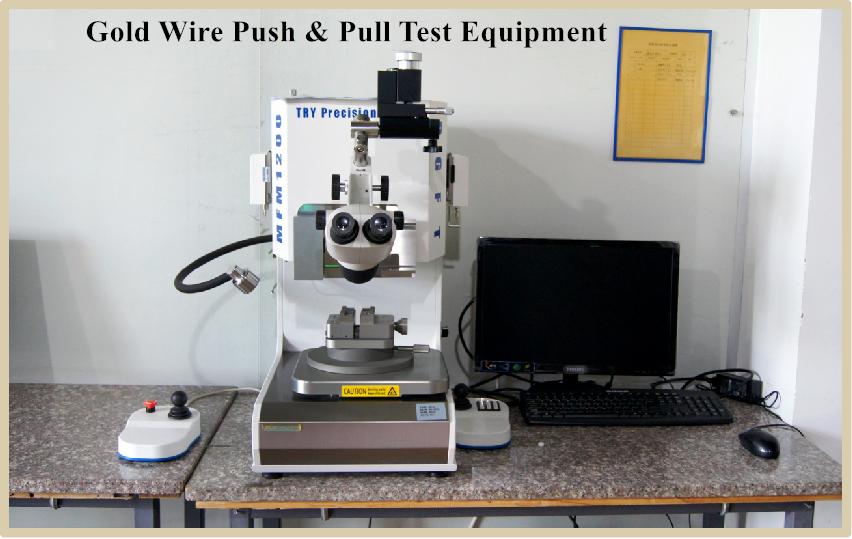

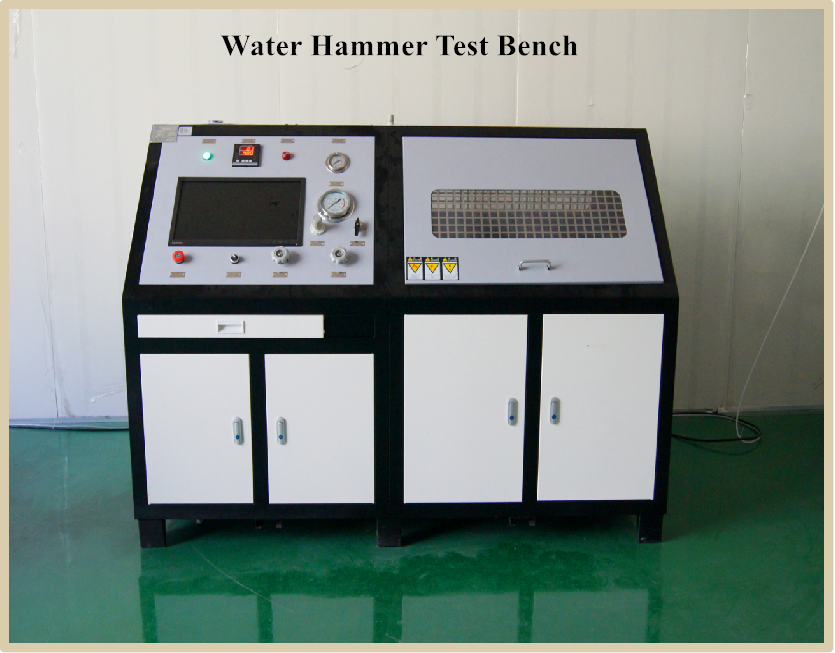

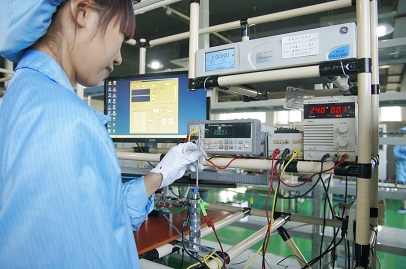

Testing Equipment

Φ23.5mm Silicon Pressure Sensor PCM320

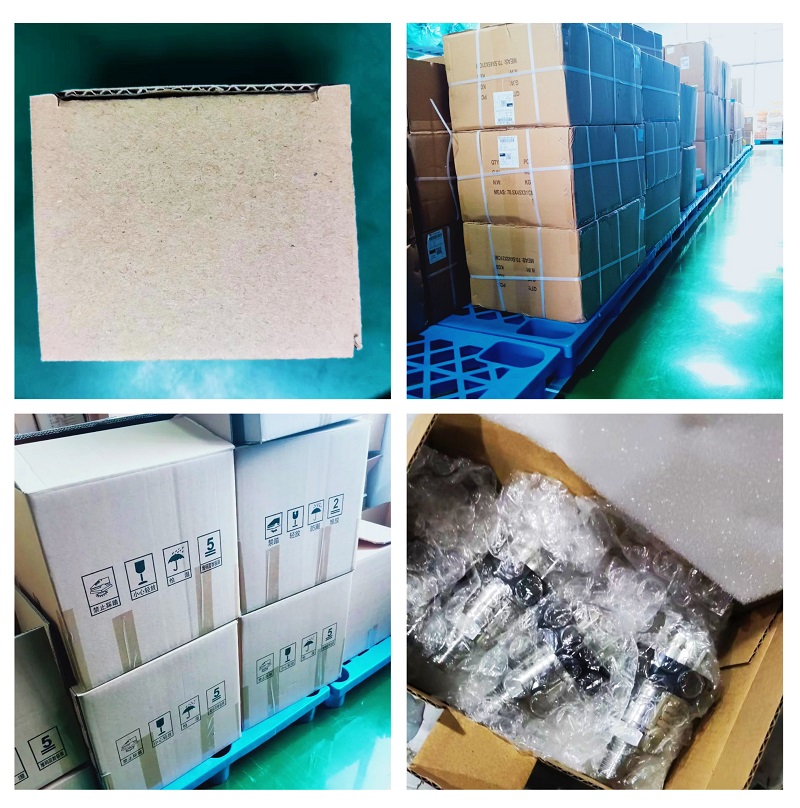

Packing & delivery

Φ23.5mm Silicon Pressure Sensor PCM320

Certificate

PCM320 Φ23.5mm Pressure Transmitter Sensor for Compressor

Company profile

PCM580 Digital Pressure Gauge (Φ80mm)

Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the company will revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors. Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.

Company advantage

Mass production

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.

Imported equipments

We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.

Informatization management

We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.

Comprehensive testing

We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
