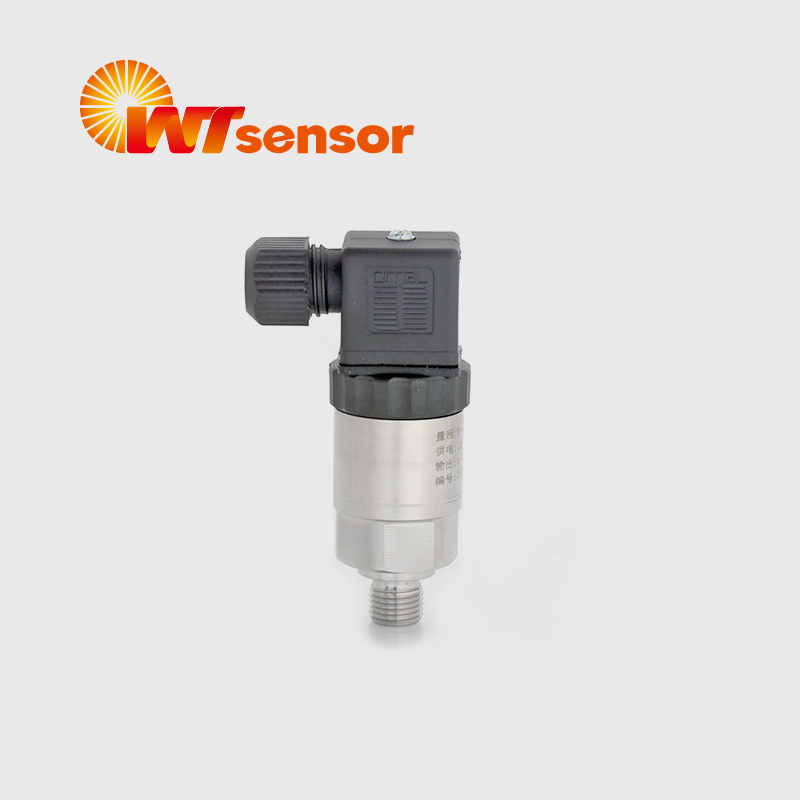

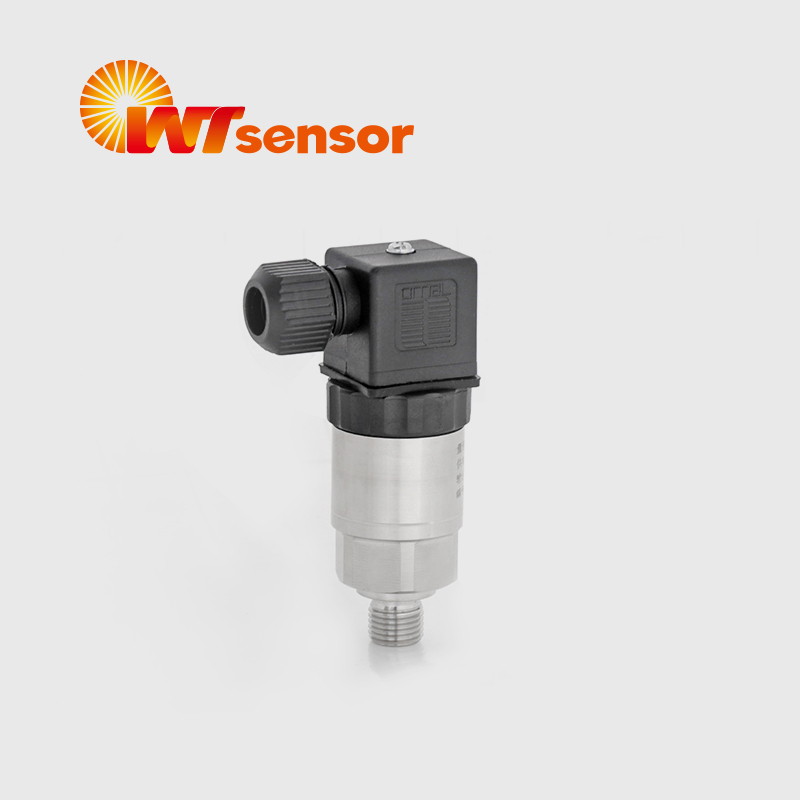

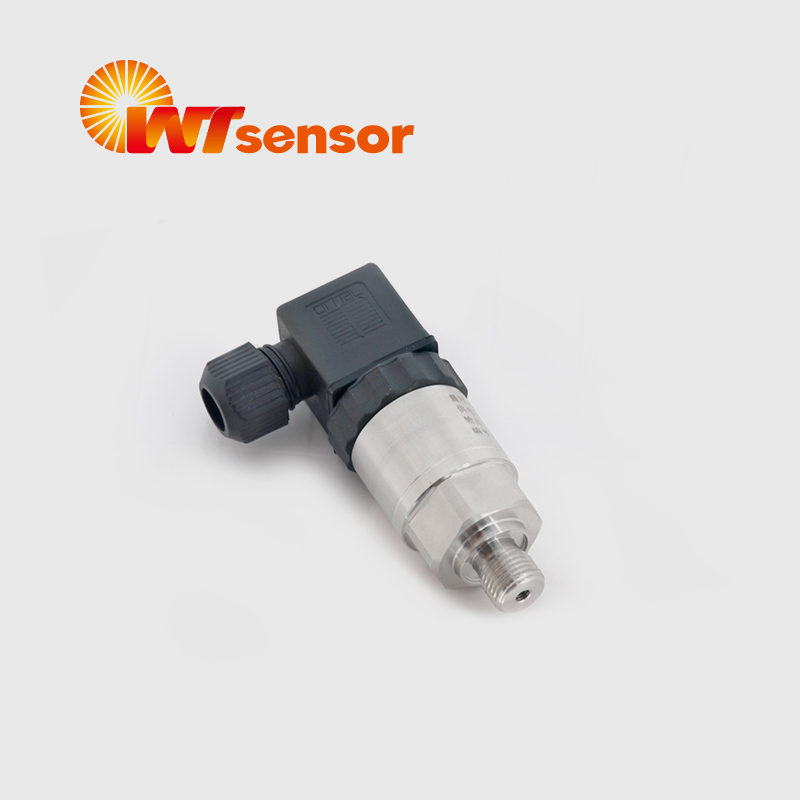

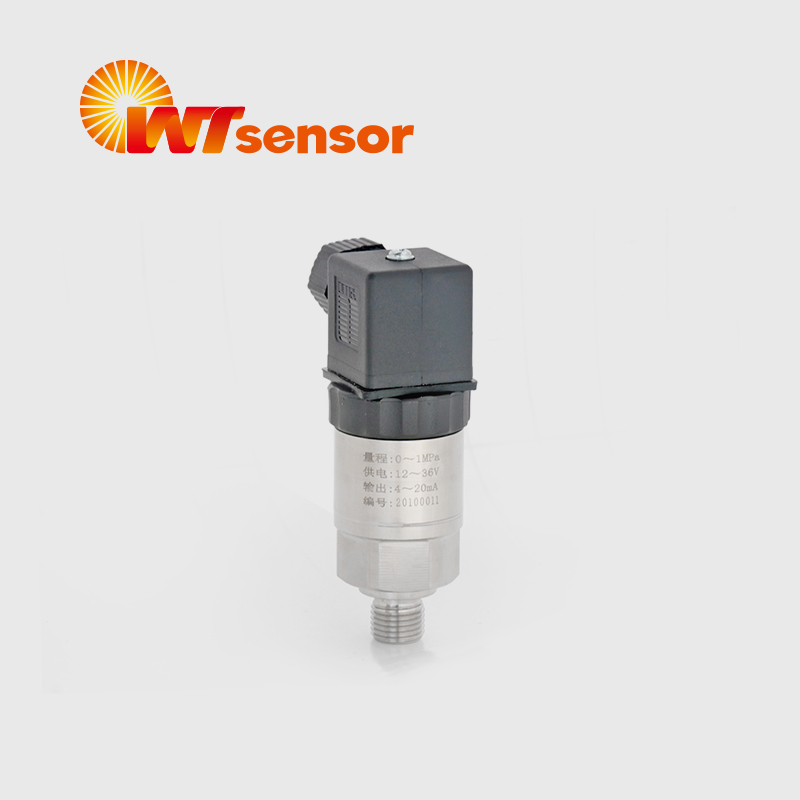

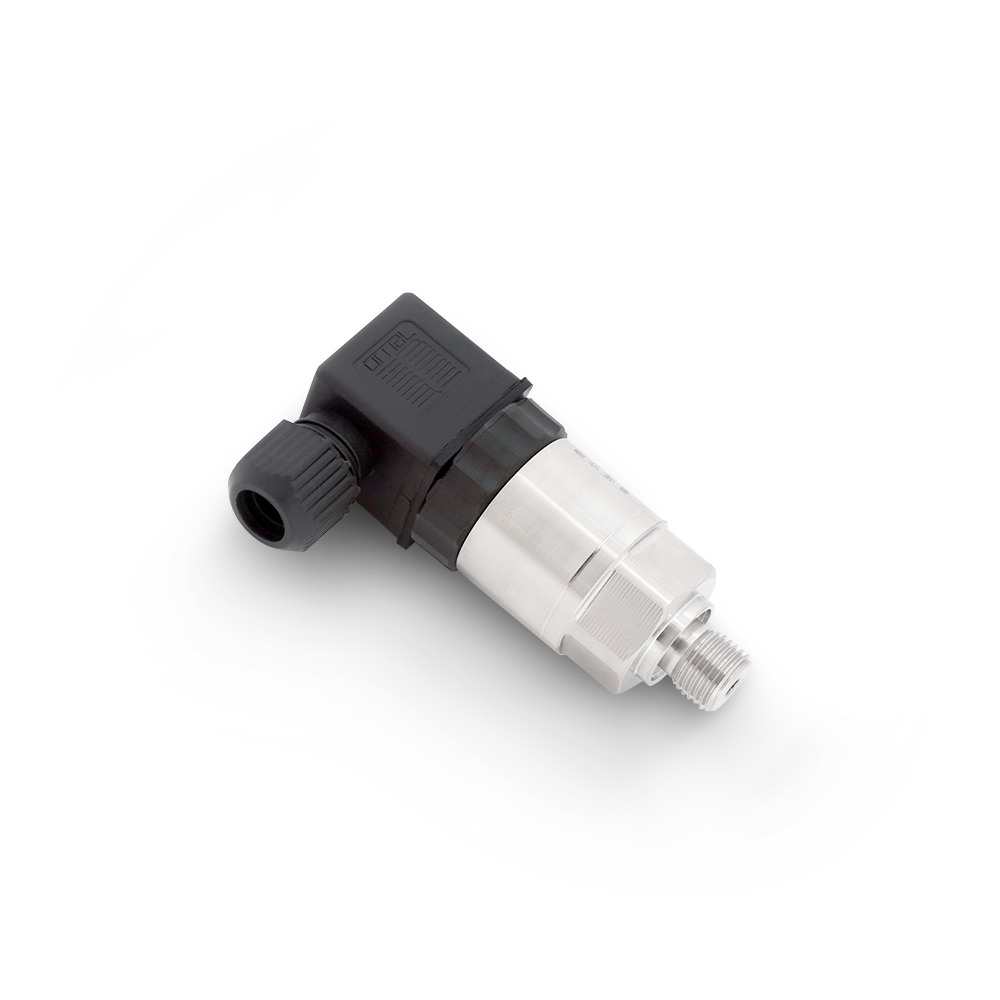

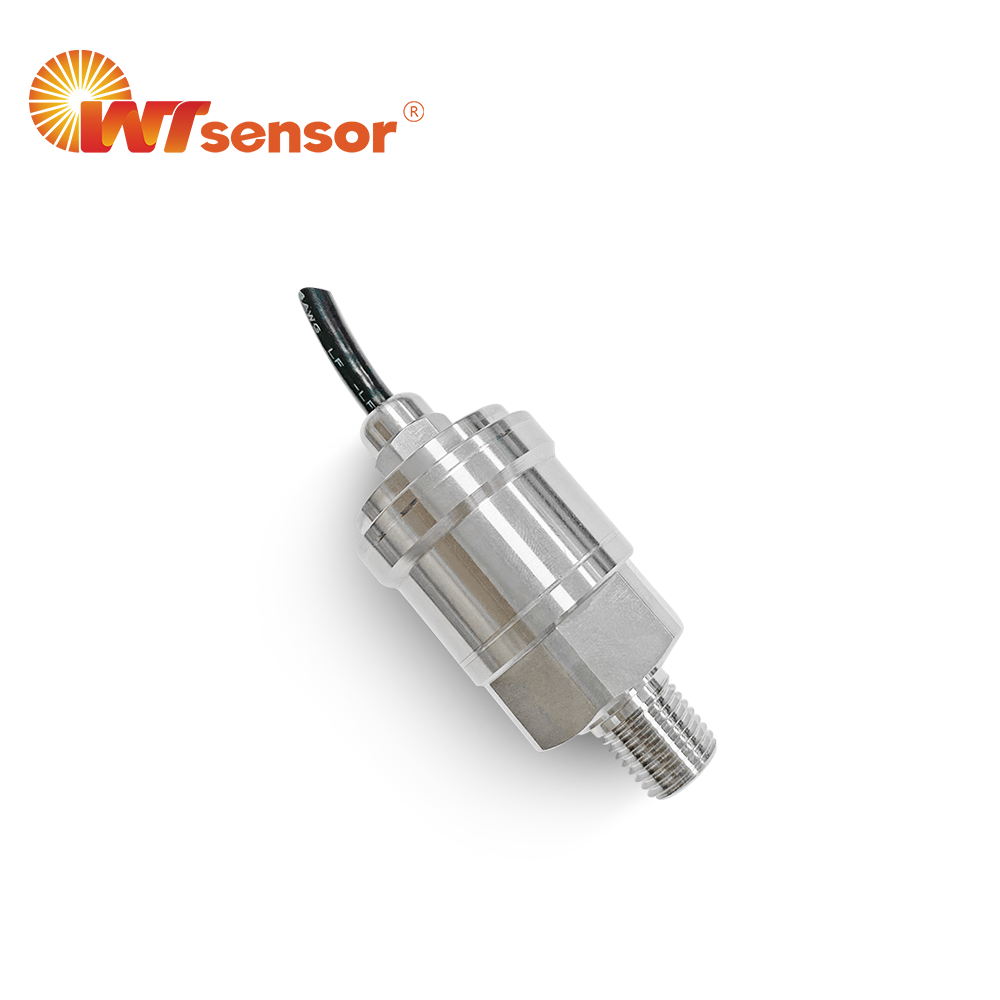

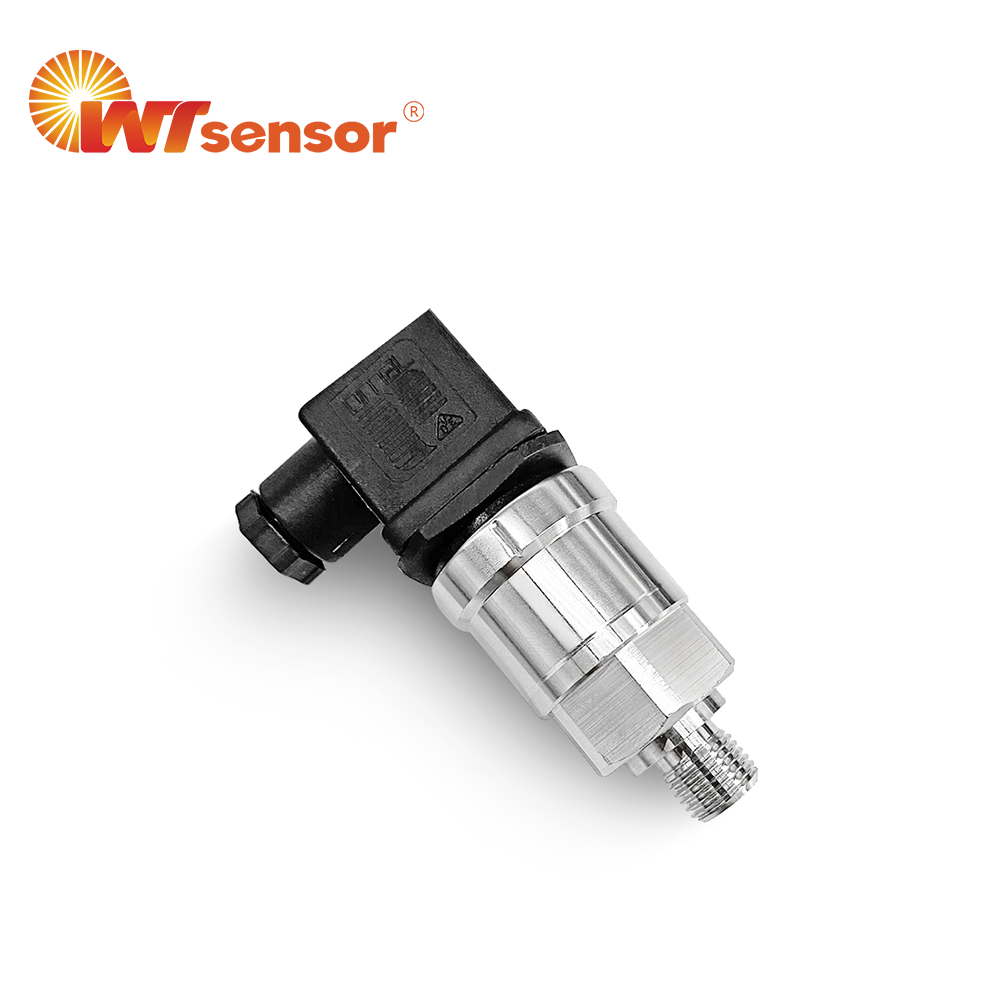

PCM308 Pressure Transmitter for Hydraulic Industry

Features

316L stainless steel isolation diaphragm structure

High accuracy, all stainless steel structure

Small size, light weight

Good long-term stability

Diversified formal structures, easy to install and use

Wide pressure range, available for absolute pressure, gauge pressure and sealed gauge pressure

Anti-vibration, shock resistance



Applications

Hydraulic process control

Aviation and aerospace

Auto industry and medical equipment

Hydraulic piping system


Product Parameters



Performance parameters

Pressure range

-100kPa0…60MPa

Pressure reference

Gauge pressure, Absolute pressure, Sealed gauge pressure

Accuracy

0.5%FS

Hysteresis

0.1%FS

Repeatability

0.1%FS

Temp. drift

±1.5%FS(-20℃85℃

Response time

≤90msup to 90%FS

Overpressure

Refer to “Pressure range selection”

Service life

≥106 pressure cycles

Ambient temp.

-40℃85℃

Medium temp.

115-0.35×Ambient temp.

Storage temp.

-40℃125℃

EMC

Immunity: IEC 61000-6-2, Radiation: IEC 61000-6-3

Insulation resistance

≥100MΩ/250VDC

Vibration resistance

Sine curve20g, 25Hz2kHzIEC 60068-2-6

Random7.5grms, 5Hz1kHzIEC 60068-2-64

Shock resistance

Shock20g/1msIEC 60068-2-27

Free fall1mIEC 60068-2-32

Protection

IP65

Surge

IEC 61000-4-5 level 1

Voltage resistance

500V/AC 1min

Static electricity

IEC 61000-4-2 level 2

Medium compatibility

All media compatible with stainless steel 316L

Hex nut

HEX27

Net weight

130g±20g



Output and power supply

Code

B1

Available for customization

Output

420mA

-

Power supply

1236VDC

-




Electrical connection & wiring mode


Connector code

J4M12×1

J5: DIN43650

Dimension

In mm



Protection

IP65

IP65

Wring method

(2 wire current)

Pin 1: Power supply+ (Red wire)

Pin 2: Current output (Green wire)

Pin 1: Power supply+ (Red wire)

Pin 2: Current output (Green wire)

Pressure range selection

Pressure range code

Pressure reference

Pressure range

Overpressure

Burst pressure

Remark

100k

GA

0100kPa

200FS

500FS


160k

GA

0160kPa

200FS

500FS


250k

GA

0250kPa

200FS

500FS


400k

GA

0400kPa

200FS

500FS


600k

GA

0600kPa

200FS

500FS


1M

GA

01MPa

200FS

500FS


1.6M

GA

01.6MPa

200FS

500FS


2.5M

S

02.5MPa

200FS

500FS


4M

S

04MPa

200FS

300FS


6M

S

06MPa

200FS

300FS


10M

S

010MPa

200FS

300FS


16M

S

016MPa

200FS

300FS


25M

S

025MPa

150FS

200FS


40M

S

040MPa

150FS

200FS


60M

S

060MPa

150FS

200FS


(-1000)k

G

-1000kPa

300kPa

600kPa


Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.


Application of damper


Applications

Cavitation, liquid hammer and pressure peak may occur in air or fluid systems with varying flow rates, such as the rapid closing of the valve or the start and stop of the pump.


Even at relatively low operating pressures, these problems may occur at the entrance and exit.

Medium condition

In the liquid containing particles, nozzle clogging may occur. The vertical mounting of pressure transmitter minimizes the risk of clogging because the flow of fluid is limited to the initial start-up while the volume behind the nozzle is fixed and the nozzle aperture is relatively large (1.2mm).

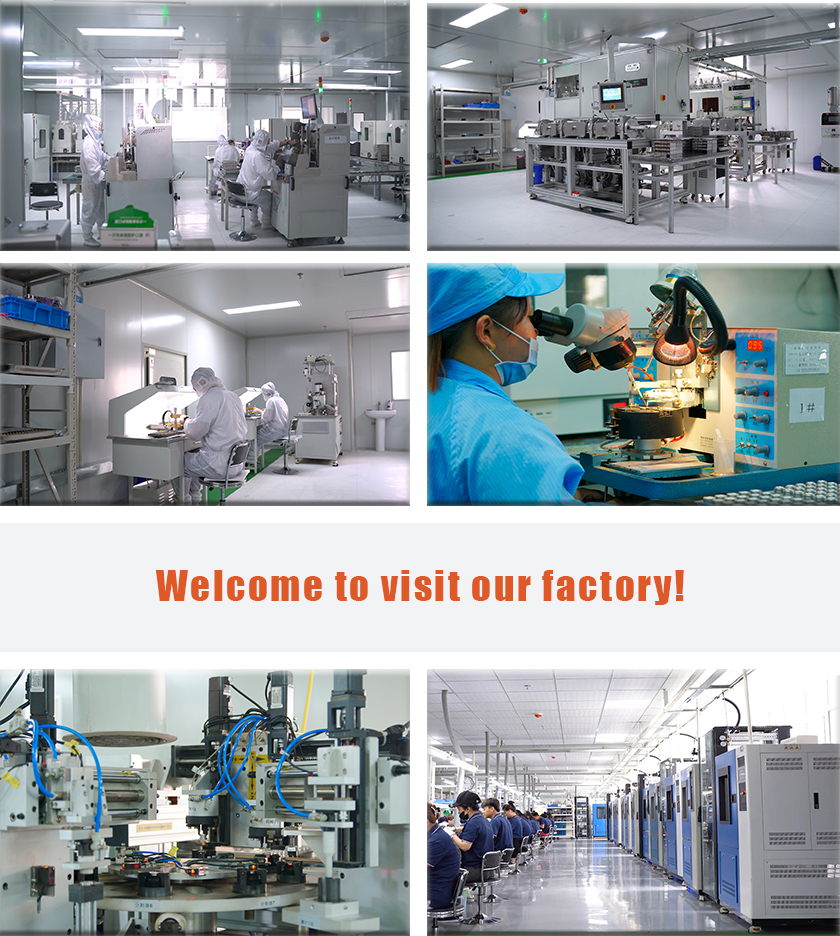

Production process
