How Level and Pressure Transmitters Improve Intelligent Fire Protection Systems

In the era of smart infrastructure, fire protection systems have evolved from basic water sprinklers to advanced, data-driven, automated response mechanisms. Intelligent fire protection relies heavily on accurate sensing and real-time monitoring. Among the core sensing devices are level transmitters and pressure transmitters, which monitor water and pressure availability across tanks, pumps, pipelines, and sprinkler networks.

The Need for Sensors in Intelligent Fire Protection

Modern fire safety systems are no longer passive — they are connected, responsive, and integrated into building management systems (BMS). These systems include:

• Water tanks and reservoirs

• Foam concentrate storage

• Fire pumps and valve networks

• Sprinkler and mist delivery systems

• Remote monitoring and alerting units

To ensure these critical elements are always ready, accurate pressure and level monitoring is essential — especially in environments such as commercial buildings, oil refineries, airports, and tunnels.

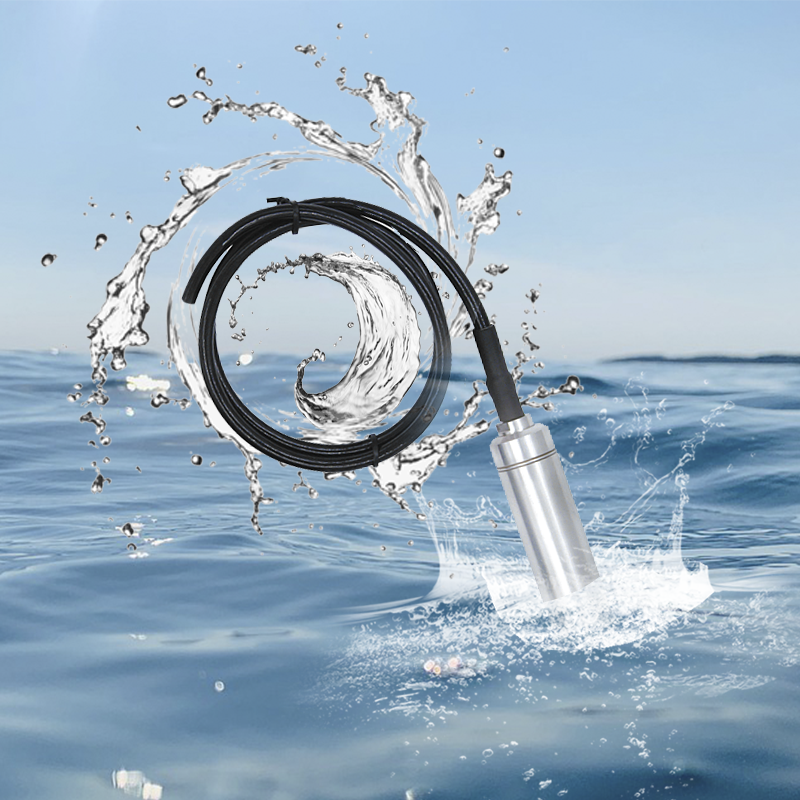

PCM260(WTL01) Submersible Level Transmitter in Fire Water and Foam Tanks

Precise Tank Monitoring for Water Availability

The PCM260(WTL01) from WTsensor is designed to measure the static pressure at the bottom of a tank and convert it to an accurate liquid level reading. It uses a high-performance piezoresistive diffused silicon sensor to deliver reliable output even in harsh outdoor fire protection environments.

💡 Where it’s used:

• Firewater reservoirs on rooftops or basements

• Underground water tanks

• Foam concentrate containers

• Seawater-based fire suppression tanks (marine/offshore use)

Key Advantages for Fire Systems

• Easy submersion installation: Just drop the probe into the tank—no complex mounting needed.

• IP68 protection: Allows 24/7 underwater operation.

• LCD option: Enables on-site visual monitoring by fire maintenance teams.

• Wide medium compatibility: Works with water, seawater, foam concentrates, and other fire media.

• Robust mechanical design: Withstands vibration and shock from pump activation or seismic events.

📊 Performance Snapshot:

• Range: 0–10mH₂O (customizable)

• Output: 4–20mA (analog), optional digital board

• Accuracy: ±0.5%FS (or ±1%FS for shallow tanks)

• Long-term stability: ±0.2%FS/year

This makes the PCM260 an ideal choice for water level supervision in municipal buildings, industrial facilities, and high-rise structures that require uninterrupted firewater supply.

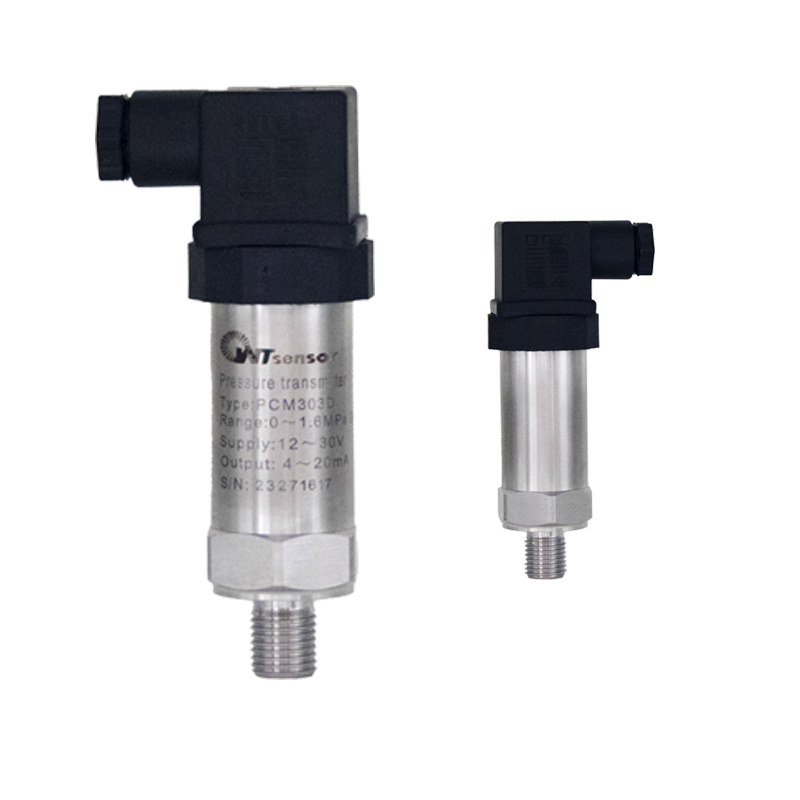

PCM303D Pressure Transmitter in Pump and Sprinkler Monitoring

Maintaining Consistent Firefighting Pressure

The PCM303D Universal Pressure Transmitter is engineered for robust, precise monitoring of fluid pressure in fire suppression systems. Whether installed at a pump outlet, sprinkler branch line, or distribution manifold, the PCM303D ensures your system maintains optimum pressure under all conditions.

💡 Where it’s used:

• Fire pump discharge pressure monitoring

• Sprinkler loop standby pressure validation

• Foam system pressurization control

• Booster pumps for high-rise water elevation

Key Advantages in Intelligent Fire Networks

• All-stainless steel structure (SS316L diaphragm): Withstands corrosion from treated water or foam additives.

• Compact and lightweight: Suitable for space-constrained pump rooms.

• Strong anti-vibration and shock resistance: Reliable in dynamic fire environments.

• PLC and BMS integration ready: Standard 4–20mA or Modbus output for seamless control panel connection.

• Ex-proof and EMC certified: Ideal for hazardous or high-EMI fire risk areas.

📊 Performance Snapshot:

• Pressure range: -100kPa to 100MPa (customizable)

• Accuracy: ±0.5%FS

• Response time: ≤90ms

• Ambient temp: -20℃ to +85℃

• EMC & vibration certified per IEC 61000 & IEC 60068

This makes PCM303D a go-to pressure sensor for engineering firms building modern, code-compliant, and intelligent firefighting infrastructure.

Why Smart Sensors are Critical in Fire Protection

Modern buildings demand real-time data, fault detection, and automated response. Here's how smart sensors like PCM260 and PCM303D contribute:

Example Application: High-Rise Intelligent Fire Protection

Scenario:

A 40-story commercial tower uses an integrated fire suppression system with rooftop tanks and vertical risers.

Sensor Roles:

• PCM260 installed in the rooftop and underground tanks, reporting water level to the central BMS.

• PCM303D monitors pressure at multiple riser branches and at the pump station to verify adequate supply throughout the vertical system.

Result:

In case of pressure drop or water shortage, the system sends SMS/email alerts, automatically starts booster pumps, and notifies fire department teams if needed.

This automation ensures the fire protection system is always operational, even without human intervention.

Choosing the Right Sensor: PCM260 vs. PCM303D

The combination of PCM260 submersible level transmitters and PCM303D pressure transmitters enables fire protection systems to move from reactive to proactive safety management. By providing continuous, accurate, and remote sensing of critical parameters, these devices support:

✅ Real-time system readiness
✅ Automatic fault detection
✅ Long-term reliability in extreme conditions

Whether you're designing fire systems for high-rise buildings, industrial parks, oil storage facilities, or data centers, WTsensor’s solutions are engineered to protect life and infrastructure with confidence.
