Dew Point Sensors vs. Temperature and Humidity Sensors: Key Industrial Differences

In industries where air quality and dew point monitoring are critical, accurate measurement technology ensures compliance, safety, and product reliability. Two common devices used for monitoring environmental conditions are the dew point sensors and the temperature and humidity sensor. While both are used to dew point temperature measure, their capabilities, accuracy, and applications differ significantly.

This article explores the technical differences between dew point transmitters and temperature and humidity sensors, clarifies how to measure dew point in complex systems, and highlights why an industrial dew point sensors provide a more advanced solution for industries such as pharmaceuticals, food processing, and high-purity manufacturing environments.Understanding the Basics

What is a Dew Point Sensor?

An industrial dew point sensor(often referred to as a dew point transducer) measures the dew point temperature—the temperature at which water vapor in the air begins to condense into liquid water. This industrial dewpoint measurement directly reflects how dry or moist a gas is.

If condensation does not occur until a very low temperature, it means the air or gas is extremely dry. Conversely, if condensation occurs at a relatively high temperature, the air is more humid.

• Unit of measurement: degrees Celsius dew point (dp °C)

• Core capability: Detects very low moisture levels, often less than 1% RH (Relative Humidity), which traditional humidity sensors cannot measure.

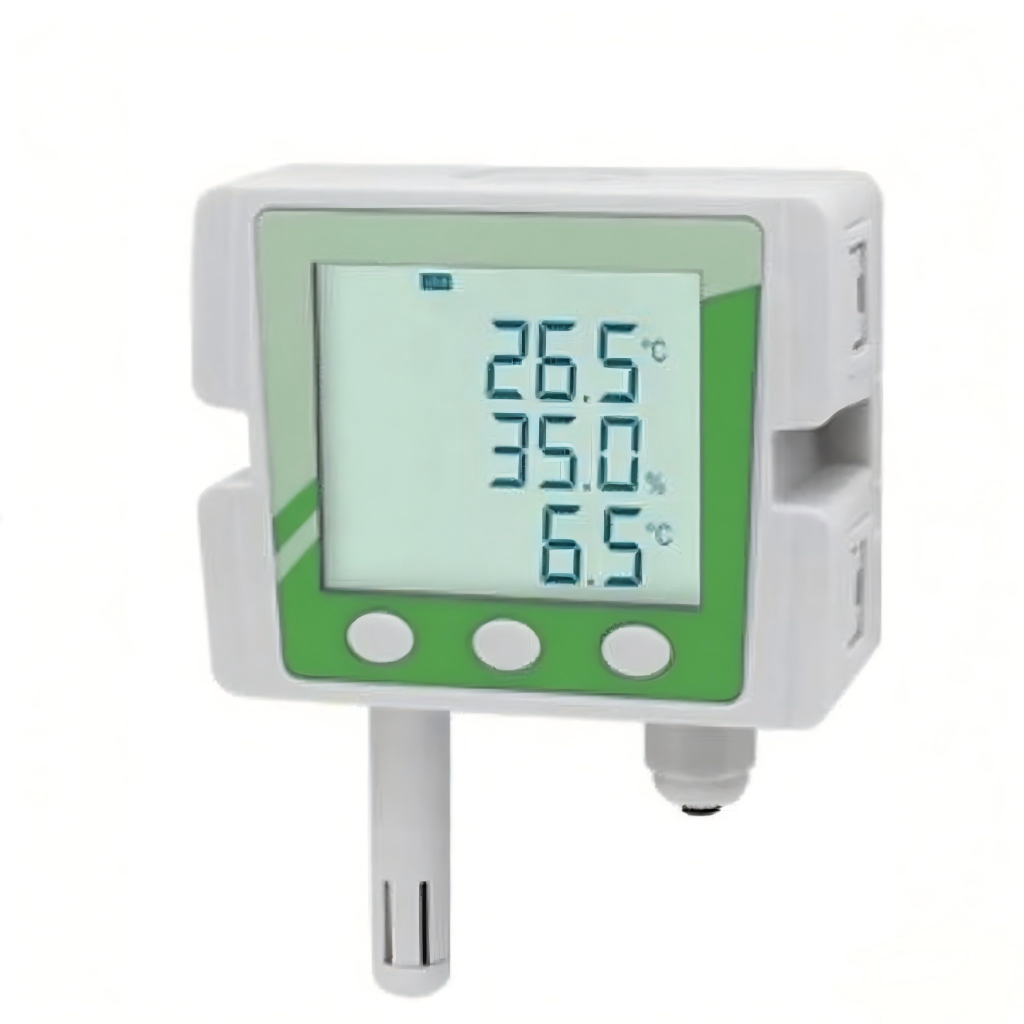

What is a Temperature and Humidity Sensor?

A temperature and humidity sensor (often called a hygrometer) measures two values:

1. Air temperature (°C)

2. Relative humidity (RH%), or how much water vapor is in the air compared to its maximum capacity at that temperature.

These sensors provide useful environmental monitoring for everyday applications, it is rarely sufficient as a high-precision dew point measurement instrument when humidity is extremely low.

• Unit of measurement: °C for temperature, %RH for humidity

• Core capability: Measures general ambient conditions but struggles to detect ultra-low humidity levels.




Core Difference in Measurement Capabilities

Industrial dewpoint sensor: Advanced Moisture Detection

• Dew point transmitters are highly sensitive and designed to detect trace amounts of moisture in gases.

• Even when humidity is below 1% RH,a high-quality industrial dewpoint sensor provides stable readings by calculating the condensation point

• This makes them essential for compressed air systems, pharmaceutical production, and semiconductor manufacturing, where even tiny amounts of moisture can cause contamination or defects.

Temperature and Humidity Sensors: Simpler and Cost-Effective

• Temperature and humidity sensors are effective when general environmental monitoring is sufficient.

• They can measure room conditions or industrial spaces where moderate humidity is expected.

• However, when humidity drops to near-zero levels—such as air dried by industrial compressors—they fail to provide the sensitivity required by an automated dew point controller.

In summary:

• Dew point sensors measure ultra-low humidity precisely.

• Temperature and humidity sensors are better suited for general monitoring at higher humidity levels.

Practical Example: Pharmaceutical and Food Industries

In pharmaceutical production, compressed air transports sensitive products. To comply with the ISO 8573-1 standard, which defines compressed air quality classes, maintaining a low pressure dew point is mandatory. If moisture remains, it could lead to medicine deterioration or microbial growth.

In this case, a dew point sensor is the only effective tool for industrial dewpoint measurement. Similarly, in the food industry, dew point measurement instruments are required to prevent mold during packaging, whereas a standard hygrometer would not be sensitive enough.

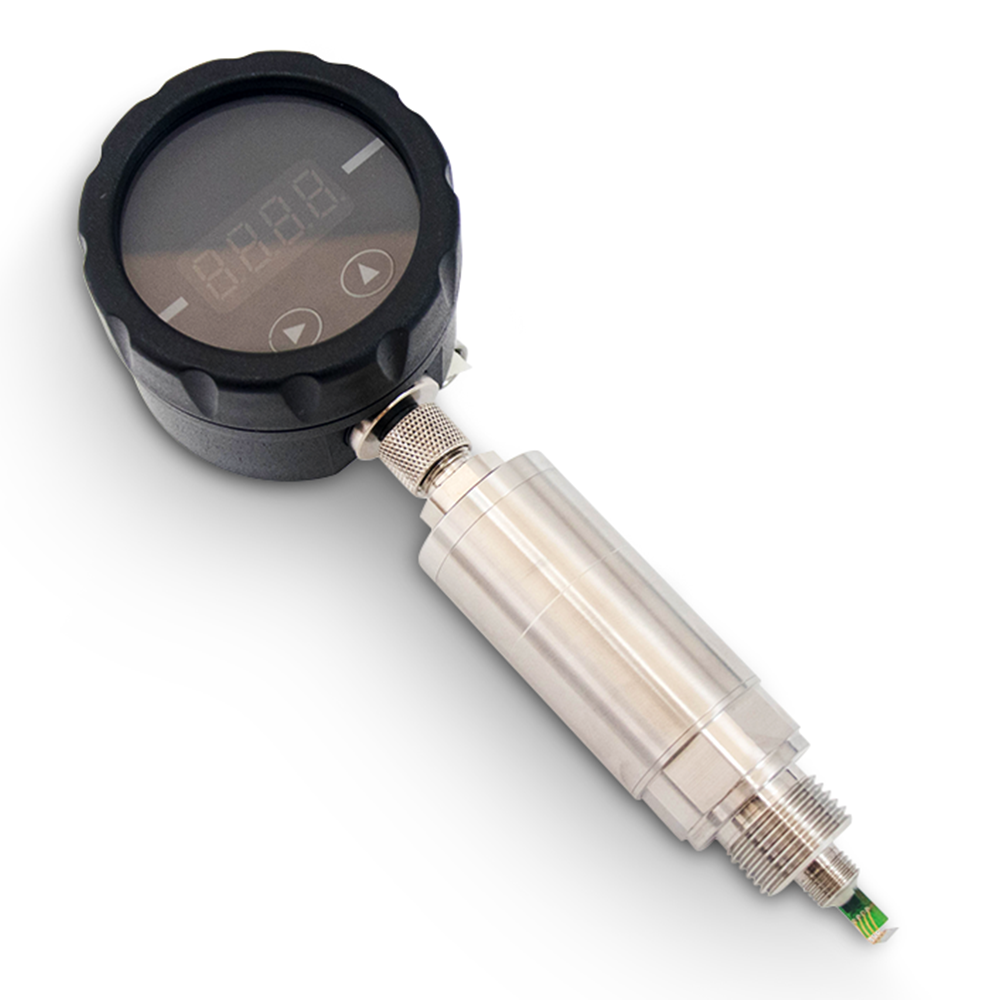

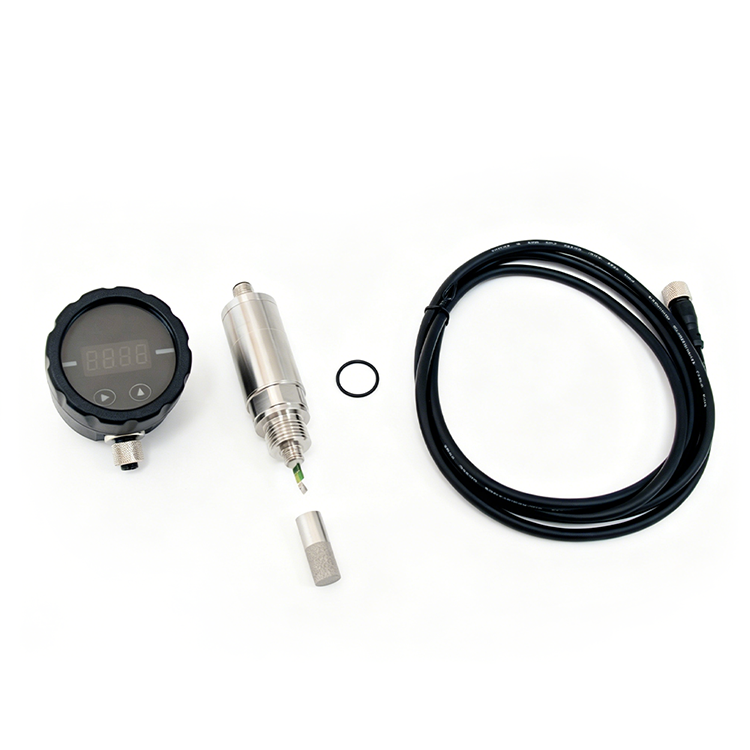

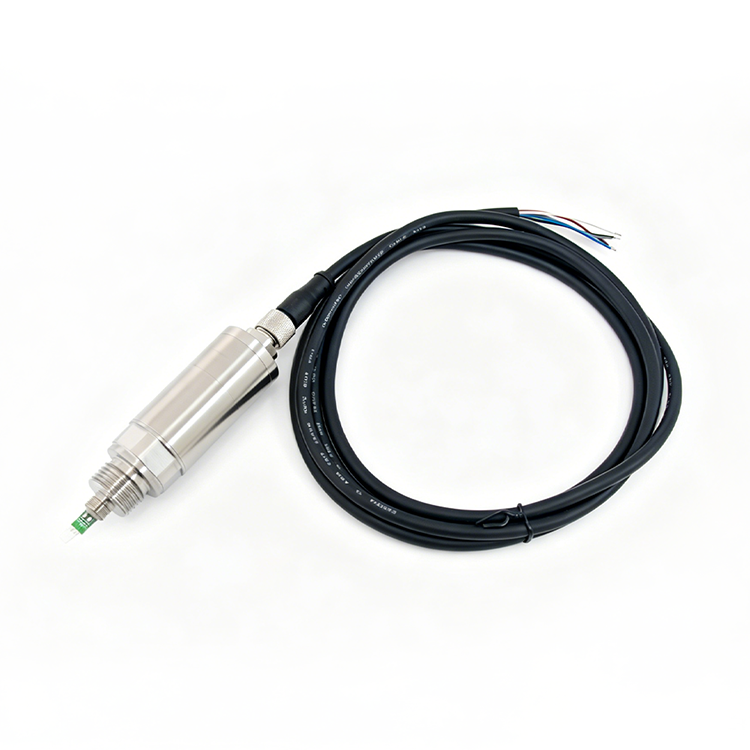

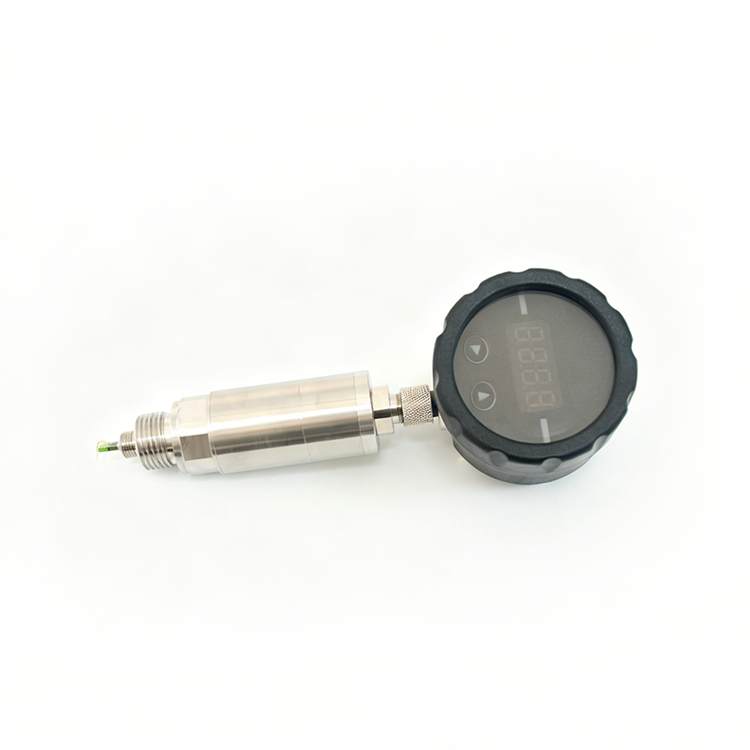

Featured Solution: PCD03 High-Pressure Dew Point Transmitter[View WTSensor Dew Point Solutions]

For industries requiring the highest level of precision, WTSensor recommends the PCD03 High-pressure Dew Point Transmitter. This advanced dew point measurement instrument is specifically engineered for demanding environments where accuracy is non-negotiable.

Key Features:

• High Accuracy & Stability: Capable of temperature compensation and linear adjustment for long-term reliability.

• Extreme Range: Scaling range from -100 to +60 dp℃, ideal for deep-drying processes.

• Smart Communication: Standard MODBUS RTU protocol (RS-485) for seamless integration into any dew point controller system.

• Industrial Build: High pressure and low humidity resistance with multiple connector sizes for easy installation.

• Programmable: Includes free software to adjust the dew point range based on specific needs.

Applications: Compressed air systems, freezers, adsorption machines, plastic dryers, industrial drying, and chemical process monitoring.

 [Request a Technical Quote]

Key Technical Comparisons

Why Dew Point Sensors are Considered “More Advanced”

Dew point sensors go beyond simple humidity detection. They directly measure the fundamental thermodynamic property of air—the point where condensation begins. This offers several advantages:

1. Greater accuracy in dry environments

• Critical for industries relying on compressed air or ultra-pure gas.

2. Lower measurable humidity range

• Humidity meters fail when values drop below 1% RH; dew point sensors remain reliable.

3. Direct indication of condensation risk

• Especially important for pipelines, where condensation can lead to corrosion or product contamination.

4. Compliance with strict standards

• Food, beverage, and medical sectors often require ISO-compliant dew point monitoring.




When to Choose a Temperature and Humidity Sensor

Despite their limitations, temperature and humidity sensors remain valuable in applications such as:

• HVAC systems: Ensuring indoor comfort and efficiency.

• Agriculture and greenhouses: Monitoring conditions for crop growth.

• Warehouses and logistics: Preventing spoilage of goods during storage.

• General environmental monitoring: Offices, laboratories, or industrial spaces where extreme dryness is not required.

They are cost-effective and easy to deploy when ultra-low humidity measurement is not critical.

Cost vs. Performance Considerations

• Temperature and humidity sensors:

• Lower cost, suitable for broad use.

• Limited accuracy in ultra-dry environments.

• Dew point sensors:

• Higher initial investment.

• Long-term benefits in critical applications where quality and safety outweigh cost.

For companies evaluating which device to purchase, the key question is:
“How critical is ultra-low humidity detection for my process?”

If your process can tolerate some moisture, a standard humidity sensor may suffice. But if your industry demands absolute dryness and precision, only a dew point sensor provides the reliability needed.
