Small-Diameter Pressure Sensors: Compact Solutions for Precision Measurement

In modern engineering, there is a growing demand for miniaturized sensing solutions that combine high performance with small form factors. Small-diameter pressure sensors, typically ranging from 12 mm to 19 mm, and in some cases even smaller, are designed precisely for this purpose. They enable accurate pressure measurement in compact environments where installation space is restricted, such as narrow tubing, miniature hydraulic systems, or medical devices.

Despite their small size, these sensors deliver high accuracy, reliability, and long-term stability. They are indispensable in industries where space is limited but precision is non-negotiable—ranging from medical devices and automotive systems to aerospace engineering and semiconductor manufacturing.

This article explores the role of small-diameter pressure sensors, highlights the industries and equipment where they are applied, and provides an overview of four advanced models—PC7, PC8, PC16, and PC13—that exemplify innovation in compact sensing technology.

Why Small-Diameter Pressure Sensors Are Essential

Conventional pressure transmitters often require more installation space and may be unsuitable for compact or portable equipment. Small-diameter sensors solve this problem by offering:

• Compact Form Factor – Ideal for space-constrained installations.

• Robust Construction – Resistant to harsh media with stainless steel housings.

• High Sensitivity & Accuracy – Suitable for medical and scientific precision.

• Flexibility in Applications – Used across hydraulics, pneumatics, and microfluidics.

Their ability to fit into tight mechanical spaces without sacrificing performance has made them the preferred choice for engineers designing modern, compact equipment.

Industrial Equipment Using Small-Diameter Pressure Sensors

Small-diameter sensors are applied wherever precision must meet miniaturization. Key application areas include:

1. Medical Devices

• Dialysis machines – Monitor blood and dialysate line pressures.

• Respirators & ventilators – Maintain airway pressure control.

• Infusion & syringe pumps – Ensure accurate dosing pressure.

• Catheter-based instruments – Enable intravascular pressure monitoring.

Medical devices rely on miniaturized, biocompatible, and highly reliable sensors to safeguard patient health.

2. Laboratory & Scientific Equipment

• Chromatography systems (HPLC, GC) – Ensure stable fluid line pressure.

• Microfluidics instruments – Enable low-volume, high-precision pressure monitoring.

• Precision dispensing systems – Maintain dosing consistency.

Accuracy and low-noise signal output are essential in this field.

3. Automotive & Transportation

• Fuel rail systems – Measure injection pressures in gasoline/diesel engines.

• Brake systems (ABS/ESC) – Provide real-time hydraulic pressure monitoring.

• Transmission control – Assist in hydraulic regulation.

• EV cooling loops – Monitor battery thermal management systems.

Compact sensors ensure safety, efficiency, and regulatory compliance.

4. Aerospace & Defense

• Hydraulic actuators – Control aircraft flaps and landing gear.

• Fuel lines – Monitor pressurization in jet engines.

• UAV propulsion – Fit into compact unmanned aerial vehicle designs.

Here, shock resistance, vibration tolerance, and reliability are critical.

5. Semiconductor & Electronics Manufacturing

• Vacuum systems – Regulate pressure in cleanroom fabs.

• Gas distribution – Ensure accurate gas flow in etching and deposition.

• Cooling loops – Stabilize semiconductor equipment temperatures.

Precision under harsh conditions is essential to avoid process disruption.

6. Industrial Automation

• Robotic actuators – Monitor hydraulic/pneumatic actuation.

• Miniature pumps & compressors – Provide compact integration.

• Calibration rigs – Ensure precision in testing and validation.

Sensors here balance ruggedness with miniaturization.

7. Consumer & Small Appliances

• Coffee machines – Regulate pump and steam pressure.

• Refrigeration systems – Control coolant circulation.

• Washing machines/dishwashers – Monitor water pressure and level.

Miniature sensors provide everyday reliability in consumer goods.

Industries That Depend on Small-Diameter Sensors

The widespread use of these sensors cuts across industries, including:

• Healthcare & Medical Technology

• Automotive & EV Manufacturing

• Aerospace & Defense

• Semiconductor & Electronics

• Industrial Automation & Robotics

• Food & Beverage Equipment

• Laboratory Research & Biotechnology

• Home Appliances

This diversity illustrates the versatility and universal value of compact pressure sensing solutions.

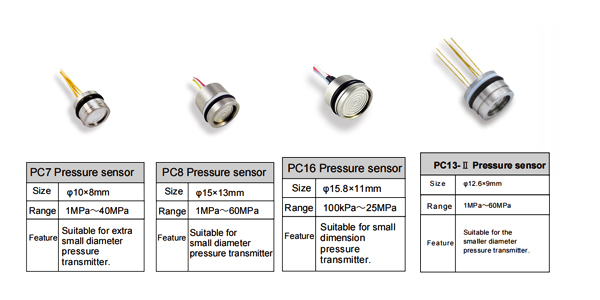

Product Highlights: PC7, PC8, PC16, and PC13

Among the small-diameter sensor portfolio, four models—PC7, PC8, PC16, and PC13—stand out as core technologies for compact measurement.

PC7: Miniature and Robust

• Size: φ10 × 8 mm, ideal for extremely tight installations.

• Features: Imported high-reliability pressure chip, 316L stainless steel housing, wide range (1 MPa–40 MPa), excellent stability.

• Applications: Process control, hydraulic valves, biomedical equipment, shipping and navigation.

The PC7 is best suited for ultra-compact medical and industrial control systems.

PC8: Flexible and Customizable

• Size: φ15 mm standard OEM format.

• Features: Constant current/voltage excitation, moisture-resistant design, wide temperature compensation, customizable structure (all-welded options).

• Applications: Refrigeration, HVAC, avionics, weaponry, hydraulic systems, level measurement.

The PC8 is highly adaptable, especially for custom defense, aerospace, and industrial automation solutions.

PC16: Wide Application Range

• Size: φ15.8 mm compact housing.

• Features: Imported pressure die, moisture protection, excellent thermal compensation, long-term reliability.

• Applications: Calibration instruments, process control, biomedical instruments, aerospace systems.

The PC16 combines compact size with wide applicability, making it ideal for scientific, medical, and aerospace fields.

PC13: Stable and Versatile

• Size: Compact form factor for embedded use.

• Features: Constant current/voltage options, stable all-solid structure, high reliability, glue-filled compensation board for humidity resistance.

• Applications: HVAC systems, hydraulic systems, ships, avionics, weaponry, biomedical systems.

The PC13 offers versatility across both civilian and defense industries, where compactness and stability are equally critical.

Advantages of WTsensor Small-Diameter Pressure Sensors

Compared to larger transmitters, PC7, PC8, PC16, and PC13 provide:

• Miniaturization without compromise – Compact housing but high accuracy.

• Harsh media compatibility – Stainless steel 316L and oil-isolated diaphragm.

• High customization potential – Options for welded structures, temperature compensation, and vibration resistance.

• Long-term reliability – Proven durability across medical, industrial, and aerospace sectors.

This combination of performance, reliability, and compact design makes them indispensable in next-generation equipment.

As technology trends toward miniaturization and integration, the importance of small-diameter pressure sensors will only grow. Whether in life-saving medical devices, precision semiconductor fabs, advanced aerospace systems, or consumer appliances, these sensors deliver precision under constraints.

The PC7, PC8, PC16, and PC13 exemplify how modern engineering enables compact yet powerful sensing solutions. With features such as wide temperature compensation, moisture protection, and corrosion resistance, they meet the demands of industries where installation space is minimal but accuracy and reliability are critical.

Small-diameter pressure sensors are the backbone of compact innovation, empowering industries to build smarter, safer, and more efficient systems.
