PCM1610 Differential Pressure Transmitter: Advanced Solution for Industrial Tank Monitoring

In modern industrial processes, accurate and reliable tank monitoring is essential for ensuring safety, efficiency, and cost optimization. Whether in chemical plants, refineries, water treatment facilities, or food and beverage manufacturing, tanks are used to store and process liquids and gases under various pressure and temperature conditions. Precise monitoring of liquid levels, flow rates, and differential pressures is critical to maintaining stable operations.

Among the many measurement instruments available, the PCM1610 Monocrystalline Silicon Differential Pressure Transmitter stands out as a high-performance, intelligent solution designed specifically for demanding industrial environments. With its advanced design, superior accuracy, and robust construction, the PCM1610 offers a comprehensive professional solution for industrial tank monitoring.

The Role of Differential Pressure Transmitters in Tank Monitoring

Differential pressure (DP) transmitters measure the difference in pressure between two points in a process. In tank monitoring, this principle is widely applied to determine liquid levels, density, and flow rates. By connecting one side of the transmitter to the bottom of the tank and the other to a reference point (usually the top of the tank or atmosphere), the DP transmitter calculates the hydrostatic pressure, which is then converted into a liquid level or volume measurement.

Compared to simple level switches or sight glasses, DP transmitters provide continuous, real-time, and highly accurate measurements. This makes them particularly valuable for:

• Tank level monitoring in sealed and pressurized tanks

• Flow measurement in closed piping systems

• Filter and pump monitoring to detect clogging or cavitation

• Leak detection in pressurized vessels

Given these critical functions, the performance of a DP transmitter directly influences the safety, efficiency, and reliability of industrial operations.

Introduction to the PCM1610 Differential Pressure Transmitter

The PCM1610 Monocrystalline Silicon Differential Pressure Transmitter represents a new generation of smart measurement technology. At its core, it utilizes an imported high-stability differential pressure chip with the world’s unique monocrystalline silicon double beam suspension design. This innovation provides unmatched accuracy, ultra-high overpressure resistance, and superior long-term stability.

Unlike conventional DP transmitters, the PCM1610 combines advanced static pressure and temperature compensation within its embedded signal processing module. This ensures stable performance across a wide range of process conditions, making it an excellent fit for industrial tank monitoring where pressures, temperatures, and media properties can fluctuate significantly.

Key Features and Advantages

1. High-Accuracy Measurement

The PCM1610 is engineered for precision. It delivers accurate measurements of very small pressure differentials, enabling operators to detect subtle changes in tank levels or flow conditions. The internal high-accuracy temperature sensor provides real-time compensation, reducing errors caused by temperature fluctuations.

2. Superior Stability and Reliability

Thanks to the double beam suspension design, the PCM1610 offers outstanding resistance to environmental and process-related disturbances. This structural innovation minimizes drift and ensures reliable operation over long periods, reducing recalibration needs and maintenance costs.

3. Exceptional Overpressure Protection

Industrial tanks often experience sudden pressure surges or unbalanced loading. To address this, the PCM1610 includes a double overpressure protection diaphragm with a unilateral overpressure limit of up to 16 MPa. This robust design protects the sensing element, extending the instrument’s lifespan even in harsh conditions.

4. Intelligent Compensation

Static pressure errors are minimized to ±0.1%FS/10MPa, and intelligent compensation algorithms correct for both static pressure and temperature effects. This ensures consistent accuracy across a wide operating range.

5. Compact and All-Welded Design

The transmitter is constructed with a fully welded, O-ring-free body, ensuring leak-proof operation. Its compact size makes installation easier, even in tight or complex tank systems. Despite its small form factor, the PCM1610 integrates a full suite of functions for industrial monitoring.

6. Standardized Output Signal

The device converts differential pressure into a 4–20 mA current signal, the standard in industrial process control. This ensures compatibility with existing distributed control systems (DCS), programmable logic controllers (PLC), and supervisory control and data acquisition (SCADA) systems.

Applications in Industrial Tank Monitoring

The PCM1610 is designed with industrial tank monitoring as a core application. Some typical use cases include:

1. Liquid Level Measurement in Pressurized Tanks

Conventional level sensors struggle in sealed or pressurized vessels. The PCM1610 overcomes this challenge by measuring the pressure difference between the bottom and top of the tank, accurately reflecting the liquid level regardless of internal pressure variations.

2. Inventory Management and Process Control

In industries such as petrochemicals or food processing, maintaining precise inventory records is crucial. By providing real-time tank level data, the PCM1610 supports automated process control, helping operators optimize production scheduling and reduce material losses.

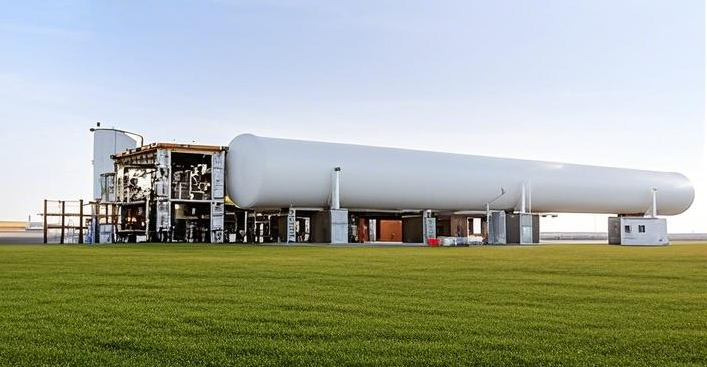

3. Cryogenic and High-Temperature Tank Monitoring

With intelligent temperature compensation, the PCM1610 ensures accurate readings even when tanks operate at extreme temperatures, such as cryogenic liquid gas storage or high-temperature chemical processes.

4. Filter Condition Monitoring

By measuring pressure drop across filters, the PCM1610 can detect clogging early, preventing process downtime and protecting pumps from damage.

5. Flow Measurement in Piping Systems

Installed across orifice plates, Venturi tubes, or other flow elements, the PCM1610 converts pressure differentials into flow data, enabling accurate monitoring of tank filling and discharge operations.

Benefits to Industrial Users

By integrating the PCM1610 into industrial tank monitoring systems, operators can achieve significant advantages:

• Improved Safety: Reliable monitoring prevents overfilling, leaks, and dangerous pressure build-up.

• Higher Efficiency: Real-time accurate data allows tighter process control, reducing energy and material waste.

• Lower Maintenance Costs: Exceptional stability and robust construction reduce calibration frequency and replacement needs.

• Operational Flexibility: Compact size and universal output compatibility make integration straightforward.

• Long-Term Reliability: The all-welded design and advanced diaphragm protection ensure years of trouble-free operation, even in demanding environments.

Why Choose the PCM1610?

While many differential pressure transmitters are available on the market, the PCM1610 distinguishes itself through its combination of cutting-edge sensing technology, robust mechanical design, and intelligent signal processing.

• Its monocrystalline silicon double beam suspension offers accuracy that conventional designs cannot match.

• Its dual diaphragm overpressure protection guarantees durability even in unstable or extreme conditions.

• Its intelligent compensation system ensures reliable performance across wide ranges of temperature and static pressure.

For industries that depend on precise and reliable tank monitoring, such as oil and gas, chemical processing, power generation, pharmaceuticals, and food production, the PCM1610 provides a professional, future-proof solution.
