Pressure Transmitters in the Process Tank Gauging Industry

In today’s industrial world, where efficiency, safety, and accuracy are paramount, process tank gauging plays a crucial role in managing the flow and storage of liquids and gases. Whether it is in petrochemical facilities, water treatment plants, or chemical storage systems, tank level and pressure monitoring are essential for ensuring seamless process control and minimizing operational risks.

Pressure transmitters are at the heart of this process, providing reliable measurements of both pressure and liquid levels in closed and open tanks. WTsensor’s range of high-performance transmitters—including the PCM303D Universal Pressure Transmitter, PCM400 Pressure Transmitter, and PCM260 Submersible Level Transmitter—offers robust, versatile solutions for the challenges in process tank gauging applications. This article explores how these pressure transmitters enhance tank monitoring across various industries.

The Importance of Process Tank Gauging

Process tank gauging refers to the monitoring and control of fluid levels and pressure within storage tanks, mixing vessels, or reaction chambers. Accurate gauging ensures:

• Proper inventory management

• Prevention of overfilling or leakage

• Detection of process abnormalities

• Safety of personnel and equipment

• Compliance with environmental and operational regulations

Two primary measurements are typically needed:

• Level Measurement: Determines the volume or height of the liquid in the tank.

• Pressure Measurement: Provides information on internal tank pressure, useful for both liquid and gas applications.

Pressure-based measurement methods are widely used because they offer continuous, real-time monitoring with high accuracy and are compatible with a wide variety of media, including corrosive, viscous, or pressurized fluids.

PCM303D Universal Pressure Transmitter: For Versatile Tank ApplicationsThe PCM303D is a compact, high-accuracy pressure transmitter ideal for general-purpose process tank gauging. It features a diffused silicon pressure sensor, and its output signal is converted digitally, ensuring precision and stability.

Key Benefits in Tank Gauging:

1. Multi-type Pressure Measurement: The PCM303D supports absolute, gauge, and sealed gauge pressure measurement, allowing it to be used in both open and pressurized tank systems.

2. Robust Stainless Steel Construction: With a corrosion-resistant SS316L isolation diaphragm, it can withstand harsh environments common in the chemical, pharmaceutical, and food processing industries.

3. Anti-Vibration and Shock Resistance: Tanks in dynamic environments (e.g., ships or remote pumping stations) benefit from the PCM303D’s ability to operate reliably under physical stress.

4. Compact and Lightweight: Its small form factor allows for easy integration into tight or space-constrained systems, while ensuring performance isn't compromised.

Typical applications include monitoring head pressure in closed tanks, detecting gas buildup, and managing inlet/outlet pressures to maintain safe operating conditions.

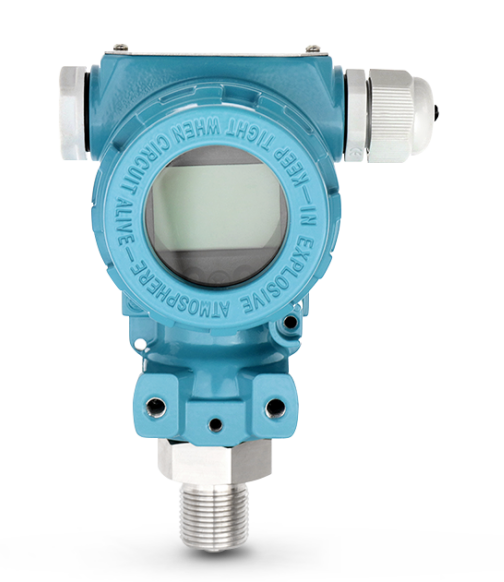

PCM400 Pressure Transmitter: Built for Heavy Industry

For heavy-duty process environments, the PCM400 is the go-to solution. Built with a high-performance piezoresistive silicon sensor, this transmitter is suitable for measuring pressure in liquids and gases across demanding sectors like oil & gas, metallurgy, and large-scale chemical storage.

Role in Tank Gauging:

1. Wide Pressure Ranges: From low-pressure measurements to high-pressure tanks, the PCM400 adapts to various tank conditions with excellent linearity and repeatability.

2. Digital Display Option: In many tank farms or remote installations, on-site readability is critical. The PCM400 offers a digital display option to provide local pressure information at a glance.

3. Customizable Interface: It supports multiple output signals and customizable process connections, making it compatible with existing tank gauging systems and SCADA setups.

4. Rugged Design for Harsh Conditions: Its robust sealing and stable electronics ensure long-term reliability in outdoor or corrosive environments.

In practical applications, PCM400 is used for monitoring vapor pressure in volatile liquid tanks, measuring backpressure in chemical dosing systems, and controlling gas blanketing systems in storage vessels.

PCM260 Submersible Level Transmitter: Accurate Liquid Level Monitoring

For tanks, reservoirs, or open basins containing liquids, direct level measurement is often more effective than relying solely on head pressure conversion. The PCM260 Submersible Level Transmitter provides a direct method to measure liquid depth using hydrostatic pressure.

Key Features for Process Tank Level Measurement:

1. Submersible Design: The probe is submerged in the fluid, directly sensing pressure exerted by the liquid column, which translates to liquid height.

2. High Protection Design: Built with anti-corrosion stainless steel and sealed to prevent moisture intrusion, the PCM260 is suitable for wastewater, seawater, and chemical tanks.

3. Easy Installation: Simply suspend or place the probe into the tank—no need for complex structural modifications or fittings.

4. High Precision Output: The signal conditioning circuit ensures accurate and stable output (current or voltage), ideal for analog and digital tank gauging systems.

5. Optional LCD: On-site level display helps operators monitor tank status without needing additional equipment.

Applications include level control in water treatment basins, inventory monitoring in industrial fluid tanks, and flood detection in drainage reservoirs.

Advantages of Pressure-Based Tank Gauging Systems

Compared to other tank gauging technologies (e.g., float-based, radar, or ultrasonic), pressure transmitters offer a unique set of advantages:

• Cost-effective: Pressure transmitters are generally more affordable and easier to maintain.

• Reliable in Harsh Media: They work well in dirty, viscous, or foaming liquids where other sensors may fail.

• Compact and Flexible: Easy to integrate in both new and retrofit systems.

• Scalable Signal Outputs: Compatible with analog systems (4–20 mA) and digital controllers (PLC, DCS).

Seamless Integration with Control Systems

All three WTsensor transmitters—PCM303D, PCM400, and PCM260—are designed for seamless integration with industrial control systems. They support:

• Long-distance signal transmission (especially with 4–20 mA current output)

• Connection with PLCs, DCS, SCADA, and HMI

• Local and remote data visualization

• Alarm and safety shutdown systems in case of abnormal tank conditions

This makes WTsensor products highly adaptable across multiple industrial verticals with minimal integration overhead.

Process tank gauging is vital to the safe, efficient, and continuous operation of any industrial process involving fluids or gases. Accurate pressure and level measurement reduce risks, optimize performance, and enhance process visibility.

WTsensor’s PCM303D, PCM400, and PCM260 pressure transmitters provide a comprehensive solution for diverse tank gauging requirements. Whether you are dealing with sealed gas tanks, corrosive chemical vessels, or open water basins, WTsensor offers precise, reliable, and durable instruments tailored for your needs.

Investing in quality pressure transmitters not only protects your equipment and workforce but also ensures smooth process automation and regulatory compliance—foundations of long-term operational success.
