Smart Farming with PCM303: Boosting Seeding and Irrigation Accuracy in Agricultural Machinery

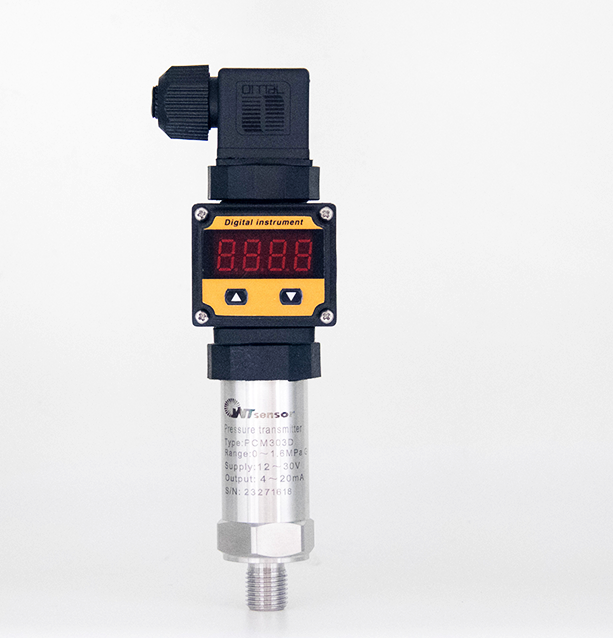

The PCM303 economic pressure transmitter is a high-performance solution developed for industrial pressure monitoring and control. At its core lies a diffused silicon pressure sensor, which, when paired with a custom ASIC, translates low-level millivolt signals into standardized analog outputs such as 4–20 mA or voltage signals. Designed with a robust SS316L diaphragm, full stainless-steel body, and compact structure, the PCM303 excels in stability, precision, and adaptability to corrosive and vibration-intensive environments.

Its primary strengths include:

• High accuracy (0.5%FS)

• Anti-vibration and shock resistance

• Wide operating temperature range (-30°C to 105°C for media)

• Electromagnetic compatibility (IEC standards)

• Flexible mounting, compact footprint, and easy integration with PLCs and smart control systems

Although widely used in aerospace, automotive, medical, and process industries, PCM303 is increasingly being recognized as a vital tool in agricultural automation, especially in seeding systems and sprinkler irrigation units.

Agricultural Applications: Seeding and Sprinkling Systems

1. Application in Precision Seeding Machines

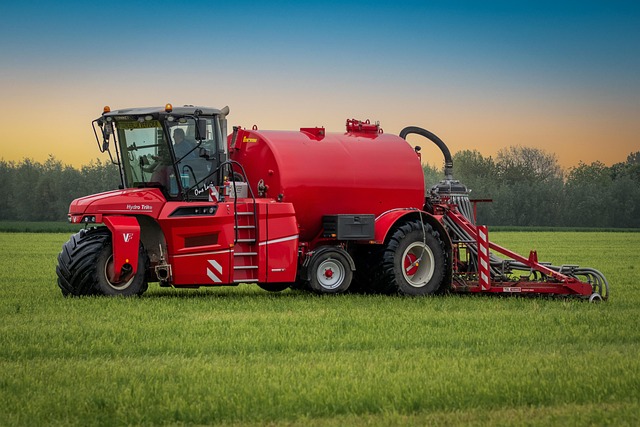

Modern agricultural seeding machines are built for precision farming, aiming to optimize seed spacing, depth, and coverage. In such systems, pneumatic or hydraulic mechanisms control seed delivery and metering. Pressure monitoring is essential to ensure:

• Proper air pressure in pneumatic seed delivery tubes

• Stable hydraulic pressure for uniform seed depth

• Avoidance of clogging or mechanical failure

PCM303’s role:

• Hydraulic pressure monitoring: In advanced seeders with hydraulic downforce systems, the PCM303 monitors pressure to ensure that seeders apply consistent force to the soil, optimizing root development and seed emergence.

• Pneumatic control: The pressure transmitter can be used to monitor the air pressure in vacuum systems that hold and release seeds at precise intervals.

• Flow consistency verification: By comparing the real-time pressure data across different sections, farmers can detect blockages or faults in the seed distribution mechanism.

Case Study: Wheat Seeder in Northern China
In Hebei Province, precision air-assisted seeders were fitted with PCM303 units to monitor and control pneumatic delivery systems. Before the implementation, seed misplacement and uneven sowing were common due to air pressure fluctuations. Post-installation, real-time pressure feedback helped operators adjust parameters dynamically, improving seed placement consistency by over 25%.

2. Application in Sprinkler and Irrigation Systems

Water management in agriculture is undergoing a transformation with the introduction of automated irrigation systems, especially center pivots, drip lines, and sprinkler booms. These systems rely on steady water pressure to ensure even and efficient irrigation.

PCM303’s role:

• Water pressure monitoring: The transmitter ensures that pressure at the sprinkler head remains within an optimal range (e.g., 200–300 kPa), critical for even droplet distribution.

• Pump feedback control: In variable-rate irrigation systems, the PCM303 provides continuous feedback to the controller to adjust the pump’s speed or valve positions.

• Leak detection and system integrity: A sudden drop in pressure signals potential leaks, broken pipes, or blocked nozzles, enabling early maintenance intervention.

Case Study: Drip Irrigation in Turkey's Olive Groves
In Manisa, Turkey, olive farms faced significant water losses and irregular irrigation patterns. By integrating PCM303 transmitters at critical nodes of the drip irrigation layout, the system was able to detect pressure drops caused by clogged emitters or cracked tubing. Farmers reported a 40% reduction in water usage and better olive yields due to optimized irrigation scheduling.

Why PCM303 Is Ideal for Agricultural Use

Durability in Harsh Conditions

Farming environments involve vibration, dust, moisture, and temperature extremes. With its IP65 protection rating, robust stainless-steel housing, and high shock resistance (200g/1ms), PCM303 is built to withstand these conditions.

Compact and Lightweight

Weighing only 150–180 grams, PCM303 can be easily integrated into compact machinery without adding significant bulk, especially important in modern lightweight agricultural designs.

Customizable Pressure Range

The product covers a wide range from -100kPa to 100MPa, making it suitable for both low-pressure irrigation systems and high-pressure hydraulic seeders.

High EMC Protection

Agricultural machines are increasingly equipped with electronic controllers and IoT modules. PCM303’s EMC compliance (IEC 61000 series) ensures stable signal output even in electrically noisy environments.

Ease of Integration

With standard analog signal output (current or voltage), PCM303 can connect directly to:

• PLCs

• SCADA systems

• Embedded controllers

• Remote telemetry units (RTUs)

This is particularly useful for smart agriculture platforms, where real-time data collection from the field informs irrigation and planting decisions.

Integration Considerations

When integrating PCM303 into agricultural equipment, engineers should consider the following:

• Mounting position: Install vertically and ensure the port is free of debris for optimal pressure reading.

• Cable protection: Use shielded cables with weatherproof connectors to withstand exposure to moisture and fertilizers.

• Signal conditioning: For long-distance transmission, use the 4–20 mA current loop output to minimize signal loss.

• Explosion-proof applications: In cases where fuel-based pumps or volatile environments are present, the intrinsically safe ExiaⅡCT6 version of PCM303 should be selected.

The Future of Agricultural Automation with PCM303

As agriculture becomes more data-driven, the need for reliable, accurate, and rugged sensors is paramount. PCM303 fits seamlessly into Industry 4.0 agricultural ecosystems, enabling:

• Remote irrigation system control

• Predictive maintenance of seeders

• Real-time machine monitoring

• Improved input efficiency (seeds, water, fertilizer)

Farmers and OEMs alike benefit from reduced downtime, enhanced productivity, and better yields.

The PCM303 pressure transmitter, originally developed for industrial applications, has demonstrated its adaptability and value in modern agricultural machinery. Whether ensuring accurate seeding depth or maintaining optimal water pressure across expansive irrigation systems, its durability, precision, and ease of integration make it an indispensable tool for the smart farm of tomorrow. With PCM303, agriculture not only becomes more efficient—it becomes smarter, more sustainable, and more reliable.
