Pressure Transmitter for Compressors – Compact, Accurate & Durable

Compressors play a critical role across numerous sectors, including energy, manufacturing, refrigeration, and automation. To ensure the reliable and efficient operation of these machines, real-time pressure monitoring is essential. A robust, accurate, and adaptable pressure transmitter is crucial for protecting compressor systems from overload, ensuring energy efficiency, and maintaining operational safety. The PCM320 pressure transmitter, developed by WTsensor, delivers an ideal solution for pressure monitoring in compressor applications, combining advanced digital signal processing with rugged design for long-term use in harsh industrial environments.

1. The Importance of Pressure Monitoring in Compressors

Compressors are subjected to high operational demands, including varying inlet and discharge pressures, temperature fluctuations, and constant vibrations. Without accurate pressure sensing, systems risk:

• Overpressure failures, leading to equipment damage

• Inefficient energy usage, increasing operational costs

• Inconsistent performance, affecting downstream processes

To prevent these issues, selecting a pressure transmitter that offers stability, reliability, and precision under all operating conditions is vital.

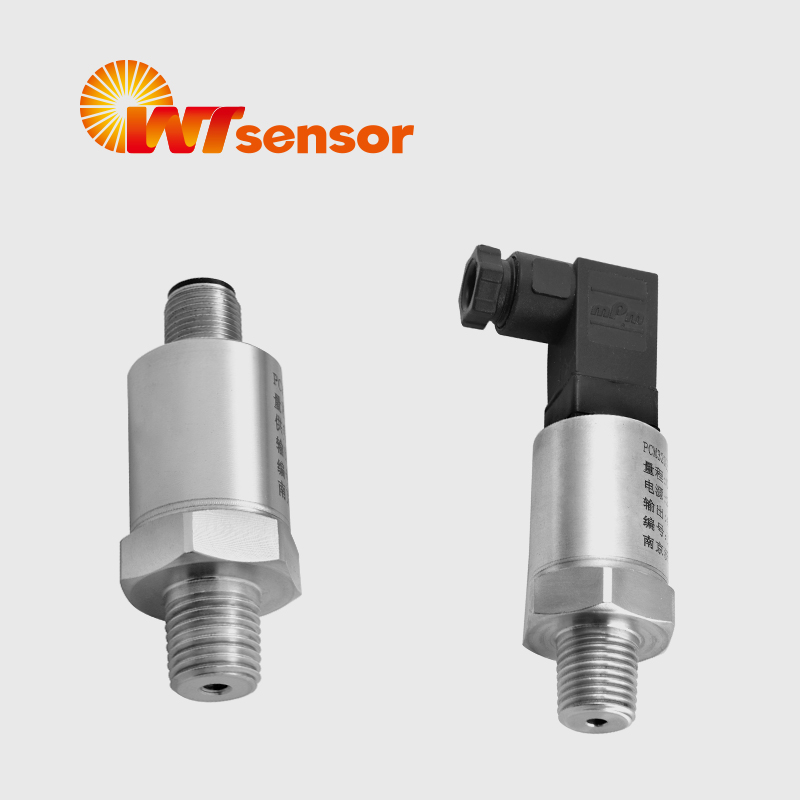

2. Introducing PCM320: A Purpose-Built Pressure Transmitter for Compressors

The PCM320 pressure transmitter was engineered specifically to withstand and perform under the mechanical and environmental stresses typical in compressor systems. Its compact, stainless steel construction and intelligent digital circuitry make it particularly suited for integration into modern automation equipment.

Key Features:

• Compact design with integrated stainless steel housing

• Built-in digital signal processing for precise measurement

• Multiple electrical outputs (voltage or current)

• Wide measurement range from vacuum (-100kPa) up to 60MPa

• Resistance to vibration, shock, temperature extremes, and EMC interference

3. Addressing Industrial Challenges with the PCM320

Compressor systems often operate in dynamic conditions where pressure fluctuates rapidly and ambient environments vary. The PCM320 directly addresses these challenges:

A. Durability in Harsh Conditions

The PCM320 offers:

• Operating temperatures from -30°C to 105°C for media

• Robust EMC protection, compliant with IEC 61000-6 standards

• Vibration resistance up to 20g and shock resistance up to 200g/1ms

These attributes ensure uninterrupted function, even when installed near powerful motors or in mobile compressor systems used in off-site applications.

B. Fast and Accurate Pressure Response

With a response time of ≤90ms, the PCM320 ensures real-time feedback critical for:

• Automatic load control

• Safety shutdown mechanisms

• Continuous monitoring in PLC-based systems

C. Measurement Flexibility

The device supports:

• Gauge, absolute, and sealed gauge pressure types

• A wide span of measurement ranges, enabling use in everything from vacuum pumps to high-pressure industrial air compressors.

4. Seamless Integration and Maintenance

System integrators and OEM engineers often face the challenge of installing pressure transmitters into legacy systems or confined spaces. The PCM320 simplifies integration through:

• Multiple process and electrical connection options

• Small form factor (net weight only 120–150g)

• HEX24 wrench flat for easy mounting and removal

Moreover, the sensor’s long service life of over one million cycles reduces the need for frequent maintenance or replacements.

5. Application Scenario: Compressor Performance Optimization

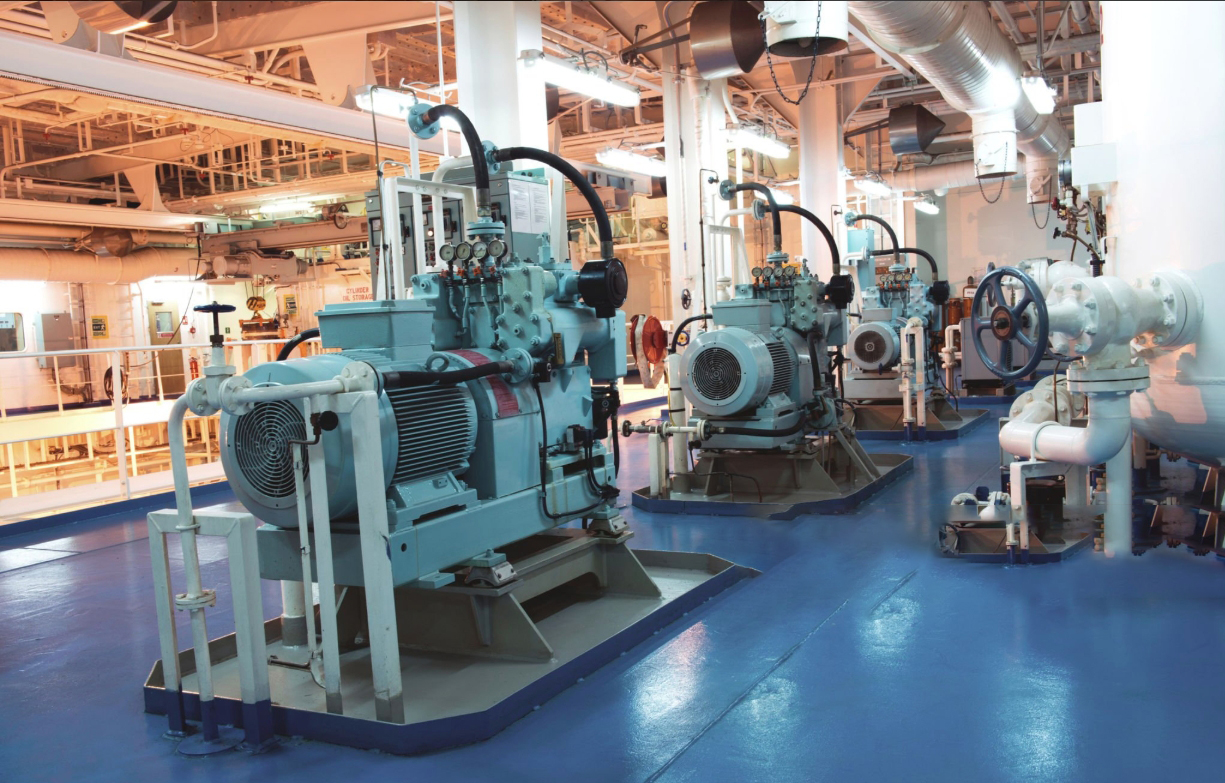

In a recent customer case, the PCM320 was deployed in a high-capacity screw compressor operating in a manufacturing facility. The system required a sensor that could:

• Accurately measure discharge pressure up to 4.5MPa

• Withstand temperature variations from 5°C to 90°C

• Integrate into a PLC for automated feedback control

After installation, the customer reported:

• A 15% improvement in system efficiency through real-time load adjustment

• Elimination of pressure overshoot and underload failures

• Zero drift over a 6-month continuous operation cycle

This real-world performance highlights the PCM320’s contribution to equipment reliability and process optimization.

6. Competitive Advantage: What Sets PCM320 Apart

While there are many pressure transmitters available on the market, PCM320 offers a balanced combination of price, precision, and durability. Unlike bulky or overly complex models, it provides:

• High-performance sensing at an economical cost, ideal for mass production and OEM deployment

• Stable output signals, minimizing errors in automated control systems

• Strong anti-interference capability, suitable for electrically noisy environments often seen near large compressors or inverter drives

As one engineer noted while researching alternatives, “We reviewed several options during our selection process, including Gefran pressure sensors, but ultimately chose a transmitter that offered a better match in both footprint and environmental resilience.”

7. Specifications at a Glance

8. Broader Industrial Versatility

In addition to compressors, the PCM320’s design makes it well-suited for other automation sectors including:

• Hydraulic and Pneumatic Systems: For real-time control of actuators and valves

• Chemical Industry: Where resistance to process media and temperature is essential

• Inkjet Printers: Requiring miniature, stable sensors for pressurized ink delivery

This cross-industry flexibility ensures that PCM320 meets the needs of both high-volume OEMs and custom system designers.

9. A Strategic Investment in Operational Uptime

When evaluating the total cost of ownership of a pressure transmitter, factors such as durability, calibration stability, and environmental protection significantly influence return on investment. The PCM320:

• Avoids production downtime caused by signal drift or sensor failure

• Reduces installation costs through its plug-and-play compatibility

• Enhances safety by enabling preemptive fault detection

For companies aiming to increase compressor reliability without inflating component budgets, this sensor provides a future-proof solution.

WTsensor’s PCM320 pressure transmitter offers an optimized, robust, and intelligent pressure sensing solution ideal for compressor applications and beyond. Its combination of high accuracy, digital processing, environmental resilience, and compact design empowers engineers and manufacturers to maintain reliable, efficient, and safe industrial operations. Whether you're managing a single machine or deploying a series of smart compressors in a manufacturing plant, PCM320 delivers measurable performance value that supports long-term industrial success.
