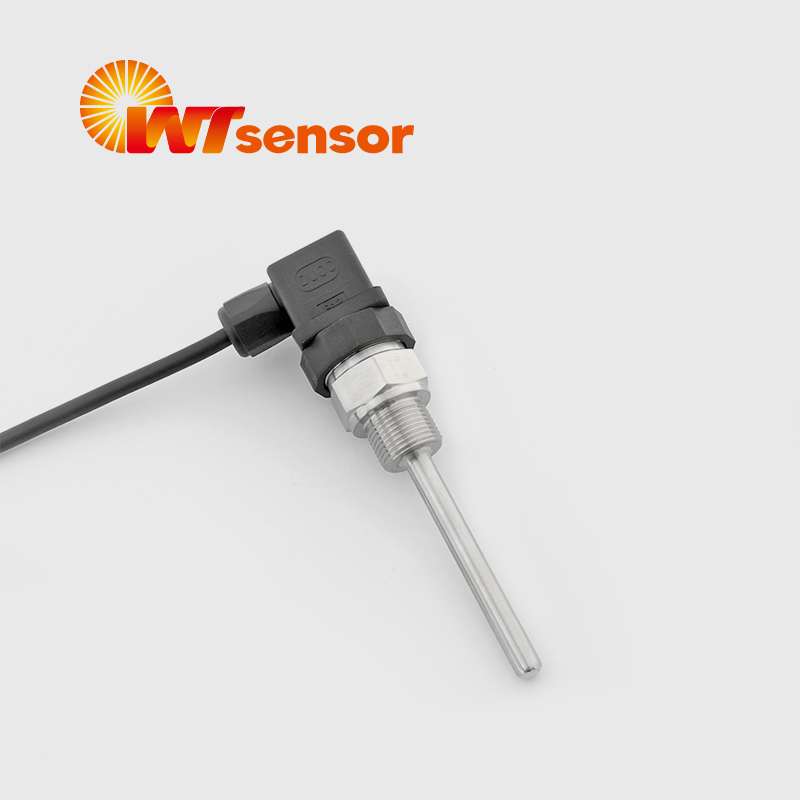

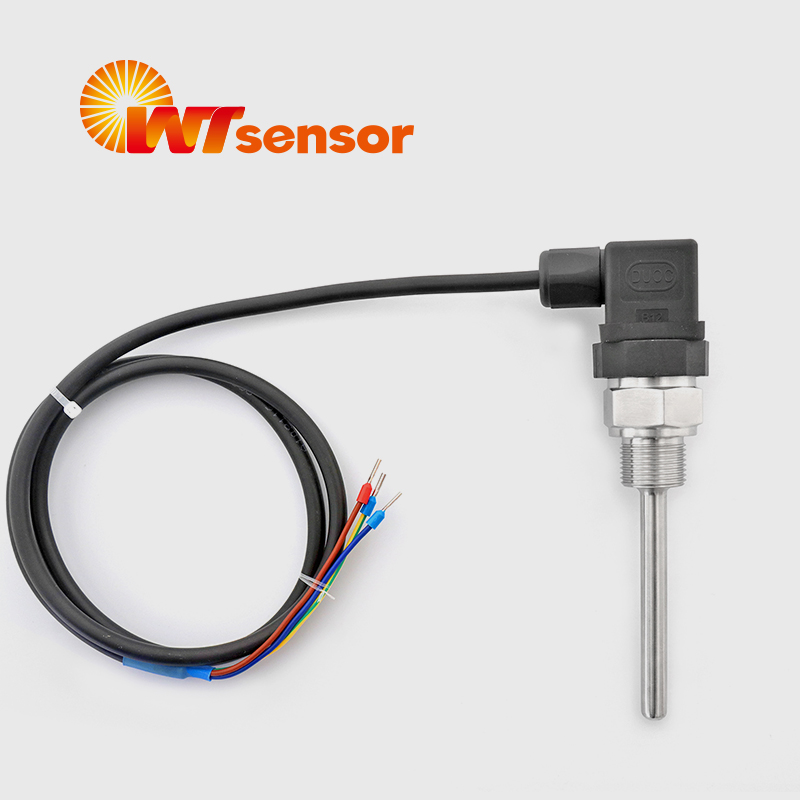

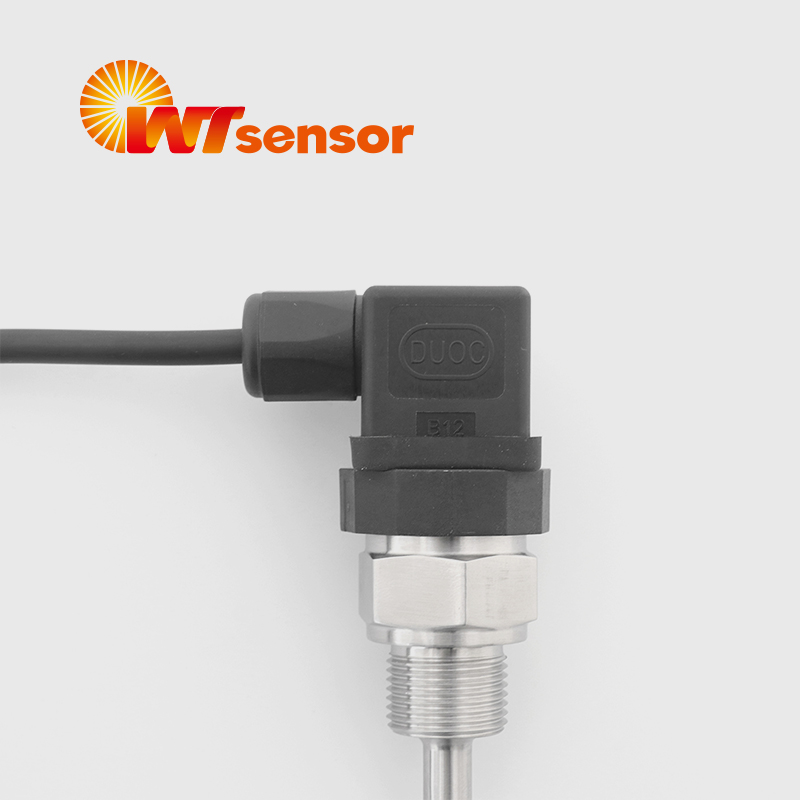

Platinum Temperature Sensor PCT100

Features

■ Platinum temperature sensor

■ Vibration resistance, good reliability, high accuracy

■ PT100, (PT1000 selectable)


China OEM PCT100 PT1000 Platinum temperature sensor, CE DIN43650 0.5% accuracy 8mm diameter temperature sensor


PCT100 Platinum temperature sensor measures range from -50℃ to 250℃ with PT100 PT1000. Insertion length ≥10mm, diameter Φ8mm, accuracy ±0.5%. Electrical connection is DIN43650 of 2 wire or 3 wire. It is applicable to temperature measurement of water, liquid, gas with OEM and customization.

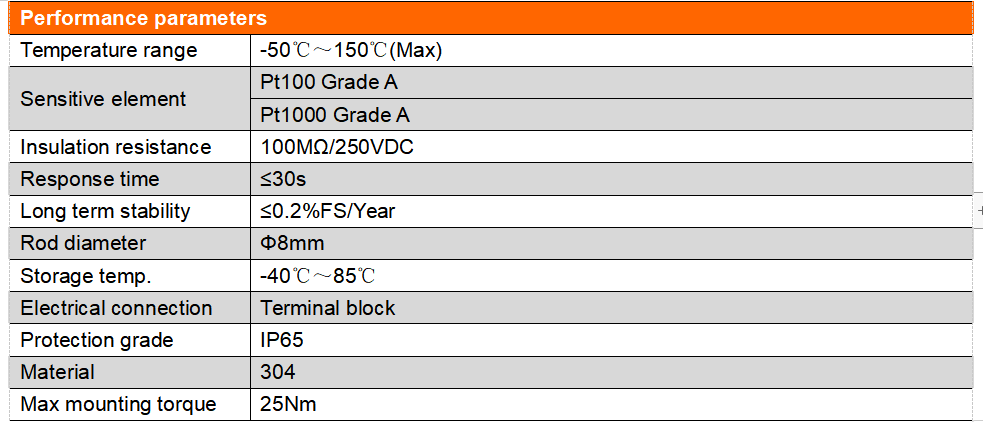

Product Parameters

Temperature range

Temperature range

-50to 250

Specification

Accuracy

±0.5%

Long term   stability

≤0.2%F.S./year

Resistance   value R0 (at 0℃)

Class A:   100±0.06Ω

Allowable deviation value

Class A: ±(0.15+0.002|t|)

Heat   response time

30S

Minimum   insertion length

10mm

Insertion   diameter

Φ8mm   (others please specify)

Insulation

100MΩ/250VDC

Current

≤5mA

Protection

IP65

Electrical   connection

DIN43650

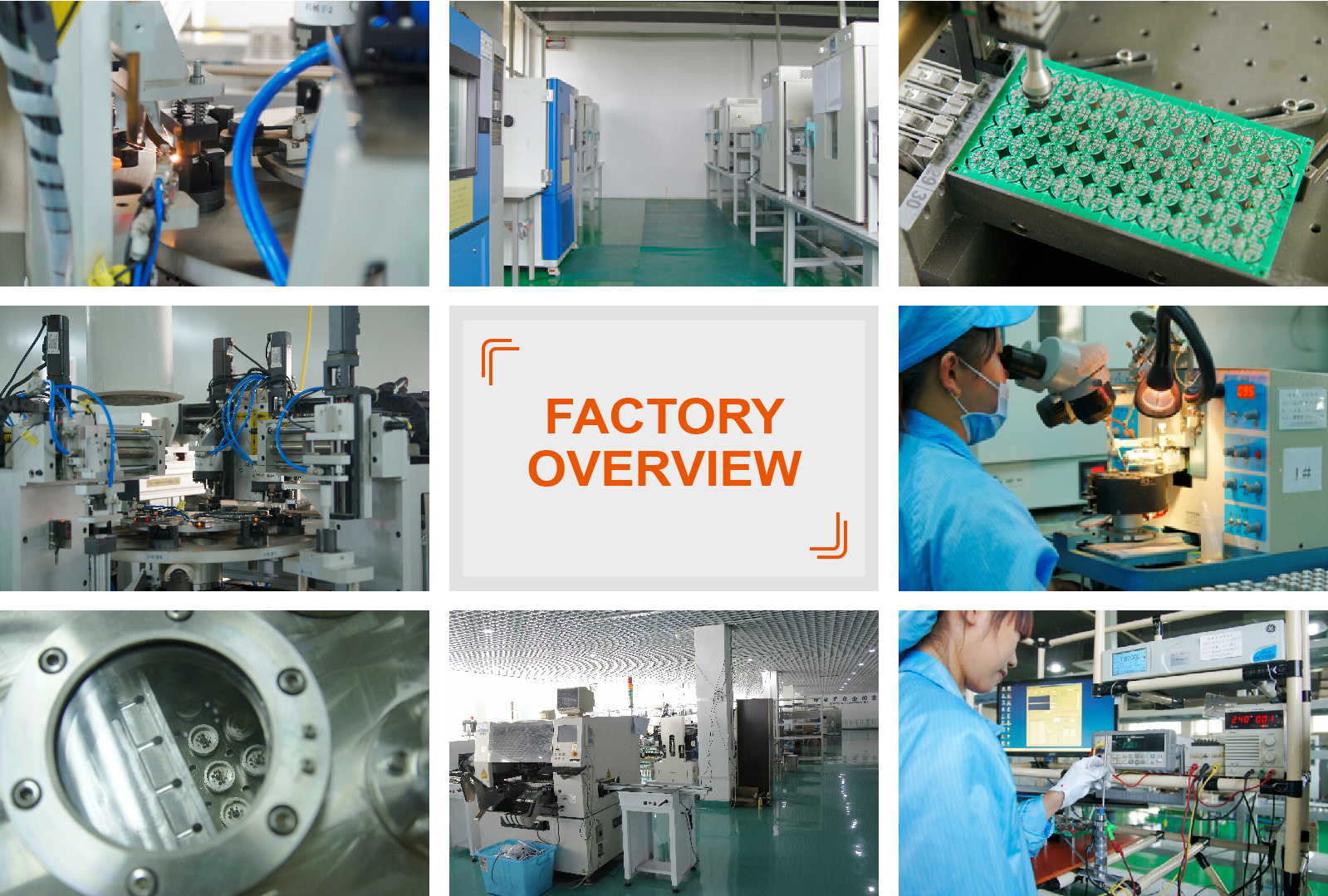

Production process
