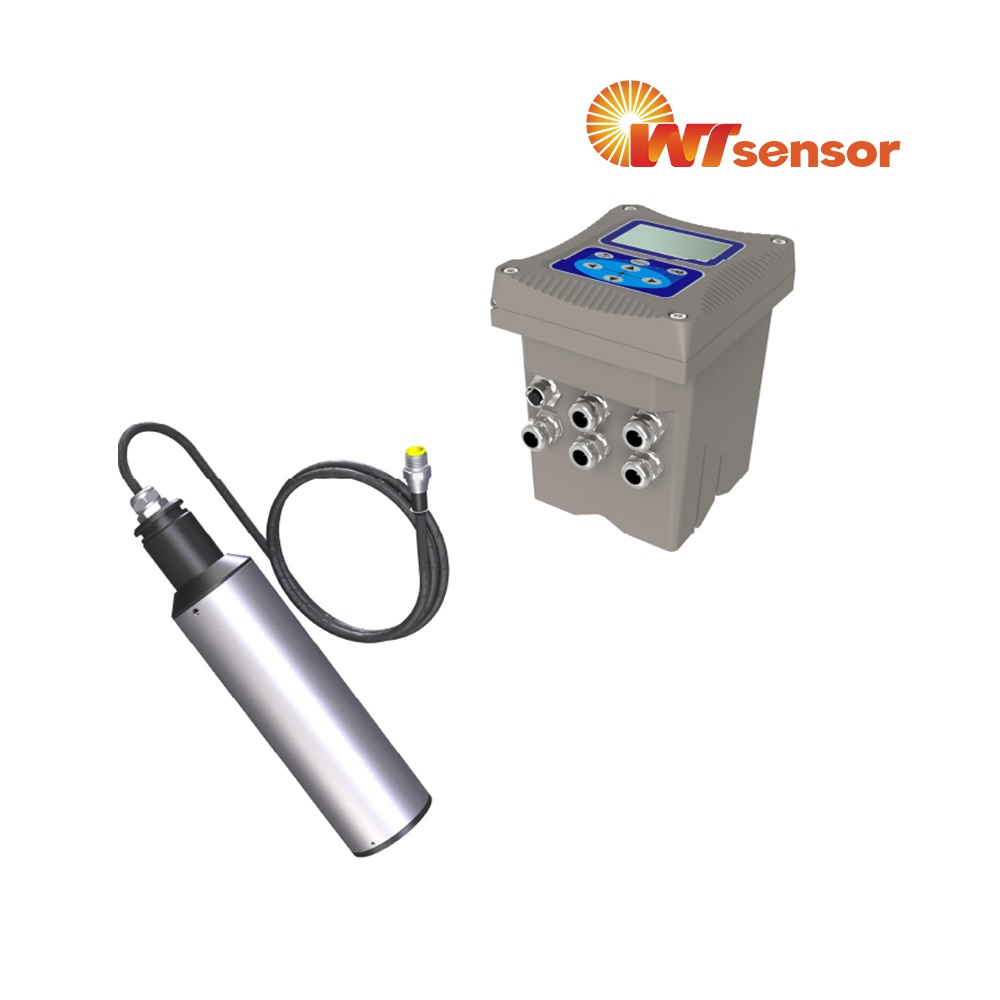

PCTD02 Turbidity/TSS/MLSS Controller
This Turbidity/TSS/MLSS controller is a smart online chemical analyzer,widely used in Thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, tap water and other industries. TheTurbidity sensor, based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self- cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.

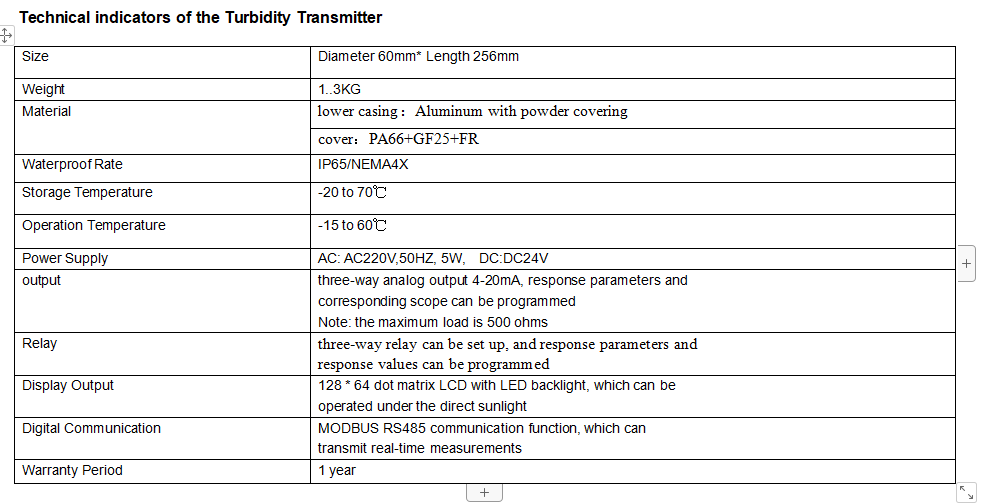

The Turbidity transmitter can be used to display data measured by the sensor, so the user can get the 4-20mA analog output by transmitter’s interface configuration and calibration. And it can make relay control, digital communications, and other functions a reality.
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
