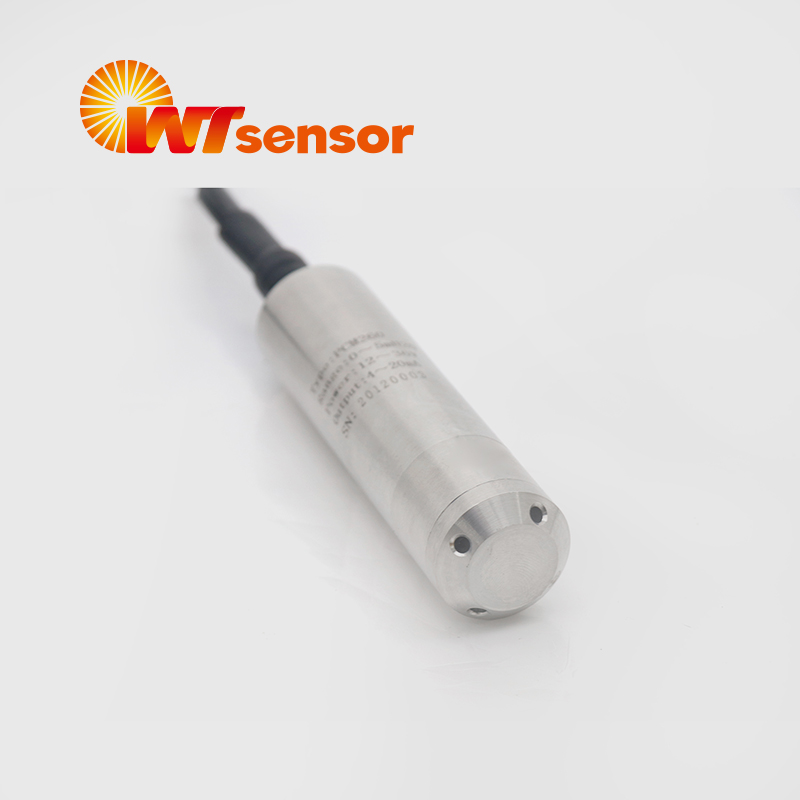

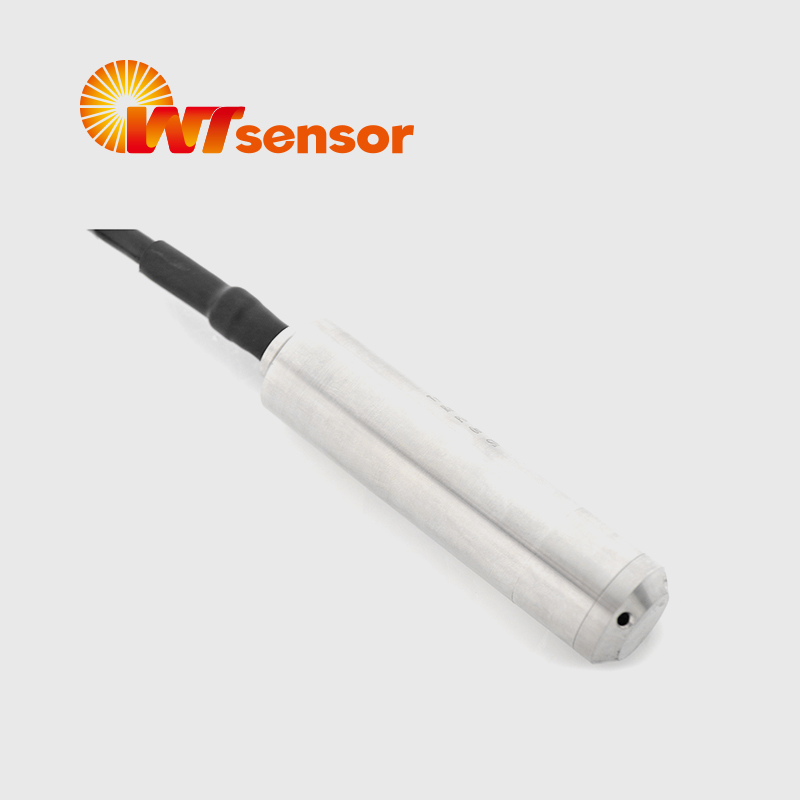

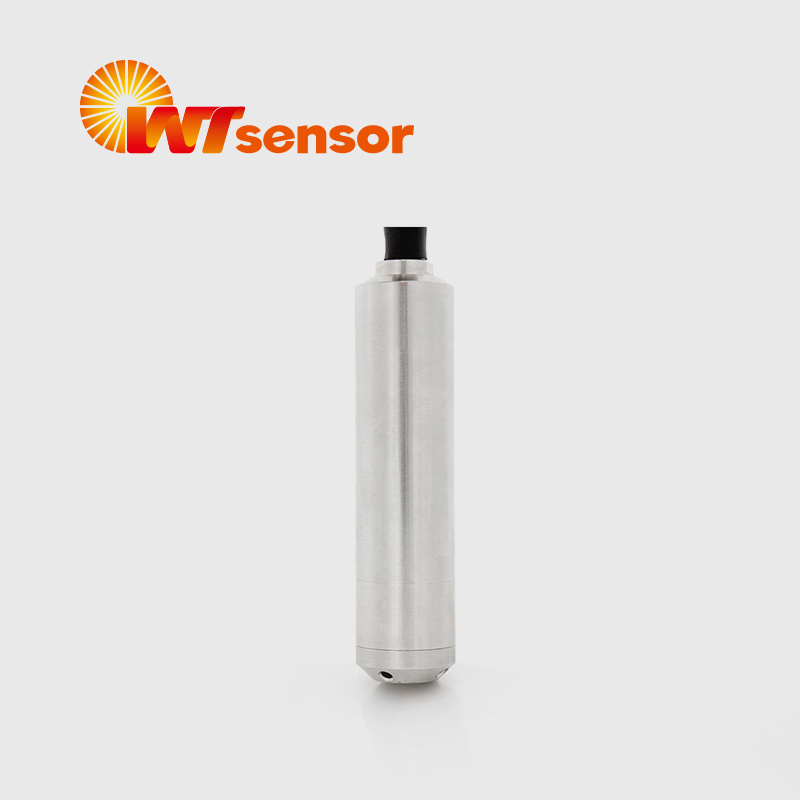

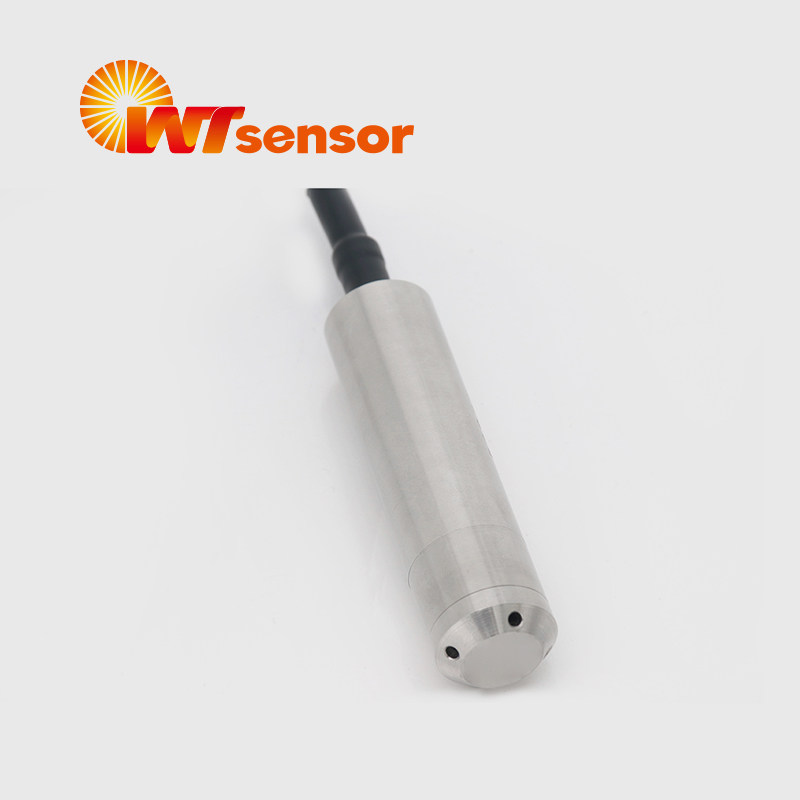

PCM260 liquid oil Level Transmitter


■ Piezoresistive diffused silicon pressure sensor

■ Probe insertion measurement method, easy to install

■ For level measurement

■ Multiple protective structure design, high protection ability

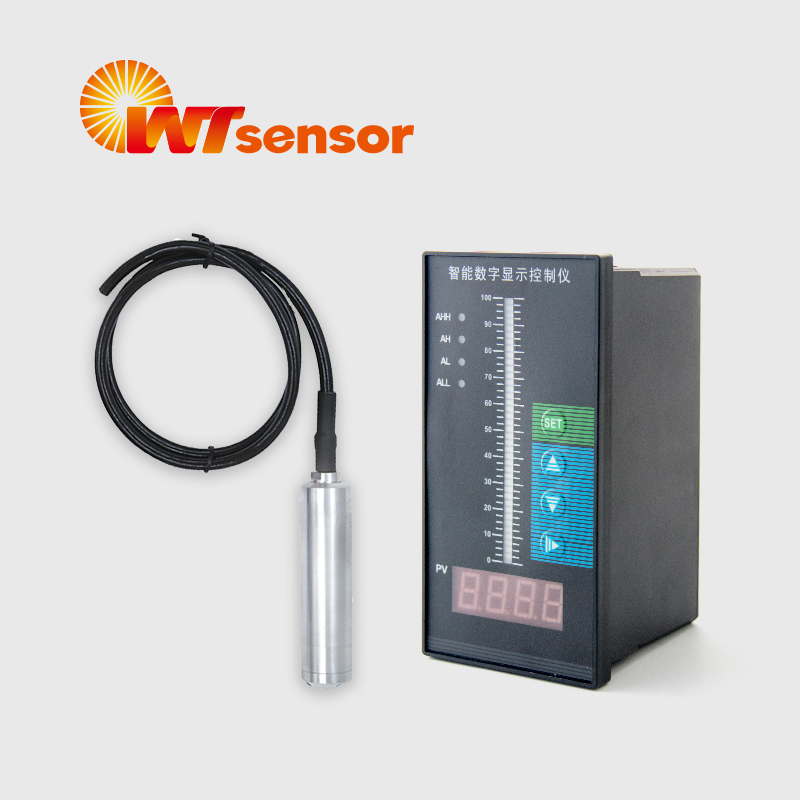

■ LCD option

■ Variety of styles, suitable for various industrial applications

■ Anti-corrosion stainless steel material adopted, suitable for many occasions


■ Static pressure level

■ Liquid tanks

■ Sewage

■ Industrial water

■ Pools

■ Wells

■ Rivers

■ Seawater

■ Lakes

PCM260 submersible piezoresistive silicon level transmitter, water liquid oil level sensor, 4-20mA level sensor

PCM260 submersible piezoresistive diffused silicon pressure level transmitter or level sensor is China factory made, CE certified, with 4-20mA and display option. It is applicable to level measurement of liquid tanks, sewage, industrial and urban water, pools, wells, rivers, seawater, lakes, etc.

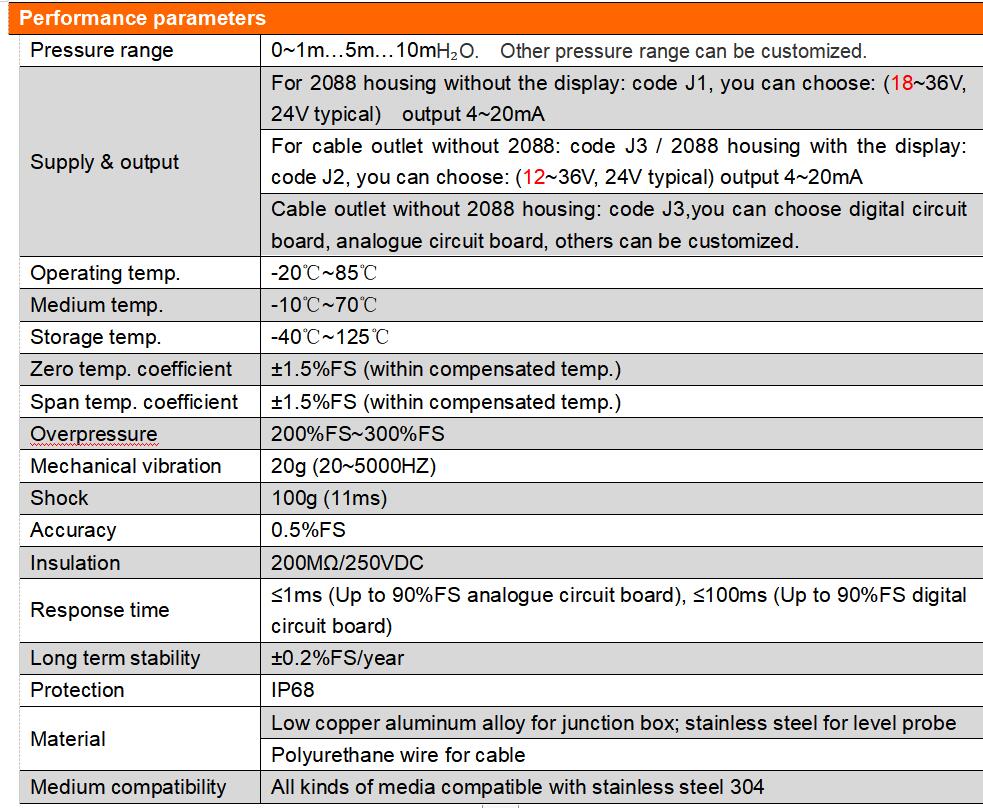

Product Parameters

Performance   parameters

Pressure   range


Supply & output

4~20mA (18~36V, 24V typical)

4~20mA with display (12~36V, 24V   typical)

1~5V, 0~5V, 0.5~4.5V, 0~10V (12~32V, 24V typical)

Operating   temp.


Medium temp.


Storage temp.


Compensated temp.

0m~10mHO: 0~60

10m~200mHO: -10~70

Zero temp. coefficient

±1.5%FS (within compensated temp.)

Span temp. coefficient

±1.5%FS (within compensated temp.)



Mechanical vibration

20g (20~5000HZ)


100g (11ms)





Response time

≤1ms (Up to 90%FS)

Long term stability





Low copper aluminum alloy for   junction box; stainless steel for level probe

Polyurethane   wire for cable

Medium   compatibility

All kinds of media compatible with   stainless steel 304
