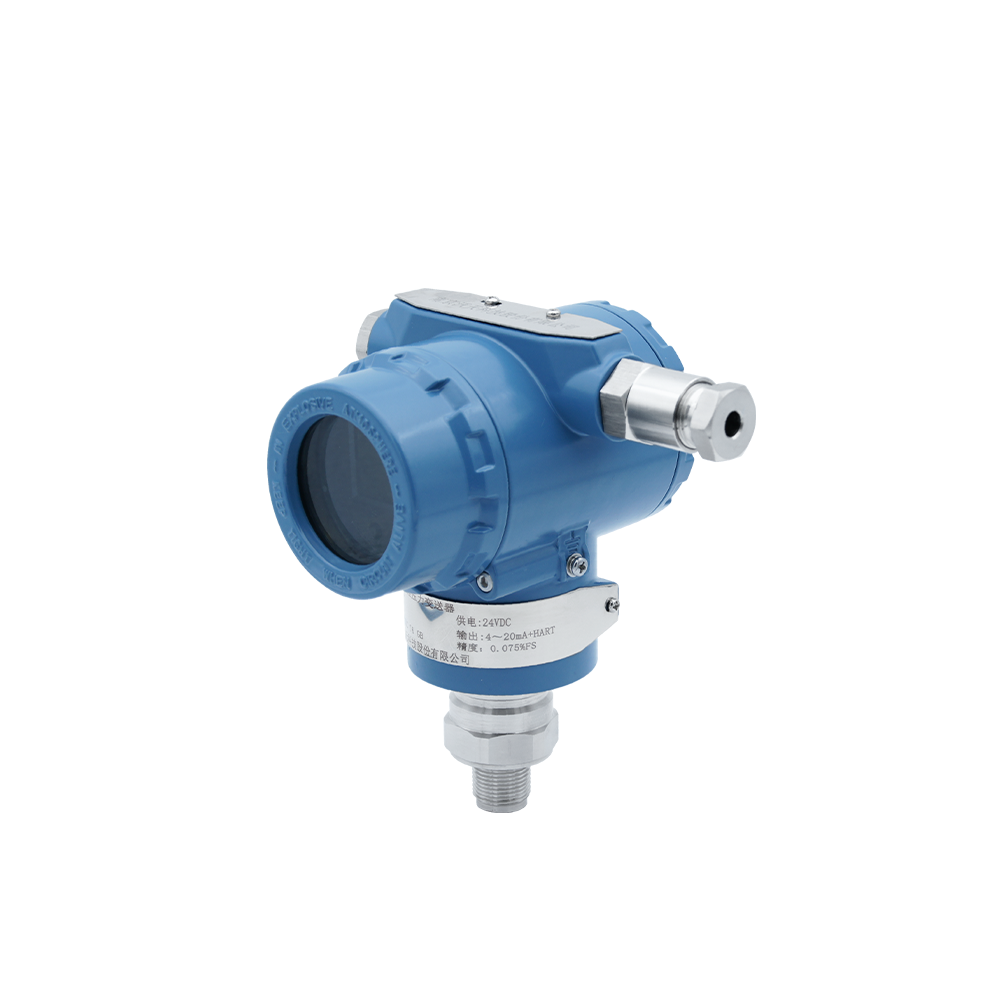

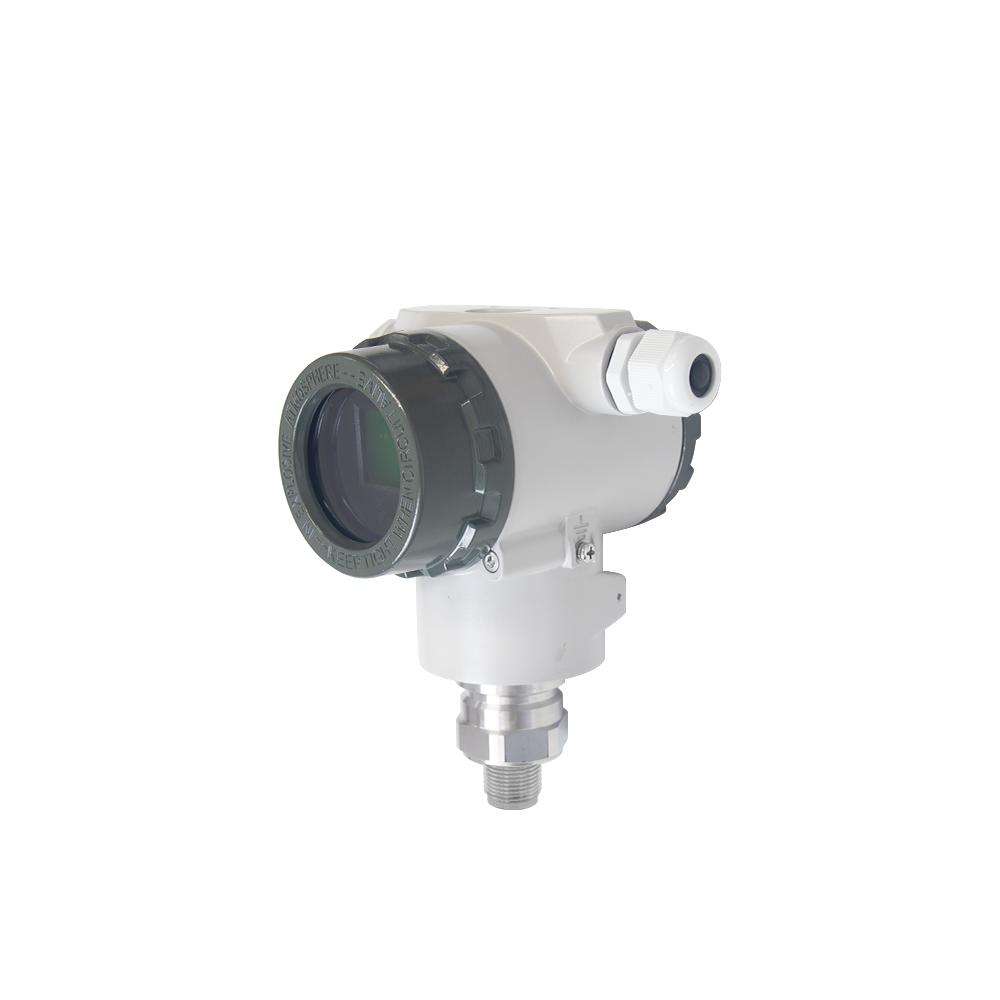

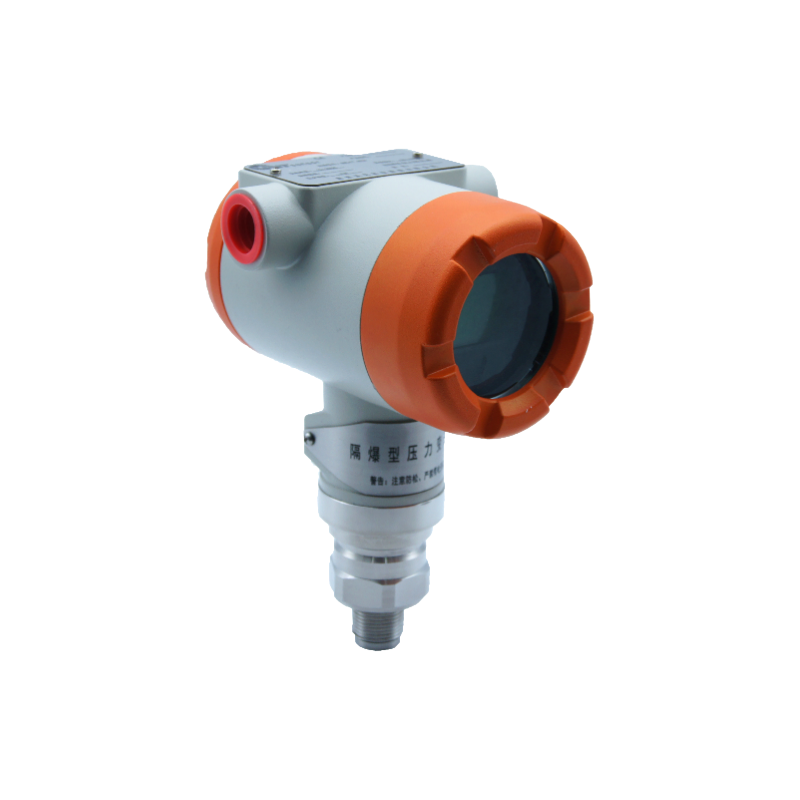

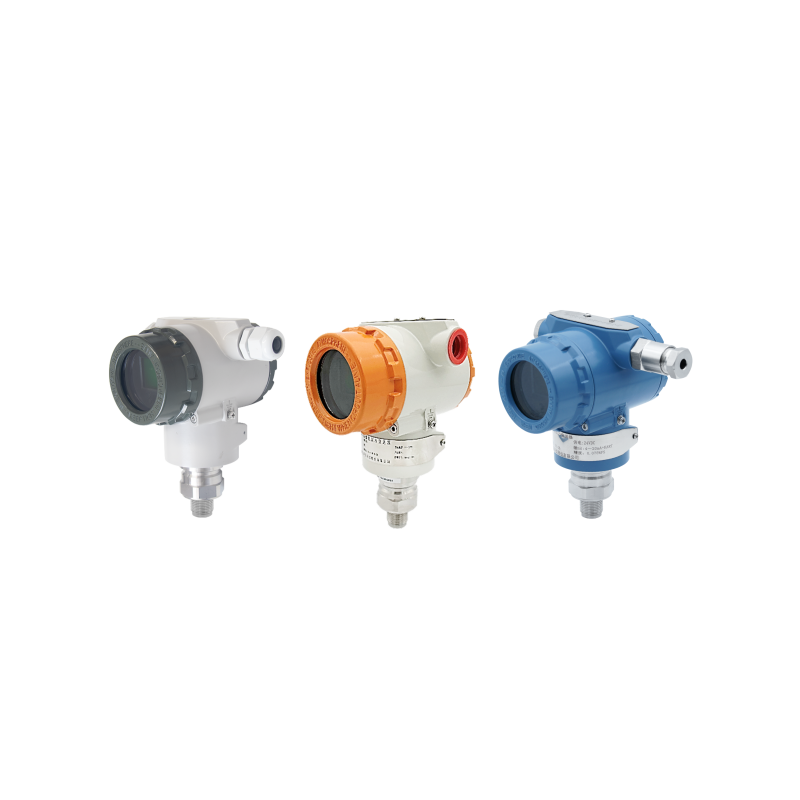

Monocrystalline Silicon Pressure Transmitter PCM2051-AP/GP

Product overview

PCM2051 chip adopts advanced MEMS monocrystalline silicon pressure sensor chip. The sensor signal is converted into a standard signal output by a dedicated signal processing module. After long-term aging and stability screening, the product performance is stable and reliable. It is applied to the outdoor scene where the environment is harsh. At the same time, it can display on-site pressure, zero point and full range migration. The installation port form of PCM2051 monocrystalline silicon pressure transmitter can be processed according to the requirements of users, and can also be compatible with other brands of transmitters. This series of products are widely used in industrial process control, petroleum, chemical, metallurgical and other industries.


Features

Advanced MEMS monocrystalline silicon pressure sensor chip adopted

Wide pressure range covering

Double-wire mode, 420mA HART® protocol digital communication option

Intelligent LCD gauge outfit with backlight

With local zero and pressure range adjustment

Complete varieties, high accuracy, good stability,

Isolation ex-proof housing structure, strong resistance to the frequency conversion interference

No mechanical transmission parts, strong anti-vibration



Applications and industries

Process control fields for the industries such as petroleum, chemical industry, metallurgy, electricity, food, papermaking, medicine, machine manufacturing, scientific experiment and military aviation etc.


Product Parameters

Performance parameters

Pressure range

±6kPa G, ±40kPa G, ±100kPa G, -100250kPa G, 0100kPa A,

0250kPa A, -0.11MPa G, -0.13MPa G, 010MPa S, 020MPa S, 040MPa S

Pressure reference

Gauge pressure |Absolute pressure |Sealed gauge pressure

Supply

12V32V, recommended 24V

Output

420mA+HART protocol

Accuracy

±6kPa: ±0.1%FS;

Other pressure ranges: ±0.075%FS(Standard pressure range, 25±5℃)

Temperature drift

±6kPa: ±0.3%FS;

Other pressure ranges: ±0.25%FS(Standard pressure range, -2070℃)

Ambient temperature

-30℃80℃;

with LCD gauge outfit: -30℃70℃

Medium temperature

-40℃120

Vibration resistance

20g205000Hz)

Shock resistance

100g11ms

Overpressure

Please see pressure range selection

Long-term stability

±0.1%FS/year

Protection grade

IP67

Ex-proof grade

Ex d IIC T6 Gb

Material

Housing cast aluminum alloy; isolation diaphragm 316L

Medium compatibility

All kinds of media compatible with SS316L

Response time

HART collects data from sensor: 0.1s;

HART outputs data: 0.5s

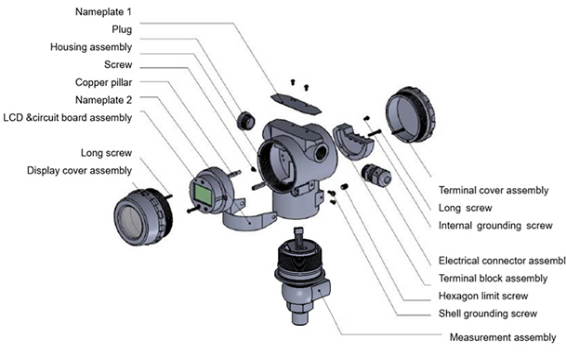

Component diagram

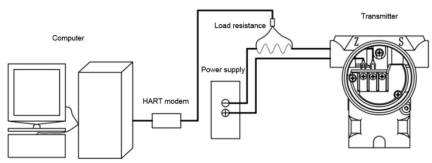

HART communication connection diagram






Production process

PCM3051S Monocrystalline Silicon Pressure Transmitter


                                                           Testing Equipment

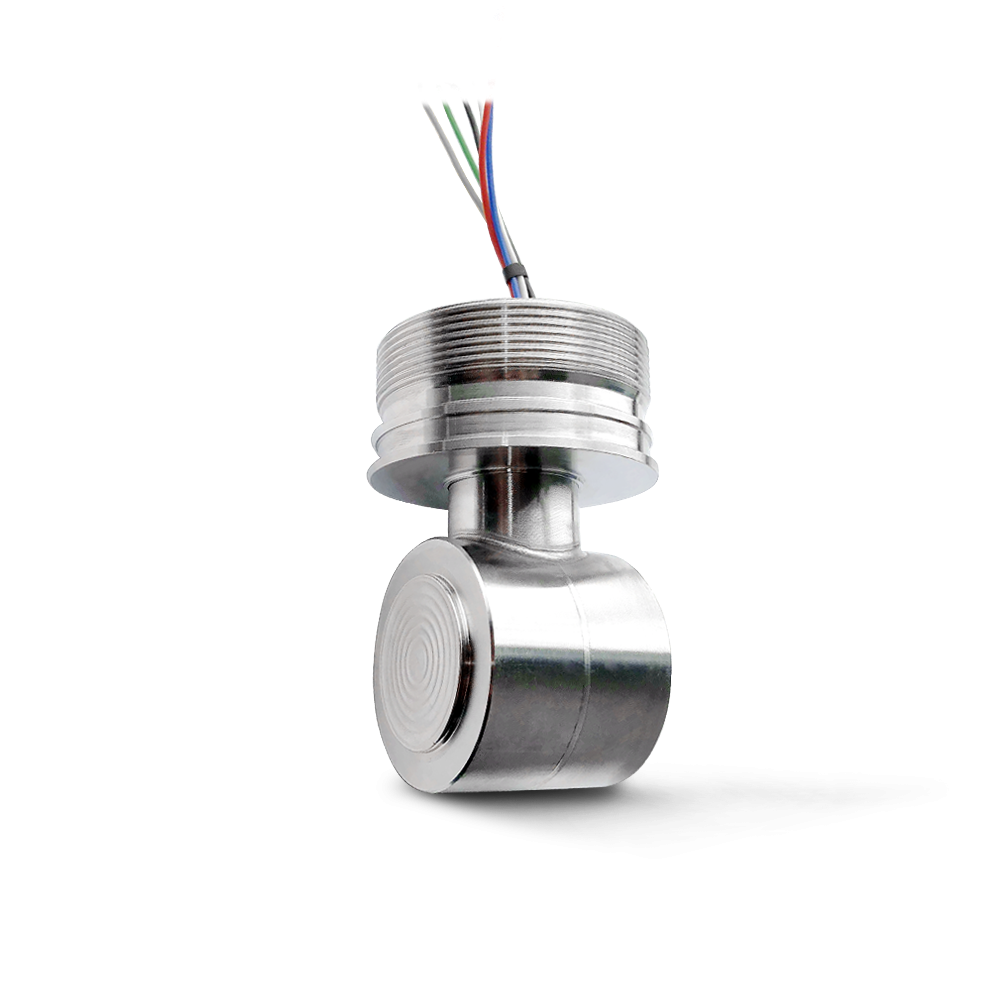

Φ19mm Piezoresistive Silicon Pressure Sensor PC10PΦ19mm Piezoresistive Silicon Pressure Sensor PC10P
