  • Intelligent differential pressure transmitter PCM3051S-W-DP

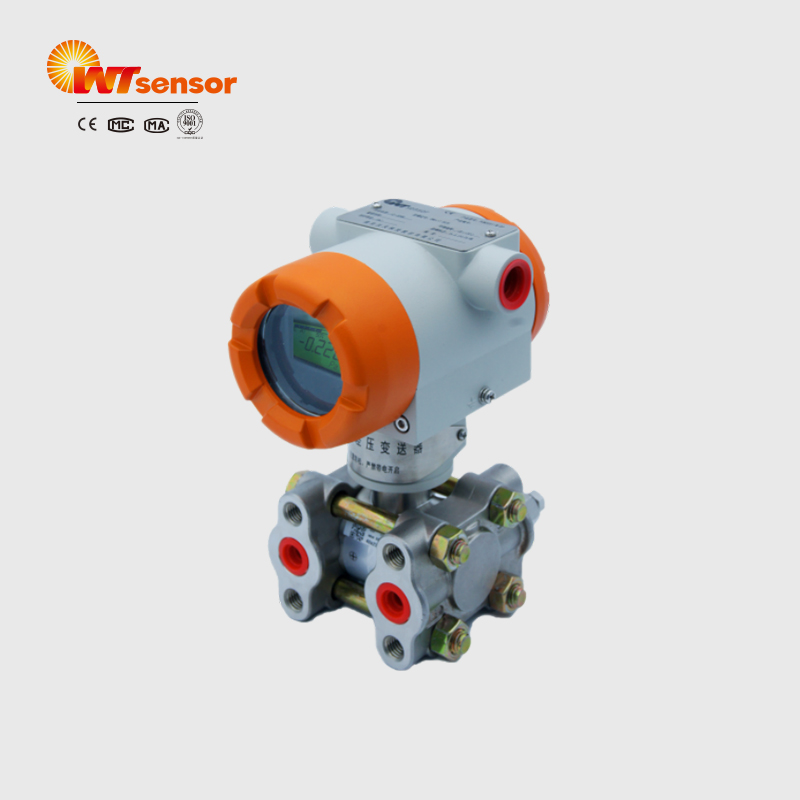

Intelligent differential pressure transmitter PCM3051S-W-DP

Product overview

The PCM3051-W-DP intelligent differential pressure transmitter adopts world-leading monocrystalline silicon pressure sensor technology and patented packaging technology. It is a high-performance transmitter developed with internationally advanced technology.

With a patented dual overpressure protection diaphragm design and built-in circuit surge protection, it can accurately measure gauge pressure, absolute pressure, flow, vacuum degree, liquid level and density.

Features

■ Adopting advanced monocrystalline silicon differential pressure sensor

■ Wide measuring range coverage up to ±3MPa

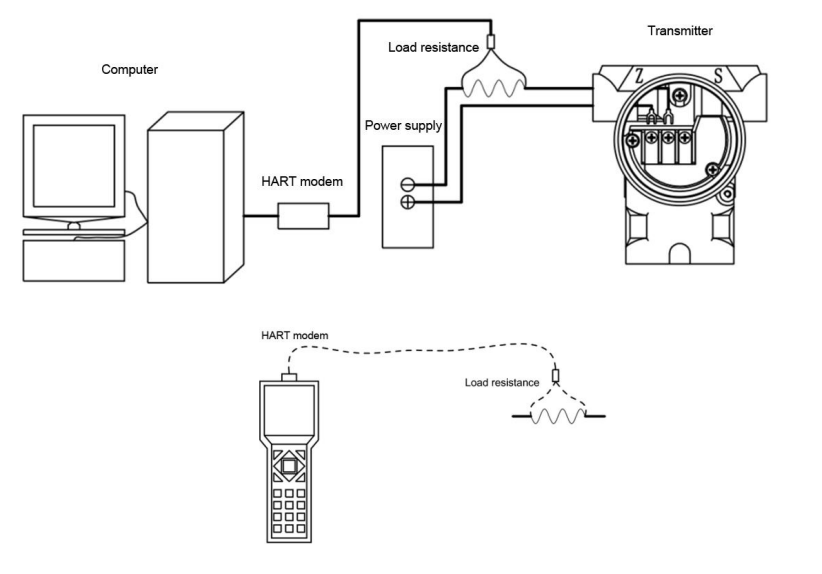

■ 2-wire system with 4~20mA analog output and HART® protocol digital communication

■ Intelligent LCD display head with backlight

■ Support remote and local zero/span adjustment

■ Complete specifications, high accuracy and excellent stability

■ Explosion-proof housing structure with strong anti-frequency conversion interference capability

■ High static pressure and high overpressure resistance

■ Patented dual overload protection diaphragm design

■ Built-in lightning protection circuit design

Applications and industries

■ Process control for petroleum, chemical, metallurgy, power, food, papermaking, pharmaceutical, machinery manufacturing, scientific research, aerospace

Product Parameters

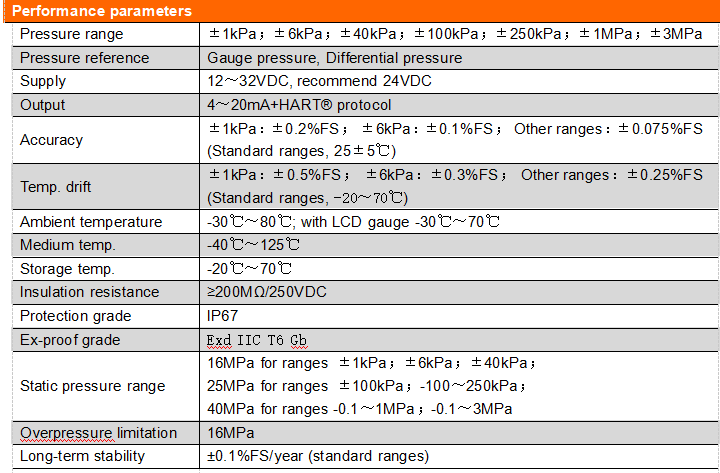

Performance parameters

Pressure range±1kPa; ±6kPa; ±40kPa; ±100kPa; ±250kPa; ±1MPa; ±3MPa
Pressure referenceDifferential pressure
Power supply12VDC~32VDC, 24VDC recommended
Output signal4~20mA+HART® protocol
ESD (Electronic Static Discharge)National standard 4 (IEC61000-4-2; GB/T 17626.2), voltage 15KV, contact discharge
EFT (Electrical Fast Transient)National standard 3 (IEC61000-4-4; GB/T 17626.4), voltage 2KV, pulse length 75ns, frequency 100kHZ
SurgeNational standard 3 (IEC61000-4-5; GB/T 17626.5), voltage 2KV
Accuracy±1kPa: ±0.2%F.S.; ±6kPa: ±0.1%F.S.;
Other pressure ranges: ±0.075%F.S. (standard ranges, 25±5ºC)
Temp. drift±0.5%F.S. (±1kPa); ±0.3%F.S. (±6kPa); ±0.25%F.S. (Other ranges);
@-20ºC ~ 70ºC
Ambient temp.-30ºC ~ 70ºC
Medium temp.-40ºC ~ 125ºC
ProtectionIP67
Ex-proof gradeExd IIC T6 Gb
Static pressure range±1kPa; ±6kPa; ±40kPa; Static pressure resistance 16MPa;
±100kPa; -100~250kPa; Static pressure resistance 25MPa;
-0.1~1MPa; -0.1~3MPa; Static pressure resistance 40MPa
Overpressure limitation16MPa
Long-term stability±0.1%F.S./year

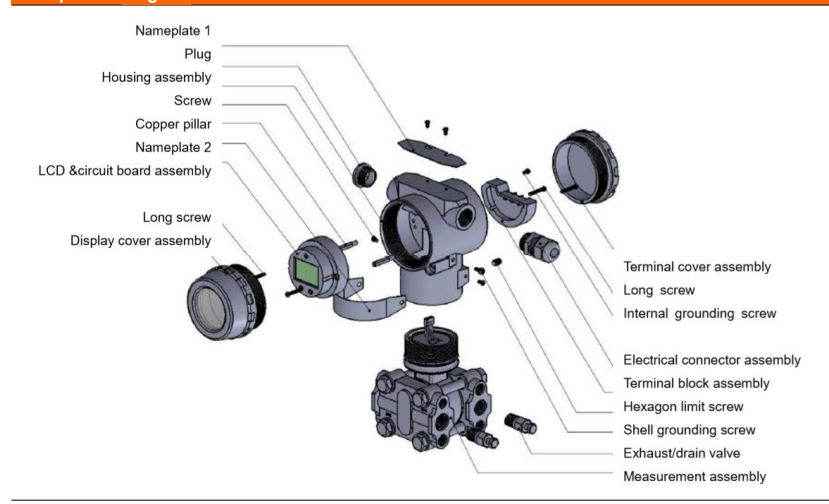

Structural performance parameters

Diaphragm material316L, 316L gold-plated
Vent valve316L
O-ringSilicon rubber (contact with the measurement medium)
Oil fillingSilicon oil
Clamp blockSS316L
Housing materialDie-casting aluminum alloy with epoxy resin coating
Electrical connectionM20×1.5, NPT1/2
Process connectionM20×1.5 with welded pipe, NPT1/4(F), NPT1/2, NPT1/2(F), G1/2 with welded pipe, G1/4 Tri-valve set M20x1.5 with welded pipe (304/316 optional), Tri-valve set NPT1/4F (304/316 optional)

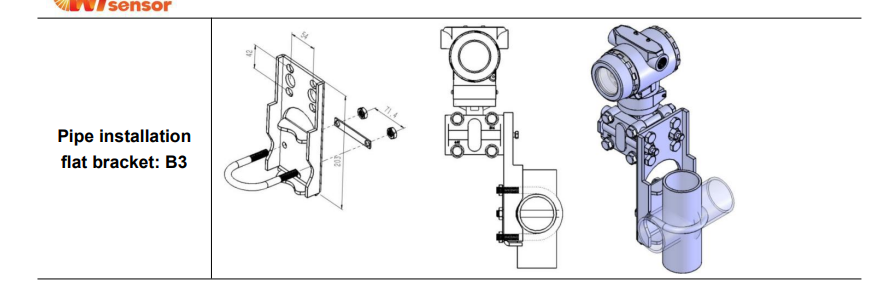

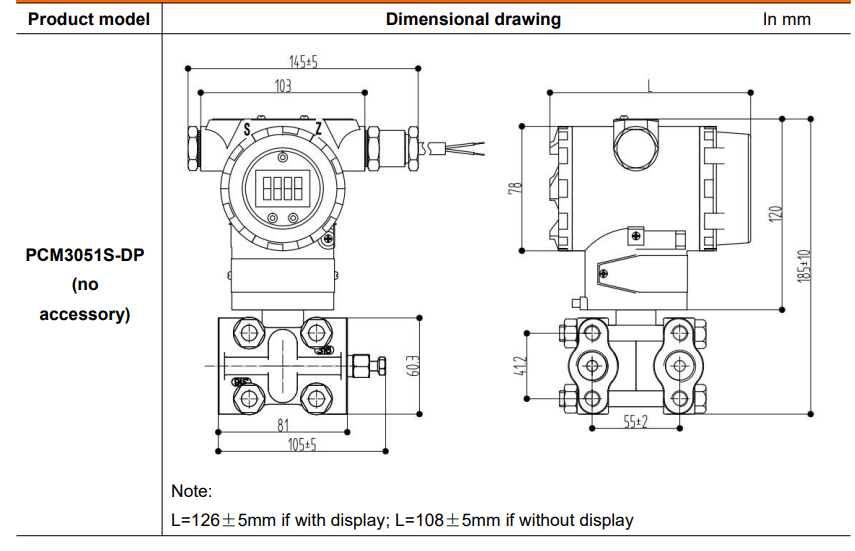

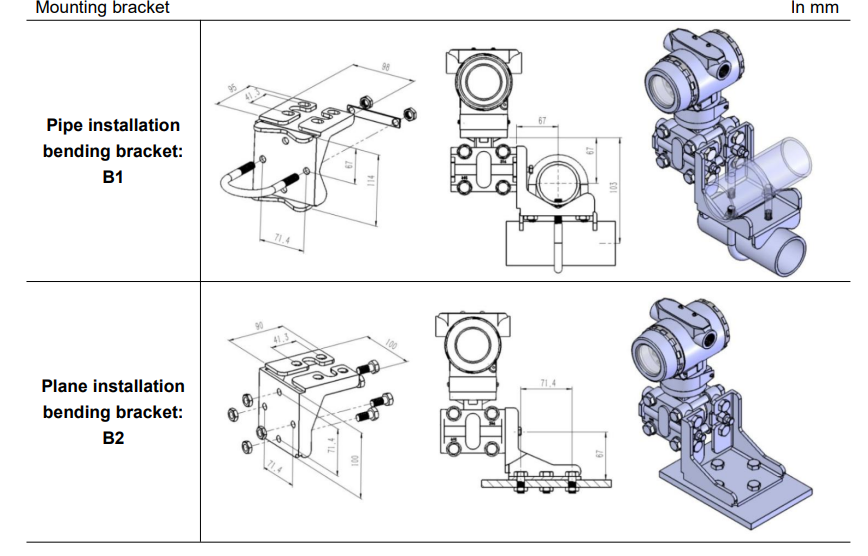

Weight3.5kg (Without optional accessories)
