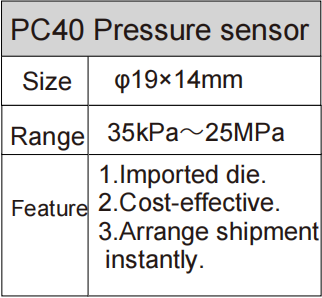

Pressure Sensors PC40

Product Overview

PC40  piezoresistive silicon pressure sensor is the core

component for the manufacture of pressure sensors and

pressure transmitters. As high-performance pressure sensitive

component, PC40 can be easily amplified and assembled into

the pressure transmitters with standard signal output.

PC40 packages diffused silicon pressure sensitive die to

316L stainless steel housing. External pressure is transmitted

to pressure sensitive die through stainless steel diaphragm

and internally sealed silicon oil. Pressure sensitive die does

not directly contact with measured medium, forming all solid

structure of pressure measurement. So the product can be

applied to a variety of occasions, including harsh corrosive

medium environment.

PC40 uses O-ring for pressure seal, which is easy to

install.The company can also undertake special customization

based on the needs of users, such as pressure sensors of all

welded  structure, wide temperature compensation, high

reliability, anti-shock and anti-vibration sensors, especially for

national defense weapons and equipment.

Features

■ Constant current excitation

■ Imported TDK pressure die

■ Wide temperature compensation

■ Compensation board with protection against moisture

■ Φ19mm standard OEM

■ All 316L material

■ High performance, all solid, high reliability

■ 18 months warranty period

Uses and Industries

■ Process control systems

■ Pressure calibration instruments

■ Refrigeration equipment and

HVAC control

■ Hydraulic systems and valves

■ Level measurement

■ Biomedical instruments

■ Ships and navigation

■ Aircraft and avionics systems

■ Weaponry and Equipment
