Pressure Sensors PC50

Product overview

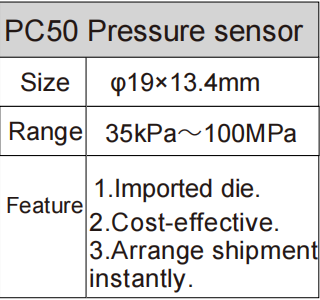

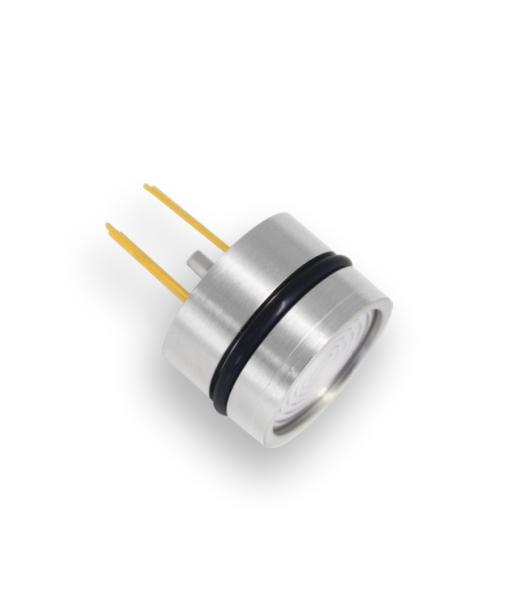

PC50 Piezoresistive Silicon Pressure Sensor is the core component for producing pressure sensors and pressure transmitters; as a kind of pressure sensitive elements with high performance, it can be conveniently processed through amplifying, and assembled into the transmitter with the standard signal output.

PC50 sensor packages piezoresistive silicon sensitive pressure die into 316L stainless steel housing, the external pressure is transmitted to the sensitive die through the stainless steel diaphragm and internally sealed silicon oil; the sensitive die does not directly contact with the measured medium, so as to form all solid structure of pressure measurement, so this product can be applied to a variety of occasions, including harsh corrosive medium environment.

PC50 sensor adopts O-ring for pressure sealing, easy to install. Our company can also undertake the special customization according to the requirements of the customers, for example, all-welded structure, wide temperature compensation, highly reliable, anti-strong shock and anti-vibration pressure sensors, especially for supporting the national defense weaponry.


Features

■ With constant current excitation

■ Customized pressure die

■ Wide temperature compensation

■ Compensation plate with glue filling for moisture-proof protection

■ Φ19mm standard OEM

■ All made of 316L material

■ High performance, all solid, high reliability

■ 18 months warranty period



Applications and industries

■ Process control systems

■ Pressure calibration instruments

■ Refrigeration equipment and HVAC control

■ Hydraulic systems and valves

■ Level measurement

■ Biomedical instruments

■ Ships and navigation

■ Aircraft and avionics systems

■ Weaponry


Product Parameters


Pressure range

0~35kPa…100MPa

Pressure reference

Gauge pressure, Absolute pressure, Sealed gauge pressure

Excitation

1.5mA recommended

Input impedance

Constant current: 2kΩ~5kΩ

Electrical connection

Silica gel soft wire

Compensated temp.

0℃~60℃ (<70kPa);

-10℃~70℃ (other ranges)

Operating temp.

-40℃~120℃

Storage temp.

-40℃~120℃

Insulation resistance

≥200MΩ/250VDC

Response time

≤1ms (Up to 90%FS)

Measurement medium

All the liquids and gases compatible with 316L

Mechanical vibration

20g (20~5000HZ)

Shock

100g (10ms)

Service life

1×106(cycles)

Diaphragm material

316L

Housing material

316L

Perfusion liquid

Silicon oil

Sealing ring

NBR or FKM




Production process
