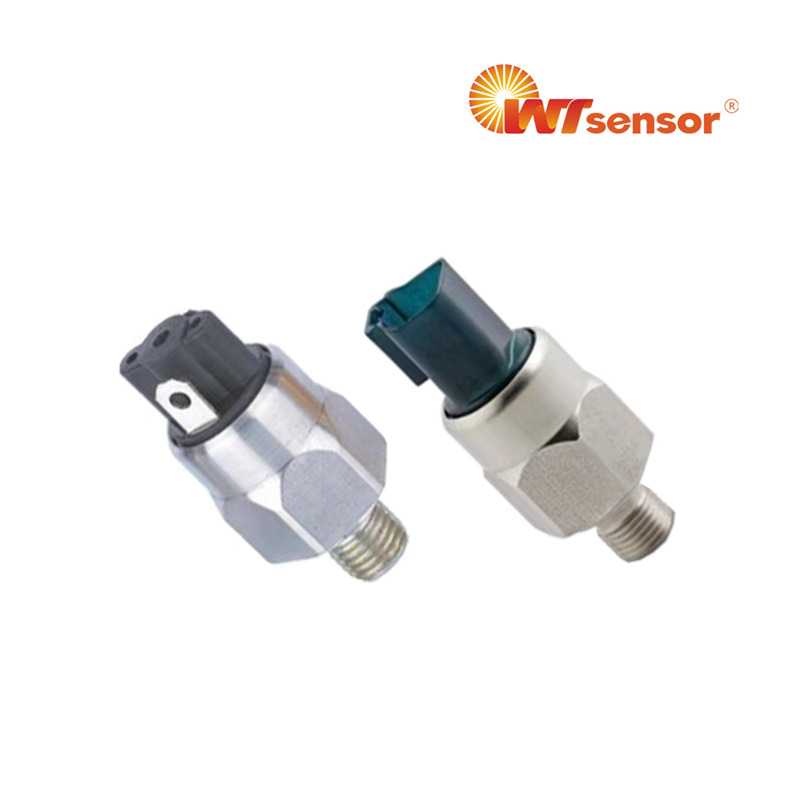

EPA/EPF Adjustable High Pressure Switch
Adjustment range: 1.5~6000PSI
Maximum overpressure: 9000PSI
Protection: IP00 (exposed terminal), IP69 (flying leads, Deutsch integral)
Diaphragm: Buna-N (optional EPDM, KAPTON ®, VITON ® or low temperature nitrile)
Housing: galvanized steel (optional electroless nickel plated steel or 316 stainless steel)
Mechanical life: 1,000,000 cycles
Applications
Industrial and mobile hydraulic field as well as pneumatic, water process, refrigerant, air conditioning, beverage and other associated industries.
factory set creep action adjustable high pressure switch, Buna-N ±3% repeatability mechanical pressure switch
EPA China factory made adjustable mechanical high pressure switch is creep action type of ±3% repeatability with flying lead, Deutsch, spade connector of IP69. The diaphragm material is Buna-N, EPDM, KAPTON, VITON, applicable to hydraulic, pneumatic, water process, refrigerant, air conditioning, etc
Product Parameters
Performance Parameters |
Model | Adjustment Range | Avg. Differential | Model | Adjustment Range | Avg. Differential | |||||
PSI Bar | PSI Bar | |||||||||
1 | 1.5-30 | 0.10-2.0 | Less than 10% of | 3 | 300-2500 | 20-170 | Less than 10% of | |||
1A | 14.5-200 | 1.0-14 | 4 | 3000-6000 | 207-414 | |||||
2 | 125-600 | 8-40 | 5 | 500-3500 | 35-240 | |||||
ELECTRICAL: 100VA/42VDC Gold contacts may be required for less than 12 VDC and 20 milliamp WETTED MATERIAL: Diaphragm: Buna-N (standard) (optional EPDM, KAPTON®, VITON® Housing: Zinc-Nickel Plated Steel | PROTECTION: Exposed Terminals - IP00 Flying Leads & Deutsch Integral - IP69
REPEATABILITY: ± 3% of full set point range at 21°C SWITCH TYPE: Creep Action MECHANICAL LIFE: 1,000,000 cycles | TEMPERATURE RANGE: BUNA-N: -26℃~110℃ (® Registered Trademark of DuPont) Low Temp Nitrile: -40℃~110℃ MAXIMUM OVERPRESSURE: 9000 PSI (620 Bar) WEIGHT: 0.07 kg | ||||||||
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
