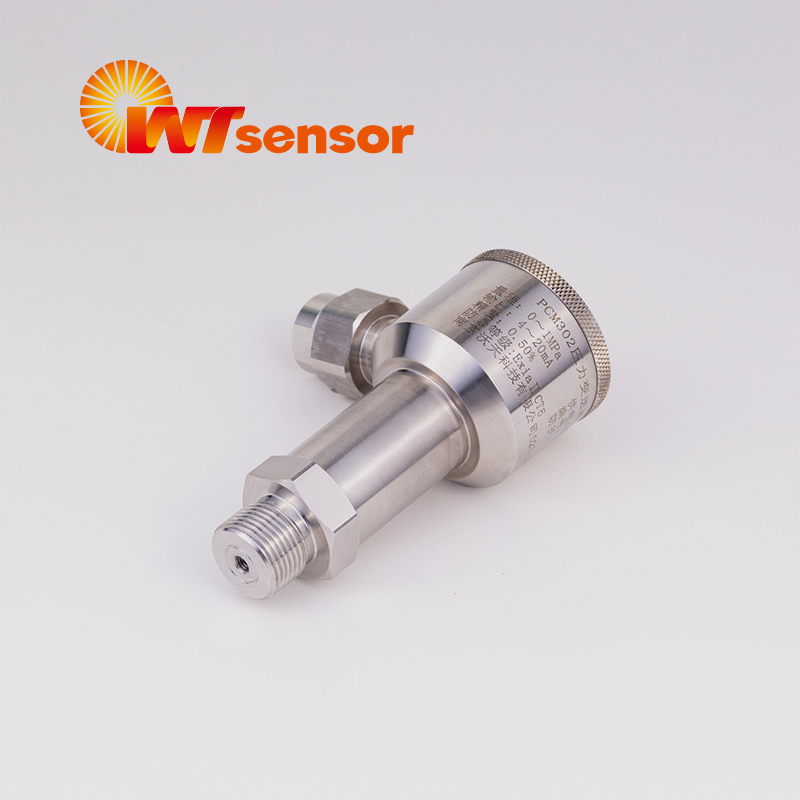

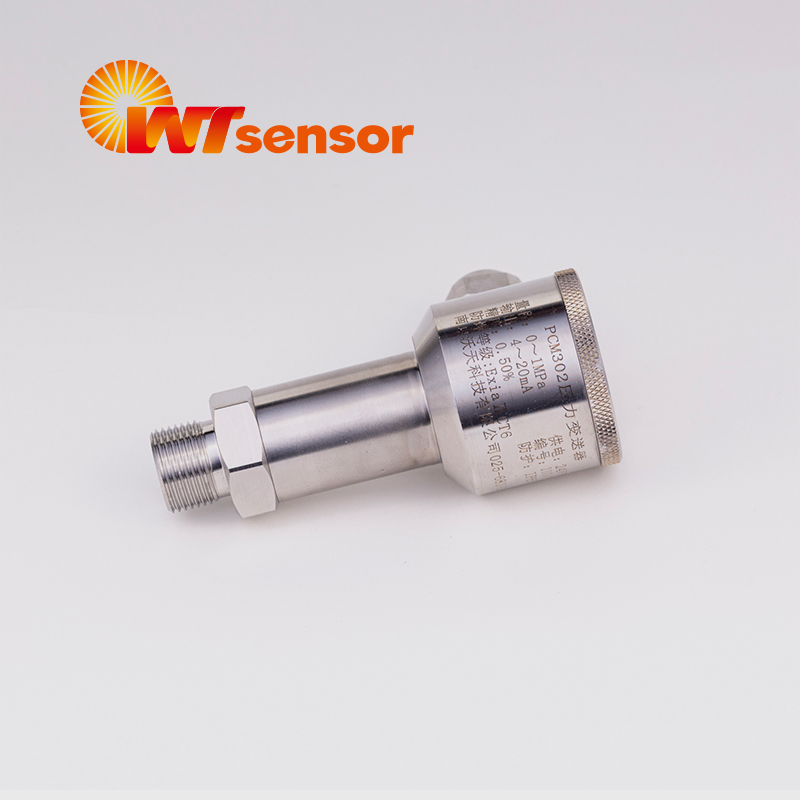

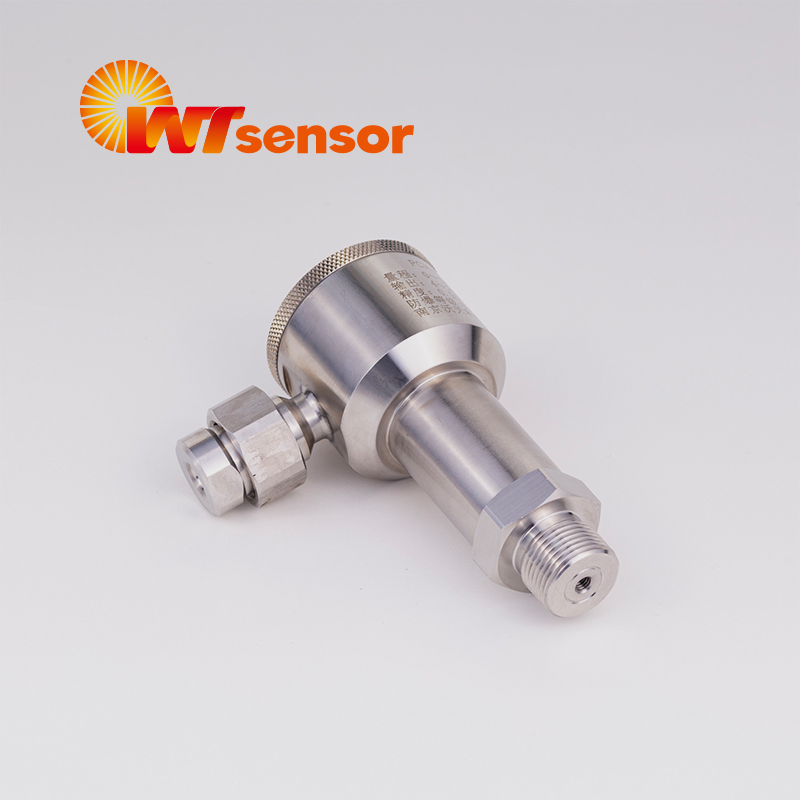

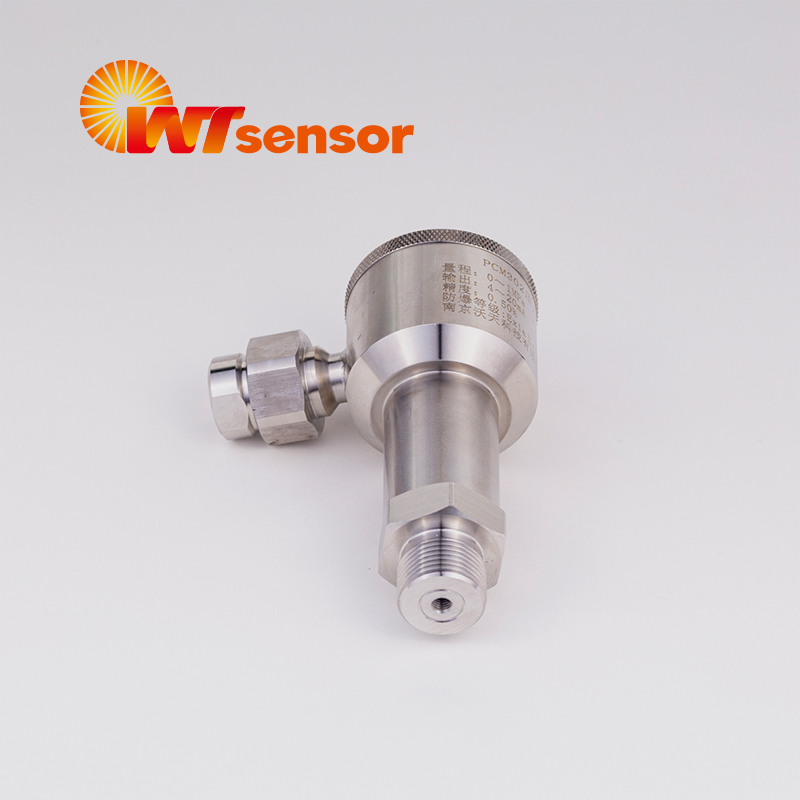

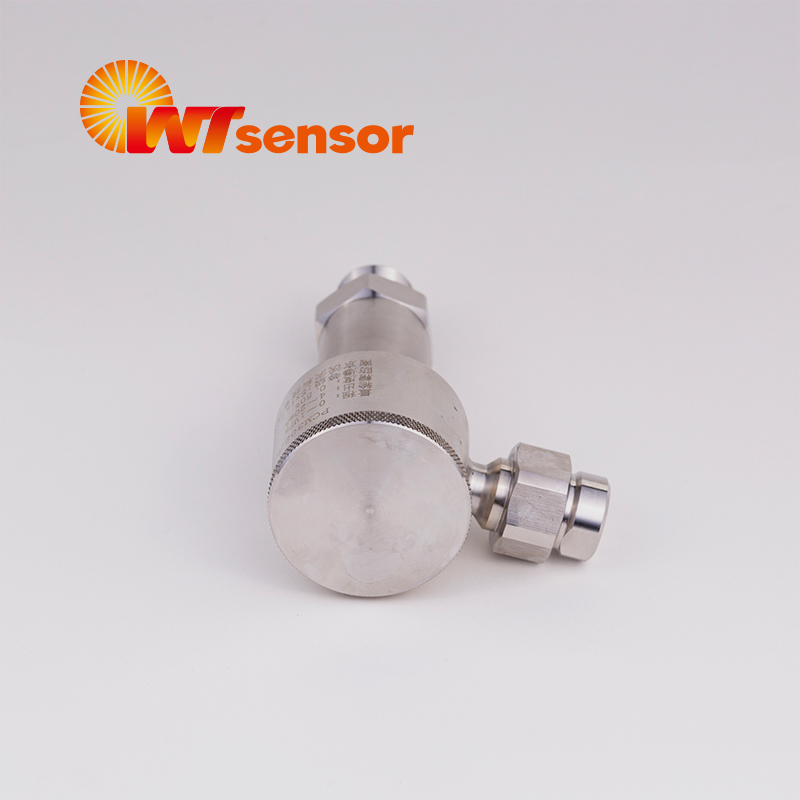

Explosion-proof Pressure Transmitter PCM302
Features:
■All stainless steel, all welded structure
■High strength, anti-vibration。
■Have the isolation and explosion-proof certification authorized by National Quality Supervision & Inspection Center
■Wide measuring range, can measure absolute pressure, gauge pressure and sealed gauge pressure
■Good sealing, long-term stability
■Advanced structure to ensure product reliability
■Widely used in flammable and explosive occasions
Advantages
■ Hazardous area application
■ Isolation explosion-proof
■ Good long term stability
■Excellent linearity

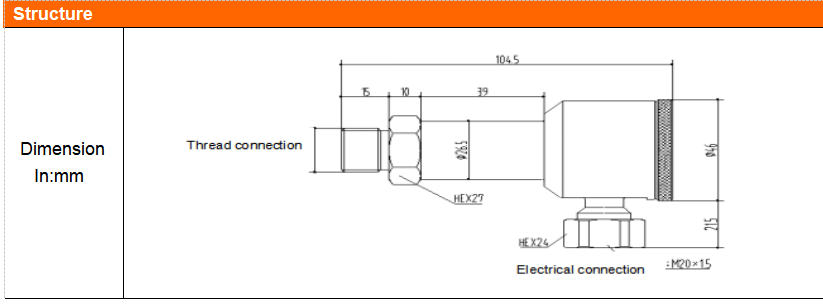

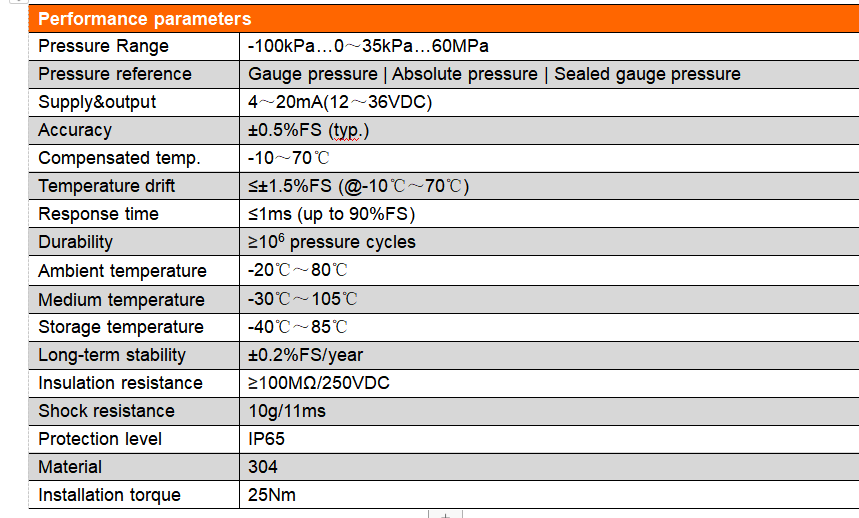

Product Parameters

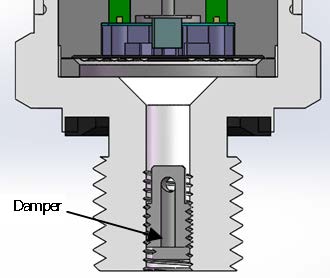

Application of damper |
Application
Cavitation, liquid hammer and pressure peak may occur in air or hydraulic systems with varying flow rates, such as the rapid closing of valve or the start and stop of pump. Even at relatively low operating pressures, these problems may occur at the entrance and exit.
Media condition
In the liquid containing particles, nozzle clogging may occur. The vertical mounting of pressure transmitter minimizes the risk of clogging because the flow of fluid happens in initial start only, the volume of the rear of the nozzle is fixed and the nozzle has a relatively large aperture (1.2 mm).
The effect of medium viscosity on response time is small. Even if the viscosity reaches 100 CST, the response time will not exceed 4 ms.
Pressure range selection | |||||
Pressure range code | Pressure reference | Pressure range | Overpressure | Remark | |
10k | G | 0～10kPa | 300％FS | ||
20k | G | 0～20kPa | 300％FS | ||
35k | G、A | 0～35kPa | 200％FS | ||
70k | G | 0～70kPa | 200％FS | ||
100k | G、A | 0～100kPa | 200％FS | ||
160k | G | 0～160kPa | 200％FS | ||
250k | G、A | 0～250kPa | 200％FS | ||
400k | G | 0～400MPa | 200％FS | ||
600k | G、A | 0～600MPa | 200％FS | ||
1M | G、S、A | 0～1MPa | 150％FS | ||
1.6M | S | 0～1.5MPa | 150％FS | ||
2.5M | S | 0～2.5MPa | 150％FS | ||
4M | S | 0～4MPa | 150％FS | ||
6M | S | 0～6MPa | 150％FS | ||
10M | S | 0～10MPa | 150％FS | ||
16M | S | 0～16MPa | 150％FS | ||
25M | S | 0～25MPa | 150％FS | ||
40M | S | 0～40MPa | 150％FS | ||
60M | S | 0～60MPa | 150％FS | ||
NP1 | G | ±100kPa | 200％FS | ||
(-100～250)k | G | -100～250kPa | 200％FS | ||
(-100～600)k | G | -100～600kPa | 200％FS | ||
(-0.1～1)M | G | -0.1～1.0MPa | 200％FS | ||
(-0.1～1.6)M | G | -0.1～1.6MPa | 200％FS | ||
Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.
