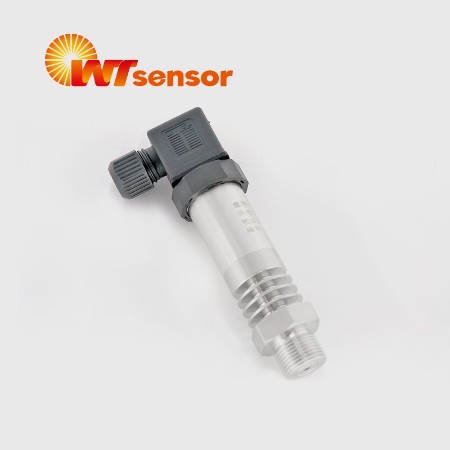

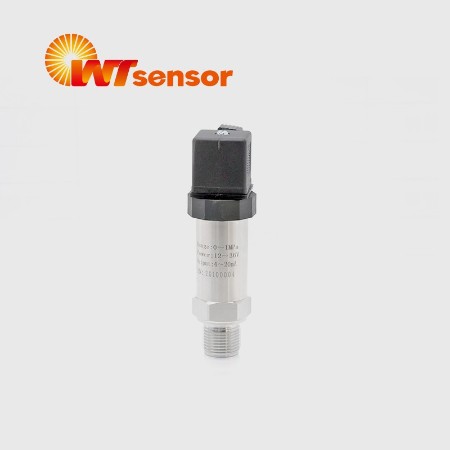

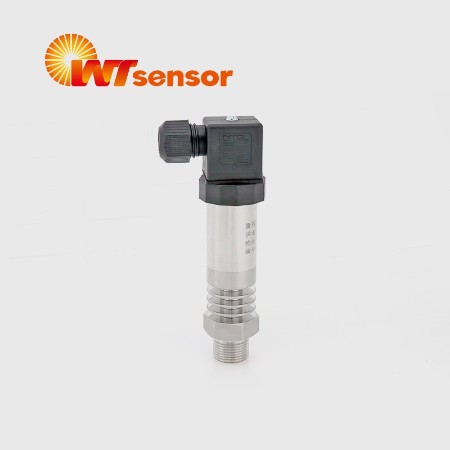

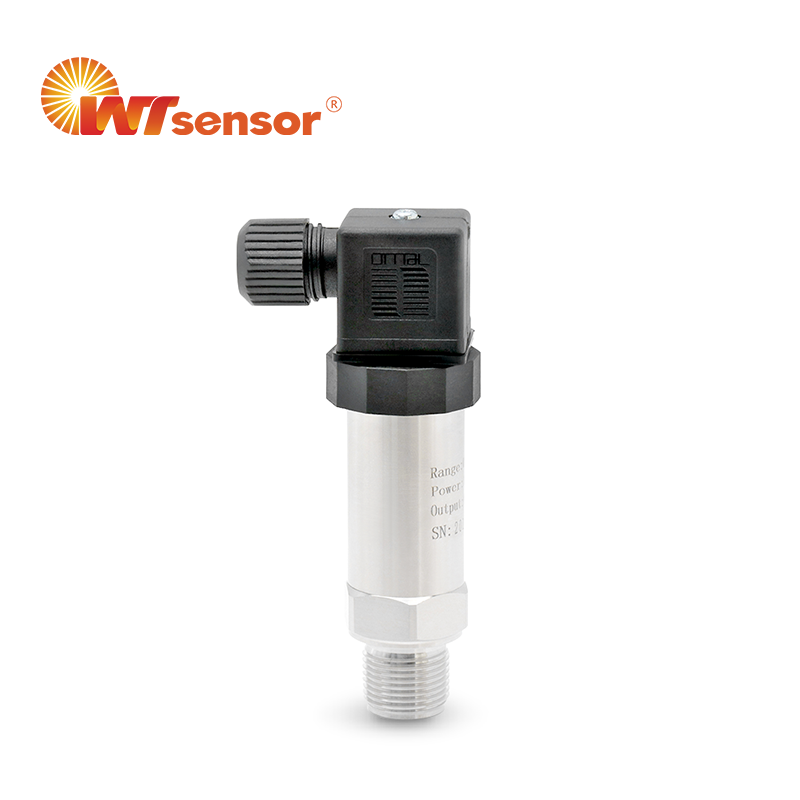

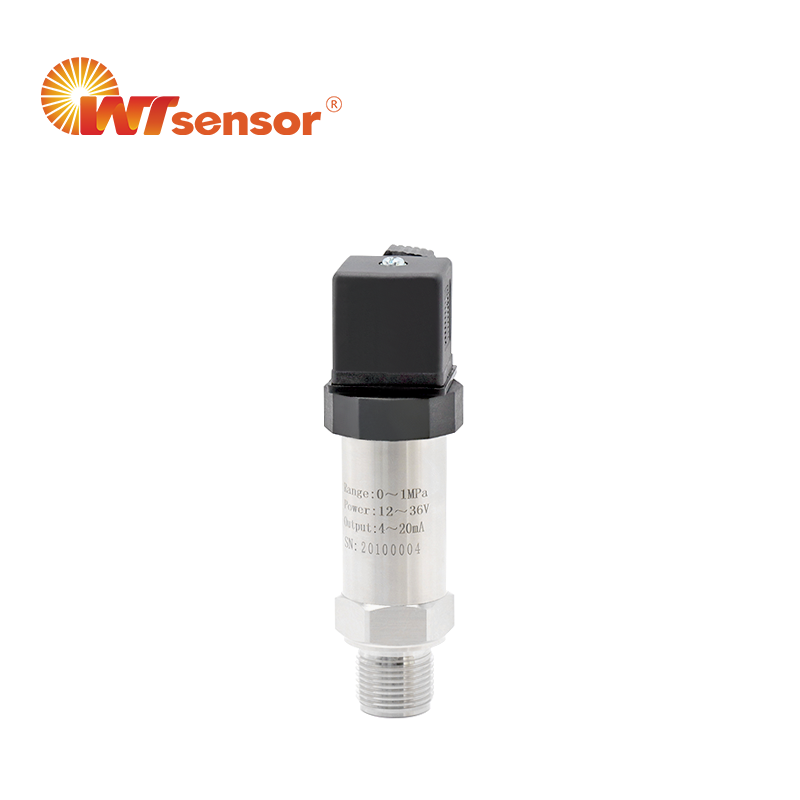

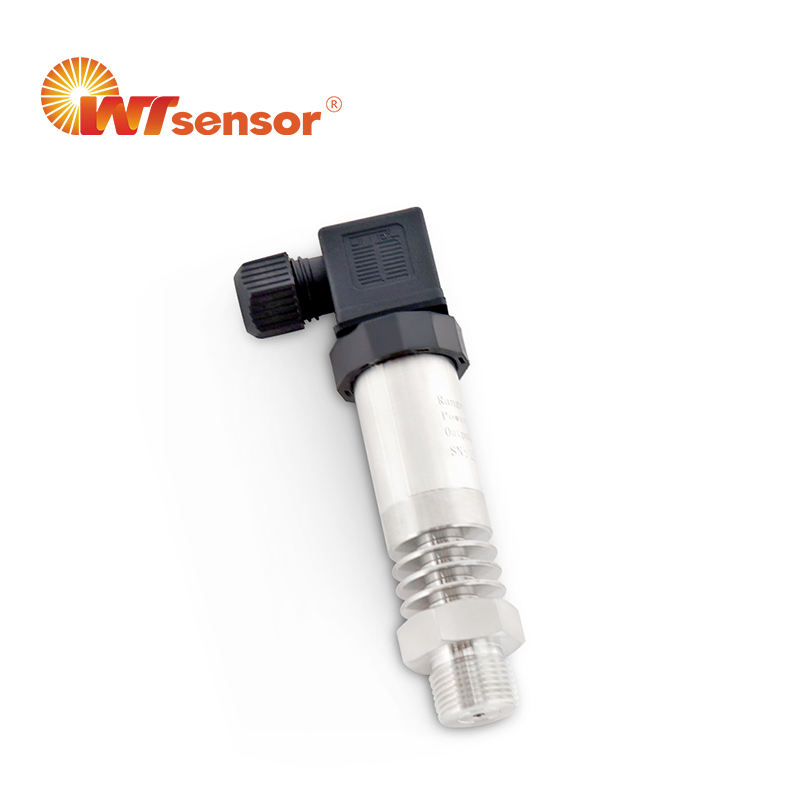

High Temperature Pressure Transmitter PCM300T

Features

■ SS316L isolation diaphragm structure

■ Imported high temperature resistant chip employed

■ pplicable to wide medium temperature range

■ Strong anti-interference, good long-term stability

■ Directly contacting with the measured high temperature medium, and improving the pressure response frequency

■ Providing ample pressure ranges for low pressure, moderate pressure and high pressure

■ Anti-vibration, shock resistance, and corrosion resistance

Applications and industries

■ Process control

■ Aerospace

■ Chemical product and chemical industry

■ Servo valve and transmission

High temperature pressure sensor, high temperature pressure transmitter, temperature pressure transmitter, ex-proof

ExiaⅡCT6 pressure transmitter, absolute pressure transmitter, guage pressure transmitter

Inquire Now Download

Product Parameters

PCM300T High Temperature Pressure Transmitter

Performance parameters
Pressure range	-100kPa…0~35kPa…60MPa
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Accuracy	0.5%FS
Hysteresis	0.1%FS
Repeatability	0.1%FS
Temperature drift	35kPa: ±2%FS (0℃～60℃)
Temperature drift	Other:±1.5%FS (-20℃～85℃)
Response time	≤2ms (Up to 90%FS)
Overload pressure	Please refer to the pressure range selection form
Durability	10⁶ pressure cycles
Ambient temperature	-20℃～85℃
Medium temp.	-30℃～105℃
Storage temp.	-40℃～125℃
EMC	Immunity: IEC 61000-6-2 \| Radiation IEC 61000-6-3
Insulation resistance	≥100MΩ/250VDC
Anti-vibration performance	Sine curve: 20g, 25Hz～2kHz; IEC 60068-2-6
Anti-vibration performance	Random: 7.5grms, 5Hz～1kHz; IEC 60068-2-64
Shock resistance	Shock: 20g/1ms; IEC 60068-2-27
Shock resistance	Free fall: 1m; IEC 60068-2-32
Protection grade	IP65
Medium compatibility	All kinds of medium compatible with SS316L
Hexnut	HEX27
Ex-proof grade	Intrinsically safe explosion-proof ExiaⅡCT6 (only for 4～20mA)
Cooling fan	3 pieces, 5 pieces, 7 pieces
Net weight	220～360g
Performance parameters
CodeB1B3B2B7B12B6Output4～20mA0～5V1～5V0～10V1～10V0.5~4.5V R/MSupply12～30VDC5VDC

	Electrical connection and conncetion mode
Electrical connection		J5: Hirschmann DIN43650	J3H: Hirschmann with cable
Dimension In mm
Protection grade		IP 65
Connection mode (2 wire current)		Pin 1: V+ (red wire) Pin 2: Iout (green wire)	red wire V+ green wire Iout
Connection mode (3 wire voltage)		Pin 1: V+ (red wire) Pin 2: Ground (green wire) Pin 3: voltage output (yellow wire)	Red wire V+ Green wire Ground Yellow wire Voltage output

	Cooling fan
Cooling fan code		T3: 3 pieces	T5: 5 pieces	T5: 7 pieces
Dimension In mm
Cooling fan selection		Medium temperature≤150℃	150℃<Medium temperature≤250℃	250℃<Medium temperature≤350℃

Note: For the cooling fan selection, please consider the on-site ventilation environment.

Pressure range selection
Pressure range code	Pressure reference	Pressure range	Overload pressure	Burst pressure	Remark
35k	G、A	0～35kPa	150％FS	500％FS
70k	G	0～70kPa	150％FS	500％FS
100k	G、A	0～100kPa	150％FS	300％FS
250k	G、A	0～250kPa	150％FS	300％FS
400k	G、A	0～400kPa	150％FS	300％FS
600k	G、A	0～600kPa	150％FS	300％FS
1M	G、A、S	0～1MPa	150％FS	300％FS
1.6M	G、S	0～1.6MPa	150％FS	300％FS
2.5M	G、S	0～2.5MPa	150％FS	300％FS
4M	S	0～4MPa	150％FS	300％FS
6M	S	0～6MPa	150％FS	300％FS
10M	S	0～10MPa	150％FS	300％FS
16M	S	0～16MPa	150％FS	300％FS
25M	S	0～25MPa	150％FS	300％FS
40M	S	0～40MPa	150％FS	300％FS
60M	S	0～60MPa	150％FS	200％FS

Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.

Production process

PC90D Monocrystalline Silicon Differential Pressure Sensor

Testing Equipment

Φ23.5mm Silicon Pressure Sensor PCM320

Certificate

PCM300T High Temperature Pressure Transmitter
