  • PCM340 Non-cavity Flush Pressure Transmitter

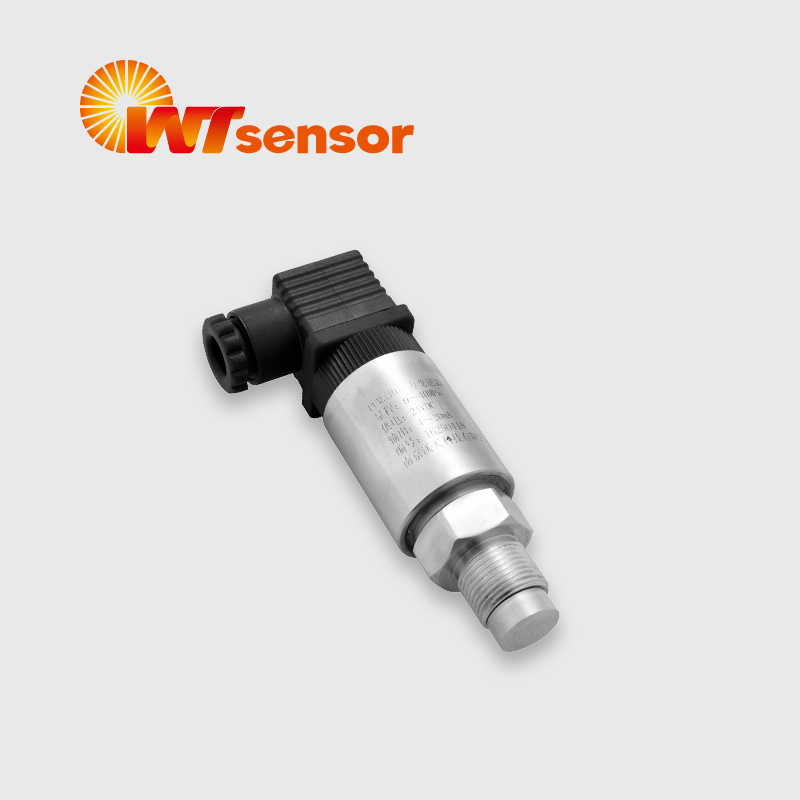

PCM340 Non-cavity Flush Pressure Transmitter

Features

■ Suitable for measuring the viscous liquid

■ Easy to install

■ The zero point and full span of the product can be adjusted externally

■ Strong anti-vibration capacity

■ Good stability

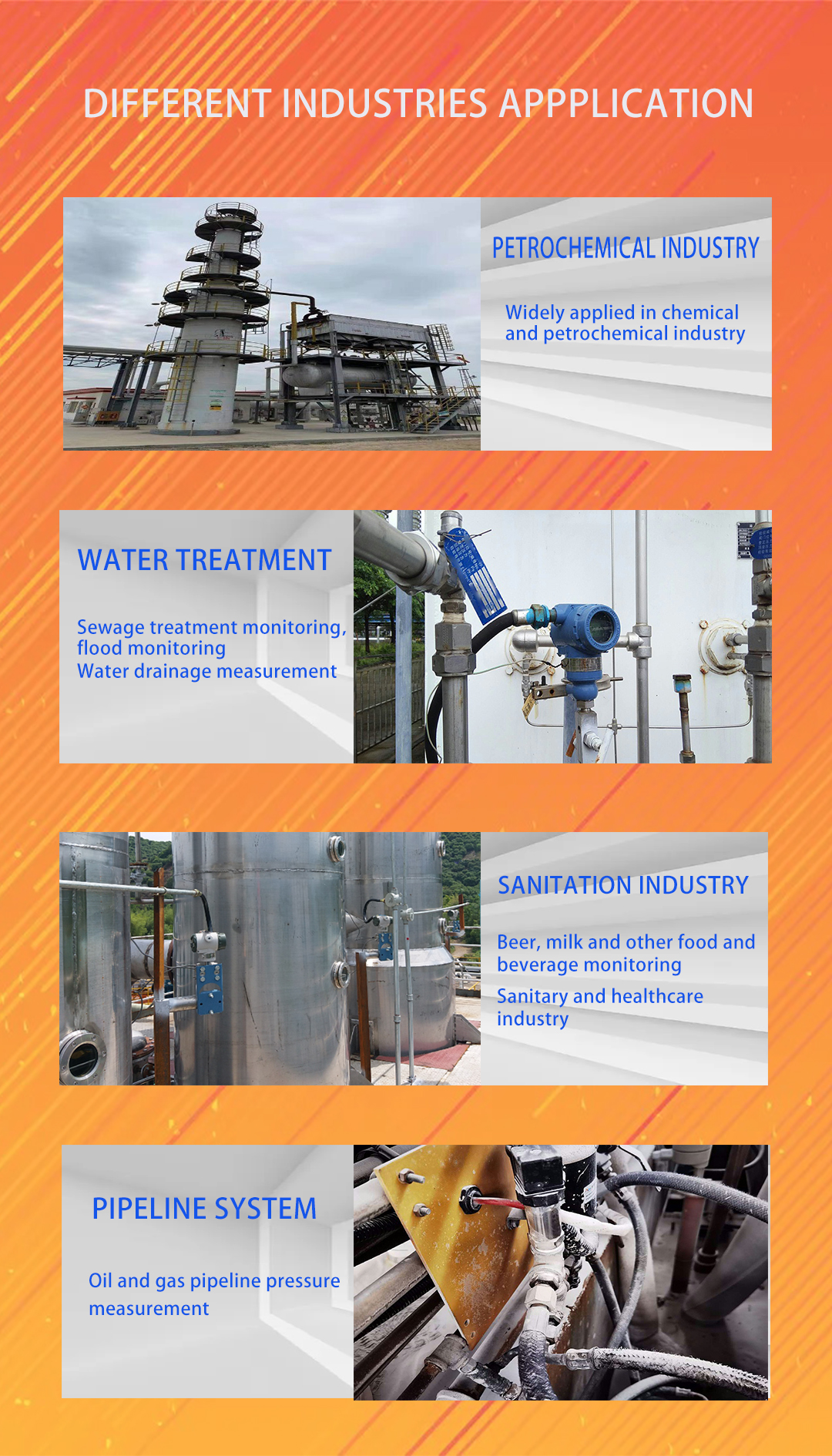

Applications and industries

■ Petroleum

■ Scientific experiment

■ Food

■ Equipment matching



China non-cavity flush pressure transducer,Wotian flush pressure transducer,flush pressure transducer factory,non-cavity measuring diaphragm flush pressure transmitter,oil field pressure transmitter


China Wotian factory flush pressure transmitter adopting the high-precision foil type strain gauge and non-cavity measuring diaphragm, anti-interference, high-temperature resistant type, intrinsically safe explosion-proof type amplifying circuits, suitable for measuring fluids with high viscosity


Product Parameters

Performance   parameters


Pressure   range

01.6MPa…150MPa



Pressure   reference

Gauge   pressure



Supply   & output

420mA,   15V,   05V   (930VDC)

010V   (1230VDC)



Accuracy

±0.5%FS(typ.)



Operating   temp.

-4085 and -40120 options



Compensated   temp.

070 and -2085 options



Storage   temp.

-40125



Zero temp.   error

±0.5%FS/10



Full span   temp. error

±0.5%FS/10



Overpressure

135%FS (Pressure   range≤15MPa); 120%FS (Pressure range≥15MPa)



Burst   pressure

200%FS   (Pressure range≤10MPa); 150%FS (Pressure range≥10MPa)



Load   capacity

≥[(supply   voltage-6.5V)/0.02A]Ω



Mechanical   life

≥5000000   pressure cycles



Insulation   resistance

≥500MΩ/1000VDC



Long-term   stability

±0.25%FS/year



Medium   compatibility

Liquids or   gases compatible with stainless steel 17-4PH



Production process

PCM340 Non-cavity Flush Pressure Transmitter

Certificate

PCM340 Non-cavity Flush Pressure Transmitter

Company profile

None

Company advantage

Mass production

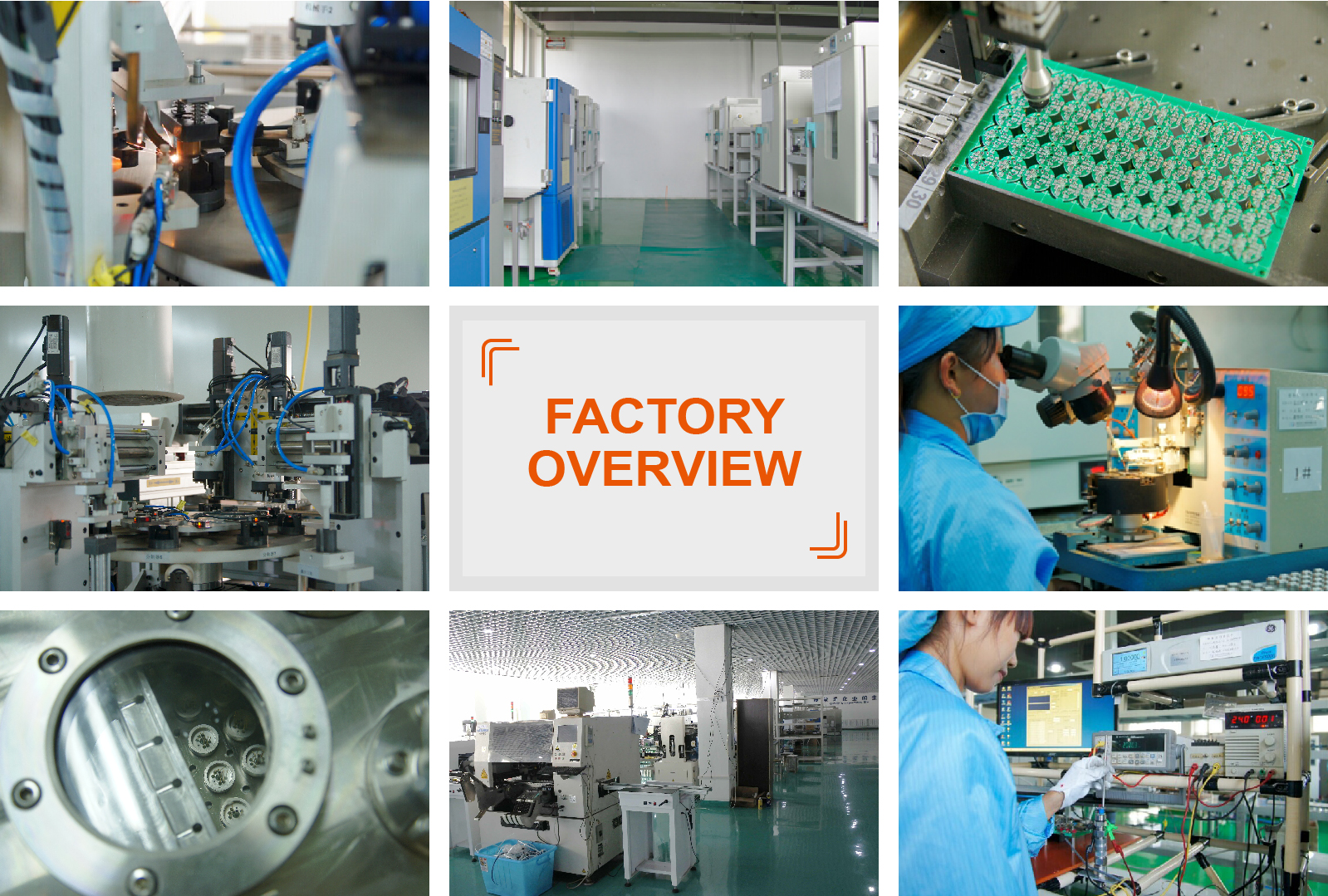

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.

Imported equipments

We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.

Informatization management

We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.

Comprehensive testing

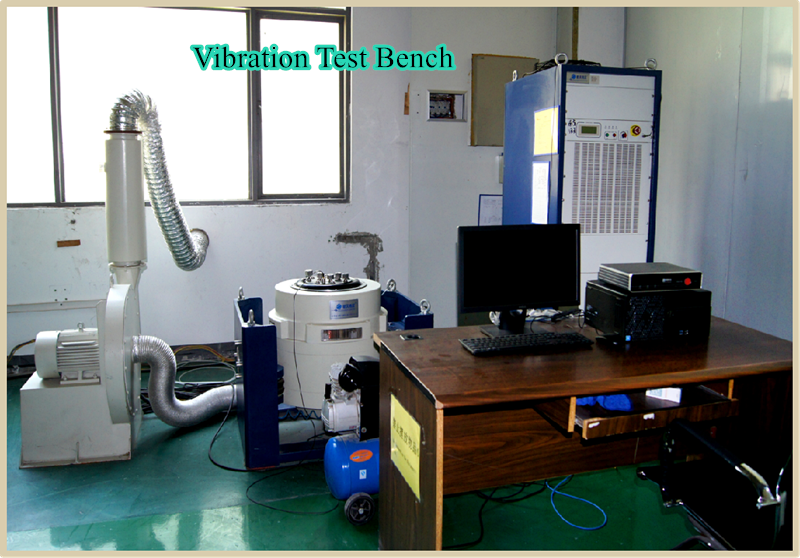

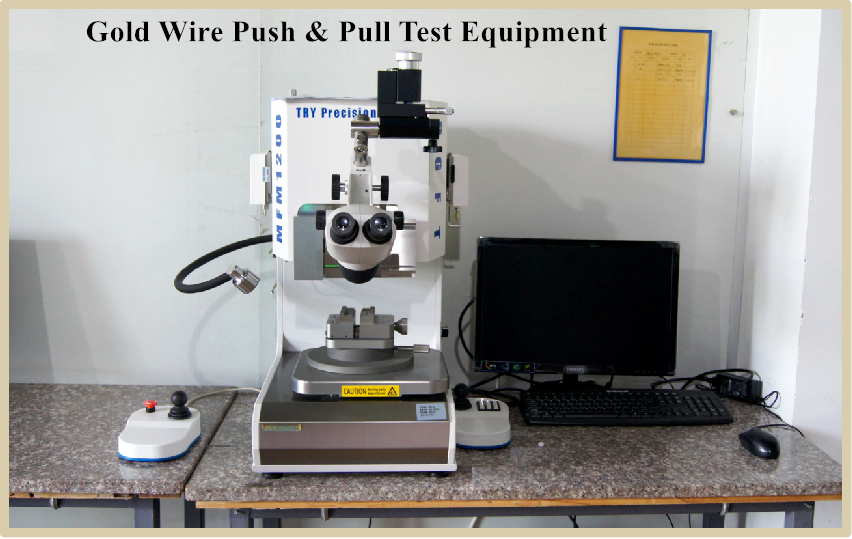

We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
