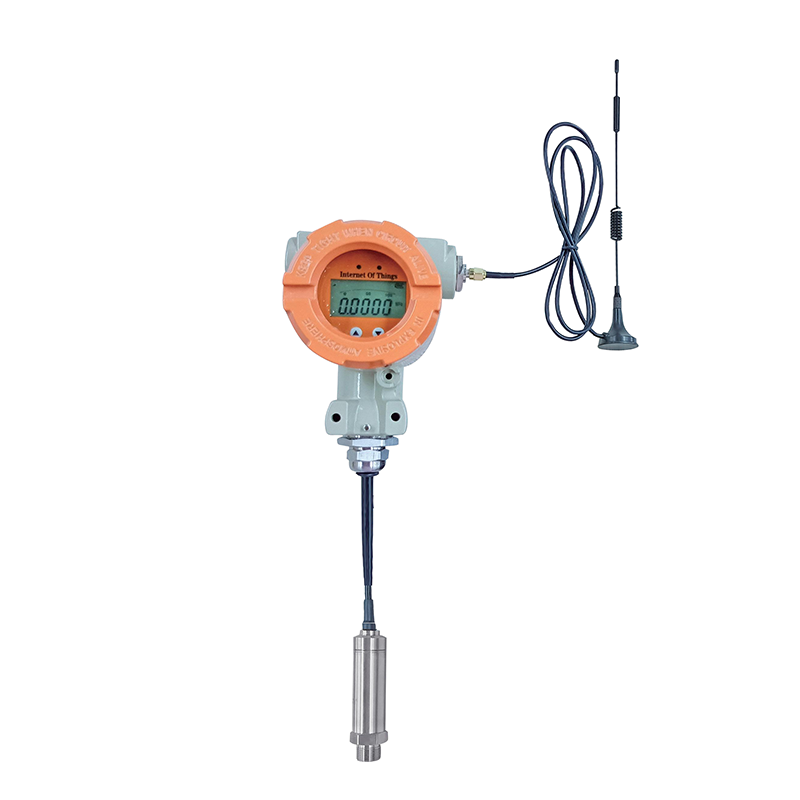

PCM9880W Submersible Wireless Pressure Transmitter
Product overview
The PCM9880W Submersible Wireless Pressure Transmitter is a product specially designed by Wotian Technology to meet the IP68 protection level requirement for pressure monitoring points, such as underground pipelines and deep wells.
This product has an IP68 sensor protection grade. It can be directly immersed in the measured liquid and support pipeline mounting or submersible mounting. It is small in size, light in weight, and easy to install, use, and maintain, suitable for many harsh environments.
PCM9880W uses a 38Ah large-capacity lithium sub-battery for power supply and supports various IoT standards, including NB-IoT, LoRaWAN, and 4G. The product is widely used for pressure monitoring in outdoor areas or environments with inconvenient power supply, such as fire protection, municipal, water affairs, heating, oil pipelines, and gas pipelines. It sends the pressure condition of monitoring points to the monitoring center through IoT periodically or in real time, and then the monitoring center stores, analyzes, searches data, and processes alarm information, realizing wireless signal transmission and information interaction without on-site wiring, saving a lot of human and material resources, and significantly reducing construction costs and maintenance costs, which helps users achieve timely and efficient supervision on the pressure at the pipeline network monitoring points.
Key features and user value
■ Supporting NB-IoT/4G/LoRaWAN wireless communication standard, suitable for various scenarios
■ Support local and remote parameter adjustment, support magnetic rod wake-up function; more convenient for users' daily use and maintenance
■ Hardware: high resistance to vibration, shock, and interference; software: built-in watchdog, ensuring zero crashes; high reliability and good repeatability
■ Real-time active report on alarm information, such as abnormal fluctuation and exceeded threshold value of the monitoring point pressure
■ Optimized ultra-low power consumption design; reducing battery replacement frequency and significantly lowering users’ maintenance costs
■ Accessible to the third-party monitoring platform; supporting Telecom AEP platform, Alibaba Cloud platform, and customer private platforms
Typical application industries
■ Fire protection, municipal administration, water affairs, environmental protection, petrochemical, gas, and other industries
Product Parameters
Performance parameters | |
Pressure range | 10kPa~20kPa…60MPa |
Pressure reference | Gauge pressure, absolute pressure, sealed gauge pressure |
Supply & output signal | Power supply: lithium sub-battery (38Ah) or solar energy |
Output signal: NB-IoT/4G/LoRaWAN | |
Operating temp. | -20℃~70℃ (The low temperature below zero has great influence on the performance of lithium sub-battery.) |
Medium temp. | -20℃~85℃ |
Storage temp. | -40℃~125℃ |
Zero temp. drift | ±1.5%FS (-20℃~85℃) |
Sensitivity temp. drift | ±1.5%FS (-20℃~85℃) |
Overload pressure | 150%FS |
Mechanical vibration | 20g (20~5000Hz) |
Shock | 100g (11ms) |
Accuracy | 0.5% |
Operation mode | Regular active report; the reporting cycle can be set arbitrarily |
Auto Detection | Built-in monitoring module to monitor the operation of equipment |
Parameter setting | Remote setting, which allows setting the reporting cycle and threshold alert |
Sampling accuracy | 24bit |
Long-term stability | ±0.2%FS/year |
Protection grade | Gauge head part: IP66/67; Submersible sensor part: IP68 |
Material | Housing: stainless steel; internal sensor: 316L |
Media Compatibility | All kinds of media compatible with SS316L |
ESD | Meeting GB/T 17626.2 Chapter 5 Severity Level: Level 4 |
RFEMS | Meeting GB/T 17626.3 Chapter 5 Severity Level: Level 3 |
PFMF | Meeting GB/T 17626.4 Chapter 5 Severity Level: Level 5 |
