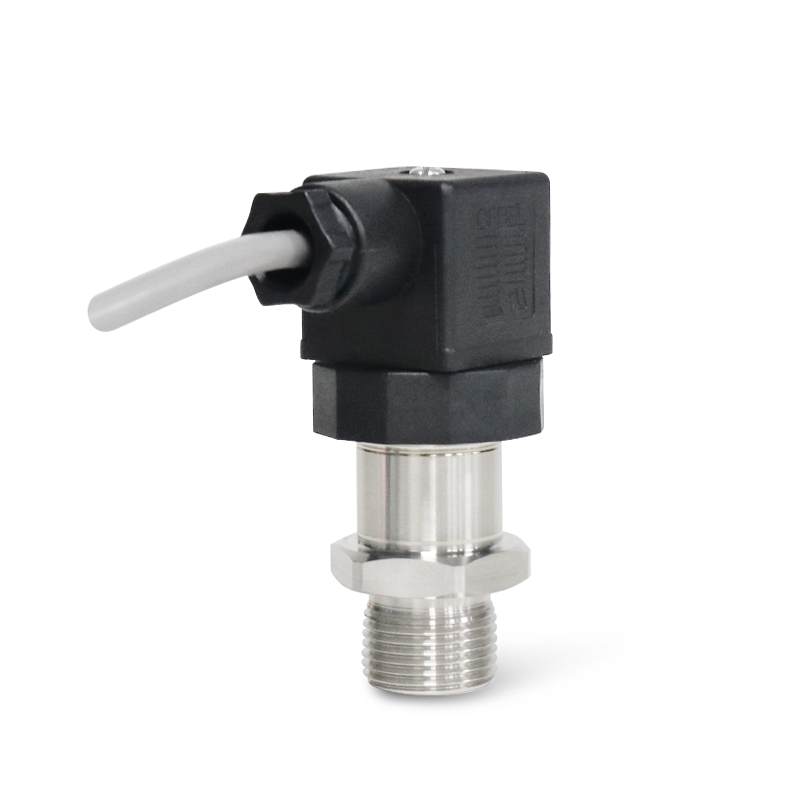

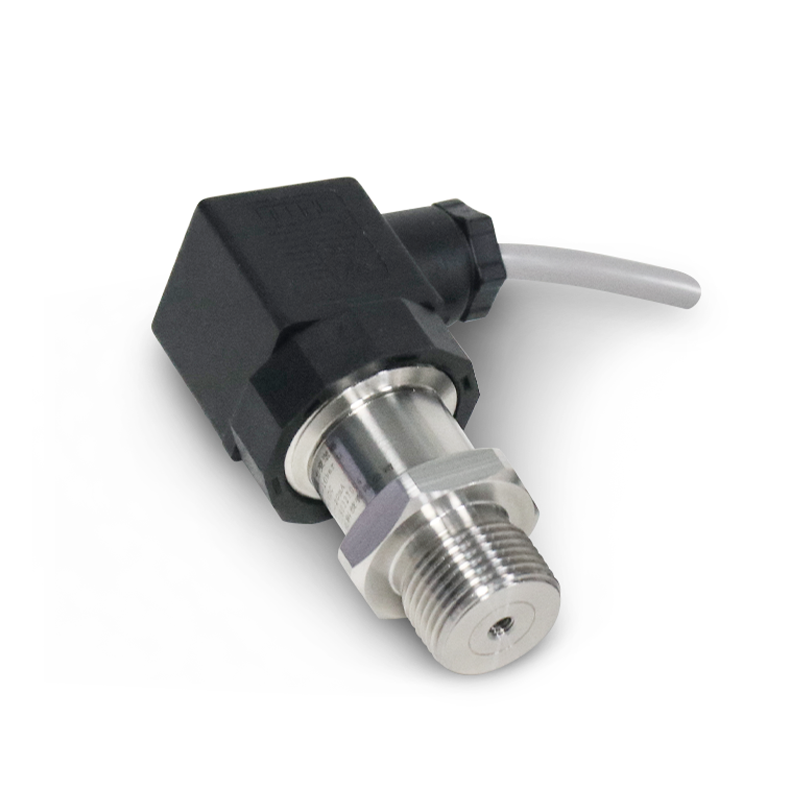

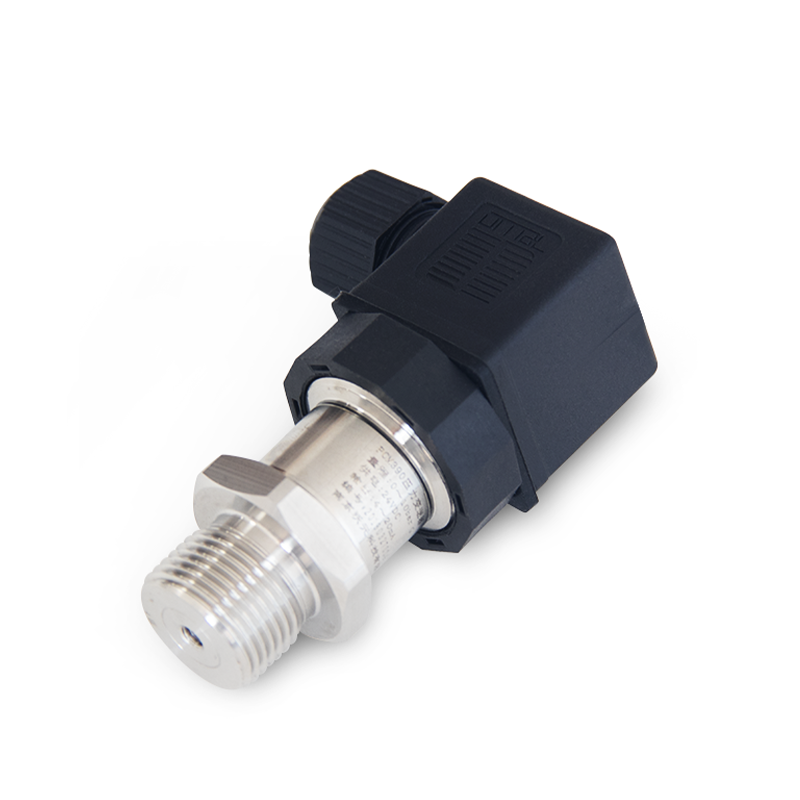

Pressure Transducer PCM390

Applications

• Water treatment

• Pump & compressor

• Hydraulic & pneumatic system

• Mechanical equipment

• Refrigeration system

• Measurement & control

 • Vessels


Specifications

• Pressure type:Gauge G, Absolute A, Positive/Negative N

• Range: 0~25kPa to 0~25MPa

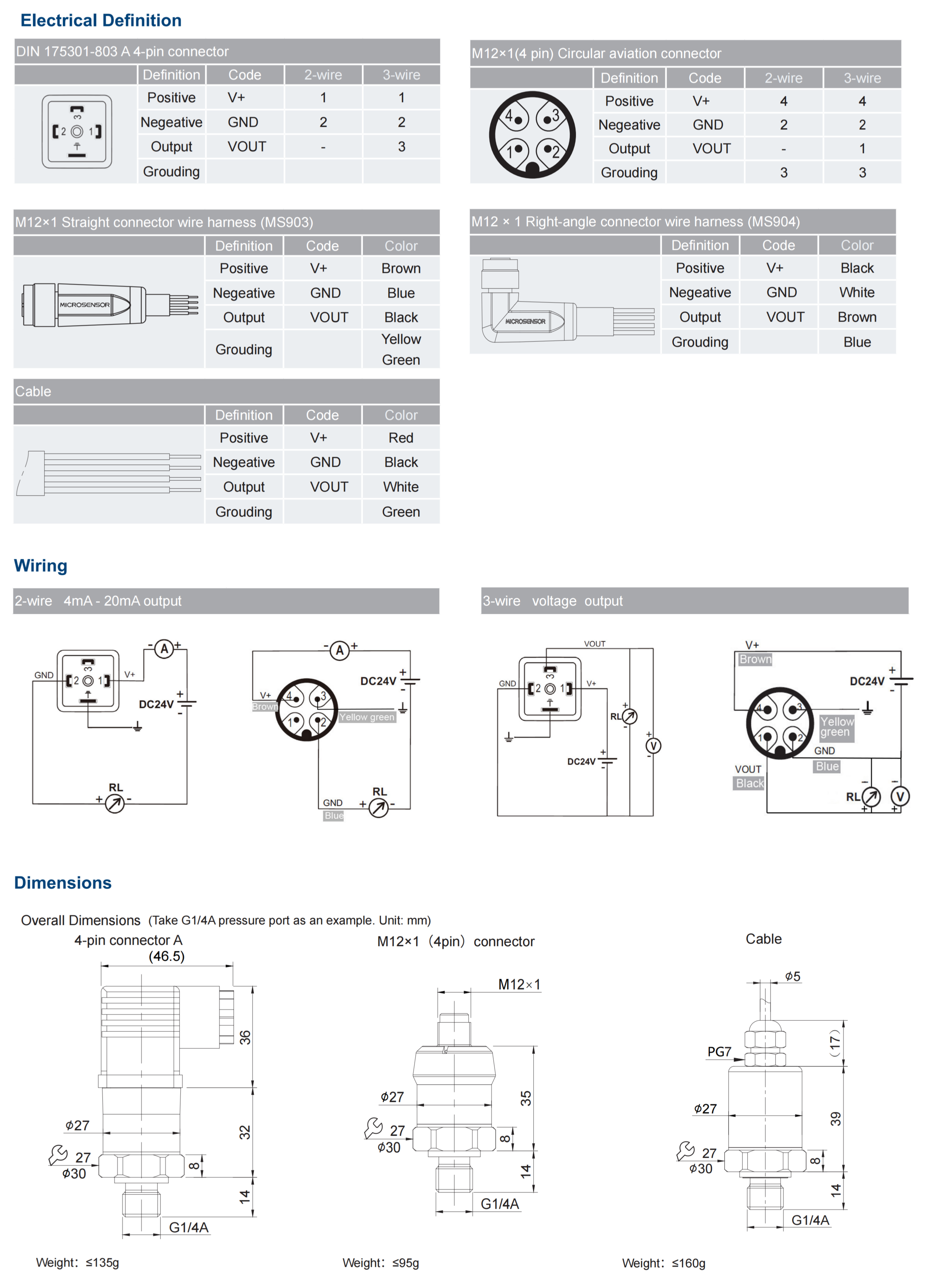

• Electrical connection:

4-pin connector DIN 175301-803A

Circular aviation connector M12×1(4 pin) IEC 61076-2-101

Cable Φ5.0mm 5× 0.12mm² PUR

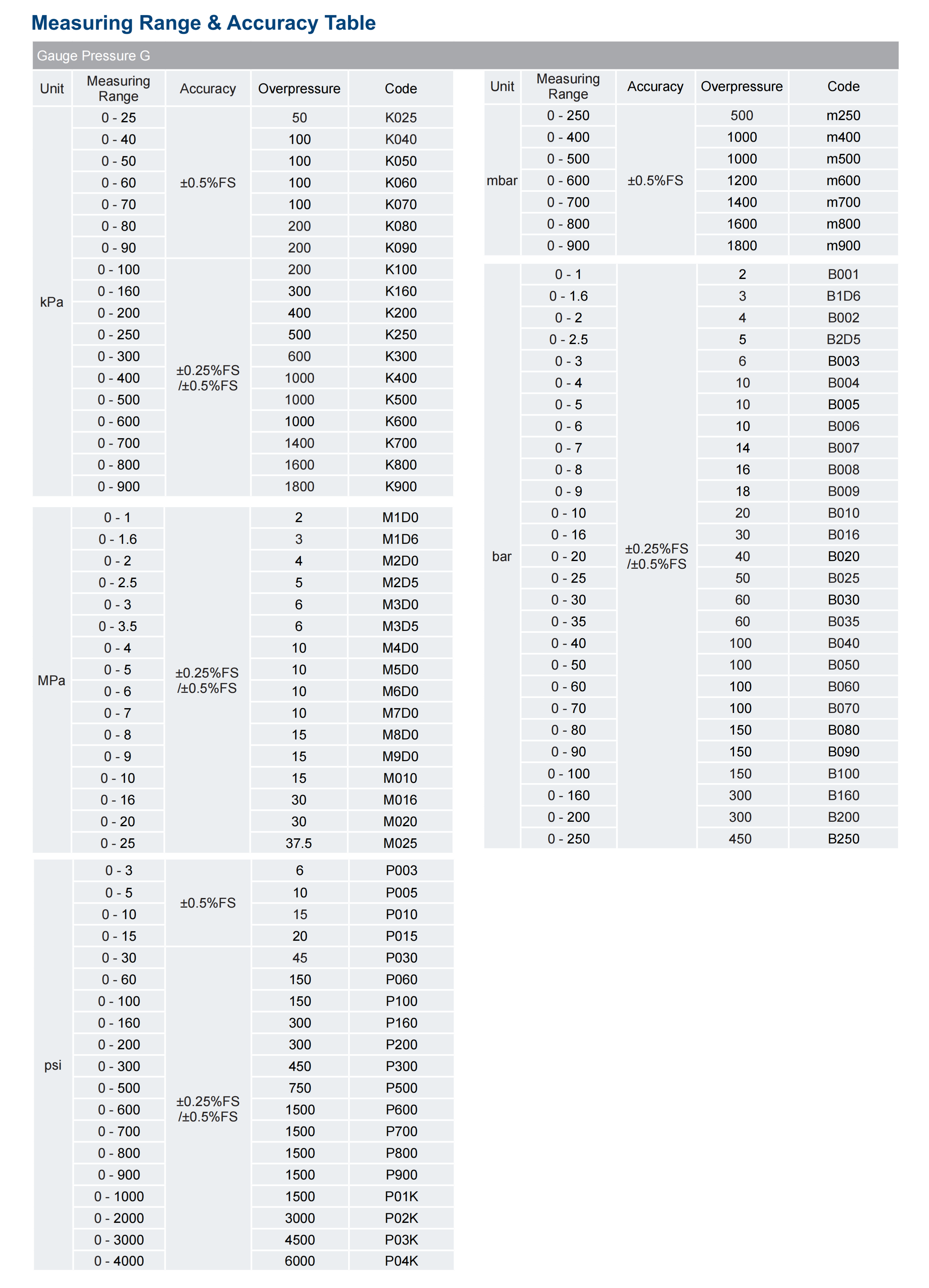

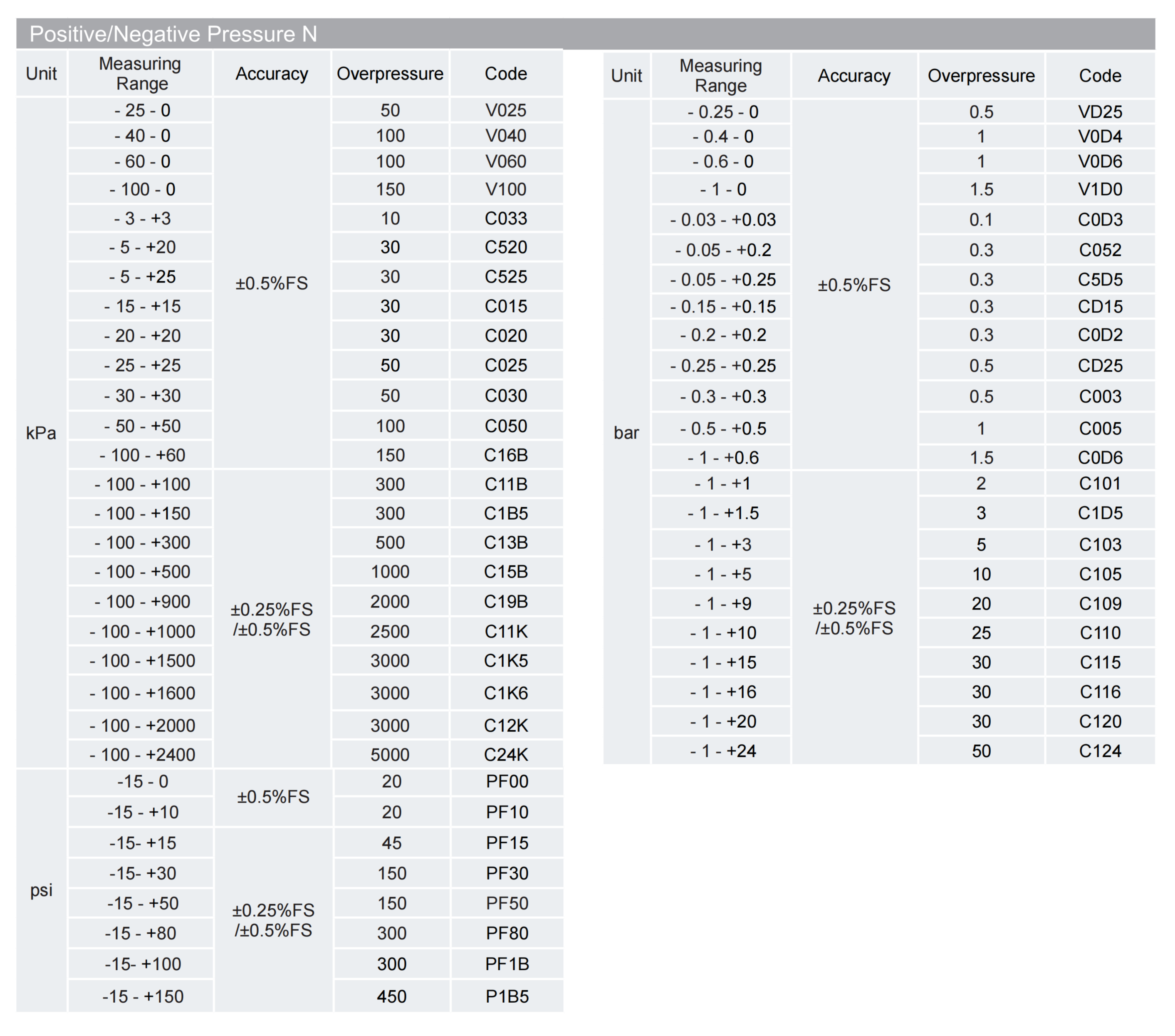

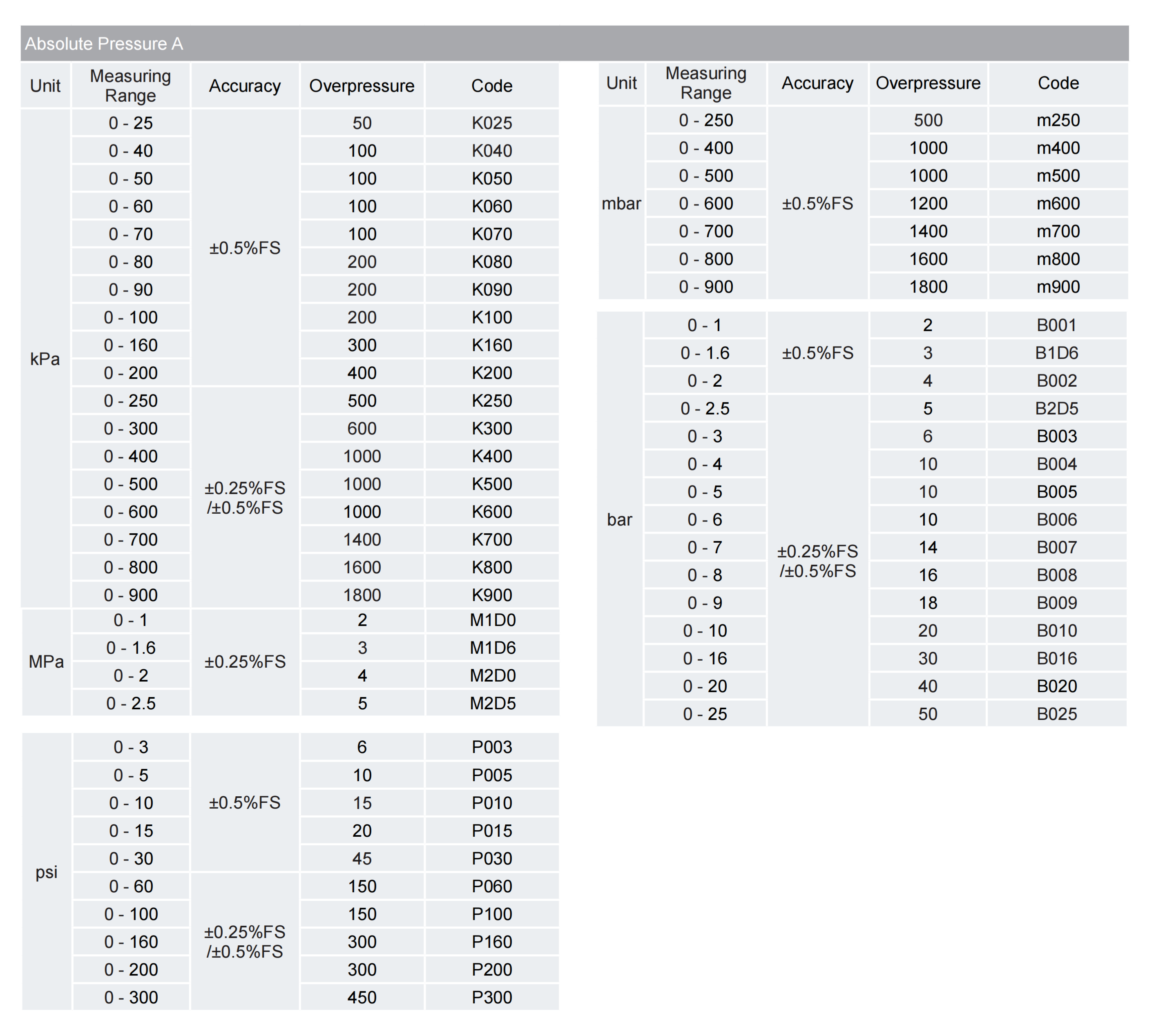

• Accuracy:Refer to"Measuring Range & Accuracy Table"

• Process connection: M20×1.5 ISO 9974-2/EN 837   G1/4A ISO 1179-2  NPT1/4 ANSI/ASME B1.20.1   R1/4 ISO 7  Other threads are available on request

• Output signal: 4mA ~ 20mA DC   0V ~ 5V DC  1V ~ 5V DC   0V ~ 10V DC   0.5V ~ 4.5V DC

• Structural features: Fully welded with a molecular sieve

• Measuring medium: Fluids compatible with 316L stainless  steel, such as air, water, and mixed oil

Introduction

PCM390 Pressure Transmitter features a precise  design with integrated electrical architecture,  digital temperature compensation, and calibration  technologies. It is constructed with high-quality  materials and offers excellent EMC compatibility,  ensuring reliable performance and cost effectiveness. Certified to international standards, the  PCM390 Pressure Transmitter offers flexible options  for various industrial pressure monitoring and  measurement applications.

Product Parameters

Pressure Transducer PCM390

Pressure Transducer PCM390

Pressure Transducer PCM390

Pressure Transducer PCM390

Pressure Transducer PCM390

Pressure Transducer PCM390

Pressure Transducer PCM390

Pressure Transducer PCM390




Production process

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor


                                                          Testing Equipment

Φ19×14mm Oil Pressure Sensor PC10Φ19×14mm Oil Pressure Sensor PC10

Φ19×14mm Oil Pressure Sensor PC10Φ19×14mm Oil Pressure Sensor PC10


Certificate


PCM390 Compact structure Pressure Transmitter
