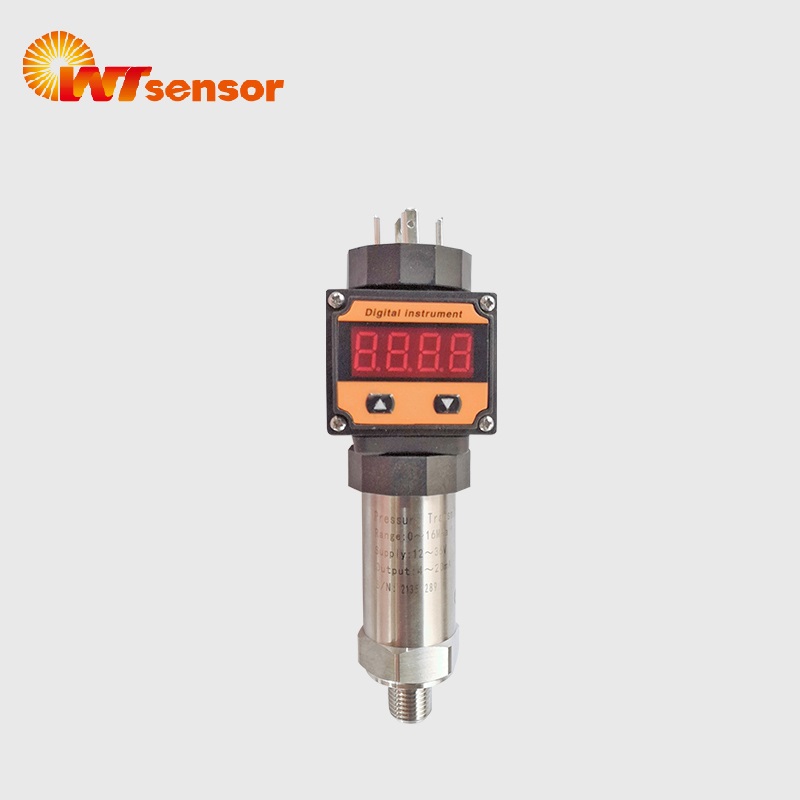

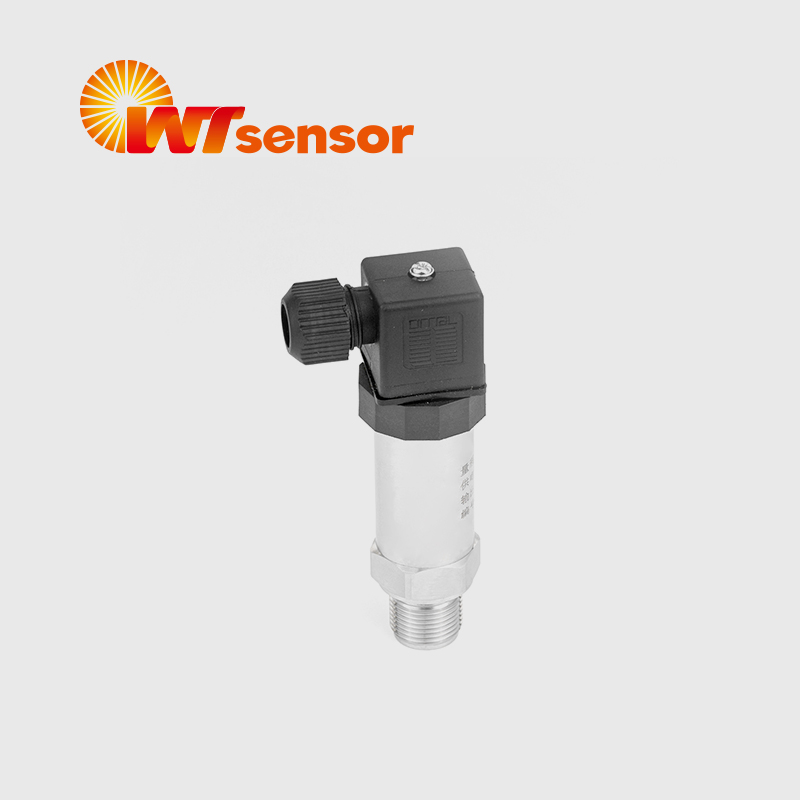

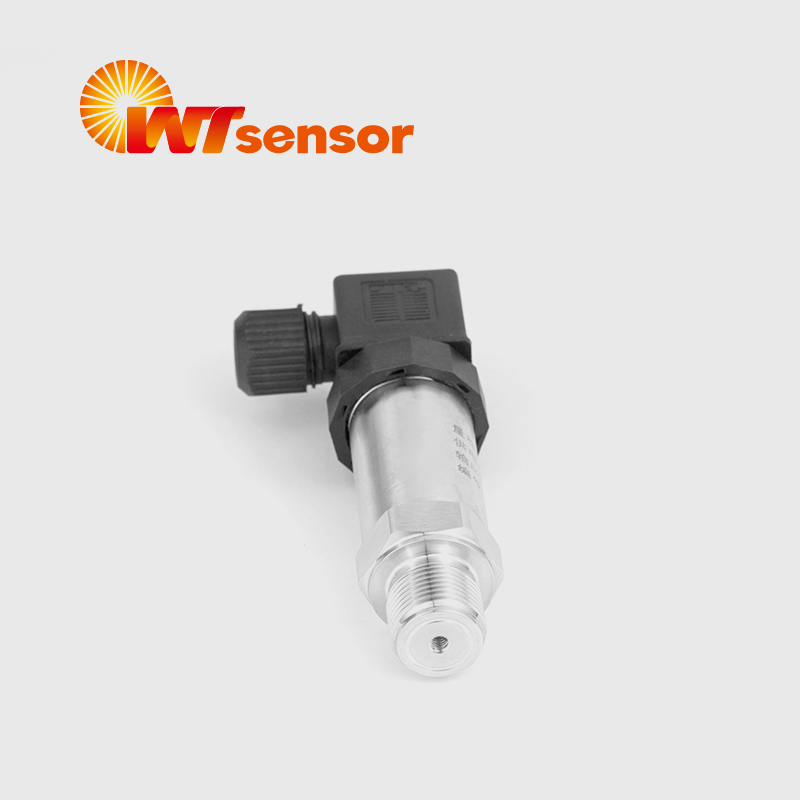

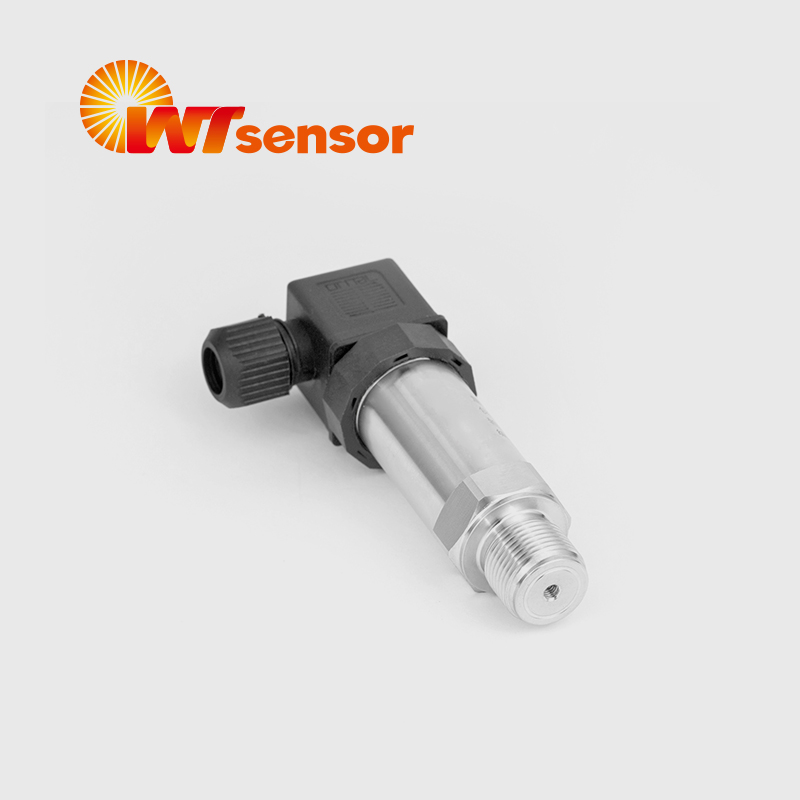

PCM303 Universal Pressure Transmitter Pressure sensor

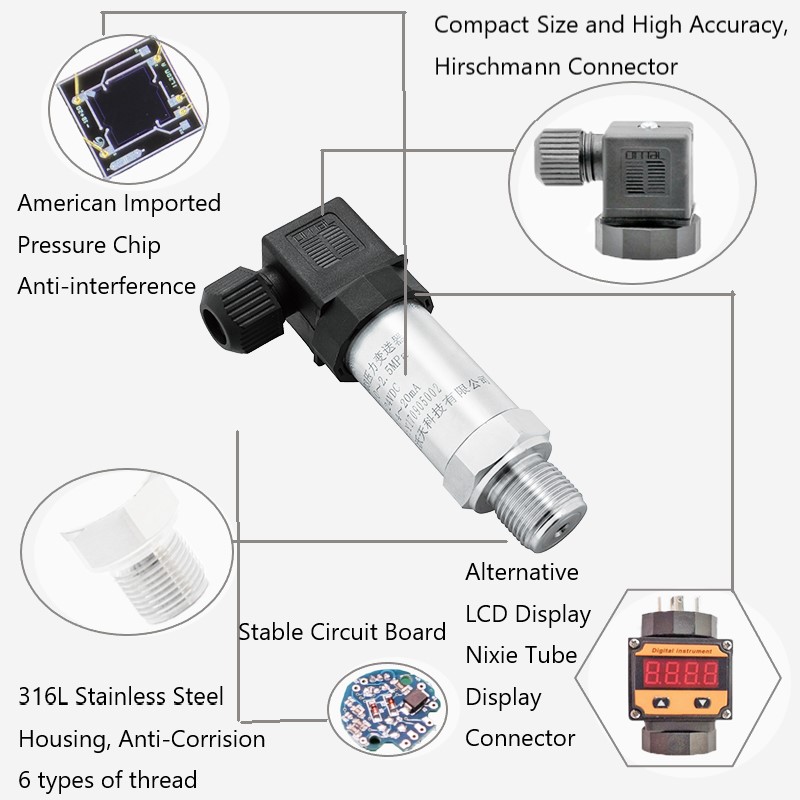

Features

■ SS316L diaphragm structure

■ High accuracy, all stainless steel structure

■ Small size and light weight

■ Strong anti-interference,

good long-term stability

■ Diversified formal structures,

easy installation and use

■ Wide pressure range, can measure the absolute pressure, gauge pressure and sealed gauge pressure

■ Anti-vibration, shock resistance

■ Zero, full span adjustable




Diffused silicon universal pressure transmitter,China pressure transmitter,Wotian factory pressure transmitter,Economic pressure transmitter,Strong anti-interference universal pressure transmitter


China Wotian factory economic pressure transmitter adopting diffused silicon pressure sensor as pressure sensing element and able to be directly connected with computer interface card, control instruments, intelligent meters or PLC conveniently, with extremely high vibration and shock resistance


Product Parameters

Performance   parameters

Pressure   range

-100kPa…0~35kPa…100MPa

Pressure   reference

Gauge   pressure, Absolute pressure, Sealed gauge pressure

Accuracy

0.5%FS

Hysteresis

0.1%FS

Repeatability

0.1%FS

Temperature   drift

35kPa:   ±2%FS(060

Other   ranges: ±1.5%FS(-2085

Response   time

≤1ms (Up   to 90%FS)

Overpressure

Refer to   Table for Pressure Range Selection

Service   life

≥10×106 pressure cycles

Ambient temperature

-2085

Medium   temp.

-30105

Storage   temp.

-40125

EMC

Immunity:   IEC 61000-6-2, Radiation: IEC 61000-6-3

Insulation   resistance

≥100MΩ/500VDC(200MΩ/250VDC)

Vibration   resistance

Sine   curve: 20g, 25Hz2kHz; IEC 60068-2-6

Random:   7.5grms, 5Hz1kHz; IEC   60068-2-64

Shock   resistance

Shock:   200g/1ms; IEC 60068-2-27

Free   falling body: 1m; IEC 60068-2-32

Protection   grade

IP65

Medium   compatibility

All kinds   of media compatible with SS316L

Hexagon

HEX27

Ex-proof   grade

Intrinsically   safe explosion-proof ExiaCT6 (only   for 420mA)

Net weight

150180g
