PC30 Sensor for Water Meter Flow and Pressure Monitoring

Introduction

In modern pipeline systems, the need for accurate, real-time monitoring of both water flow and pressure has become increasingly critical. Industries such as municipal water supply, wastewater treatment, and industrial process control require reliable data to ensure operational safety, optimize efficiency, and reduce water loss.

Traditional electromagnetic water meters excel at measuring flow based on electromagnetic induction principles. However, they often lack integrated pressure detection capabilities. This limitation can lead to incomplete system diagnostics, delayed leak detection, and inefficient pressure management.

To address this challenge, integrating a high-performance pressure sensor such as the PC30 piezoresistive silicon pressure sensor offers a professional and scalable solution. With its robust structure, high sensitivity, and adaptability to harsh environments, the PC30 enables synchronous measurement of flow and pressure, transforming conventional water meters into intelligent monitoring systems.

Technical Overview of the PC30 Pressure Sensor

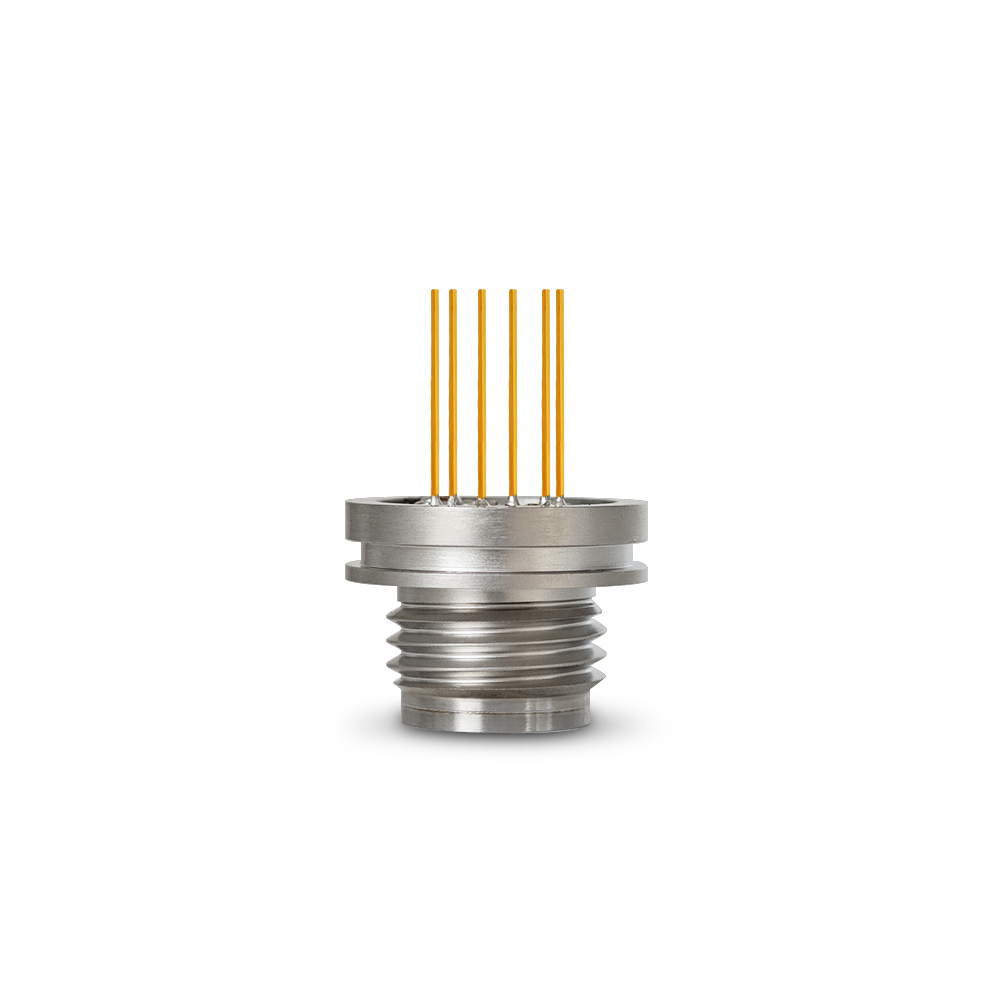

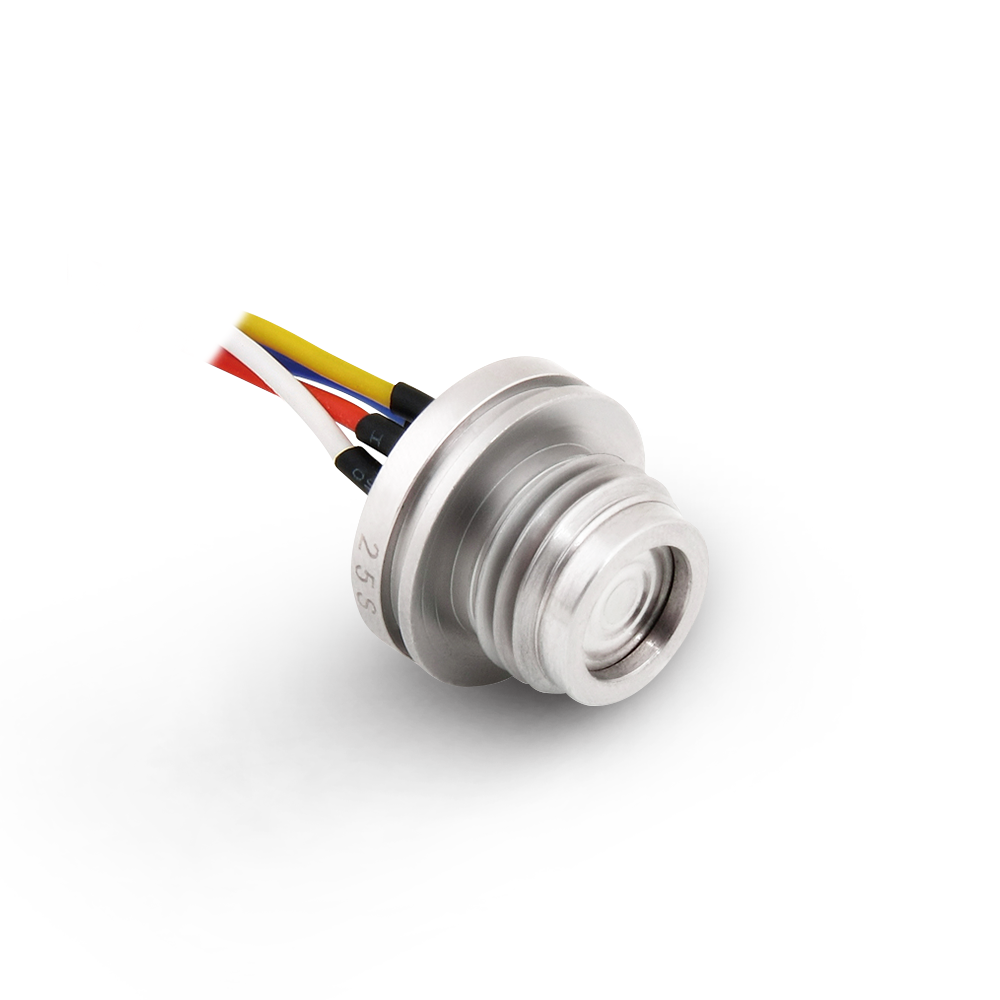

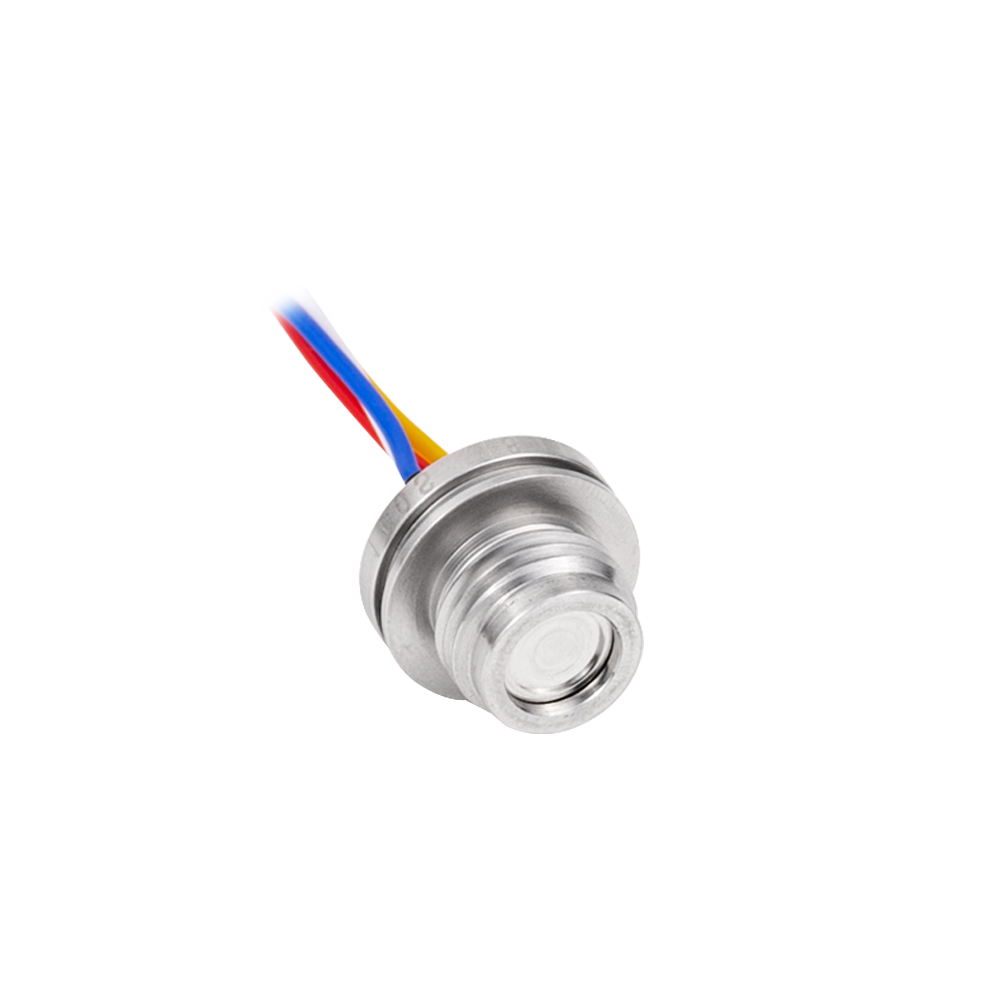

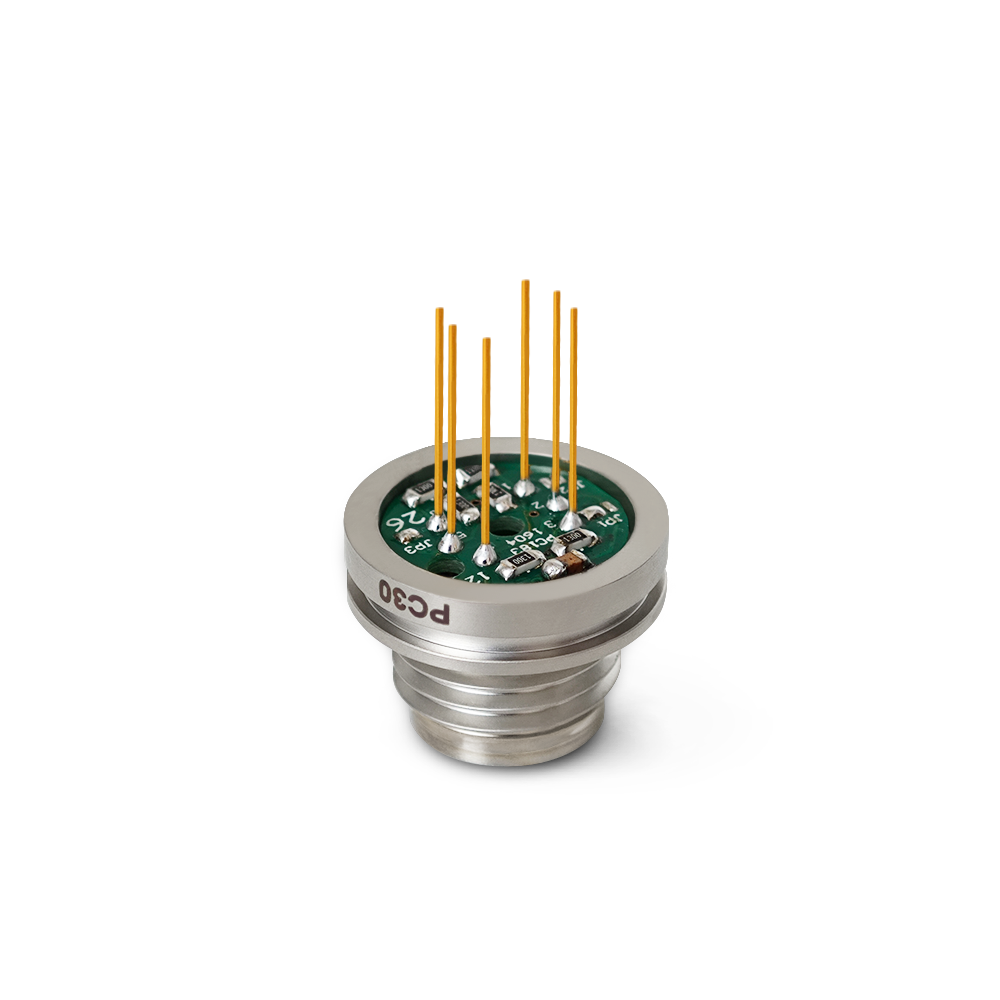

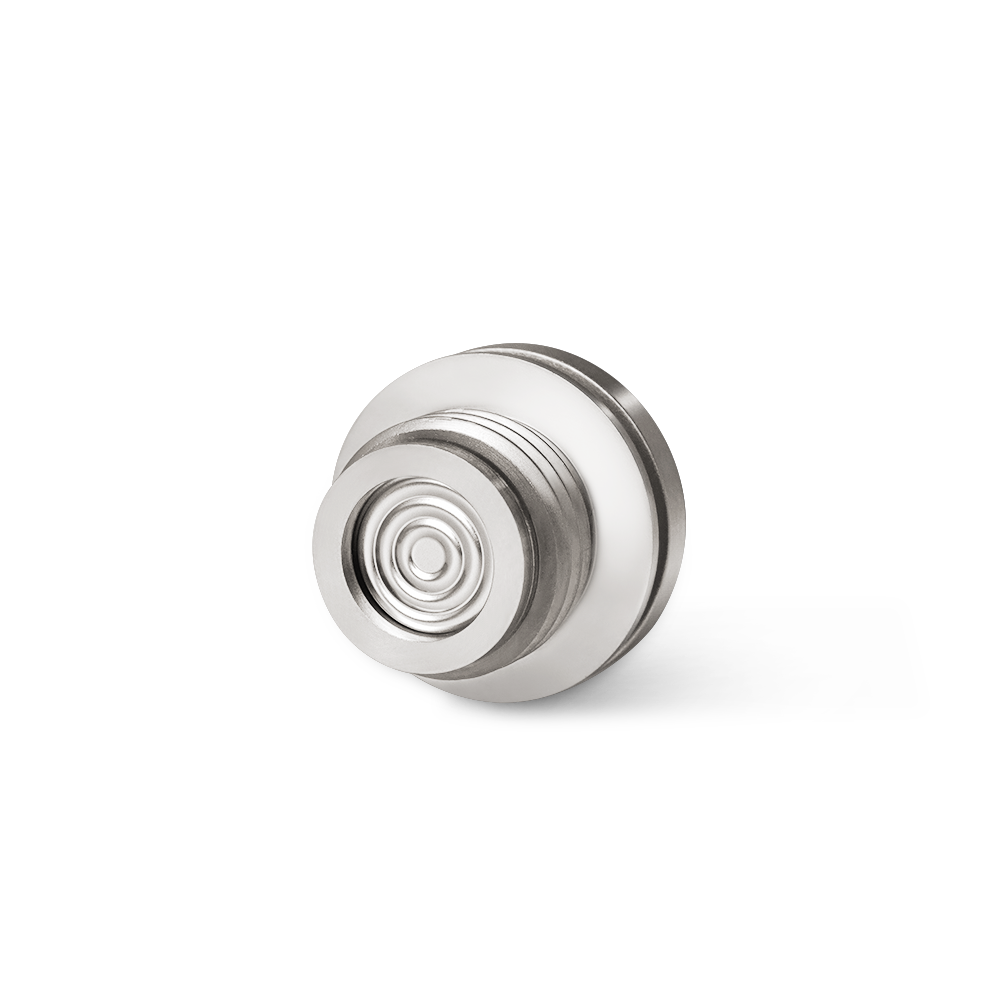

The PC30 is a high-performance pressure-sensitive component designed as the core element for pressure transmitters. It adopts a diffused silicon piezoresistive sensing die, encapsulated within a 316L stainless steel housing, ensuring both accuracy and durability.

Key Structural Advantages

• All-solid design: The sensing die is isolated from the measured medium באמצעות a stainless steel diaphragm and silicone oil

• Corrosion resistance: All wetted parts are made of 316L stainless steel

  Sealed structure: Prevents contamination and enhances long-term stability

• O-ring sealing: Simplifies installation and improves reliability

This design ensures that the PC30 can operate effectively in harsh and corrosive environments, making it ideal for water-related applications.

Integration into Electromagnetic Water Meters

System Architecture

In an electromagnetic water meter with pressure detection, the PC30 functions as the pressure sensing module integrated alongside the flow measurement unit.

Typical system components include:

1. Electromagnetic flow sensor

2. PC30 pressure sensor

3. Signal conditioning circuit

4. Microcontroller (MCU)

5. Communication interface (e.g., RS485, NB-IoT)

Working Principle

• The electromagnetic sensor measures flow velocity based on induced voltage.

• The PC30 detects pipeline pressure and converts it into an electrical signal via the piezoresistive effect.

• The signal is amplified and processed into a standardized output.

• The MCU synchronizes flow and pressure data for transmission and analysis.

This integrated approach enables real-time, multi-parameter monitoring within a single device.

Performance Advantages in Pipeline Applications

1. Wide Pressure Range and High Accuracy

The PC30 supports a pressure range of 1 MPa to 60 MPa, making it suitable for:

• Low-pressure municipal pipelines

• Medium-pressure industrial systems

• High-pressure transmission networks

Its high sensitivity and ≤1 ms response time ensure accurate detection of rapid pressure changes.

2. Flexible Excitation and Signal Output

The sensor supports both:

• Constant current excitation (1.5 mA recommended)

• Constant voltage excitation (10 V recommended)

This flexibility allows seamless integration with various transmitter circuits and control systems, simplifying product development for manufacturers.

3. Excellent Environmental Adaptability

Pipeline environments often involve temperature fluctuations, humidity, and mechanical stress. The PC30 addresses these challenges with:

• Operating temperature: -40°C to 125°C

• Wide temperature compensation range

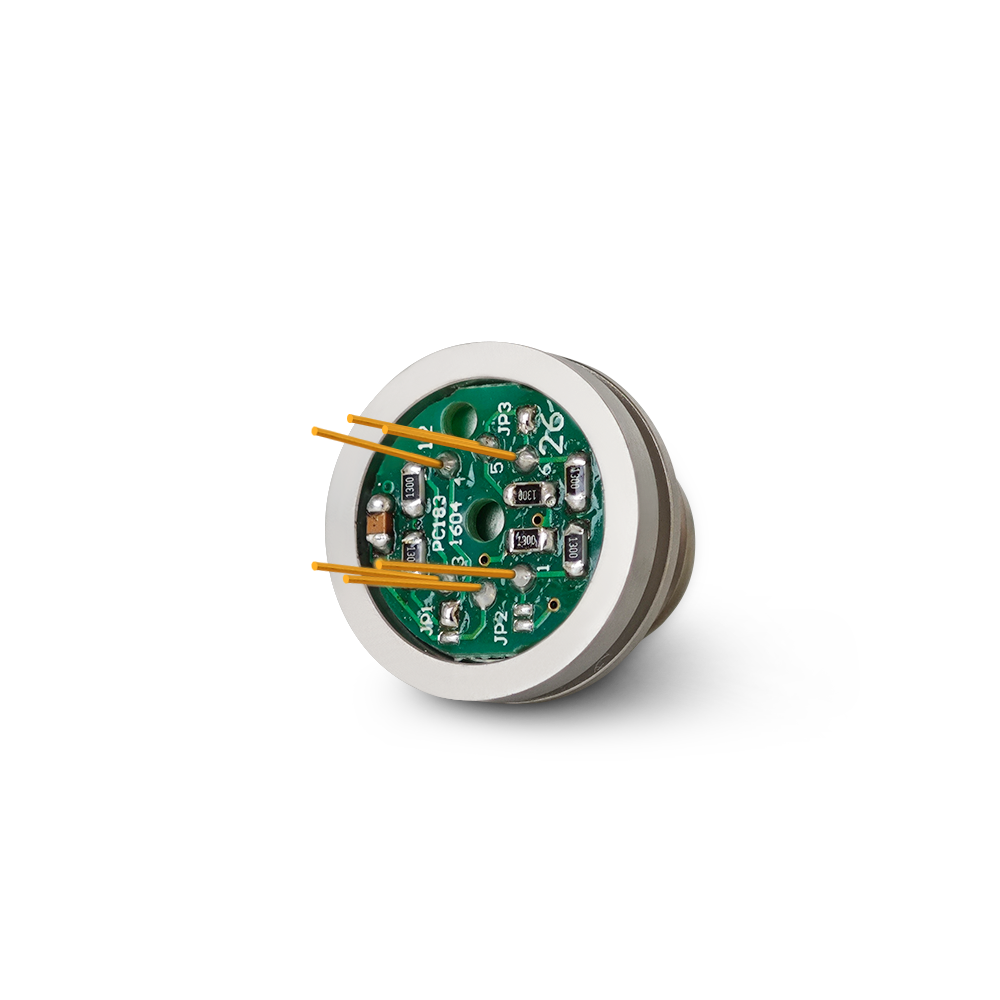

• Moisture-proof protection via sealed compensation board

These features ensure stable performance across diverse environmental conditions.

4. Strong Mechanical Reliability

The PC30 is engineered to withstand demanding conditions:

• Vibration resistance: 20g (20–5000 Hz)

• Shock resistance: 100g (10 ms)

• Durability: 1 million pressure cycles

This robustness minimizes maintenance requirements and extends service life.

5. Compatibility with Various Media

The use of 316L stainless steel and an isolated sensing structure allows the PC30 to measure:

• Clean water

• Wastewater

• Industrial liquids compatible with 316L

• Non-corrosive gases

This versatility makes it suitable for a wide range of water management scenarios.

Application Value in Smart Water Systems

Leak Detection and Loss Control

By continuously monitoring pressure variations, the system can:

• Detect abnormal pressure drops

• Identify leakage points early

• Reduce non-revenue water losses

Pipeline Safety Enhancement

Pressure spikes and water hammer effects can damage pipelines. The PC30 enables:

• Real-time pressure monitoring

• Early warning for overpressure conditions

• Improved system safety

Energy Efficiency Optimization

With synchronized flow and pressure data, operators can:

• Optimize pump operation

• Maintain stable pressure levels

• Reduce energy consumption

Data-Driven Decision Making

The integration of pressure sensing supports:

• Remote monitoring via IoT systems

• Predictive maintenance

• Smart city infrastructure development

Installation and OEM Integration Benefits

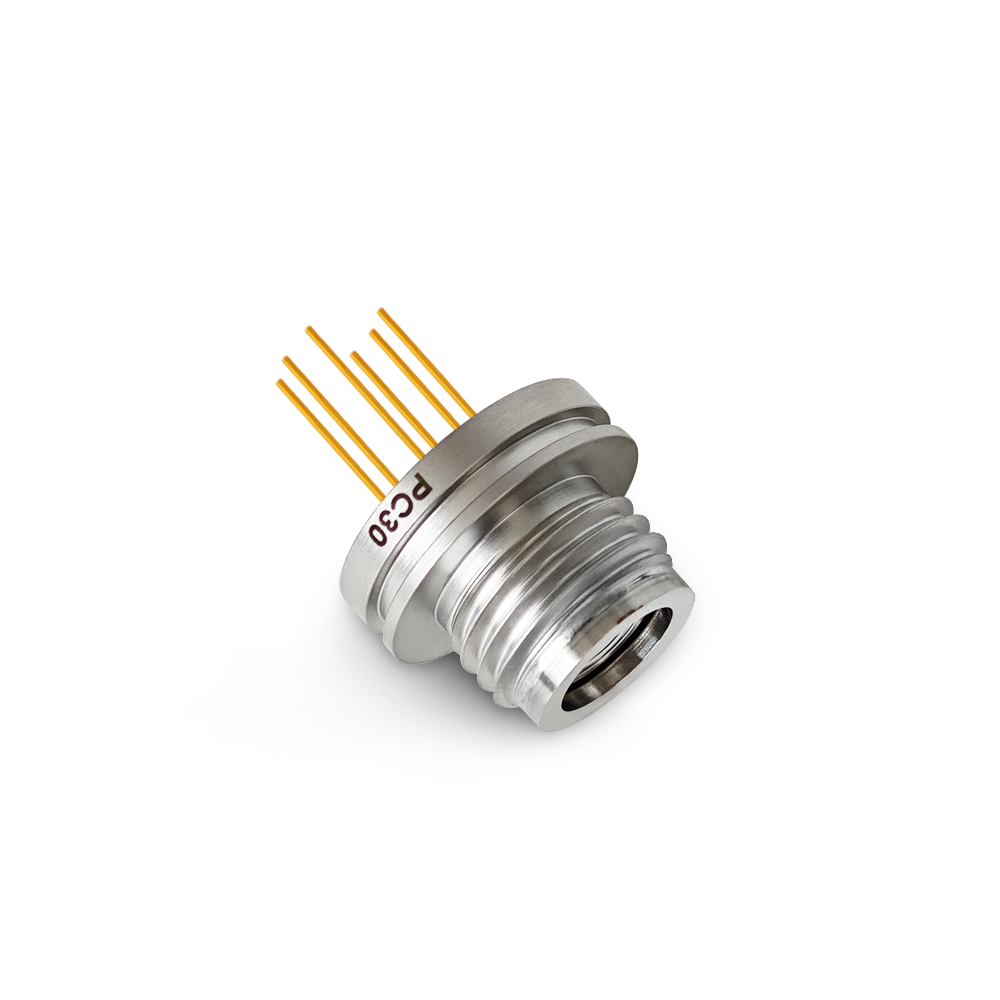

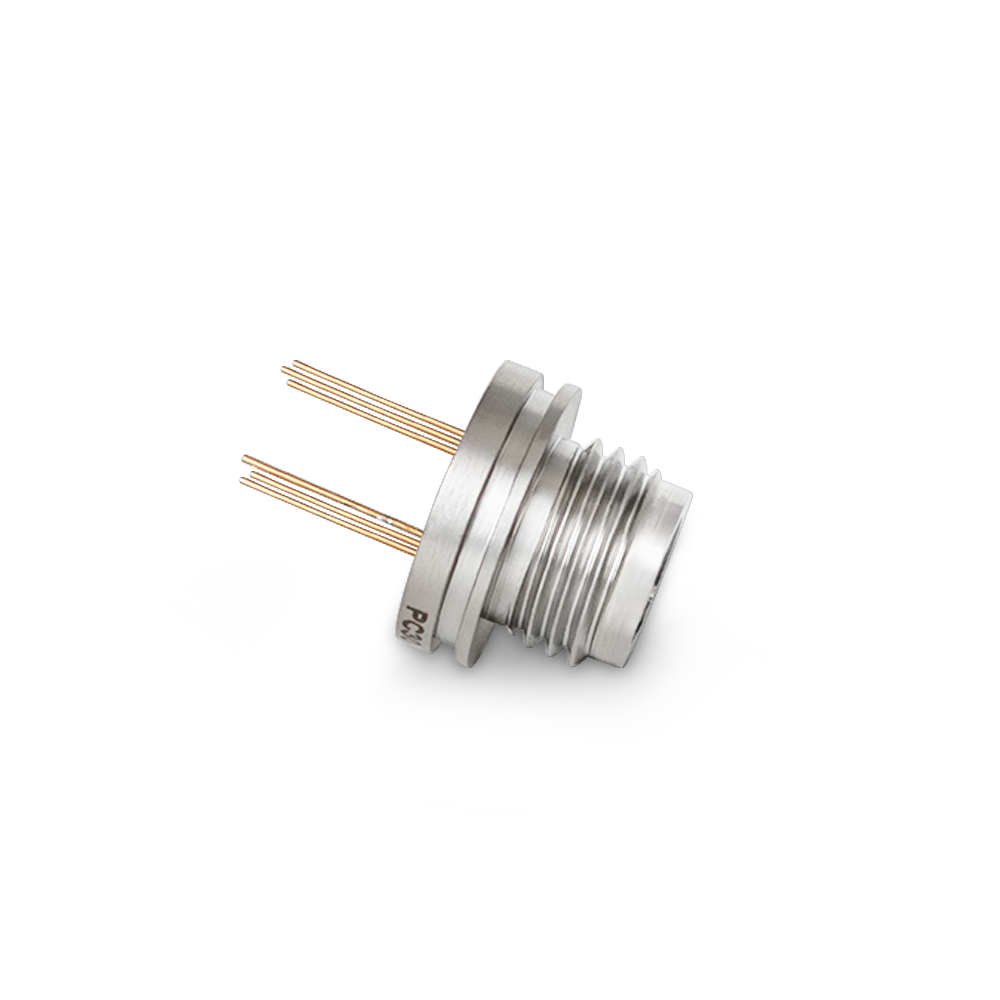

The PC30 features a Φ19 mm – M14×1.5 standard OEM design, which provides:

• Easy mechanical integration

• Reduced development time

• Compatibility with existing water meter designs

The O-ring sealing structure further simplifies installation and ensures leak-proof performance.

Conclusion

The integration of the PC30 piezoresistive silicon pressure sensor into electromagnetic water meters provides a comprehensive solution for simultaneous flow and pressure measurement in pipeline systems.

With its all-solid structure, high reliability, wide pressure range, and excellent environmental adaptability, the PC30 enables:

• Enhanced system safety

• Improved operational efficiency

• Reduced maintenance costs

• Advanced smart monitoring capabilities

As the demand for intelligent water management continues to grow, the PC30 stands out as a future-ready solution for next-generation electromagnetic water meters.
