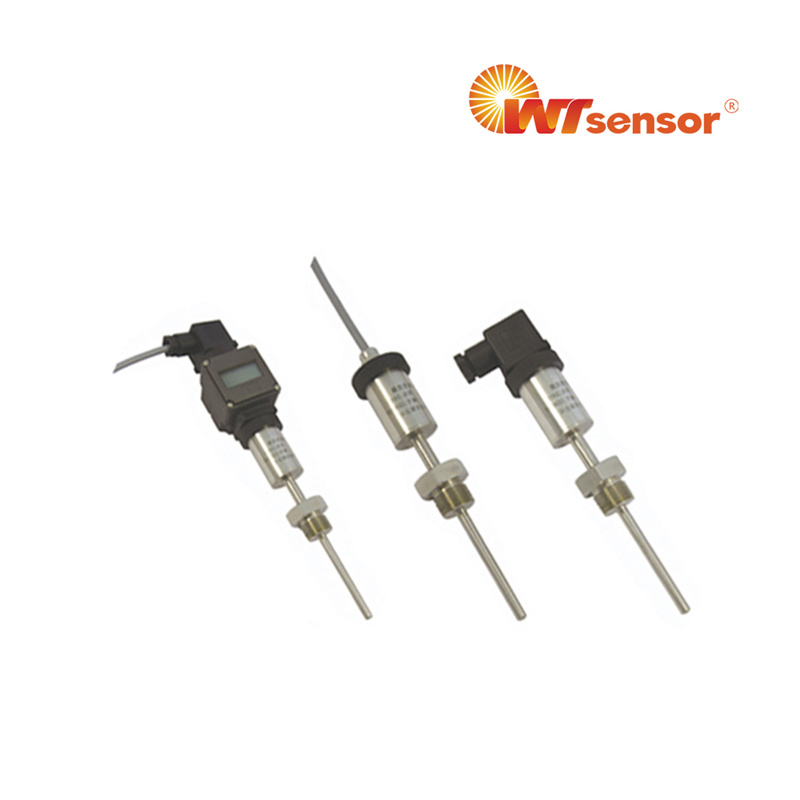

PCT202B Temperature Transmitter
Features
■ Platinum temperature sensor
■ Vibration resistance
■ Good reliability
■ High accuracy
integrated explosion proof Platinum temperature transmitter, factory 4-20mA PT100 water oil temperature sensor
PCT202B explosion proof temperature transmitter measures range from -50℃ to 250℃ by PT100. Electrical connection types are cable, DIN43650 or with display. The temperature sensor is applicable to water or oil in petroleum, chemical, electric power, textile, and environment protection fields, etc
Product Parameters
Specifications | |
Temperature range | -50℃ to 250℃ |
Accuracy (linearity, repeatability and hysteresis) | ±0.5%F.S. (Typical) |
Supply | 24VDC |
Output | 4-20mA |
Ambient temp. | -40℃～85℃ |
Heat response time | ≤30S |
Sensing element | PT100 |
Insertion diameter | Φ6mm | Φ8mm |
Insulation | 100MΩ/250VDC |
Protection | IP65 |
Ex-proof | Exia IIC T6 |
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
