  • PCT202 Temperature Transmitter with Movable Connector

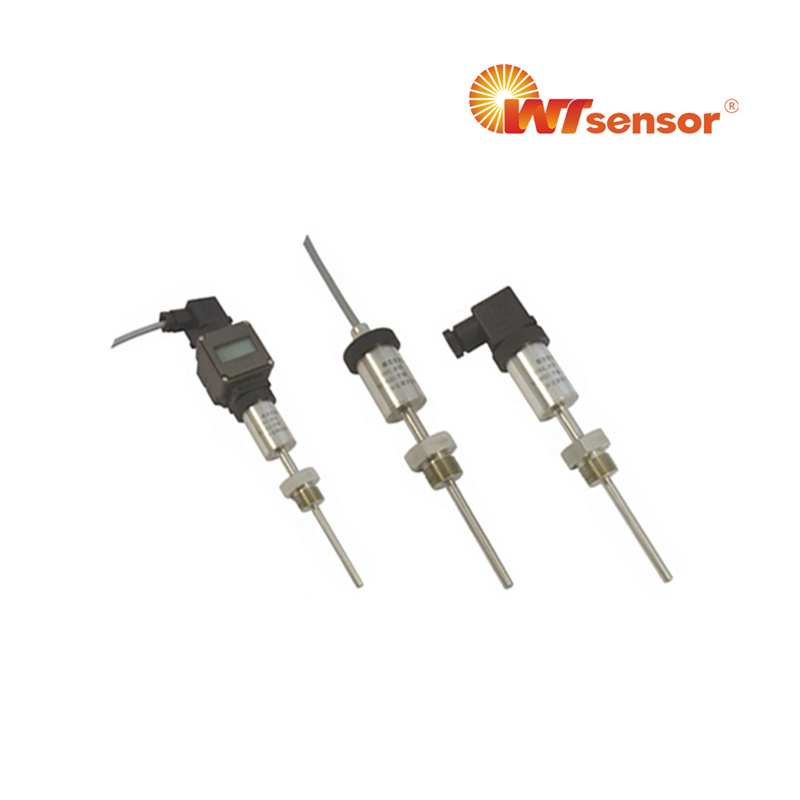

PCT202 Temperature Transmitter with Movable Connector

Features

■ Movable connector, easy to install

■ High strength, high pressure resistance

■ Integrated structure

■ Long-term stable work

■ Fast response

■ Reliable structure


Applications

■ Equipment support

■ Automatic temperature measurement and control systems such as pumps, compressors, natural gas pipelines, etc.

■ Temperature measurement of water or oil in petroleum, chemical, electric power, textile, and environmental protection fields, etc.


4~20mA DIN43650 Pt100 temperature transmitter with display, China OEM water oil natural gas temperature sensor


PCT202 platinum temperature transmitter with movable connector measures temperature range from -50℃~250℃ using Pt100 sensing element. Output is 4-20mA with DIN43650 or cable connection. It is used in petroleum machinery, chemical machinery, pumps and compressors, electric power, boilers, etc.

Product Parameters

Performance   parameters


Temperature   range

-50~250



Supply & output

4~20mA(16~36VDC)



Accuracy

±0.5%FS(typ.)



Sensing   element

Pt100 Grade   A



Performance parameters (cont.)



Insulation   strength

100MΩ/250VDC



Response time

≤30s



Long term   stability

≤0.2%FS/year



Insertion   diameter

Φ8mm



Storage temp.

-40~85



Electrical   connection

DIN43650, DIN43650 with cable



Protection

IP65



Material

304



Max.   mounting torque

25Nm



Company advantage

Mass production

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.

Imported equipments

We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.

Informatization management

We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.

Comprehensive testing

We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
