  • PCT220 Armored Explosion-proof Temperature Transmitter

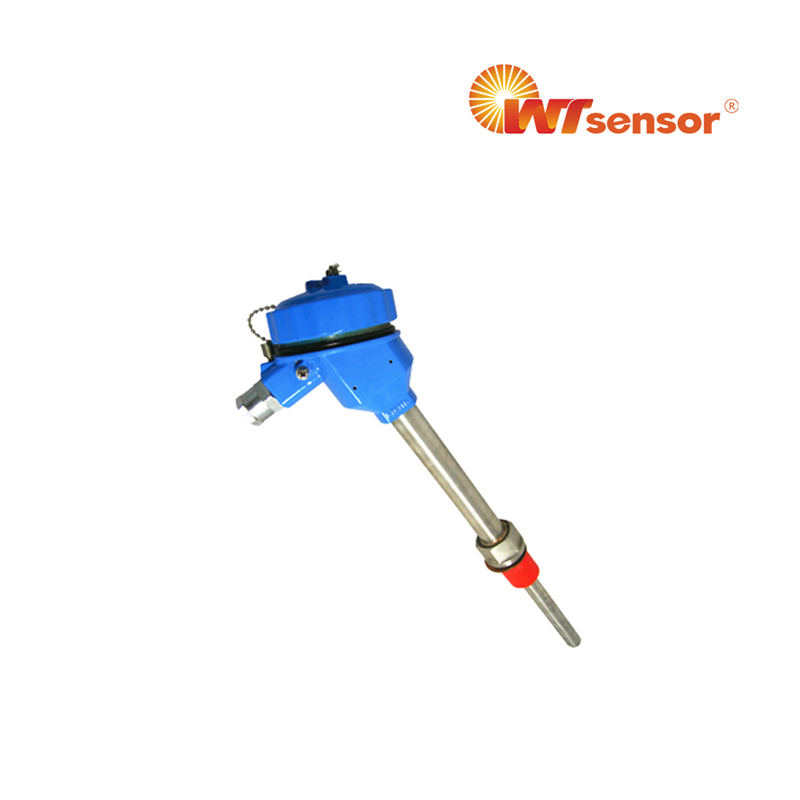

PCT220 Armored Explosion-proof Temperature Transmitter

Features

■ Platinum temperature sensor

■ Vibration resistance

■ Good reliability

■ High accuracy


China factory armored explosion proof temperature transmitter, PT100 -50℃-250℃ Platinum temperature sensor


PCT220 armored explosion-proof temperature transmitter measures temperature range from -50℃ to 250℃ with supply 24VDC and output 4-20mA by PT100 sensing element. Insertion length from 30mm to 150mm, diameter 8mm. Connection types are thread, flange or tri-clamp. China factory OEM available.

Product Parameters

Temperature range

Temperature range

-50to 250

Specification

Accuracy (linearity,   repeatability and hysteresis)

±0.5%F.S. (Typical)

Supply

24VDC

Output

4-20mA

Heat   response time

≤30S

Sensing   element

PT100

Insertion   diameter

Φ8mm

Insulation

100MΩ/250VDC

Protection

IP65

Ex-proof

Exia   IIC T6

Housing   material

Stainless   steel 304


Company advantage

Mass production

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.

Imported equipments

We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.

Informatization management

We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.

Comprehensive testing

We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
