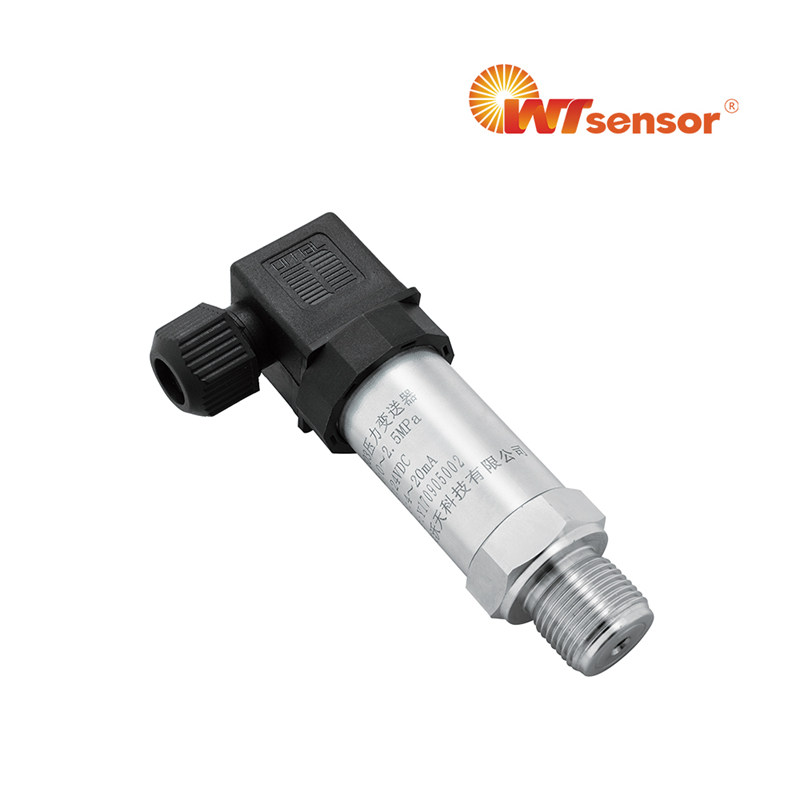

PCM303 Universal Pressure Transmitter
Features
■ SS316L diaphragm structure
■ High accuracy, all stainless steel structure
■ Small size and light weight
■ Strong anti-interference,
good long-term stability
■ Diversified formal structures,
easy installation and use
■ Wide pressure range, can measure the absolute pressure, gauge pressure and sealed gauge pressure
■ Anti-vibration, shock resistance
■ Zero, full span adjustable
Applications and industries
■ Process control
■ Aerospace
■ Automobile and medical equipment
■ Pipeline system
Diffused silicon universal pressure transmitter,China pressure transmitter,Wotian factory pressure transmitter,Economic pressure transmitter,Strong anti-interference universal pressure transmitter
China Wotian factory economic pressure transmitter adopting diffused silicon pressure sensor as pressure sensing element and able to be directly connected with computer interface card, control instruments, intelligent meters or PLC conveniently, with extremely high vibration and shock resistance
Product Parameters
Performance parameters | |
Pressure range | -100kPa…0~35kPa…100MPa |
Pressure reference | Gauge pressure, Absolute pressure, Sealed gauge pressure |
Accuracy | 0.5%FS |
Hysteresis | 0.1%FS |
Repeatability | 0.1%FS |
Temperature drift | 35kPa: ±2%FS(0℃～60℃） Other ranges: ±1.5%FS(-20℃～85℃） |
Response time | ≤1ms (Up to 90%FS) |
Overpressure | Refer to Table for Pressure Range Selection |
Service life | ≥10×106 pressure cycles |
Ambient temperature | -20℃～85℃ |
Medium temp. | -30℃～105℃ |
Storage temp. | -40℃～125℃ |
EMC | Immunity: IEC 61000-6-2, Radiation: IEC 61000-6-3 |
Insulation resistance | ≥100MΩ/500VDC(200MΩ/250VDC) |
Vibration resistance | Sine curve: 20g, 25Hz～2kHz; IEC 60068-2-6 |
Random: 7.5grms, 5Hz～1kHz; IEC 60068-2-64 | |
Shock resistance | Shock: 200g/1ms; IEC 60068-2-27 |
Free falling body: 1m; IEC 60068-2-32 | |
Protection grade | IP65 |
Medium compatibility | All kinds of media compatible with SS316L |
Hexagon | HEX27 |
Ex-proof grade | Intrinsically safe explosion-proof ExiaⅡCT6 (only for 4～20mA) |
Net weight | 150～180g |
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
