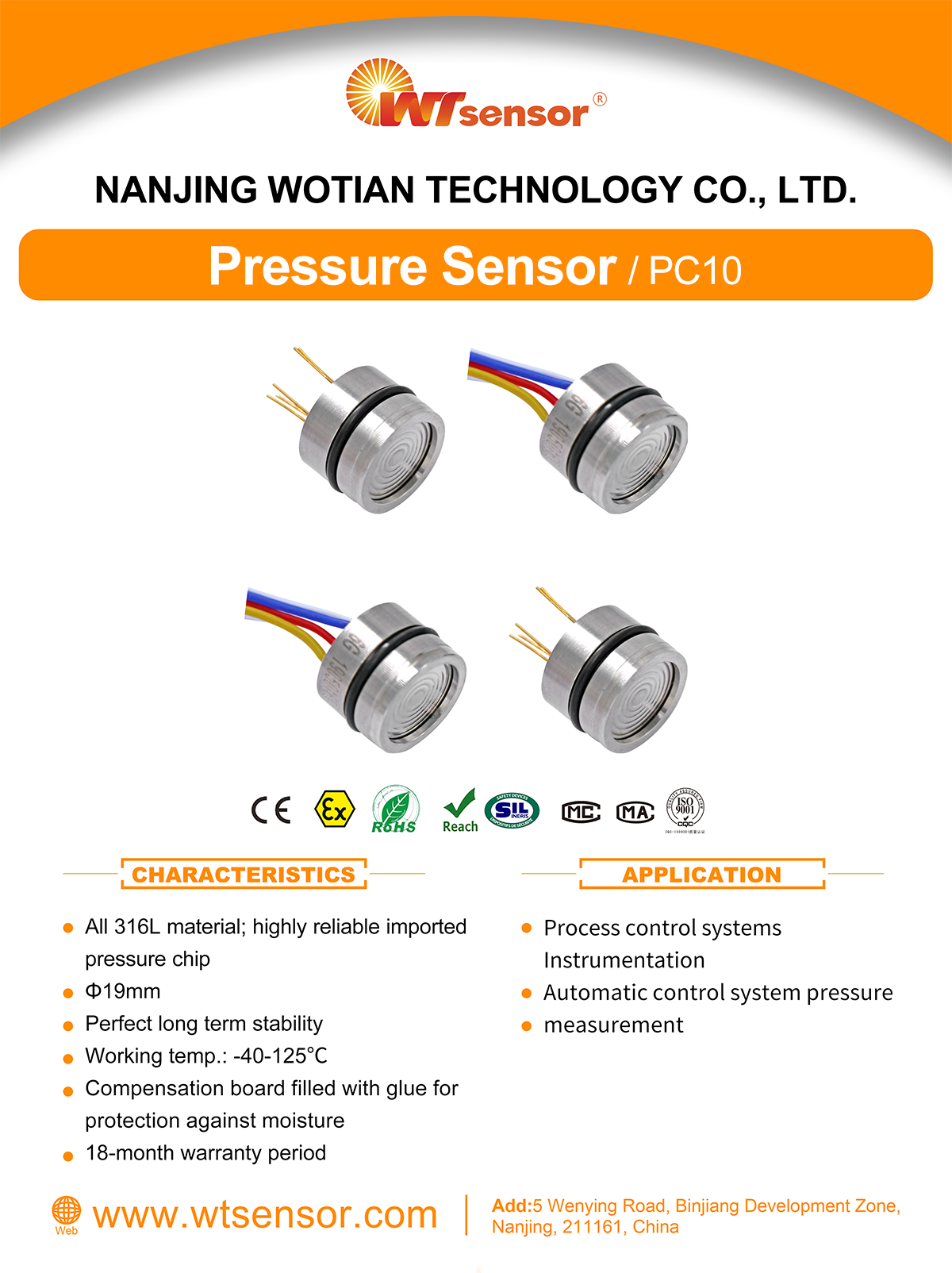

PC10 Silicon Piezoresistive Pressure Sensor Core Solution

In today’s rapidly evolving industrial landscape, the demand for high-accuracy, reliable pressure sensor solutions continues to grow across multiple sectors. The PC10 Silicon Piezoresistive Pressure Core is engineered to meet these demands, offering exceptional performance, durability, and flexibility. As a core component of advanced pressure sensors, it plays a vital role in ensuring stable and precise system operation across industries. Click here to learn more about our pressure sensor solutions.

Product Highlights: Strength Builds Quality

Among modern silicon piezoresistive pressure sensors, the PC10 stands out with its robust design and superior technical specifications.

Excellent Performance

The PC10 adopts a high-quality, low-impedance silicon chip with wide temperature compensation. This design significantly enhances key performance indicators such as nonlinearity, hysteresis, and repeatability, ensuring highly accurate pressure measurement. Whether used in a pressure transducer or integrated into complex systems, it delivers consistent and reliable data. Click here to download the datasheet.

Reliable Material

Constructed entirely from 316L stainless steel, this pressure sensing core ensures excellent corrosion resistance, long-term stability, and full solid-state reliability. This makes it ideal for harsh industrial environments where durability is critical.

Flexible Adaptation

Designed with versatility in mind, the PC10 supports both:

• Constant current excitation (recommended: 1.5mA)

• Constant voltage excitation (recommended: 10V)

It also offers multiple connection options, including 4-wire, 5-wire, and 6-pin configurations, along with a standard Φ19mm OEM structure. This flexibility allows seamless integration into various pressure measurement systems.

Moisture-Proof and Durable

The compensation board is encapsulated with protective glue, providing excellent moisture resistance. The device can withstand mechanical vibration (20g, 20–5000Hz) and shock (100g, 10ms). With a service life of up to 1×10⁶ cycles and an 18-month warranty, the PC10 ensures long-term operational reliability.

Wide Applications: Meeting Diverse Industry Needs

The PC10 silicon piezoresistive pressure sensor core is widely applied across industries that demand precision and stability. Typical application fields include:

• Industrial automation and process control

• Medical equipment and instrumentation

• Navigation and marine systems

• Aerospace and defense applications

As a critical component in pressure transmitters and pressure sensors, it provides accurate pressure monitoring to ensure system safety and efficiency. Click here to explore application cases.

Wide Measuring Range

The PC10 supports a broad pressure range from -100kPa to 100MPa, covering:

• Gauge pressure

• Absolute pressure

• Sealed pressure

This versatility makes it suitable for a wide range of pressure sensing applications.

Compatible Excitation and Impedance

• Recommended constant current: 1.5mA

• Recommended constant voltage: 10V

• Input impedance:

• 2kΩ–5kΩ (constant current)

• 3kΩ–18kΩ (constant voltage)

Such compatibility ensures easy integration into various pressure measurement circuits.

Wide Temperature Adaptation

• Operating temperature: -40℃ to 120℃

• Storage temperature: -40℃ to 125℃

This wide temperature range allows the pressure sensor core to perform reliably in extreme environments.

Fast Response Time

With a response time of ≤1ms (90% FS), the PC10 can quickly capture pressure fluctuations, making it ideal for dynamic measurement scenarios where speed is essential.

Why Choose PC10? Three Core Competencies

Outstanding Performance

Thanks to its advanced silicon chip and optimized temperature compensation, the PC10 excels in both accuracy and stability. It is an ideal choice for high-precision pressure sensing systems.

Guaranteed Durability

The combination of 316L stainless steel construction, moisture-proof encapsulation, and strong resistance to vibration and shock ensures a long service life. This reduces maintenance frequency and lowers overall operational costs.

Customized Service

The PC10 supports tailored customization based on specific application requirements. It is particularly suitable for specialized fields such as national defense and high-end equipment, where customized pressure sensor solutions are essential. Click here to request customization.

Certifications and Quality Assurance

The PC10 pressure sensor core complies with multiple international standards and certifications, including:

• REACH

• CE

• ISO9001

• RoHS

These certifications ensure product quality, environmental compliance, and global applicability. Click here to download certificates.
