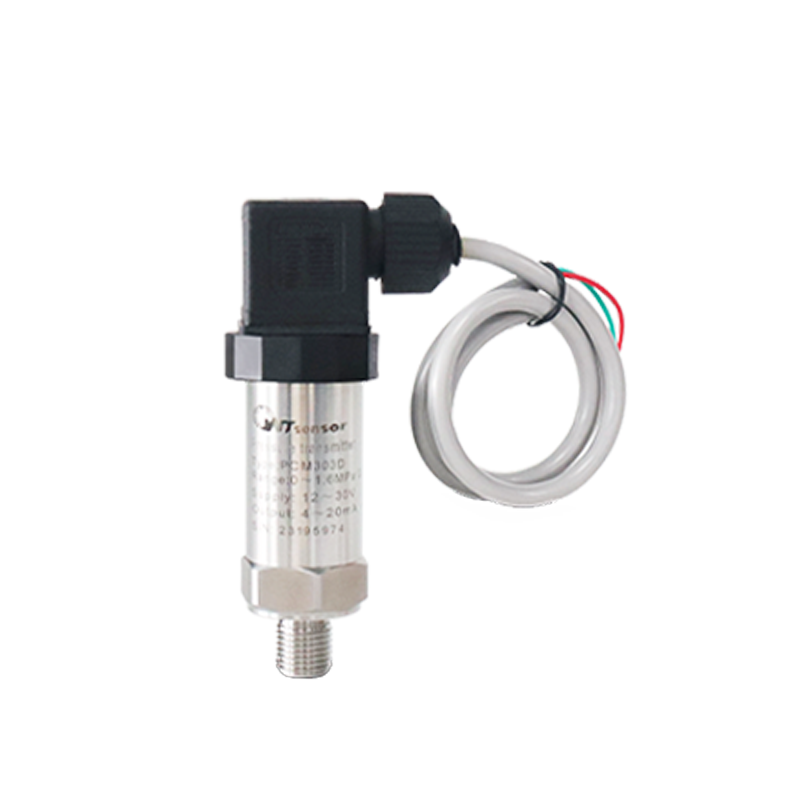

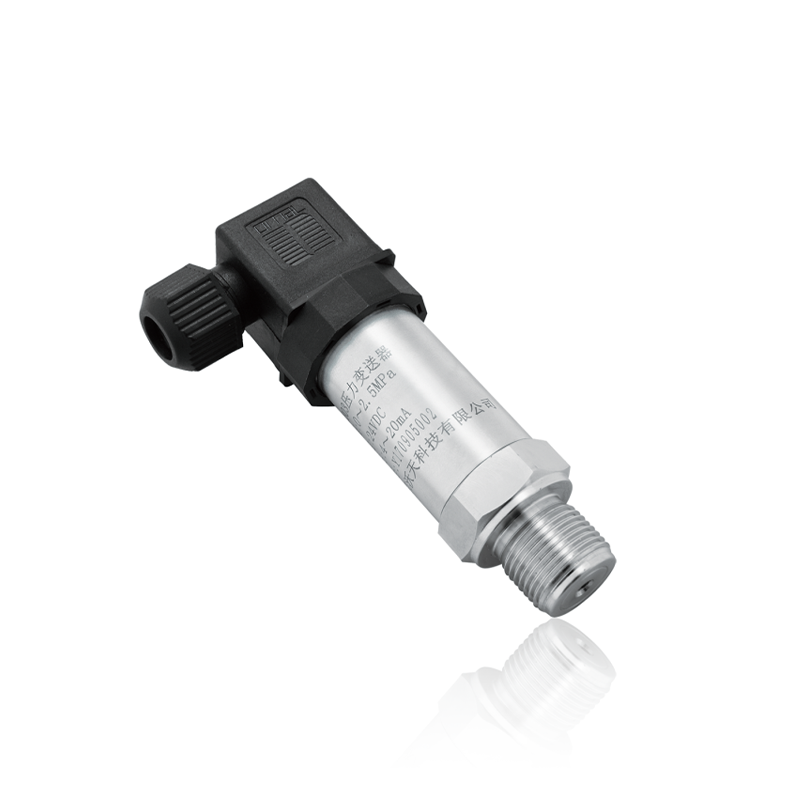

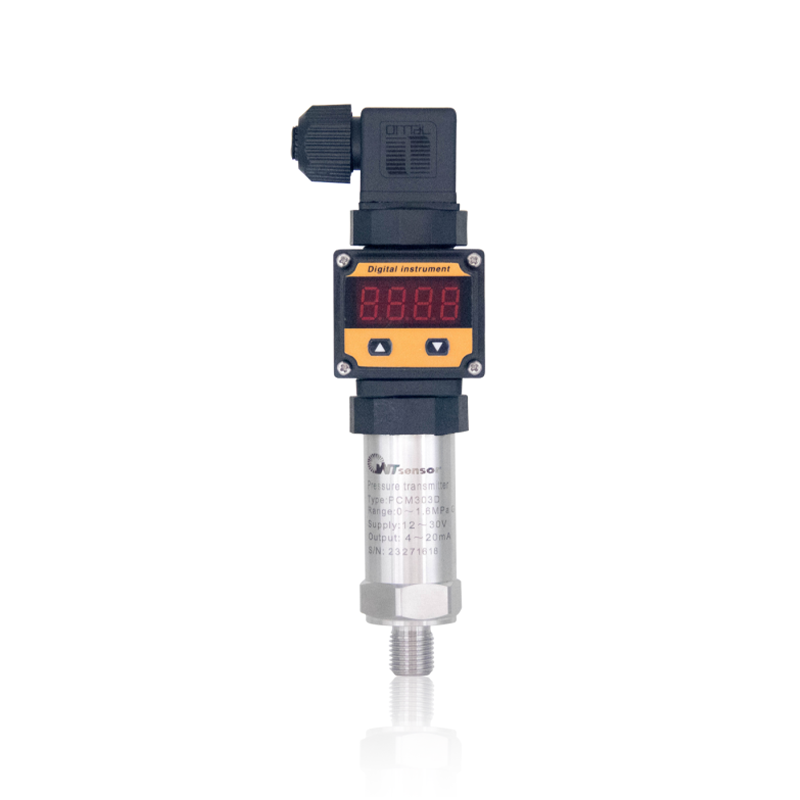

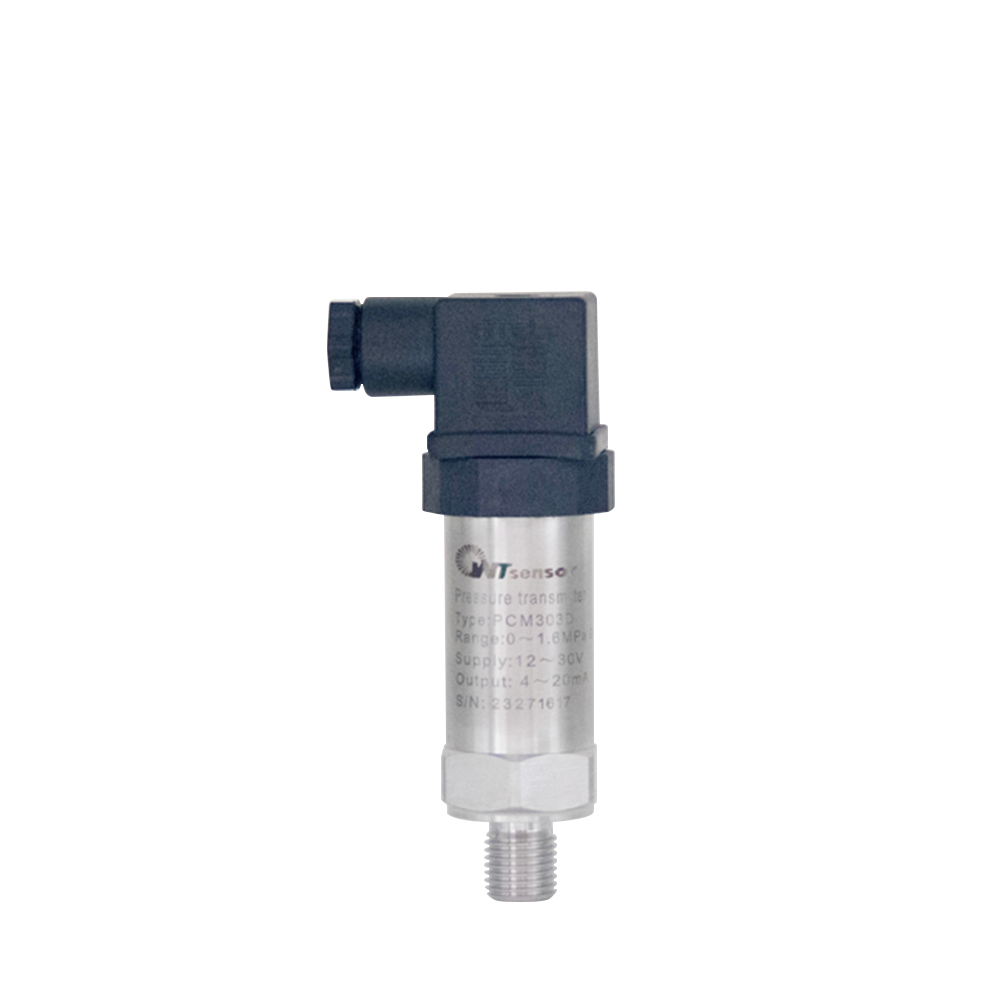

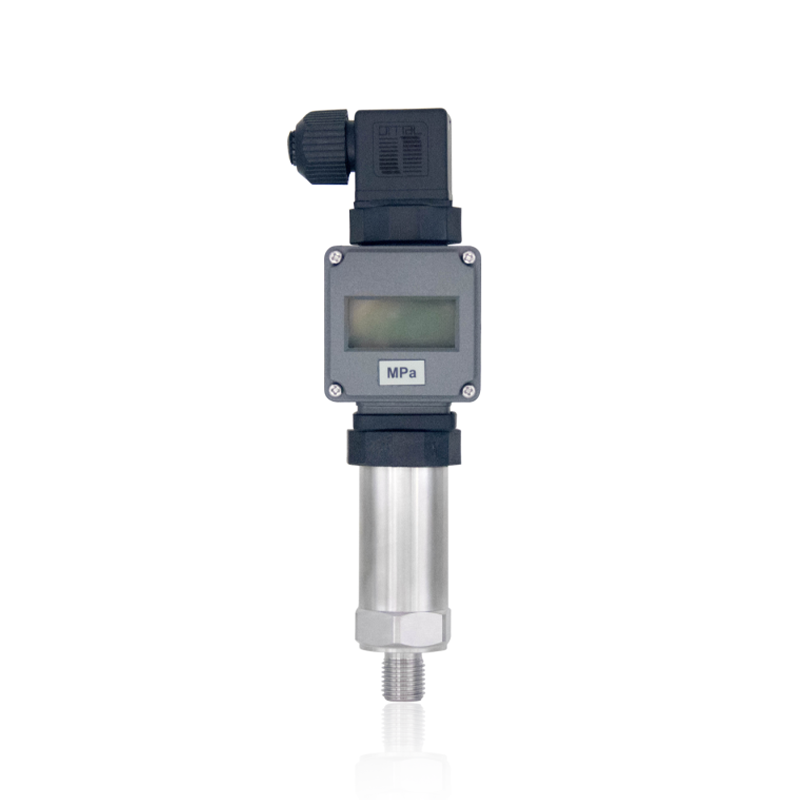

PCM303D General Pressure Transmitter for Industrial Monitoring

In the rapidly evolving landscape of industrial automation and the Internet of Things (IIoT), the demand for highly reliable and accurate sensing technology has never been greater. Whether it is monitoring fluid dynamics in a hydraulic system or ensuring the safety of a high-pressure gas pipeline, the choice of a pressure sensor can determine the efficiency and safety of an entire operation. The PCM303D General Pressure Transmitter stands out as a premier all-round solution, engineered specifically to meet the rigorous demands of modern industrial monitoring.

Quality Forged by Exquisite Craftsmanship

The foundation of any high-performance industrial pressure transducer lies in its construction and the quality of its materials. The PCM303D is not merely an assembly of parts; it is a product of elaborate design and precision engineering.

Premium Structural Material for Harsh Environments One of the most critical components of a pressure sensor is the isolation diaphragm. The PCM303D features a 316L stainless steel isolation diaphragm integrated into an all-stainless steel sealed structure. This specific choice of material ensures excellent corrosion resistance, allowing the device to maintain stable operation even when exposed to complex or aggressive chemical mediums. For engineers looking for a long-term deployment, click here to download the datasheet to view the full chemical compatibility list.

Compact and Flexible Design In modern machinery, space is often at a premium. The PCM303D’s mini size and light weight enable flexible installation in tight compartments where traditional, bulkier transmitters would fail to fit. Furthermore, the diversified structural design offers a wide range of thread connections and electrical options, significantly reducing the complexity of system integration.

Robustness Against Mechanical Stress Industrial environments are rarely static. Vibration and mechanical shock can quickly degrade the accuracy of a standard General Pressure Transmitter. The PCM303D incorporates an anti-vibration and anti-shock structural design, ensuring that external environmental interference does not compromise signal integrity, thereby extending the product's service life in heavy-duty applications.

Technical Superiority: Precision Meets Versatility

When selecting an industrial pressure transducer, technical parameters are the primary deciders of performance. The PCM303D is designed to be a versatile powerhouse.

• Wide Measuring Range: This pressure sensor covers an impressive spectrum from vacuum pressures (-100kPa ~ 0kPa) and low pressures (up to 35kPa) all the way to high-pressure environments of 100MPa. It supports absolute pressure, gauge pressure, and sealed pressure measurements, making it a universal tool for diverse industrial scales.

• Superior Measurement Accuracy: Accuracy is the heartbeat of process control. The PCM303D achieves an accuracy of 0.5%FS. Combined with hysteresis and repeatability ratings of 0.1%FS, it provides a stable and reliable data foundation for automated system decision-making.

• Rapid Response for Real-Time Control: In high-speed hydraulic or pneumatic systems, milliseconds matter. The power-on response time of the PCM303D is ≤ 90ms (rising to 90%FS), allowing it to capture subtle pressure fluctuations and feed signals back to the control unit for instantaneous adjustment. Click to learn more about technical parameters and how this response time compares to industry standards.




Wide Applications: Serving Global Industry Demands

The versatility of the PCM303D General Pressure Transmitter allows it to serve as a cornerstone in several high-stakes industries. By providing real-time data, it empowers operators to maintain peak efficiency and safety.

1. Process Control and Manufacturing In manufacturing plants, real-time monitoring of pressure changes is essential for maintaining production quality. The PCM303D ensures smooth operation across chemical processing, food and beverage production, and pharmaceutical lines, where hygiene and precision are paramount.

2. Aerospace and Defense The aerospace sector requires sensors that can survive extreme conditions. The PCM303D is utilized to precisely monitor pressure in core systems, such as fuel lines and hydraulic actuators. Its superior anti-shock performance, wide temperature range, and high reliability enable it to withstand extreme vibration and temperature fluctuations, effectively guaranteeing flight safety.

3. Hydraulic and Pneumatic Engineering Hydraulic systems are the muscles of heavy machinery. The PCM303D provides real-time water and oil pressure monitoring to ensure safe and balanced system operation, preventing over-pressure scenarios that could lead to catastrophic equipment failure.

4. Pipeline and Infrastructure Systems Continuously monitoring the pressure of water supply and gas pipelines is a matter of public safety. The PCM303D helps utilities detect abnormalities timely, preventing leakage and other safety accidents before they escalate.

Advanced Protection and Hazardous Area Safety

Operating in extreme conditions requires more than just accuracy; it requires durability. The PCM303D General Pressure Transmitter is built to thrive where others falter.

Strong Environmental Adaptability Temperature drift is a common enemy of accuracy in a pressure sensor. The PCM303D offers stable operation within an ambient temperature range of -20℃ to 85℃ and can handle medium temperatures from -30℃ to 105℃. This makes it suitable for both outdoor installations in winter and high-heat industrial processes.

High Protection Grade (IP65) With an IP65 protection rating, this industrial pressure transducer provides outstanding dustproof and waterproof performance. Whether the environment is dusty or prone to water splashes, the internal electronics remain protected, ensuring strong anti-interference capability in compliance with international standards.

Intrinsic Safety for Explosive Environments Safety is non-negotiable in the oil, gas, and chemical industries. The PCM303D meets the stringent explosion-proof grade Ex ia ⅡC T6 Ga (specifically for the 4~20mA output model). This intrinsic safety certification ensures it can operate safely and stably in potentially explosive environments. Click here to view our certification gallery for more details on compliance.

Why Choose PCM303D? Three Core Competencies

For procurement managers and engineers, the choice of a General Pressure Transmitter often comes down to the total cost of ownership and ease of use.

1. Flexible Installation: With various thread ports and electrical connection options, the PCM303D is a "plug-and-play" solution for on-site engineers, simplifying assembly and reducing labor costs.

2. Lower Long-Term Operating Cost: High precision (0.5%FS) reduces production losses caused by measurement errors. Its long-term stability eliminates the need for frequent calibration, while a lifespan exceeding 10⁶ pressure cycles drastically cuts down on replacement costs.

3. Customized Service: WTSensor understands that every project is unique. Custom solutions are available for special measuring ranges and pressure impact scenarios to satisfy personalized application requirements.




Conclusion and Certification

The PCM303D is not just a device; it is a commitment to quality. As a globally recognized pressure sensor, PCM303D has successfully obtained multiple international certifications, including CE, ISO9001, ROHS, and ATEX. Its intrinsic safety certificate and explosion-proof marking (Ex ia II CT6 Ga) make it the trusted choice for hazardous area monitoring.

If you have any questions about the accuracy, model selection, or installation of the PCM303D industrial pressure transducer, please reach out to our team. Our professional engineers are ready to provide one-on-one customized solutions for your specific project needs!
