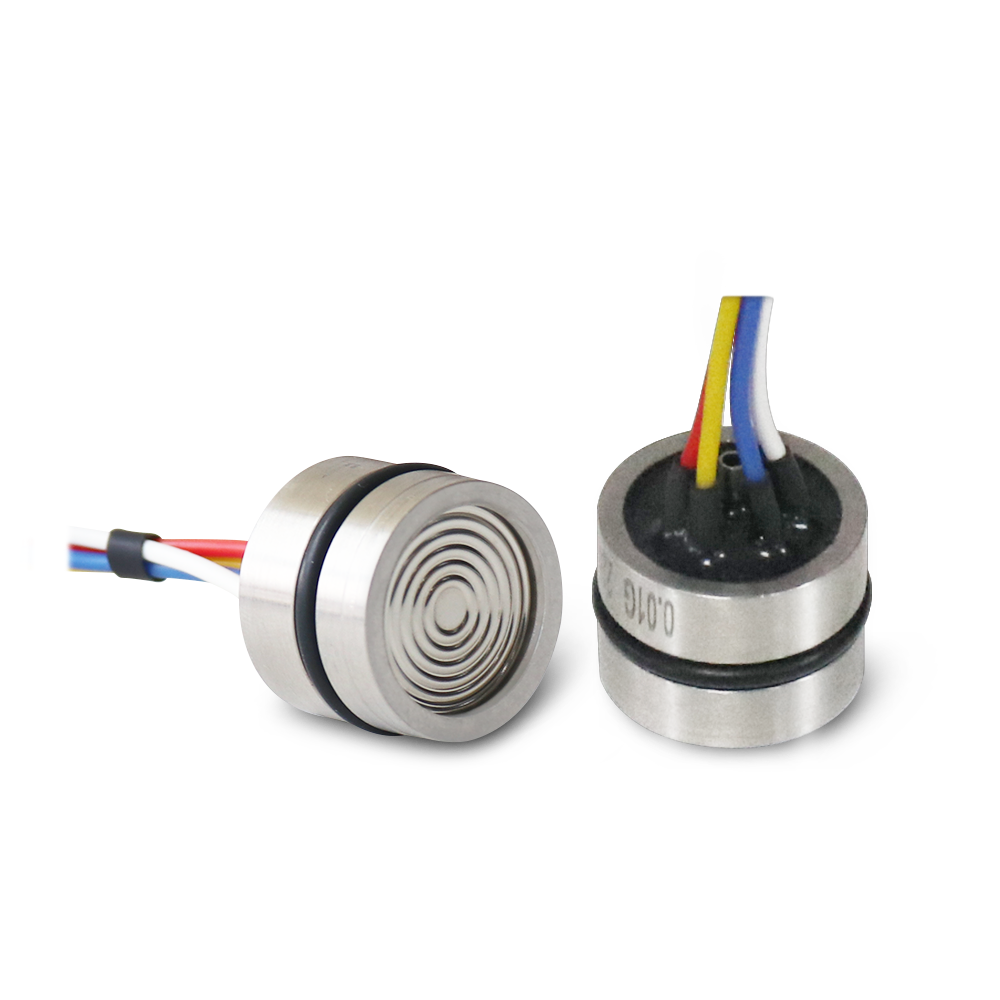

Pressure Sensor PC10

Product overview

PC10 piezoresistive silicon pressure sensor is the core component for the manufacture of pressure sensors and pressure transmitters. As high-performance pressure sensitive component, PC10 can be easily amplified and assembled into the pressure transmitters with standard signal output.

PC10 packages diffused silicon pressure sensitive die to 316L stainless steel housing. External pressure is transmitted to pressure sensitive die through stainless steel diaphragm and internally sealed silicon oil. Pressure sensitive die does not directly contact with measured medium, forming all solid structure of pressure measurement. So the product can be applied to a variety of occasions, including harsh corrosive medium environment.

PC10 uses O-ring for pressure seal, which is easy to install.

The company can also undertake special customization based on the needs of users, such as pressure sensors of all welded structure, wide temperature compensation, high reliability, anti-shock and anti-vibration sensors, especially for national defense weapons and equipment.


Features

■ With constant current and constant voltage excitation options

■Imported highly reliable pressure die

■ Wide temperature compensation

■ Normalized output available

■ Compensation board filled with glue for protection against moisture

■ Φ19mm standard OEM

■ All 316L material

■ High performance, all solid, high reliability

■ 18 months warranty period



Applications

■ Process control systems

■ Pressure calibration instruments

■ Refrigeration equipment and HVAC control

■ Hydraulic systems and valves

■ Level measurement

■ Biomedical instruments

■ Ships and navigation

■ Aircraft and avionics systems

■ Weaponry


Product Parameters

Pressure range

-100kPa~0~10kPa…100MPa

Pressure reference

Gauge pressure, Absolute pressure, Sealed gauge pressure

Excitation

1.5mA recommended for constant current

10V recommended for constant voltage

Input impedance

Constant current: 2kΩ~5kΩ

Constant voltage: 3kΩ~18kΩ

Electrical connection

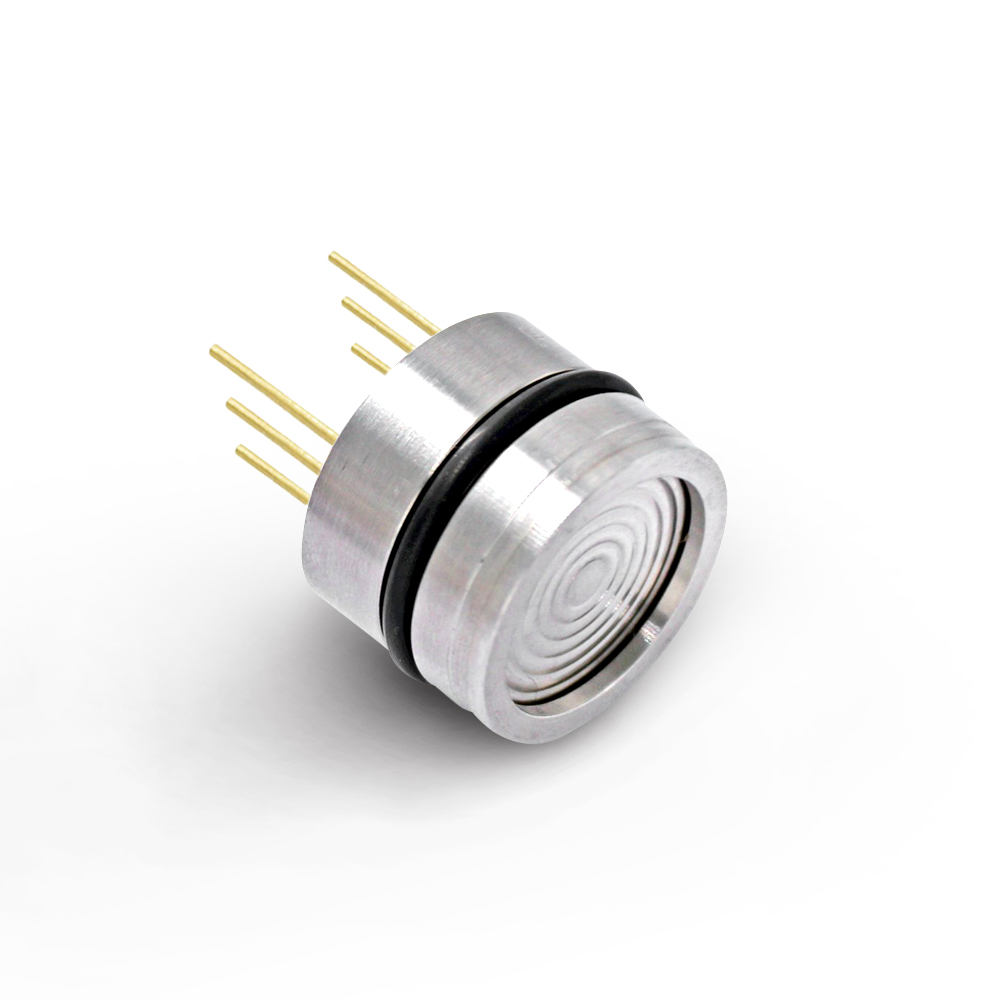

Gold-plated KOVAR pin or silicon soft wire

Compensation temp.

0℃~60℃(≤35kPa), -10℃~70℃(other ranges);

Operating temp.

-40℃~125℃

Storage temp.

-40℃~125℃

Insulation resistance

≥200MΩ/250VDC

Response time

≤1ms (up to 90%FS)

Measured medium

All the liquids and gases compatible with 316L.

Mechanical vibration

20g (20~5000Hz)

Shock

100g (10ms)

Service life

10×106 (cycles)

Structural performance parameters

Diaphragm material

316L

Housing material

316L

Oil filling

Silicon oil

Sealing ring

NBR or fluorine rubber


Production process
