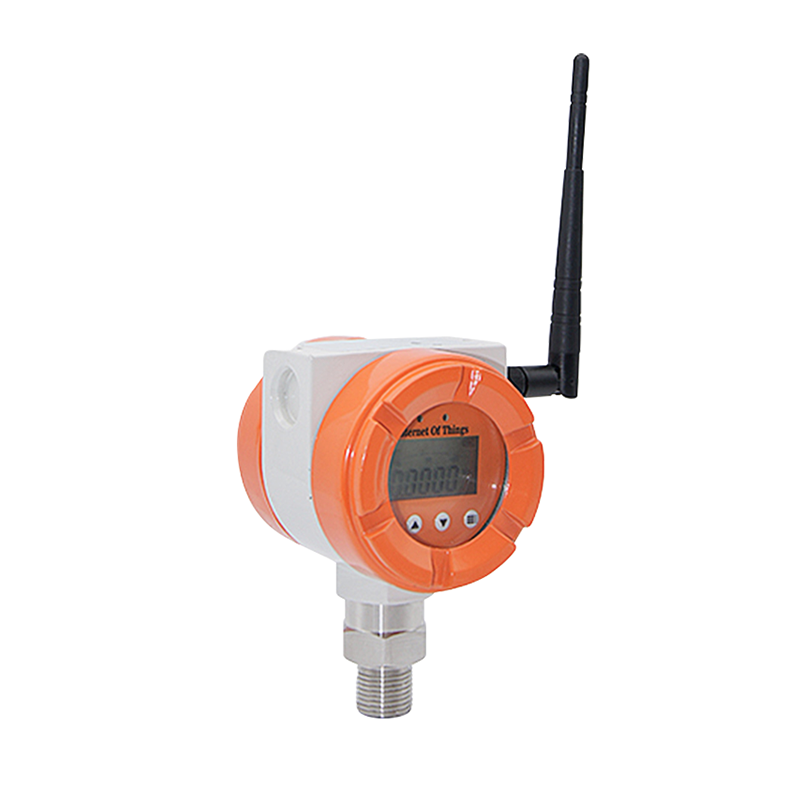

PCM9865 Wireless Pressure Transmitter
Product overview
PCM9865 Wireless Pressure Transmitter is a low-power consumption IoT product developed by Wotian Technology, supporting various IoT standards including NB IoT, LoraWAN, 4G, etc.
The product is widely used for pressure monitoring in indoor, outdoor, or environments with inconvenient power supply, such as fire protection, municipal, water affairs, heating, oil and gas pipelines. It sends the pressure condition of monitoring points to the monitoring center through IoT cycle or in real time, and then the monitoring center stores, analyzes, searches data, and processes alarm information, realizing wireless signal transmission and information interaction without on-site wiring, saving a lot of human and material resources, and significantly reducing construction costs and maintenance costs, which helps users achieve timely and efficient supervision on the pressure at the monitoring points of the pipe network.
This product uses a 19Ah large capacity lithium sub-battery for power supply, which is compact, light in weight, and easy to install, use, and maintain, suitable for various harsh environments.
Key features and user value
■ Supporting NB-IoT/4G/LoRaWAN wireless communication standards, suitable for various scenarios
■ Supporting keypad, local and remote parameter adjustment, support magnetic rod wake-up function; convenient daily use and maintenance
■ Hardware: high resistance to vibration, shock, and interference; software: built-in watchdog, ensuring zero crashes; high reliability and good repeatability
■ Real-time active report on alarm information, such as abnormal fluctuation and exceeded threshold value of the monitoring point pressure
■ Optimized ultra-low power consumption design; reducing battery replacement frequency and significantly lowering users’ maintenance costs
■ Accessible to the third-party monitoring platform; supporting Telecom AEP platform, Alibaba Cloud platform, and customer private platforms
Typical application industries
■ Fire protection, municipal administration, water affairs, environmental protection, and other industries
Product Parameters
Performance parameters | |
Pressure range | 0kPa~35kPa…25MPa |
Pressure reference | Gauge pressure, Absolute pressure, Sealed gauge pressure |
Power supply & output signal | Power supply: lithium sub-battery (19Ah) |
Output signal: NB-IoT/4G/LoRaWAN | |
Operating temp. | -20℃~70℃ (The low temperature below zero has great influence on the performance of the lithium sub-battery.) |
Medium temp. | -20℃~85℃ |
Storage temp. | -40℃~125℃ (Except the batteries) |
Temp.effect on offset | ±1.5%FS (-20℃~85℃) |
Sensitivity temp. drift | ±1.5%FS (-20℃~85℃) |
Overload pressure | 150%FS |
Mechanical vibration | 20g (20~5000Hz) |
Shock | 100g (11ms) |
Overall accuracy | 0.5%FS |
Operation mode | Regular active report, the reporting cycle can be set at will |
Automatic detection | Built-in monitoring module to monitor the equipment operation |
Parameter setting | Remote setting, which allows setting the reporting cycle and threshold alert |
Sampling accuracy | 24bit |
Long-term stability | ±0.2%FS/year |
Protection | Gauge head part: IP66/67 |
Material | Housing: stainless steel; internal sensor: 316L |
Medium compatibility | All media compatible with stainless steel 316L |
ESD | Meet GB/T 17626.2 Chapter 5 Severity Level: Level 4 |
RFEMS | Meet GB/T 17626.3 Chapter 5 Severity Level: Level 3 |
PFMF | Meet GB/T 17626.4 Chapter 5 Severity Level: Level 5 |
