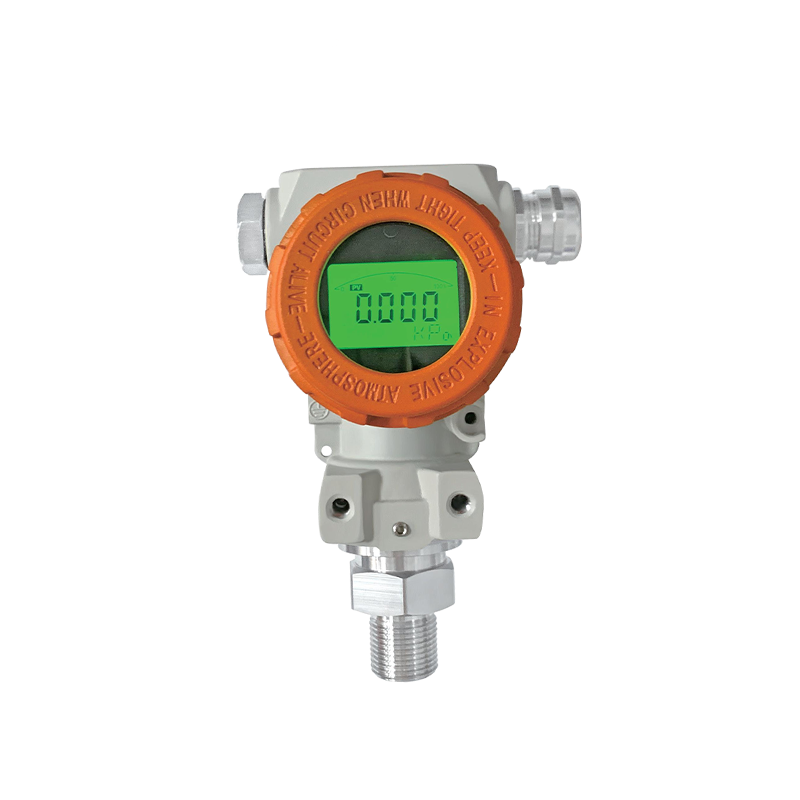

PCM403 Pressure Transmitter
Product overview
The PCM403 pressure transmitter uses a high-performance, high-stability OEM pressure sensor as the signal-measuring element. The sensor signal is converted to a standard signal through special signal processing. This product, with stable and reliable performance, has passed long-term aging and stability screening and can be used in harsh outdoor environments. It also ensures the on-site pressure display, with zero and span transferable.
The connection interface of PCM403 can be compatible with other brands’ transmitters or can be customized to meet users’ requirements. The products of this series are widely apply to the industrial process control, petroleum, chemical, metallurgy, and other industries.
Features
■ High-performance diffusion silicon piezoresistive sensor adopted
■ Used for the pressure measurement for multiple kinds of media, such as gas, liquid, etc.
■ Wide pressure ranges
■ Optional digital display
■ Optional multiple kinds of output signals
Applications and industries
■ Industrial field control
■ Oil field
■ Heavy industry
■ Chemical industry
■ Gas pipe network
■ Water supply pipe network
Product Parameters
Performance parameters | |
Pressure range | -100kPa…0~10kPa…100MPa |
Output signal | 4~20mA 4~20mA with display 4~20mA+HART with display 4~20mA+RS485 with display |
Operating temp. | -20℃~85℃ |
Medium temp. | -20℃~85℃ |
Storage temp. | -40℃~125℃ |
Zero temp. coefficient | ±3%FS -100kPa≤range≤35kPa G (@0~60℃) ±1.5%FS 35kPa G<range (@-10~70℃) |
Span temp. coefficient | ±3%FS -100kPa≤range≤35kPa G (@0~60℃) ±1.5%FS 35kPa G<range (@-10~70℃) |
Overload pressure | Refer to “Pressure range selection” on page 4. |
Anti-vibration performance | Sine curve: 20g, 25Hz~2kHz; IEC 60068-2-6 Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64 |
Shock resistance | Shock: 100g/11ms; IEC 60068-2-27 Free fall: 1m; IEC 60068-2-32 |
Comprehensive accuracy | 0.2 level; 0.5 level |
Insulation resistance | ≥100MΩ/250VDC |
Response time | ≤100ms (Up to 90%FS) |
Long-term stability | ±0.2%FS/year |
EMC surge | (IEC61000-4-5) 2kV |
EMC static | (IEC61000-4-2) contact discharge 8kV, air discharge 15kV |
Protection grade | IP65 |
Material | Low copper aluminum alloy for shell, 316L for isolation diaphragm; 304 for pressure port |
