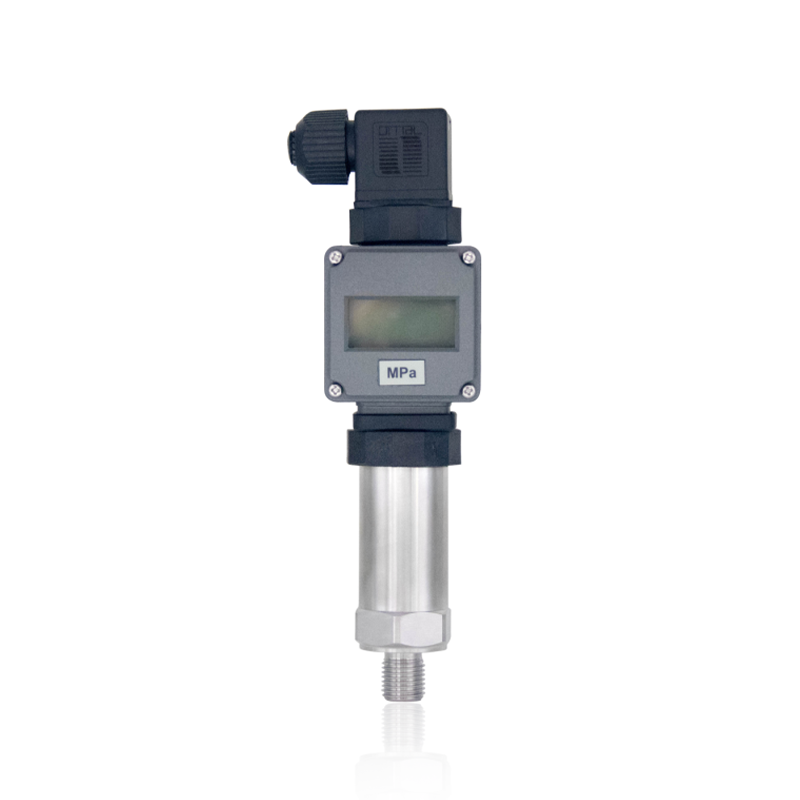

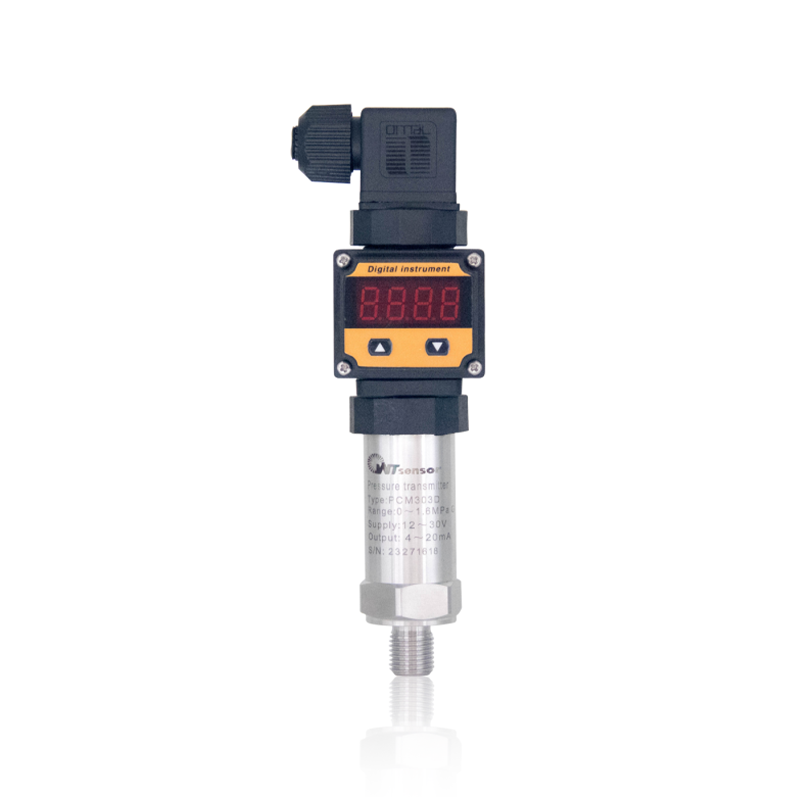

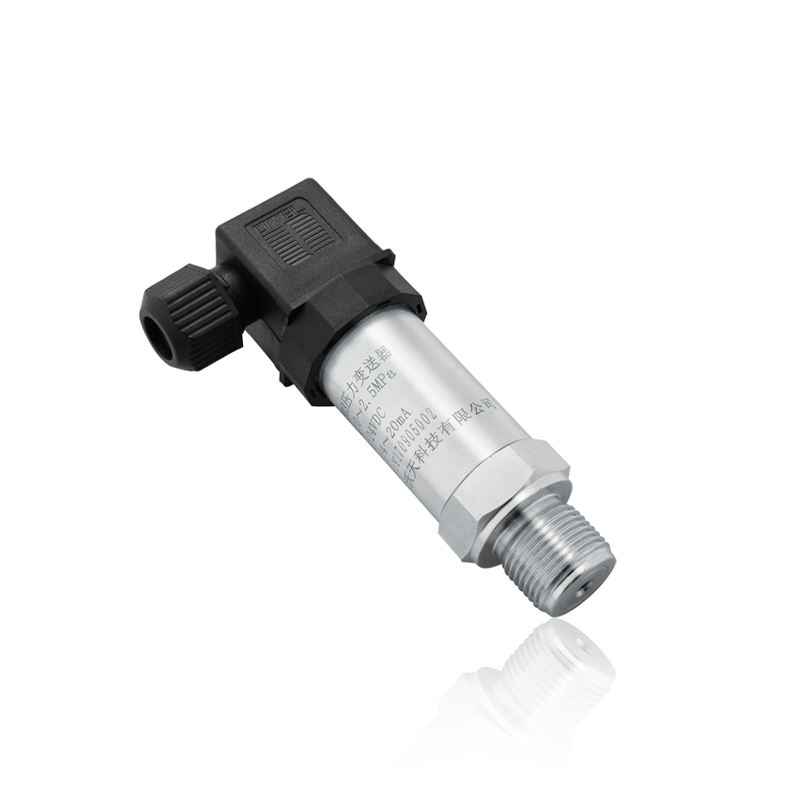

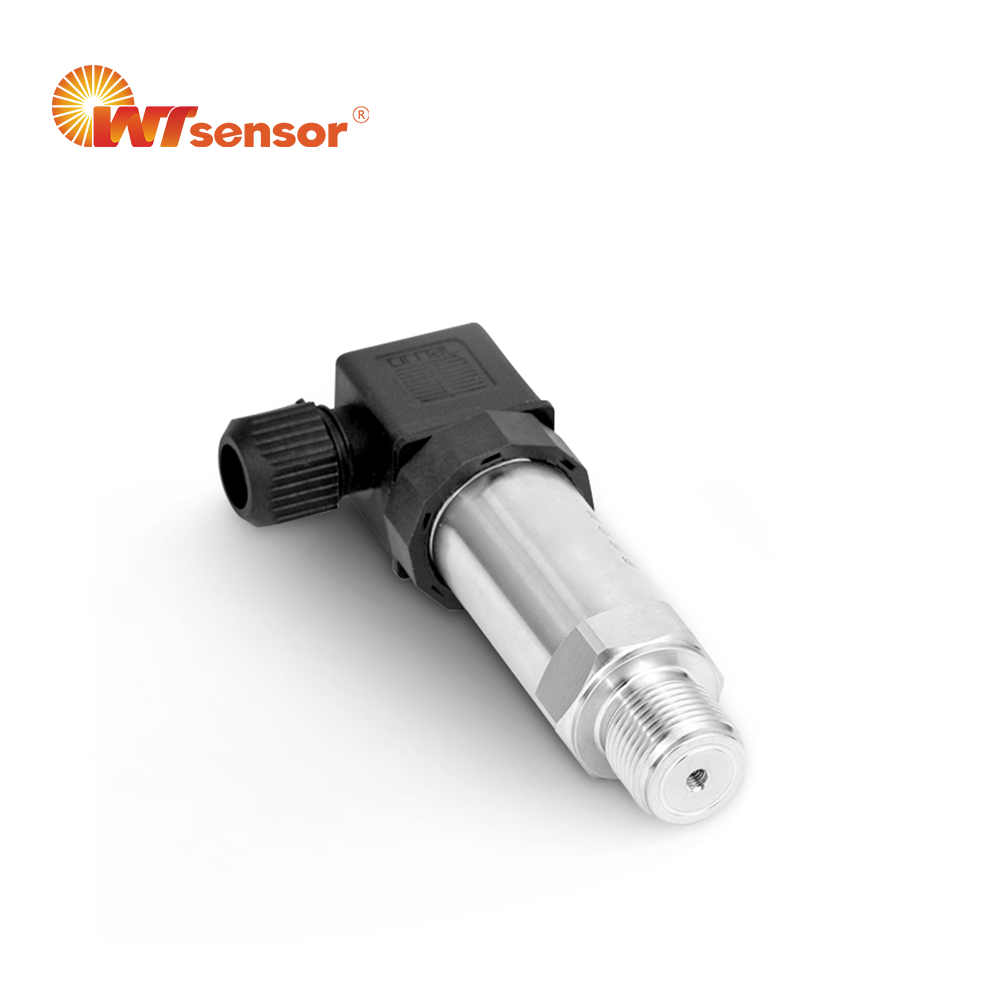

PCM303D General Pressure Transmitter for Industrial Monitoring

In modern industrial systems, accurate and reliable pressure measurement is critical for ensuring operational efficiency, safety, and process stability. The PCM303D General Pressure Transmitter is engineered as a versatile industrial pressure transducer designed to meet the demanding requirements of multiple industries. Combining robust construction, precision performance, and flexible installation options, the PCM303D represents an all-round solution for high-performance pressure monitoring.

Premium Design and Craftsmanship for Reliable Operation

The PCM303D general pressure transmitter is built with meticulous attention to design and material selection, ensuring long-term stability in complex industrial environments:

• High-Quality Structural Material: The transmitter features a 316L stainless steel isolation diaphragm coupled with a fully stainless steel sealed structure. This design provides superior corrosion resistance and ensures stable operation in challenging mediums, from water and gas pipelines to hydraulic and aerospace systems.

• Compact and Lightweight Structure: Its miniaturized form factor allows easy installation in space-limited environments without compromising performance. This makes the PCM303D an ideal choice for tight industrial setups.

• Diverse Connection Options: Multiple thread types and electrical connection options facilitate seamless integration into existing systems, reducing installation complexity.

• Durable Construction: Designed to resist vibration and shock, this industrial pressure sensor guarantees stable readings under demanding operational conditions, extending product life and minimizing downtime.

For detailed technical specifications, Click here to download the datasheet.

Wide Application Across Industries

The PCM303D general pressure transmitter is highly adaptable and widely applied in sectors such as process control, aerospace, hydraulic engineering, and pipeline monitoring. Its broad measuring range and high accuracy make it an essential tool for industrial automation and safety-critical systems.

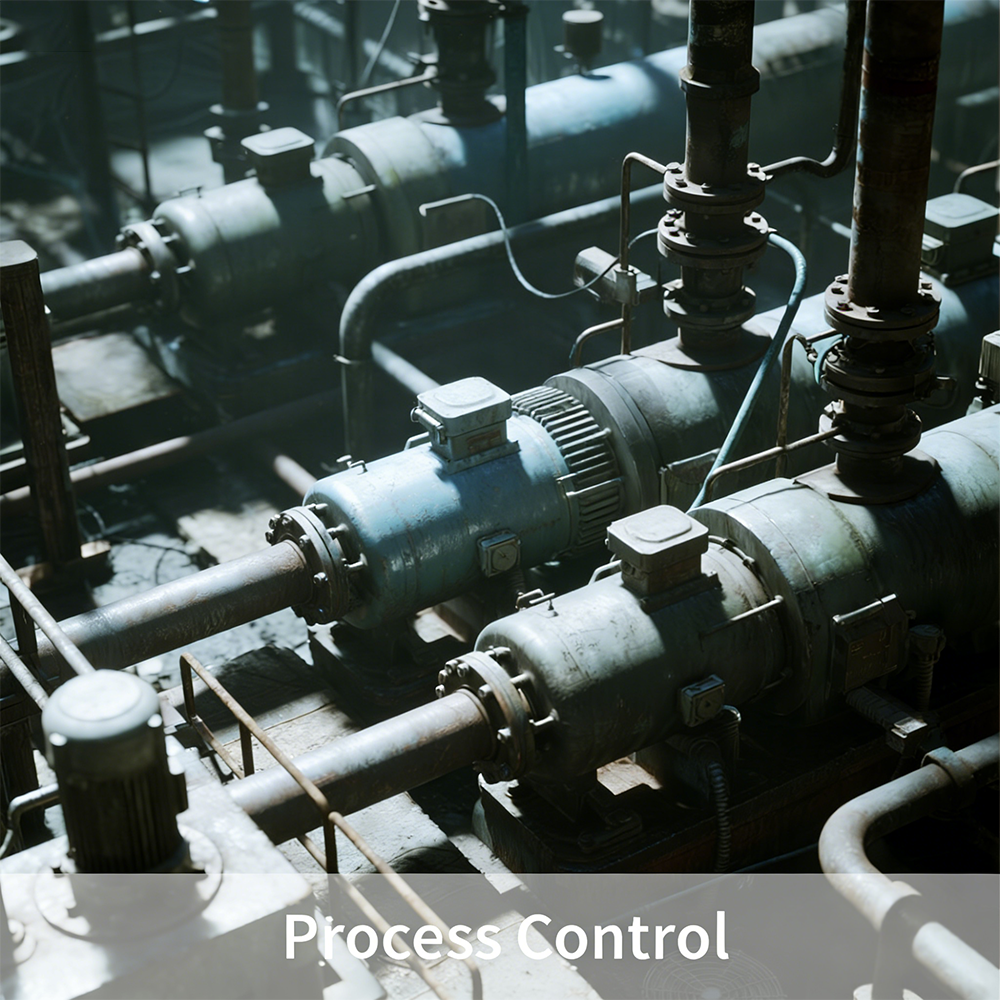

Process Control

In production lines and industrial processes, real-time pressure monitoring ensures smooth operation and improves production efficiency. The PCM303D’s fast response time and high precision make it an ideal industrial pressure transducer for detecting subtle pressure fluctuations, enabling timely process adjustments.

Aerospace

The transmitter’s anti-shock performance, wide temperature range, and high reliability make it suitable for aerospace applications. It precisely monitors pressures in fuel and hydraulic systems, maintaining flight safety even under extreme vibration or temperature fluctuations.

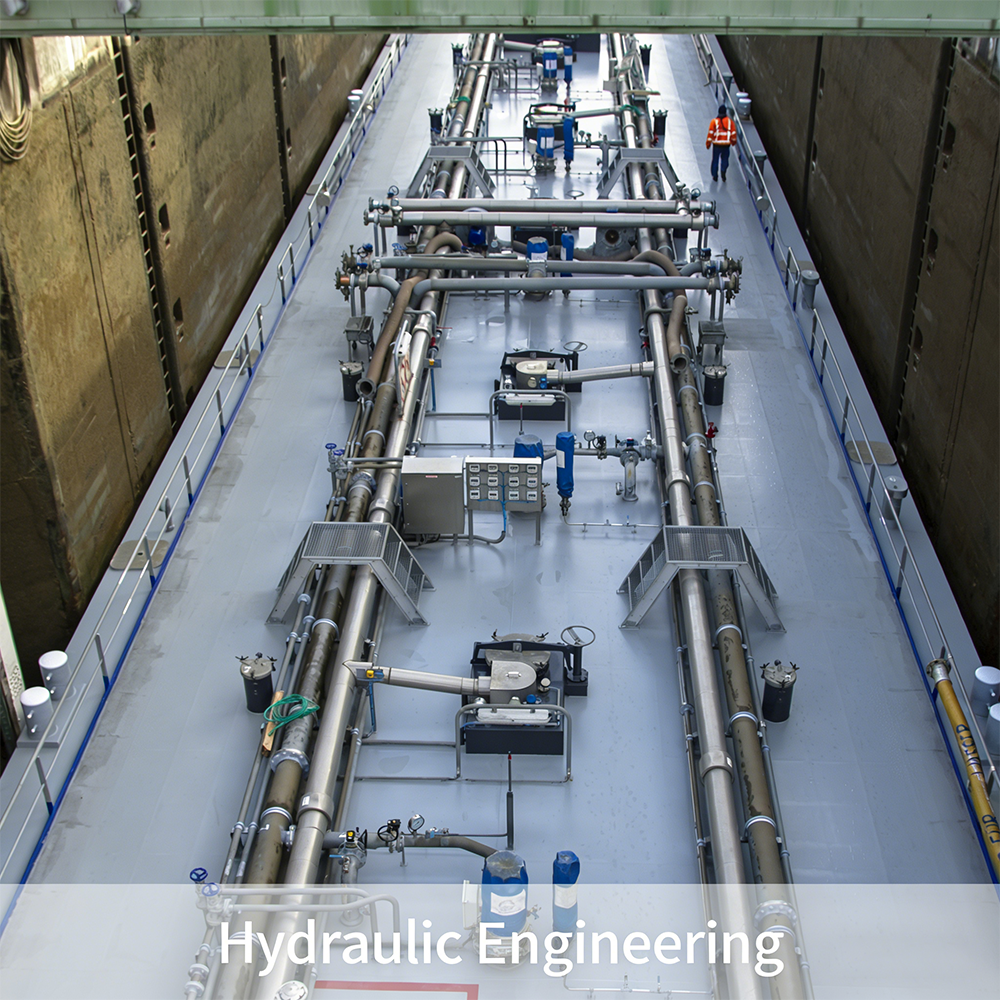

Hydraulic Engineering

Hydraulic systems require precise water pressure monitoring to ensure safe and efficient operation. The PCM303D delivers consistent measurements, helping prevent system failures and operational hazards.

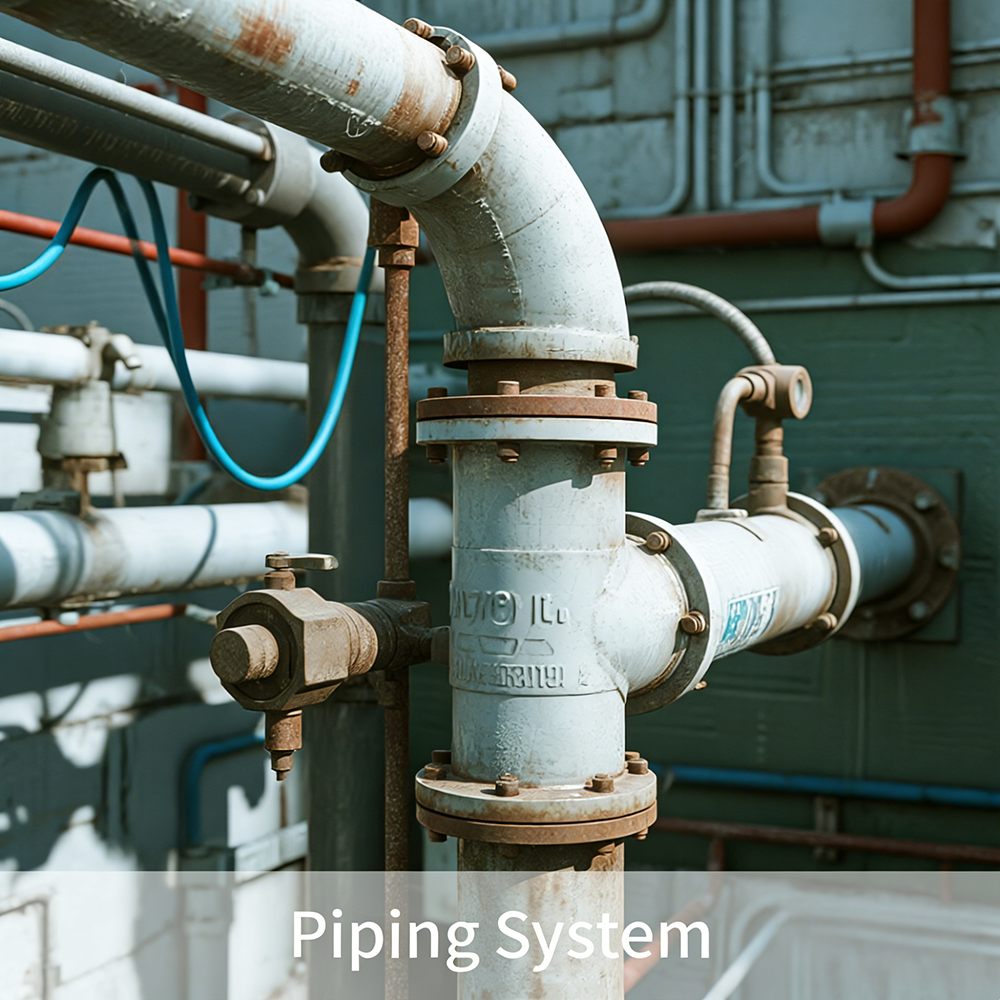

Pipeline Systems

For water supply, gas, or chemical pipelines, continuous pressure monitoring is crucial. This industrial pressure sensor quickly detects anomalies, allowing operators to prevent leaks, minimize safety risks, and maintain stable flow.

Performance Features and Specifications

The PCM303D general pressure transmitter is engineered to handle a wide range of industrial conditions, offering reliable performance where other pressure sensors may fall short:

• Wide Measuring Range: From -100 kPa to 100 MPa, supporting absolute, gauge, and sealed pressure measurement. It accurately adapts to both low- and high-pressure environments.

• High Measurement Accuracy: Accuracy reaches ±0.5%FS, with hysteresis and repeatability controlled within 0.1%FS, providing reliable data for critical system decisions.

• Rapid Response: Power-on response time ≤ 90ms (rising to 90%FS) ensures timely feedback to control systems.

• Strong Environmental Adaptability: Operates stably across ambient temperatures from -20°C to 85°C and medium temperatures from -30°C to 105°C, with excellent temperature drift control.

• High Protection and Safety Standards: IP65-rated for dustproof and waterproof performance, strong anti-interference capability, and compliance with international safety standards. Intrinsically safe explosion-proof certification (Ex ia II CT6 Ga) allows safe operation in hazardous environments.

• Long Service Life: Withstands over 1 million pressure cycles, reducing maintenance frequency and costs.

For more details about operational limits and environmental resistance, Click to learn more about technical parameters.

Why Choose the PCM303D Industrial Pressure Transducer?

The PCM303D combines performance, flexibility, and reliability, making it a preferred choice for industrial monitoring applications.

Flexible Installation

Various thread ports and electrical connection options provide straightforward integration into diverse industrial setups, reducing installation time and ensuring efficient system assembly.

Cost-Effective Long-Term Operation

High measurement precision (±0.5%FS) reduces errors that may lead to production loss. Excellent anti-interference performance and long-term stability minimize the need for frequent recalibration. Coupled with a lifespan exceeding 1 million pressure cycles, the PCM303D lowers maintenance costs without compromising performance.

Customizable Solutions

Special measuring ranges and pressure-impact scenarios can be accommodated through custom configurations, making the PCM303D ideal for personalized industrial applications.

To consult with a professional engineer about model selection or installation, Click here to contact our engineers for one-on-one technical guidance.

Certifications and Compliance

The PCM303D general pressure transmitter complies with multiple international standards, reflecting its reliability and industrial-grade quality:

• CE Certification

• ISO9001 Quality Management

• ROHS Environmental Compliance

• ATEX and Intrinsic Safety Certificates

Summary

The PCM303D General Pressure Transmitter is a high-performance, versatile industrial pressure sensor designed for process control, aerospace, hydraulic engineering, and pipeline monitoring. Its compact design, robust construction, wide measurement range, and superior accuracy make it a reliable solution for critical industrial pressure monitoring applications. Whether you need a high-precision industrial pressure transducer or a dependable general pressure transmitter for extreme conditions, the PCM303D offers unparalleled performance, durability, and flexibility.

Explore the full range of features and applications of this industrial pressure sensor at www.wtsensor.com. For an interactive product experience, Click here to view 3D VR.
