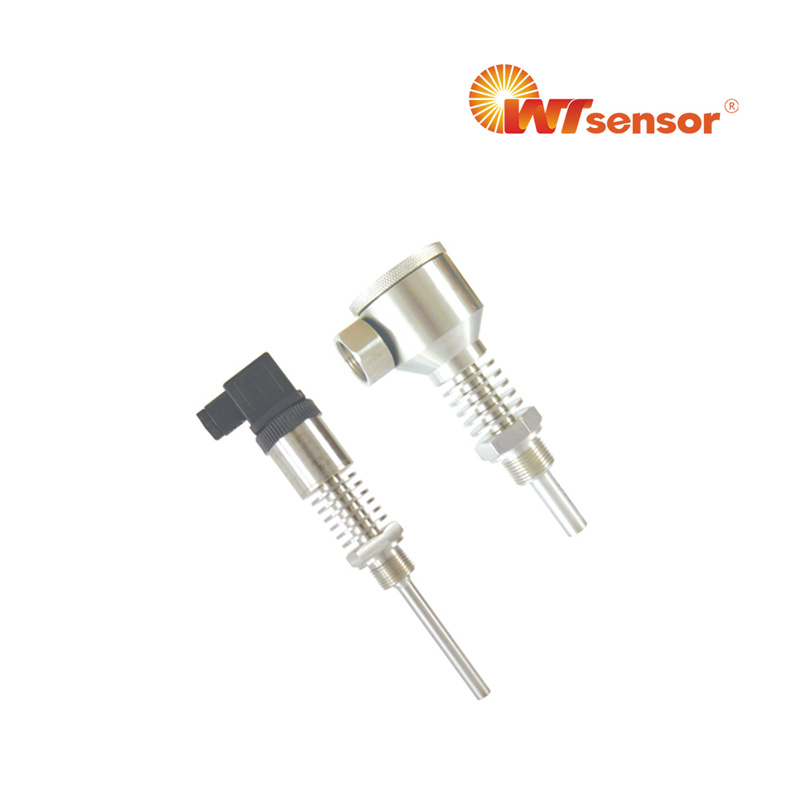

PCT200E1 Temperature Transmitter
Features
■ Movable connector, easy to install
■ High strength, high pressure resistance
■ Integrated structure
■ Long-term stable work
■ Fast response
■ Reliable structure
Applications
■ Equipment support
■ Automatic temperature measurement and control systems such as pumps, compressors, natural gas pipelines, etc.
■ Temperature measurement of water or oil in petroleum, chemical, electric power, textile, and environmental protection fields, etc.
OEM 4~20mA explosion proof temperature transmitter, PT100 platinum pump compressor gas temperature transmitter
PCT200E1 explosion proof temperature transmitter measures medium temperature of -50℃~250℃ by using platinum resistance with supply 24VDC and output 4-20mA. The insertion length is 30mm to 150mm and diameter 8mm. The shell is all stainless steel, featuring with small size, fast thermal response
Product Parameters
Performance parameters | |||
Temperature range | -50℃~250℃ | ||
Supply & output | 4~20mA(16~36VDC) | ||
Accuracy | ±0.5%FS(typ.) | ||
Sensing element | Pt100 Grade A | ||
Insulation strength | 100MΩ/250VDC | ||
Response time | ≤30s | ||
Long term stability | ≤0.2%FS/year | ||
Insertion diameter | Φ8mm | ||
Storage temp. | -40℃~85℃ | ||
Electrical connection | DIN43650 | ||
Protection | IP65 | ||
Material | 304 | ||
Max. mounting torque | 25Nm | ||
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
