PCT380 Smart Temperature Transmitter
Features
■ Can convert all inputs to 4-20 mA
■ Input: thermocouples, RTD, resistance or voltage
■ Configuration directly via PDA or PC
■ Build-in cold junction compensation
■ Available with screw-in temperature probe
4-20 mA 1-5V smart temperature transmitter module, 0.1% accuracy head mount temperature transmitter with hart

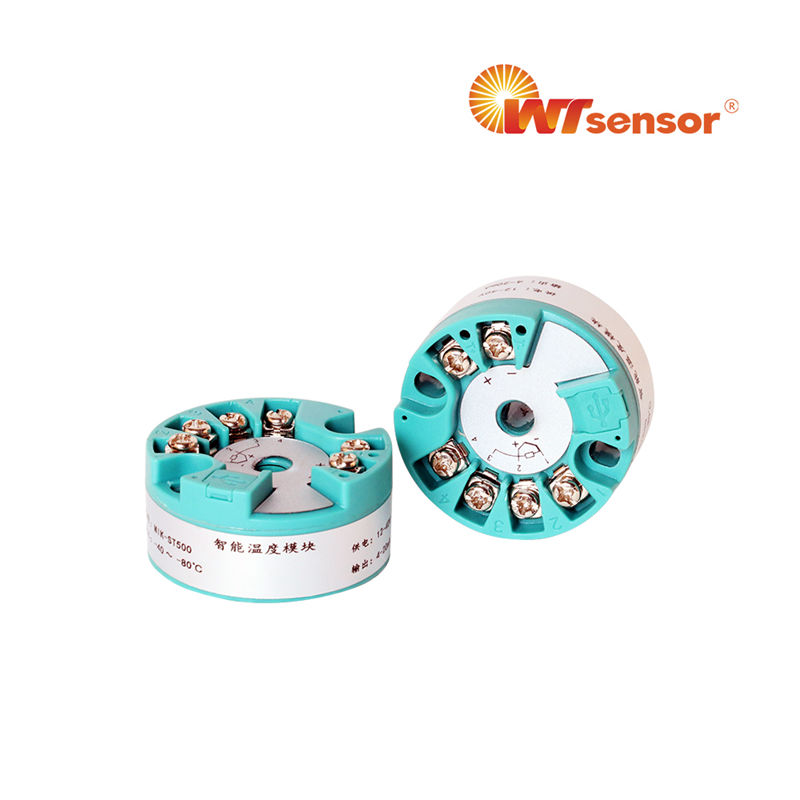

PCT380 smart intelligent head mount temperature transmitter module or temperature sensor has inputs of thermocouples, RTD, resistance or voltage, and output 4-20mA or 1-5V customized. Configuration is directly via PDA or PC, available with screw-in temperature probe. Accuracy is ≤0.1%F.S.
Product Parameters
Main parameters | |||||
Accuracy | ≤0.1%F.S. | ||||
Power supply | 12-40V | ||||
Signal input | RTD TC resistance mV | ||||
Signal output | 4-20mA | 1-5V(customized) | ||||
Digital communication | Hart protocol | ||||
Response time | ≤1s | ||||
Operating temp. | -40ºC-85ºC | ||||
Ingress protection | 4g^2-150Hz | ||||
Cold junction compensation | Build-in | ||||
Configuration | PAD or PC | ||||
RTD temperature probes | |||||
Description | Measuring range ℃ | Minimum measuring range | Connection type | ||
PT100 | -200 | 850 | 10K | Three-wire | |
Cu50 | -50 | 150 | 10K | Three-wire | |
Thermocouples | |||||
Description | Measuring range ℃ | Minimum measuring range | Connection type | ||
B | 400 | 1820 | 500K | Two-wire | |
E | -100 | 1000 | 50K | Two-wire | |
J | -100 | 1200 | 50K | Two-wire | |
K | -180 | 1372 | 50K | Two-wire | |
N | -180 | 1300 | 50K | Two-wire | |
R | -50 | 1760 | 500K | Two-wire | |
S | -500 | 1760 | 500K | Two-wire | |
T | -200 | 400 | 50K | Two-wire | |
RTD temperature probes | |||||
Description | Measuring range Ω | Minimum measuring range | Connection type | ||
Resistance transmitter | 0 | 4500 | 500K | Two-wire | |
