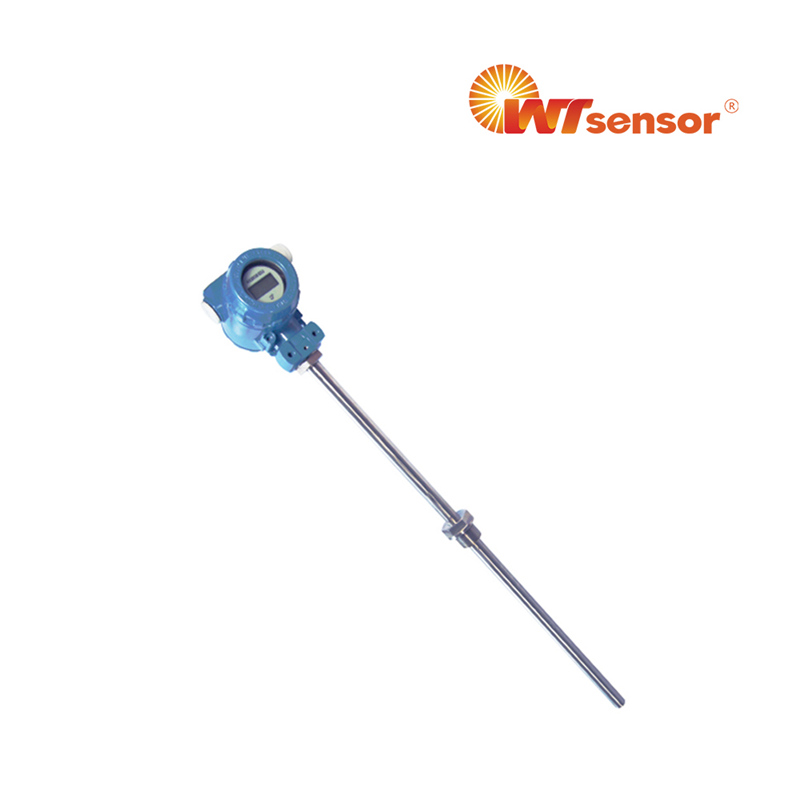

PCT400 Temperature Transmitter
Features
■ Anti-vibration
■ High strength, high pressure resistance
■ Integrated structure
■ Can ensure long-term stable work
■ Fast response
■ Easy to install, can ensure long-term stable work
Applications
■ Equipment matching
■ Pump and compressor, natural gas pipe network and other automatic temperature measurement and control system
■ Temperature measurement for the water or oil in the fields such as petroleum, chemical industry, electricity, light textile, environmental protection etc.
4-20mA Hart pump compressor temperature transmitter,PT100 Φ8mm gas pipe temperature transmitter with display
PCT400 temperature transmitter with display measures temperature range from -50℃ to 250℃ with 4-20mA hart output using PT100 as sensing element. Insertion depth from 30mm to 150mm, diameter 8mm. The Temperature sensor is applicable to pump, compressor, natural gas pipe network, water, oil, etc.
Product Parameters
Performance parameters | |||
Pressure range | -50℃～250℃ | ||
Supply & output | 4～20mA(16～36VDC) | ||
4～20mA＋HART protocol (16～36VDC) | |||
Accuracy | ±0.5%FS(typ.) | ||
Sensitive element | Pt100 Grade A | ||
Insulation strength | 100MΩ/250VDC | ||
Response time | ≤30s | ||
Long-term stability | ≤0.2%FS/year | ||
Placement diameter | Φ8mm | ||
Storage temp. | -40℃～85℃ | ||
Electrical connection | 2088 | ||
Protection grade | IP65 | ||
Material | 304 | ||
Maximum mounting torque | 25Nm | ||
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
