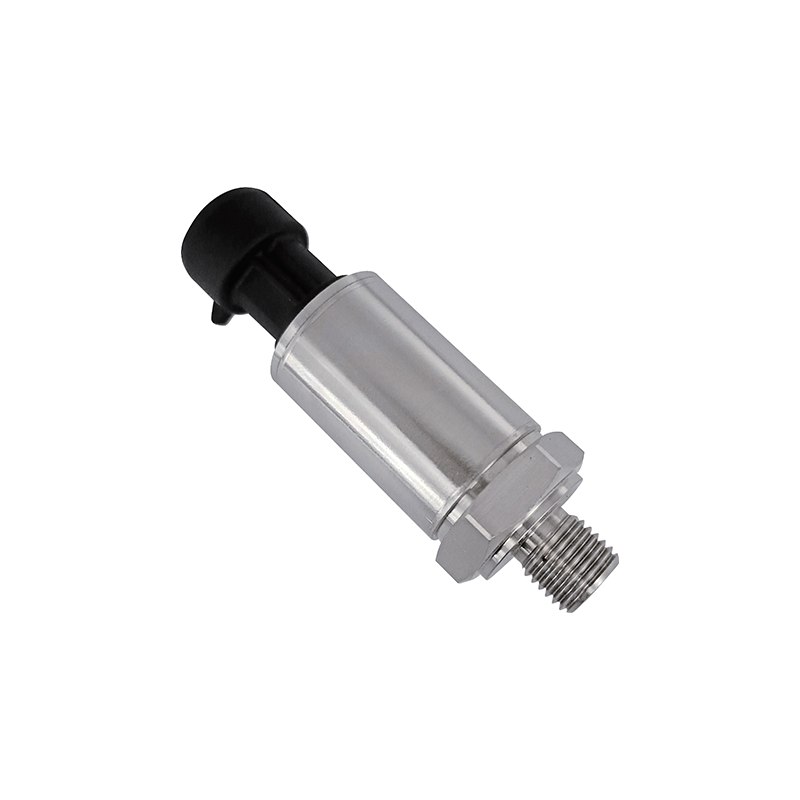

PCM3502 Hydrogen Pressure Transmitter

Product Description

This series of sensors is a glass micro-fused pressure transmitter developed by Wotian Technology specifically for measuring hydrogen. PCM3502 is made of 316L material. It features hydrogen permeation resistance and excellent stability, with a variety of output intrfaces available. The product also has a unique integrated structure that  eliminates leakage risks, offering good vibration and shock resistance. It is widely used in the hydrogen-powered vehicle and hydrogen measurement industries.

Features

Fully stainless steel structure

Reliable performance

Small size and light weight

Protection level IP65

Integrated structural design, no leakage risk

Mature technology, suitable for mass production

Vibration and shock resistance

Application and Industry

Pneumatic control

Hydrogen measurement

Hydrogen-powered vehicles

High-pressure pneumatic control system


Product Parameters

Performance parameters

Pressure range

0~2.5MPa...70MPa

Insulation resistance

≥100MΩ / 250VDC

Accuracy

±0.5 %FS (@25 ± 5℃)

Full temperature range accuracy

±1.5 %FS (@-20~85℃)

Response time

≤90 ms

Overload pressure

2 × pressure range

Burst pressure

4 × pressure range

Durability

≥106 pressure cycles

Operating temperature

-40℃~125℃

Storage temperature

-40℃~125℃

Shock & vibration

20g (20Hz to 2400Hz)

EMC

CISPR25: 2008 CE conducted emission

CISPR25: 2008-6.4 RE radiated emission

CISPR25: 2008-6.4 BCI high current injection

ISO 7637-2:2011 CI power line pulse

ISO 7637-2:2011 CTE pulse emission

ISO 7637-2:2011 MFI low-frequency magnetic field immunity

ISO 7637-3:2007 ICC signal line pulse

ISO 7637-3:2007 CCC signal line pulse

Protection level

IP65 (Round Packard can meet IP67)

Media compatibility

Hydrogen and various media compatible with 316L stainless steel
