PCM601: Precise Micro-Gas Wind Differential Pressure Transmitter

Core Features & Technical Advantages

The PCM601 is thoughtfully engineered to solve the most common pain points in industrial pressure measurement, with key features designed to prioritize reliability, ease of use, and performance. Each feature is tailored to meet the unique needs of industrial operators, ensuring seamless integration into existing systems and minimal maintenance requirements:

• Integrated Display & Smart Calibration: Equipped with an integrated display and on-site debugging interface, the PCM601 supports convenient zero-point clearing and linear correction without the need for complex external equipment. This feature allows on-site engineers to maintain optimal accuracy quickly, reducing maintenance time and minimizing operational downtime—critical for 24/7 industrial operations.

• Easy, Leak-Proof Installation: The transmitter features a 10mm barb structure paired with an M10 thread interface, enabling quick and secure mounting directly on measuring pipes or via pressure tubing. This design eliminates the need for specialized tools, reduces installation time by half, and ensures a tight, leak-proof connection—essential for micro-gas differential pressure measurement, where even minor leaks can skew readings and compromise operational efficiency.

• Precision Measurement Performance: The PCM601 offers a highly customizable pressure range, with a minimum adjustable range of 0~200Pa and a maximum range of 100kPa, covering the needs of most industrial micro-pressure applications. It delivers exceptional accuracy: ±1%FS for 500Pa and 1kPa ranges, and ±0.5%FS for 2kPa to 100kPa ranges (at 25±5℃), ensuring reliable data for critical industrial processes.

• Rugged Durability for Harsh Environments: Built with a high-strength aluminum alloy housing, the PCM601 boasts an IP65 protection rating, making it dust-tight and resistant to low-pressure water jets. It also features 20g vibration resistance (20~5000Hz) and 100g shock resistance (11ms), along with a wide operating temperature range of -20℃~60℃, making it suitable for outdoor installations, power plants, and coal mines.

• Comprehensive Protection & Long-Term Stability: To prevent electrical damage, the PCM601 includes built-in short-circuit and reverse polarity protection, safeguarding the device from wiring errors or unstable power supplies. It also features full-range temperature compensation for both zero and sensitivity (±3%FS from 0℃ to 50℃), eliminating reading drift caused by temperature fluctuations. With a long-term stability of ±0.2%FS/year and a durability rating of 10⁶ cycles, the PCM601 requires minimal recalibration, reducing maintenance costs over its lifecycle.

Technical Specifications

The PCM601’s technical specifications are tailored to meet the rigorous demands of industrial micro-gas differential pressure measurement, with all parameters verified by third-party industrial certification bodies to ensure accuracy and reliability:

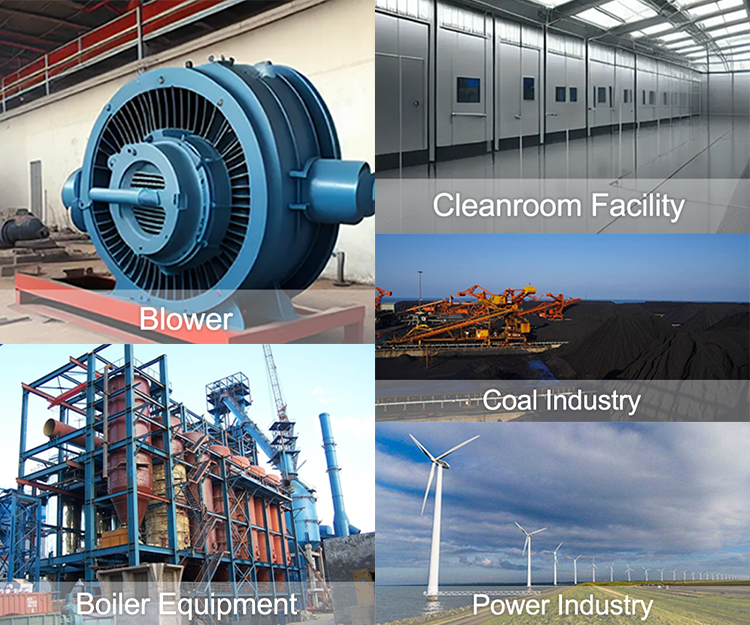

Key Applications

The PCM601 is a versatile solution designed to meet the unique pressure measurement needs of multiple industrial sectors, with proven performance in real-world applications backed by our clients’ success stories:

• Power & Coal Industry: In power plants and coal mines, the PCM601 plays a critical role in optimizing efficiency and ensuring safety. It is widely used for boiler air supply optimization, where it monitors intake differential pressure to regulate combustion airflow—helping clients improve fuel efficiency by up to 15% and reduce harmful emissions. It also supports underground ventilation control, ensuring consistent airflow in mine tunnels to prevent hazardous gas buildup, with coal industry clients reporting a 30% reduction in ventilation-related safety incidents.

• Cleanrooms: Ultra-clean factories (such as semiconductor, pharmaceutical, and food processing facilities) require strict pressure control to prevent contamination. The PCM601’s ultra-low customizable range (down to 0~200Pa) makes it ideal for maintaining precise positive/negative pressure differentials, ensuring sterile environments and compliance with industry standards like ISO 14644. It also monitors filter differential pressure across HVAC systems, alerting maintenance teams when filters need replacement to reduce energy waste.

• Industrial Process Control: Beyond power and cleanroom applications, the PCM601 is well-suited for general industrial process control, including dust removal systems and filtration monitoring. Its fast response time (≤100ms) and high stability ensure accurate readings even in dynamic industrial processes, helping businesses maintain consistent operational efficiency and meet environmental compliance requirements.







Why Choose the PCM601?

In a market saturated with generic pressure transmitters, the PCM601 stands out as a specialized, reliable solution for micro-gas differential pressure measurement. Its unique combination of precision, durability, and user-friendliness makes it the preferred choice for industrial professionals. Backed by our team of MEMS technology experts with over 20 years of experience, ISO 9001 certification, an 18-month warranty, and 24/7 technical support, the PCM601 offers unmatched value. It outperforms generic transmitters with its micro-pressure precision, easy installation, and low total cost of ownership, making it a long-term, cost-effective solution for your industrial measurement needs.

Frequently Asked Questions (FAQ) – Addressing Common User Concerns

Our team of industrial sensor experts has compiled the most common questions about the PCM601, based on feedback from our clients and industry inquiries:

Q1: What is the minimum pressure range the PCM601 can measure?

A1: The PCM601 supports a customizable minimum pressure range of 0~200Pa, making it ideal for ultra-low micro-gas differential pressure applications (e.g., cleanroom pressure control, laboratory monitoring).

Q2: Can the PCM601 be used in outdoor or harsh environments?

A2: Yes. With an IP65 protection rating, high-strength aluminum alloy housing, and wide operating temperature range (-20℃~60℃), the PCM601 performs reliably in outdoor installations, power plants, and coal mines—even in dusty, moist, or high-vibration settings.

Q3: What output signal does the PCM601 provide, and is it compatible with industrial control systems?

A3: The PCM601 delivers a standard 4~20mA analog output, which is compatible with most industrial PLCs, DCS, and control systems—no additional adapters or modifications are needed.

Q4: How often does the PCM601 need to be recalibrated?

A4: Thanks to its long-term stability of ±0.2%FS/year, the PCM601 typically only needs recalibration every 1~2 years—significantly less frequently than generic transmitters, reducing maintenance costs and downtime.

Q5: Can I customize the PCM601 to meet my specific application needs?

A5: Yes. We offer custom pressure ranges (minimum 0~200Pa up to 100kPa) and can adjust specifications to fit unique industrial requirements.

Contact our technical support team for personalized solutions.
